Nady MSC3 Microphone Stand Kit User Manual

1. Introducere

This manual provides instructions for the proper setup, operation, and maintenance of your Nady MSC3 Microphone Stand Kit. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

2. Conținutul pachetului

Verificați dacă toate articolele enumerate mai jos sunt prezente în colet:

• Nady Dynamic Microphone
• Adjustable Tripod Microphone Stand
• Clip pentru microfon
• 15 ft XLR to 1/4" (6.35mm) Audio Cable

Image: Complete Nady MSC3 Microphone Stand Kit components.

3. Instrucțiuni de configurare

Follow these steps to assemble and prepare your microphone stand kit for use:

1. Asamblați suportul trepiedului:

   Unfold the tripod legs of the microphone stand until they are fully extended and stable. Adjust the height of the stand by loosening the height adjustment clutch, extending the upper shaft to the desired height, and then tightening the clutch securely.
2. Atașați clema microfonului:

   Screw the microphone clip onto the threaded top of the stand's upper shaft. Ensure it is tightened firmly to prevent the microphone from rotating or falling.

3. Introduceți microfonul:

   Gently insert the Nady dynamic microphone into the microphone clip. The clip is designed to hold the microphone securely.

4. Conectați cablul audio:

   Connect the XLR end of the provided 15 ft cable to the XLR input port at the bottom of the microphone. Connect the 1/4" (6.35mm) end of the cable to the microphone input of your audio interface, mixing console, digital recorder, or ampmai în viață.

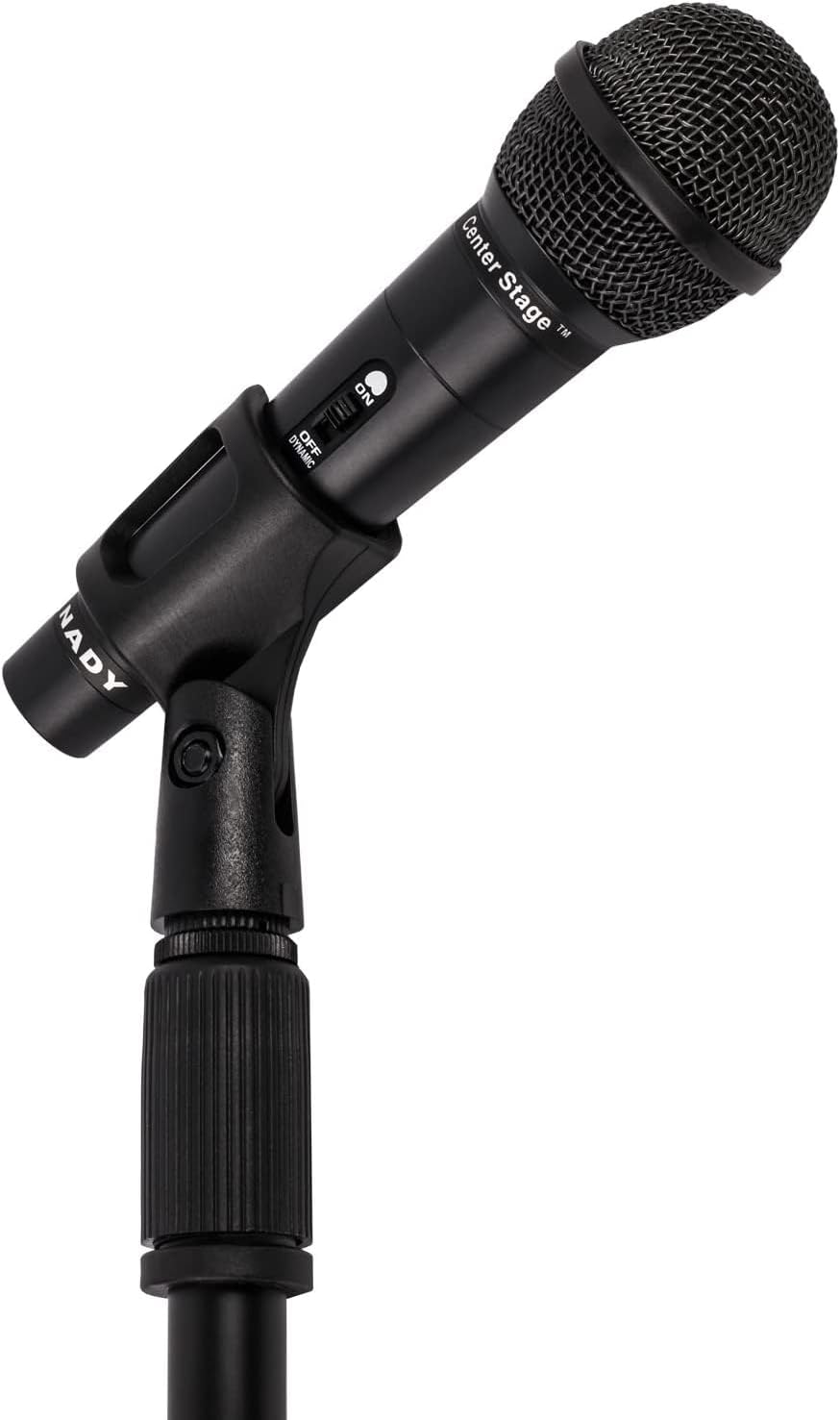

Image: Nady microphone mounted on the adjustable stand.

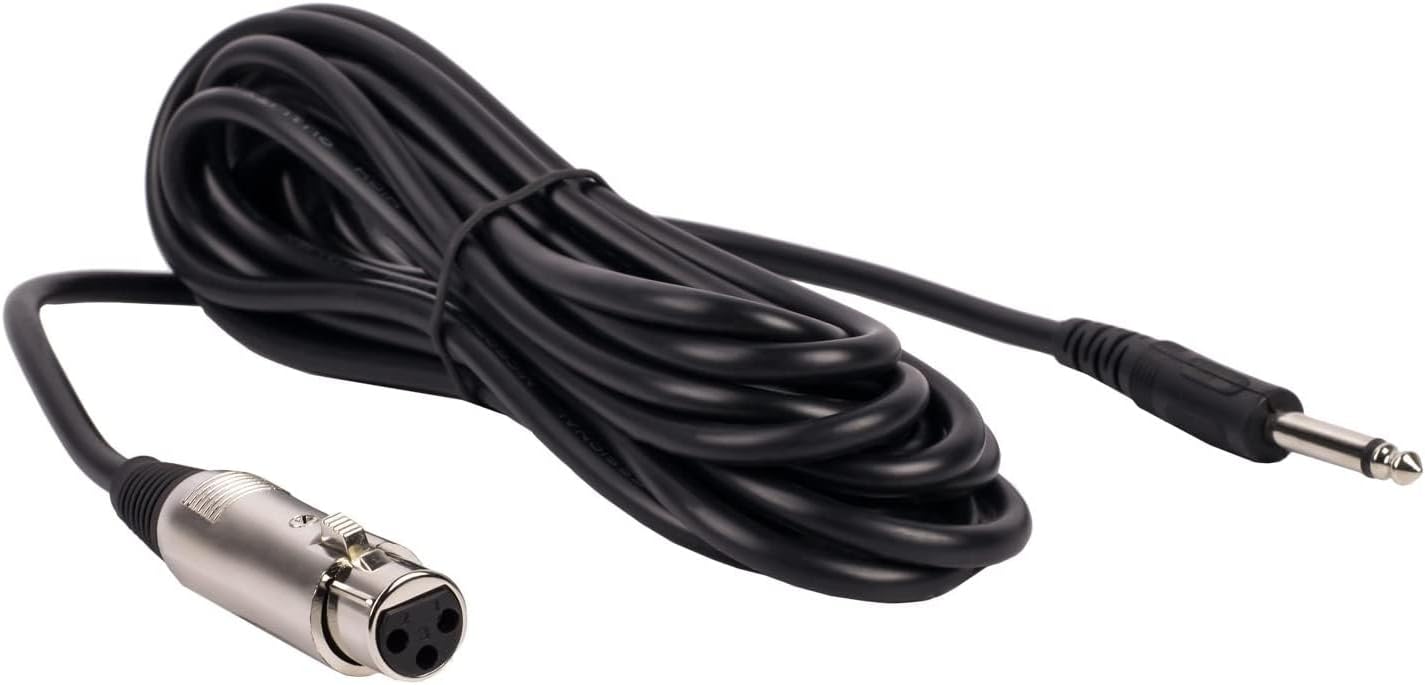

Image: The included 15 ft XLR to 1/4" audio cable.

4. Instrucțiuni de utilizare

Once assembled, operate your Nady microphone kit as follows:

1. Comutator pornit/oprit microfon:

   Locate the ON/OFF switch on the microphone body. Slide the switch to the 'ON' position to activate the microphone. Slide it to 'OFF' when not in use to prevent unwanted noise or feedback.

2. Audio Device Connection:

   Ensure your audio device (mixer, amplifier, etc.) is powered on and its input volume for the microphone channel is set to a low level before increasing it gradually to avoid sudden loud sounds.
3. Poziționarea microfonului:

   Position the microphone approximately 2-6 inches from the sound source for optimal vocal or instrument pickup. Experiment with distance and angle to achieve the desired sound quality.

Image: Nady microphone with visible ON/OFF switch.

5. Întreținere

Proper maintenance ensures the longevity and performance of your microphone kit:

• curatenie: Use a soft, dry cloth to wipe down the microphone and stand. Avoid using liquid cleaners or solvents, as they may damage the finish or internal components.
• Depozitare: When not in use, store the microphone and stand in a dry, cool place, away from direct sunlight and extreme temperatures. Disassemble the stand for compact storage if needed.
• Îngrijirea cablului: Avoid kinking or sharply bending the audio cable. Coil it loosely when storing to prevent damage to the internal wiring.

6. Depanare

Dacă întâmpinați probleme, consultați următoarele probleme și soluții comune:

7. Specificații

Key technical specifications for the Nady MSC3 Microphone Kit (Model Nad-6572):

• Factor de formă a microfonului: De mână
• Model polar: Unidirecțional
• Tehnologie de conectivitate: XLR
• Tip conector: XLR to 1/4" (6.35mm)
• Impedanta: 600 ohmi
• Sensibilitate audio: 55 de decibeli
• Raport semnal-zgomot: 60 dB
• Raspuns in frecventa: Până la 20 KHz
• Sursa de alimentare: Corded Electric (via audio device)
• Material: Metal
• Greutate articol (kit): Aproximativ 3.7 de lire sterline
• Utilizări recomandate: Cântând, Karaoke
• Dispozitive compatibile: Audio Interfaces, Mixing Consoles, Digital Recorders, Ampliificatori

8. Garanție și asistență

For warranty information or technical support regarding your Nady MSC3 Microphone Stand Kit (Model Nad-6572), please refer to the documentation included with your purchase or visit the official Nady webContactați serviciul lor de asistență pentru clienți pentru asistență cu privire la problemele legate de produs sau întrebări.
