TAO 1mini 2K Streaming Node
Owner’s Manual
Device interface
Interface
| Input | HDMI 2.0 UVC |
1×HDMI-A 1×USB-C |
| Output | HDMI 2.0 | 1×HDMI-A |
| Communication | Input | 1×3.5mm audio socket |
| Power | LAN(PoE) USB 3.0 |
1×RJ45 1×USB-A |
| Audio | Type-C LAN(PoE) |
1×PD Type-C 1×RJ45 |
Power
| Mode | PoE, PD |
| Input voltage | 5~12V |
| Maximum power | 10W |
Working Environment
| Temperature | 0 ℃~55 ℃ |
| Humidity | 5%~85% |
Physical
| Product Weight | 160g |
| Package Weight | 780g |
| Product Dimension | 91mm(diameter)×40.8mm(height) |
| Package Dimension | 215mm x 145mm x 80mm |
In the Box
TAO 1mini
Welcome Card
USB-C Cable
International Socket Adapters
Performance
| HDMI 2.0 input | |
| Input resolution | 720p@50/60, 1080i@50/60, 1080p@30/50/60, 1280×720@50/60, 1280×768@60, 1280×1024@60, 1360×768@60, 1366×768@60 , 1600×900@60, 1920×1080@50/60 3840×2160@60 |
| Format | RGB/YUV 4:2:0/4:2:2 |
| Bit depth | 8 bit/10 bit |
| Pixel format | BT.601 | BT.709 |
| Image delay | 3 frames |
UVC/Type C input
| Input resolution | 1024×768@60, 1280×720@50/60, 1280×768@60, 1280×1024@60, 1360×768@60, 1920×1080@24/25/30/50/60 |
| Decoding performance | MJPEG/YUV | H.264 | H.265 |
Audio Input
| Audio delay setting | 0~160ms |
| Analog audio input | MIC/LINE |
| Maximum input level | +6dBV |
LAN
| Coding performance | Support MJPEG\YUV,H.264,H.265 |
| Speed mode | CBR,VBR,FIXQP,AVBR,QPMAP |
| NDI coding | FULL NDI, 4K@60 |
| NDI decoding | FULL NDI, 4K@60 |
| RTMP/SRT coding | Support streaming software |
| Maximum output speed | 125Mbps |
HDMI 2.0 output
| Output resolution | 720×480@30, 1280×720@30, 1920×1080@30/60, 3840×2160@60 |
| Audio | Embedded audio output |
Order Codes
| 410-5513-05-1 | TAO 1mini |
NDI is the abbreviation of Network Device Interface, which is a broadcast-quality, low-latency open IP network interface protocol launched by New Tek. As the world’s leading network audio and video codec technology, NDI is favored by more and more professional audio and video technicians.
TAO 1mini supports HDMI&UVC and FULL NDI gigabit Ethernet video stream codecs for encoding and decoding. Round appearance, simple and elegant, easy to carry, with standard camera screw holes, can be easily installed to the camera bracket. The device has a 2.1-inch TFT touch screen for real-time monitoring of signals and menu operations. Support tally lights, support U disk recording, support PoE and other functions.
 Compact in form |
 low latency |
 power via PoE |
 LED TALLY indicators |
| NDI® codec support |  live previews & recording |
 power from USB-C PD |
 Up to 4K UHD without compromise |
 Dual ¼in mounts |
 RTMP\RTMPS protocols |
 Stream to at least 4 platforms via TAO APP |
Why choose NDI?
NDI® is a broadcast-quality, low-latency video streaming protocol over Gigabit networks.
With low loss, low latency, more stable
NDI®& NDI/ HX Codec integration
TAO 1mini not only supports 4K Full NDI but also NDI|HX, it is an all-in-one codec machine
Professional IP production equipment
Both encoding and decoding support up to 4K (UHD) video resolution, and are backward compatible with resolutions such as HD/SD. Adopt MJPEG\YUV, H.264 to ensure high quality video transmission
Multi-platform live streaming
TAO 1mini can not only convert 4K HDMI\UVC signals into NDI\RTMP\SRT, but also a network push streaming device that can realize simultaneous live broadcast of 4 platforms.
Power via PoE Ethernet
At the same time, it supports Power over Ethernet (PoE), PD input, and can use a mobile power supply to power the device. Only one network cable can realize power supply and network transmission.
 |
 |

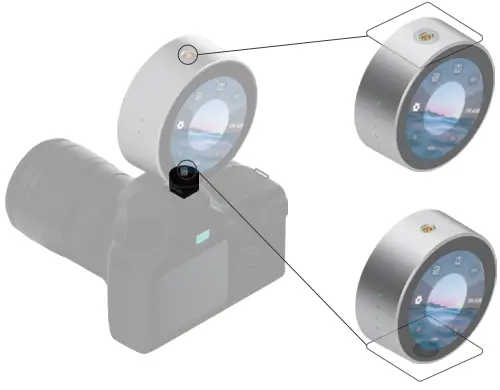

| Easy to install TAO 1mini has double-rack screw holes, allowing you to enjoy a variety of installation experiences according to different scenarios. |
Portable and stable Exquisite and portable, it has a built-in ultra-thin large-diameter cooling fan to help cool the device. |
 |
 |
| One-click recording The USB3.0 interface supports up to 64G U disk or 2T SSD solid state drive, and realizes high- quality audio and video recording function with one key. |

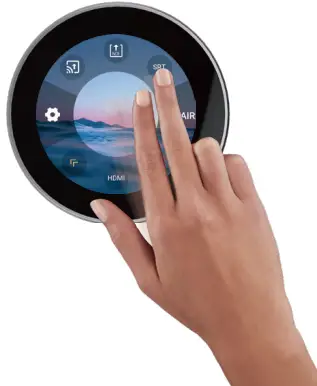

The 2.1-inch full-color touch monitoring screen can not only monitor the signal in real time, but also control it quickly. Monitor and touch |
 |
 |
