RENESAS FPB-R9A02G021 Fast Prototyping Board User Guide

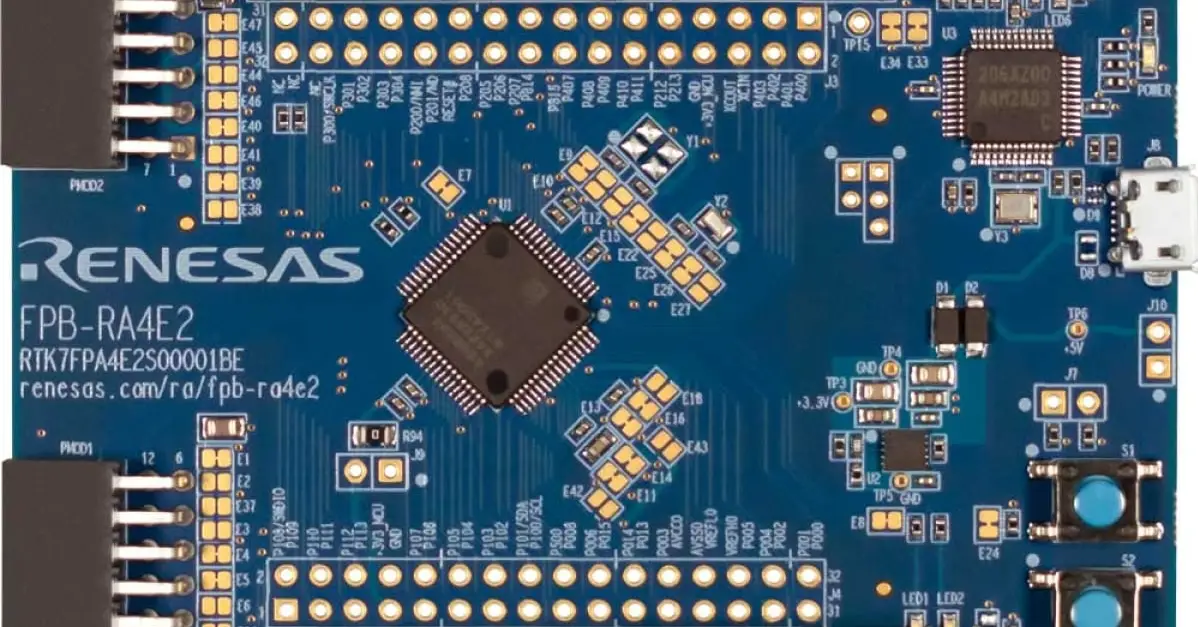

RENESAS-FPB-R9A02G021-Fast-Prototyping-Board-User-Guide-product

Introduction

The FPB-R9A02G021 Fast Prototyping Board provides an entry point for evaluation, prototyping and development with the R9A02G021 MCU. Moreover, since this board incorporates an emulator circuit, you can use it for designing your own applications without further investments in tools. This product includes through-holes for pin headers that allow access to all MCU signal pins, allowing easy prototyping with a breadboard.
Getting started is Easy!
  1. Power up the FPB-R9A02G021 board through the Debug USB port (J17: Type-C) using an USB cable connected to a 5V power source like a PC USB port.
  2. The green power LED3 will light up.
  3. The pre-programmed ‘blinky example project’ will begin to execute blinking the green user LEDs LED1 and LED2.

Package Contents

  • FPB-R9A02G021 v1 Board (RTK9FPG021S00001BJ)
  • Printed Quick Start Guide
  • Printed information for China RoHS

Specifications

  • Evaluation MCU: R9A02G0214CNE
  • On-chip memory: 128-KB ROM, 16-KB RAM, 4-KB data flash memory
  • Board size: 55 mm x 95 mm
  • Power-supply voltage: VCC 3.3 V, MCU operation voltage range 1.6 V to 5.5 V
  • Power-supply circuit: Push switch
  • USB connector: VBUS (5 V input), VBUS converted to 3.3 V by linear regulator
  • LEDs: Power indicator (green x 1), user (green x 2), Debug LED (yellow x 1)
  • Connectors: USB Type-C, PmodTM connector, MCU header

Board Specifications

Item Specification
Evaluation MCU Part No: R9A02G0214CNE; package: 48-pin HWQFN
On-chip memory: 128-KB ROM, 16-KB RAM, 4-KB data flash memory
Board size Size: 55 mm x 95 mm
Power-supply voltage VCC: 3.3 V. MCU operation voltage range 1.6 V to 5.5 V.
Power-supply circuit USB connector: VBUS (5 V input); VBUS is converted to 3.3 V by linear regulator.
2-pin external power-supply header*1
Push switch Reset switch x 1; user switch x 1
LED Power indicator: green x 1, user: green x 2, Debug LED: yellow x 1
USB connector Connector: USB Type-C
Pmod™ connector Connector: Angle type, 12 pins x 2
Arduino® connector Connector: 6 pins x 1, 8 pins x 2, 10 pins x 1

The interface is compatible with Arduino® UNO R3.
Grove® connector *1 Connector: Angle type, 4 pins x 1
MCU header*1 Header: 24 pins x 2
    1. This part is not mounted
  1. Board LayoutRENESAS-FPB-R9A02G021 Fast Prototyping Board-fig- (1)
  2. Arduino InterfaceRENESAS-FPB-R9A02G021 Fast Prototyping Board-fig- (5)
  3. Pmod Interface
    The FPB-R9A02G021 Fast Prototyping Board has Pmod 1 connector for Type-2A, Type-3A and Type-6A interface and Pmod 2 for Type-3A and Type-6A interface.RENESAS-FPB-R9A02G021 Fast Prototyping Board-fig- (4)
  4. Starting the Blinky Example Project
    The green power LED3 will light up, and the pre-programmed ‘blinky example project’ will begin to execute, blinking the green user LEDs LED1 and LED2.
  5. Grove InterfaceRENESAS-FPB-R9A02G021 Fast Prototyping Board-fig- (3)

WEB and Support

  1. For detailed information on the FPB-R9A02G021 board, please refer to the FPB-R9A02G021 User’s Manual available at renesas.com/risc-v/fpb-r9a02g021.
  2. Renesas provides sample projects for various features of the R9A02G021 MCU. These sample projects can be used as a reference when starting application development. For application development, the integrated development environment e2 studio, the compiler package LLVM for RISC-V and Renesas Flash Programmer must be installed on the host PC. These are available for download at renesas.com/risc-v/fpb-r9a02g021.

RENESAS-FPB-R9A02G021 Fast Prototyping Board-fig- (2)

FAQ

Q: How do I power up the FPB-R9A02G021 board?
A: You can power up the board through the Debug USB port (J17: Type-C) using a USB cable connected to a 5V power source like a PC USB port.

Q: What is included in the package contents?
A: The package includes the FPB-R9A02G021 v1 Board, Printed Quick Start Guide, and Printed information for China RoHS compliance.
