RGB Cooling HAT Intelligent Control of Fan Speed Real Time Display of Status
Owner’s Manual
Intelligent control of fan speed Real time display of status
RGB Cooling HAT Intelligent Control of Fan Speed Real Time Display of Status
(For Raspberry pi 4B/3B+/3B)
Five functions
 |
Board protection |
 |
Active cooling |
 |
Real time status display |
 |
External extension |
 |
Programming RGB light |
Configuration
Standard Version (including OLED screen)

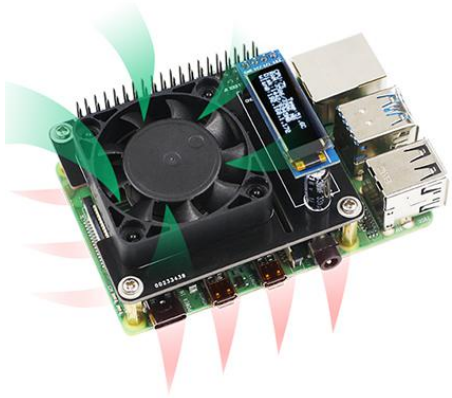

The standard version includes OLED display, which can display the running status of Raspberry Pi in real time. (such as memory. CPU, temperature, IP address. hard disk capacity, etc.)
Real time display of Rasperry Pi status
OLED screen can display CPU temperature, CPU utilization, hard disk space, RAM, IP address.
Real time reading temperature
Intelligent active cooling

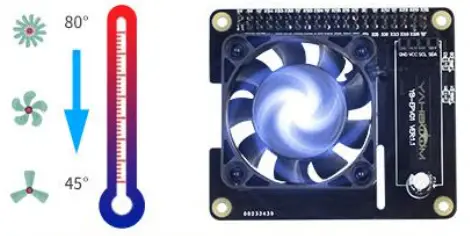

According to the CPU temperature, intelligently adjust the fan speed to make the Raspberry Pi work stably.
Fan speed can be set freely
The default speed of exit is set as follows. The fan speed in each temperature zone can be set to meet various usage scenarios.
Fan speed can be set freely
Supplied drive package, which is suitable fo pi4B/3B/3B+ image
| Temperature | Fan speed |
| 50°C | 50% |
| 55°C | 75% |
| 60°C | 90% |
| 65°C | 100% |
Programmable RGB light

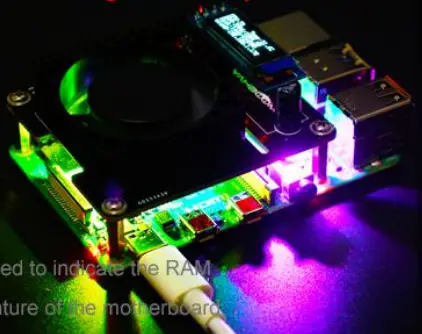

The temperature control expansion board has three high-bright RGB programming lights on the board. The RGB lights can be programmed toemit different colors. The RGB ..91., be used to inc..„„L, the RAM usage, CPU usage and to Terature of the motherboard.
#The RGB light color can be used to usage, CPU usage and 4′ merat
Provides multiple light mode commands
Equipped with 3 high brightness programmable RGB lights
Raspberry Pi 10 interface out
The expansion board leads out all 10 ports of Raspberry Pi. It can be used after plugging.
Large size cooling fan Stronger heat dissipation

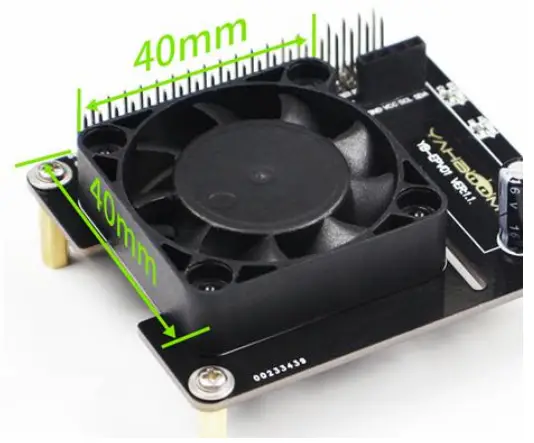

Most of them use 30mm * 30MM small cooling fan on the market
Strong wind/better heat dissipation/bigger size
It can be used superimposed with heat sink
Given tutorials
*We provided driver package for all Raspberry Pi system images.
All fan, RGB lights, OLED can be driven by this driver package.
Detail :
Raspberry Pi cooling HAT expansion board:
Size: 61mm*59mm
Weight: 34.1g
Cooling fan:
Size: 40mm*40mm
Package list:
Raspberry Pi cooling HAT expansion board*1
Copper column *4
Screw *8
OLED display *1
Packing list
Expansion board with OLED display
Tutorial:
Yahboom Raspberry Pi RGB cooling HAT
