Raspberry Pi 528347 UPS Module
Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico, Male Pin Header For Stacking Other Modules

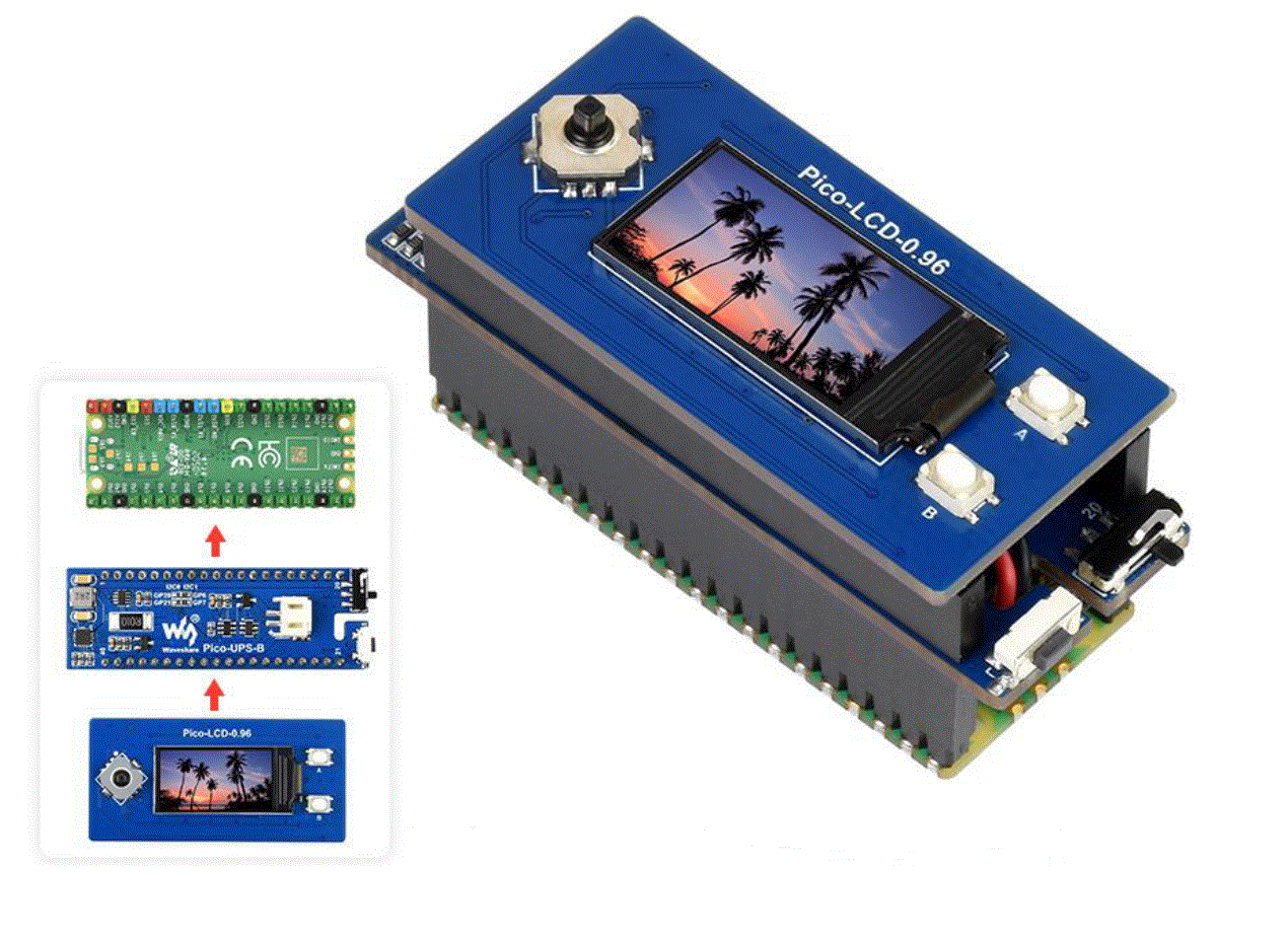

Please correctly connect the Module and Raspberry Pi Pico as the picture shown

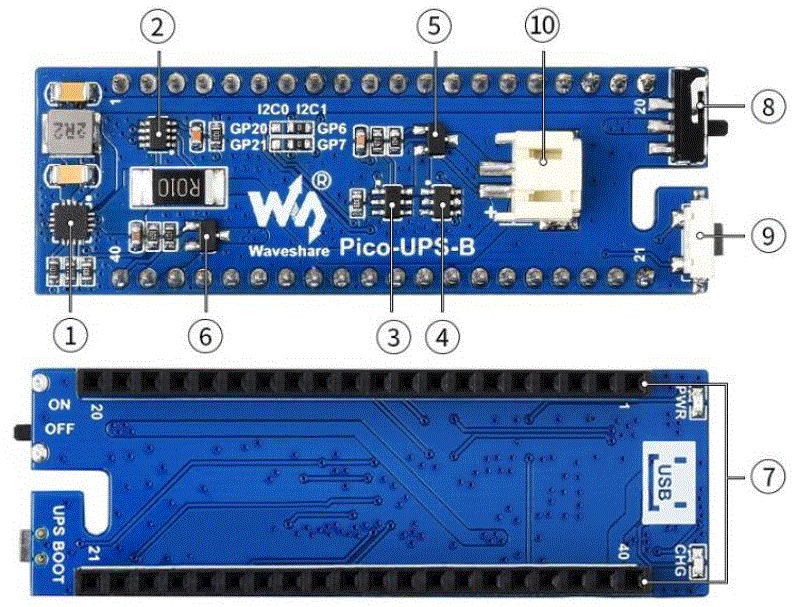

What’s on Board
- 1. ETA6003 recharger chip
- INA219 voltage/current monitoring chip
- S8261 Li-po battery protection chip
- FS8205 Li-po battery protection MOS
- A0340o reverse-proof MOS
- SI2305 counter current preventing MOS
- Raspberry Pi Pico header for direct attaching to Raspberry Pi Pico
- Power switch 9. Activate the button to activate the protection circuit after replacing the battery
- Battery header for connecting 3.7V Li-po battery

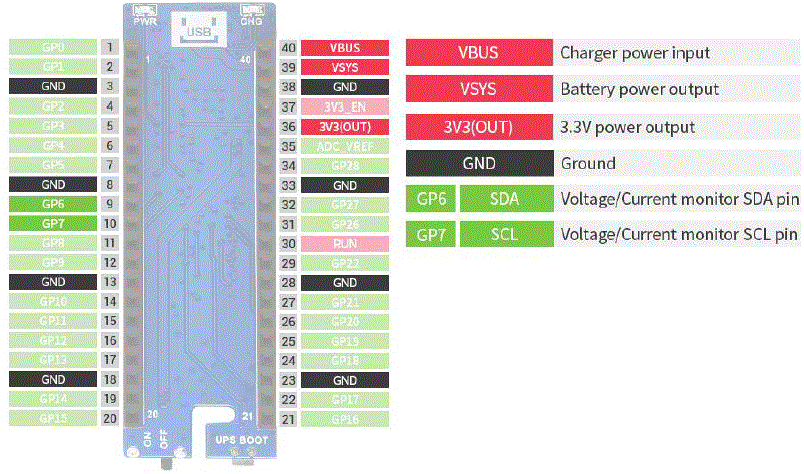

Pinout Definition
