R V R logoFM TRANSMITTERS
PTX-LCD SERIES/PTX-LCD SERIES
PROFESSIONAL ANALOGIC from 30W to 150W
MODELS
PTX30LCD/S/PTX50LCD/S
PTX150LCD/S/PTX100LCD/S

PTX30LCD-S PTX-LCD SERIES FM Transmitters

R V R PTX30LCD-S PTX-LCD SERIES FM Transmitters

  • Globally recognized as the most sold professional exciter.
  • Excellent as exciter in modular systems or as a compact transmitter.
  • Full compliance with EC, FCC and CCIR standards.
  • Standard Frequency Range: 87.5 – 108 MHz Other bands on request.
  • 10% – 100% Output Power continuously adjustable.
  • Fold-back control for effective “VSRW” protection.
  • Includes IAMLC: Intelligent Automatic Modulation Level Control.
  • Built-in high-performance stereo coder.
  • Analogue Inputs: Analogue Stereo L&R, Mono, MPX.
  • Digital Inputs: AES/EBU, S/PDIF, TOSLINK.
  • Auxiliary input for SCA / RDS signals.

ORDERING INFORMATION

Model Description

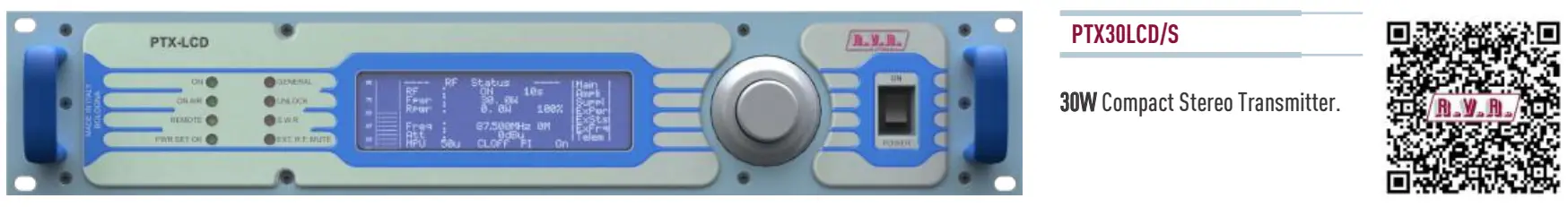

PTX30LCD/S 30W Compact Stereo Transmitter.
PTX50LCD/S 50W Compact Stereo Transmitter.
PTX100LCD/S 100W Compact Stereo Transmitter.
PTX150LCD/S 150W Compact Stereo Transmitter.

OPTION

/08DIG-PTX-16 Telemetry system via parallel interface.
/10MHZ-PTX External 10MHZ cable.

R V R PTX30LCD-S PTX-LCD SERIES FM Transmitters - qr codehttps://www.rvr.it/it/products/compact-trasmitters/ptx-lcd-series/fino-a-50w/ptx30lcd-s-tbq7c5ux/

R V R PTX30LCD-S PTX-LCD SERIES FM Transmitters - qr code1https://www.rvr.it/it/products/compact-trasmitters/ptx-lcd-series/fino-a-50w/ptx50lcd-s-hv5sz7jd/R V R PTX30LCD-S PTX-LCD SERIES FM Transmitters - qr code2https://www.rvr.it/it/products/compact-trasmitters/ptx-lcd-series/fino-a-150w/ptx100lcd-s-bwoq3vzt/R V R PTX30LCD-S PTX-LCD SERIES FM Transmitters - qr code3https://www.rvr.it/it/products/compact-trasmitters/ptx-lcd-series/fino-a-150w/ptx150lcd-s-do0n274h/

PTX30LCD/S PTX50LCD/S
Parameters  U.M. Value Notes
GENERALS
Frequency range MHz 87,5 ÷ 108
Rated output power W 30 50 Continuously adjustable from 10 to 100%
Modulation type Direct carrier frequency
Operational mode Mono, Stereo, Multiplex
Working temperature °C -5 to + 50
Working humidity % 95 Without condensing
Working altitude m Up to 3000 With adequate air evacuation system in site
Frequency programmability kHz From software, with 10 Steps
Frequency stability        Working Temp. from -5°C to 50°C ppm ±1
Modulation capability  Refered @ 0dBu for 75kHz kHz 150 Stereo, 200 Mono/MPX Meets or exceeds all FCC and CCIR rules
Pre-emphasis mode μS 0, 25, 50, (CCIR), 75 (FCC) Selectable
POWER REQUIREMENTS
AC Power input AC Supply Voltage VAC 115 – 125 – 230 – 250
AC Apparent Power Consumption VA 135 220
Active Power Consumption W 95 150
Power Factor 0,68
Overall Efficiency % Typical 31 Typical 33
Connector IEC Standard
MECHANICAL DIMENSIONS
Phisical dimensions Front panel width mm / inch 483 / 19 EIA rack
Front panel height mm / inch 88 / 3 1/2 2HE
Overall depth mm 400
Chassis depth mm 389
Weight kg About 10 About 13
Cooling Forced, with internal fan
Acoustic noise dBA < 56
AUDIO INPUTS
Left / Mono Connector XLR F
Type Balanced
Impedance Ohm 10 k or 600
Input Level /Adjust dBu -13 to +14 1 dB step adjustable


Right

Connector XLR F
Type Balanced
Impedance Ohm 10 k or 600
Input Level dBu -13 to +14 1 dB step adjustable
MPX Connector BNC
Type Unbalanced
Impedance Ohm 10 k or 50
Input Level / Adjust dBu -13 to +14 1 dB step adjustable
SCA/RDS Connector 3 x BNC
Type Unbalanced
Impedance Ohm 10 k
Subcarrier Level @ 0 dBu dB -17 to -40 Adjustable
AES/EBU (optional) Connector XLR F
Type Balanced
Impedance Ohm 110
TOS/Link (optional) Connector TOS LINk
Type Optical
OUTPUTS
RF Output Connector N type
Impedance Ohm 50
RF Monitor Connector BNC
Impedance Ohm 50
Output Level dBm Approx. -30
Pilot output Connector BNC
Load Impedance Ohm >4.7 k
Output Level Vpp 1 Sinusoidal
FUSES
On mains 1 External fuse F 6,3 T – 5×20 mm
On services X
On PA Supply 1 External fuse F 6,3 A – 5×20 mm 1 External fuse F 10 A – 5×20 mm
On driver supply X

All pictures are RVR’s property and they are only indicative and not binding. The pictures can be modified without notice. These are general specifications. They show typical values and are subject to change without notice.

PTX100LCD/S PTX150LCD/S
Parameters   U.M. Value Notes
GENERALS
Frequency range MHz 87,5 ÷ 108
Rated output power W 100 150 Continuously adjustable from 10 to 100%
Modulation type Direct carrier frequency
Operational mode Mono, Stereo, Multiplex
Working temperature °C -5 to + 50
Working humidity % 95 Without condensing
Working altitude m Up to 3000 With adequate air evacuation system in site
Frequency programmability kHz From software, with 10 Steps
Frequency stability   Working Temp. from -5°C to 50°C ppm ±1
Modulation capability Referred @ 0dBu for 75kHz kHz 150 Stereo, 200 Mono/MPX Meets or exceeds all FCC and CCIR rules
Pre-emphasis mode μS 0, 25, 50, (CCIR), 75 (FCC) Selectable
POWER REQUIREMENTS
AC Power input AC Supply Voltage VAC 115 – 125 – 230 – 250
AC Apparent Power Consumption VA 350 458
Active Power Consumption W 250 330
Power Factor 0,71 0,72
Overall Efficiency % Typical 40 Typical 45
Connector IEC Standard
MECHANICAL DIMENSIONS
Physicals dimensions Front panel width mm / inch 483 / 19 EIA rack
Front panel height mm / inch 88 / 3 1/2 2HE
Overall depth mm 400
Chassis depth mm 389
Weight kg About 15
Cooling Forced, with internal fan
Acoustic noise dBA < 56
AUDIO INPUTS
Left / Mono Connector XLR F
Type Balanced
Impedance Ohm 10 k or 600
Input Level /Adjust dBu -13 to +14 1 dB step adjustable
Right Connector XLR F
Type Balanced
Impedance Ohm 10 k or 600
Input Level dBu -13 to +14 1 dB step adjustable
MPX Connector BNC
Type Unbalanced
Impedance Ohm 10 k or 50
Input Level / Adjust dBu -13 to +14 1 dB step adjustable
SCA/RDS Connector 3 x BNC
Type Unbalanced
Impedance Ohm 10 k
Subcarrier Level @ 0 dBu dB -17 to -40 Adjustable
AES/EBU (optional) Connector XLR F
Type Balanced
Impedance Ohm 110
TOS/Link (optional) Connector TOS-LINK
Type Optical
OUTPUTS
RF Output Connector N type
Impedance Ohm 50
RF Monitor Connector BNC
Impedance Ohm 50
Output Level dBm Approx. -30
Pilot output Connector BNC
Load Impedance Ohm >4.7 k
Output Level Vpp 1 Sinusoidal
FUSES
On mains 1 External fuse F 6,3 T – 5×20 mm
On services X
On PA Supply 1 External fuse F 10 A – 5×20 mm
On driver supply X

All pictures are RVR’s property and they are only indicative and not binding. The pictures can be modified without notice. These are general specifications. They show typical values and are subject to change without notice.

R V R logoR V R PTX30LCD-S PTX-LCD SERIES FM Transmitters - iconR V R PTX30LCD-S PTX-LCD SERIES FM Transmitters - qr code4R.V.R. Electronica S.r.l.
Via del Fond tore 2/2
40138 Bologna – ltaly
Phone +39 0516010506
sales@rvr.it
www.rvr.it
