Multiple Color Programmable LED Work Light with IO-Link Technology
QDML-IOL
Thank you for purchasing Qlight’s products. Please read this user manual carefully prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
- During wiring or maintenance, please completely turn off the power of the product. (Failure to follow this may lead to an electric shock.)
- Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection ratings indicated for each product. (Failure to follow these instructions may cause a fire to the product, electric shock, physical injury, malfunction or damage to the product.)
- Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to follow these instructions may lead to fire, electric shock, or product damage.)
- Please apply the correct voltage to the product. (Failure to follow these instructions may lead to fire, electric shock, or product damage.)
- When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to follow this may cause damage to property, fire, electric shock and loss of life.)
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the product that would void the warranty.
- Please remove any objects that can interrupt ventilation around the product.
- Please turn off the power of the product immediately if it fails to operate properly.
- Carefully wire the product according to each product’s specification.
- Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
- Do not apply excessive force/impact to the product.
- Failure to follow any of the instructions above may cause malfunction or damage to the product, fire, and electric shock.
Ordering Specifications
| QDML-IOL | 480 | 24 |
| [Model number] | [Product length] | [Voltage] |
| | | | | | |
| • QDML-IOL | 125-125mm 250-250mm 480-480mm 700-700mm 910-910mm |
• 24 – DC24V |

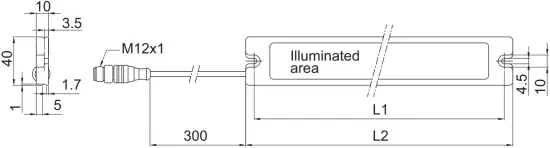

Dimensions
(Units : mm)
QDML-IOL
| Model | L1 | L2 |
| QDML-IOL-125 | 115 | 125 |
| QDML-IOL-250 | 240 | 250 |
| QDML-IOL-480 | 466 | 480 |
| QDML-IOL-700 | 486 | 700 |
| QDML-IOL-910 | 896 | 910 |
Product Specifications
Optics Specifications
| Model number | QDML-IOL-125 / 250 / 480 / 700 / 910 |
| Lens Color | Transparent |
| Directions | Red, Green, Yellow, Blue, White, Orange, Pink, Customization |
| Deflection angle FWHM | 120° |
Specifications
| Model number | QDMLIOL-100 | QDMLIOL-250 | QDMLIOL-480 | QDMLIOL-700 | QDMLIOL-910 |
| Voltage | DC24V | ||||
| Range for operation voltage | DC24V | ||||
| Power consumption | 3W | 5W | 9.1W | 13.4W | 17.5W |
| Insulation resistance | Min. 100MΩ(500V DC mega ohm meter) | ||||
| Withstanding voltage | DC:500VAC, 60Hz, 1minute/AC:1,500VAC, 60Hz,1minute | ||||
| Operating temperature | 0°C to +50°C | ||||
| Protection rating | IP67 | ||||
| Materials | Housing-Al, Lens-PU | ||||
| Certification |  |
||||
| Weight(Approx.) | 0.115kg | 0.21kg | 0.39kg | 0.55kg | 0.70kg |
Please scan the QR code for more detailed product information.
www.qlight.com

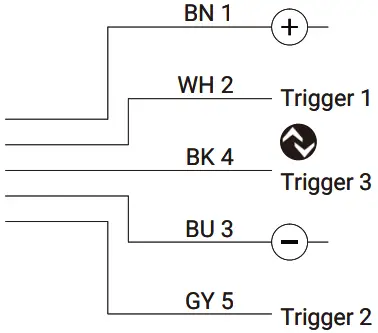

Wiring Instructions
Operating mode: External trigger
| TRIG 1 | TRIG 2 | TRIG 3 | Pre-set | Factory setting | |
| Var. 126 | Var. 251-911 | ||||
| 0 | 0 | 0 | 1 |  Off |
Off |
| 1 | 0 | 0 | 2 |  Red |
 Red |
| 0 | 1 | 0 | 3 | Green |
Green |
| 1 | 1 | 0 | 4 | Yellow |
Yellow |
| 0 | 0 | 1 | 5 | Blue |
Blue |
| 1 | 0 | 1 | 6 |  Red |
 Red |
| 0 | 1 | 1 | 7 |  Green |
 Green |
| 1 | 1 | 1 | 8 | Red Cycling |
 Yellow |
Installation Environment and Protection Rating
- This product is designed for indoor use with protection rating of IP67.
- If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating indicated, it may cause malfunction or damage to the product.
- For further information, please visit our website (www.qlight.com).
Product Operation Inquiry / Customer Support +82-51-620-4100
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
www.qlight.com
EN – QDML – 2410A
