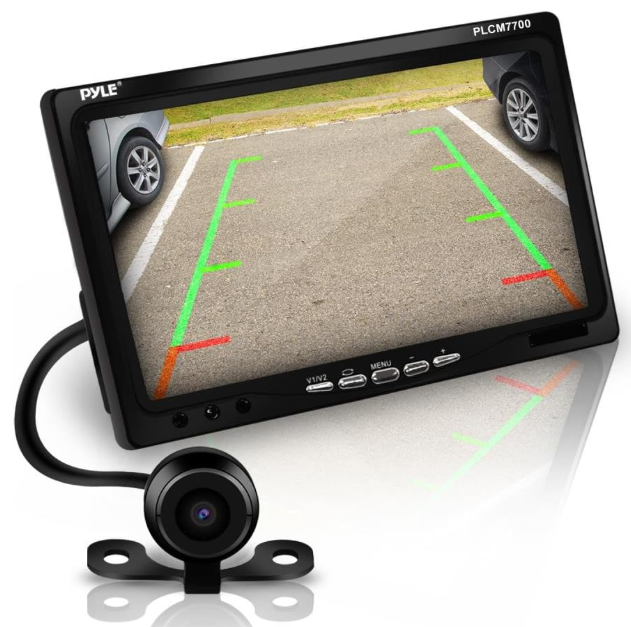

PyLE Rear View Backup Camera
| Brand | Pyle |
| Screen size | 7 Inches |
| Product dimensions | 13.3L x 18.4W x 10.8H centimeters |
| Compatible devices | Monitor |
| Installation type | Surface Mount or Flush Mount |
About this item
- BACKIJP REAR CAMERA: A rugged backup rearview camera with true color reproduction and video output of 1 PP-75 Ohm, It has a low lux performance and a wide viewing angle at 1700.
Has color image reproduction and auto white balance - LCD MONITOR SCREEN: This backup camera monitor comes with 7″ TFT/LCD display, 420 line horizontal resolution and NTSC/PAL video system. Can connect to other camera source and has automatic with reverse gear activation
- MOUNTABLE: Both car camera and backup camera monitor are mountable. The car rear view camera can be mounted flush or hanging. The car camera monitor has a suction cup allov,’ing it to be mounted on dashboards and windshields
- WATERPROOF & NIGHT VISION: This backup camera for cars and other automotive vehicles is IP- 68 marine grade waterproof to combat bad weather. It’s also fog resistant and has night vision ability. Kit includes all necessary wirings

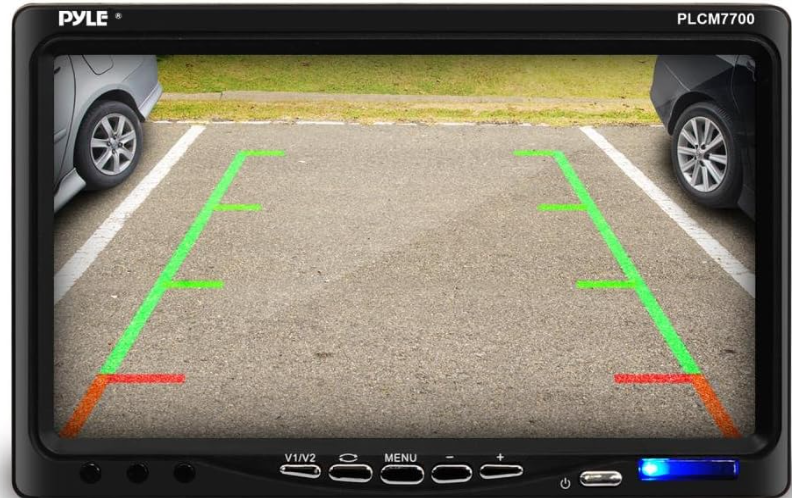

- DISTANCE SCALE LINES: A backup camera kit that features an accurate distance scale line display for proper parking and reversing without relying on side mirrors alone. This reverse parking sensor offers safety for jeeps, pickups and other automobiles
Product information
Features & Specs
| Screen Size | 7 Inches |
|---|---|
| Compatible Devices | Monitor |
| Voltage | 12 Volts |
| Optical Sensor Technology | CMOS |
| Lens | Wide angle, fixed |
| Real Angle of View | 170 Degrees |
| Connector Type | RCA |
| Optical Sensor Size | 3.4 cm |
| Field Of View | 170 Degrees |
| Display Technology | LCD |
| Effective Still Resolution | 420 Lines Per Inch |
| Lux rating | 1 |
| Video Capture Resolution | 580×540 |
| Video Capture Format | AVI |
User guide
| Installation Type | Surface Mount or Flush Mount |
|---|
Item details
| Brand | Pyle |
|---|---|
| Number of Items | 1 |
| UPC | 168141257889 151903516881 068889010572 115970795037 182682269835 033111121340 086000545819 719922352394 809198926143 132017553429 012301408263 163120671663 803982979674 190283093827 031113309193 088021267657 741329020828 012302968124 |
| Manufacturer | Sound Around |
| Global Trade Identification Number | 00068889010572 |
| Built-In Media | product, manual |
| Item Type Name | backup camera |
| Item Weight | 957 g |
| Model Number | PLCM7700 |
Additional details
| Item Dimensions L x W x H | 13.3L x 18.4W x 10.8H centimeters |
|---|
Product Description

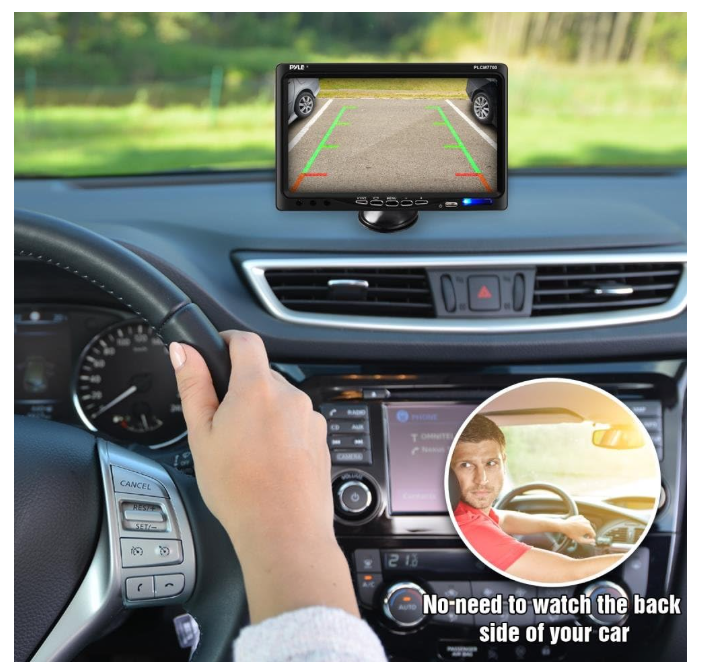

- Check out this awesome video monitor/backup camera kit from Pyle. This kit includes a waterproof, night vision-equipped, universal mount color rear view camera and suction cup mount screen for theinside of your car. Thc camera installs easily anywhere on your vehicle, including near your license plate or on the rear bumper, and outputs crystal clear video over an RCA jack. The 7″ LCD monitor detects when you back up and shows thecamera on screen. Perfect for backing into tight spots or moving in reverse when visibility is limited – it’s like having an extra eye. It’s also equipped with a distance-line mode to show you how far away you are from other objects in the camera’s viewfinder. And with two video inputs, you can even use the monitor to watch DVDs or video from any other source that outputs composite video. Includes video and power cables, wireless remote control for monitor, and instructions formounting.
- System Features: Universal Camera and Monitor Parking Assist System Compatible with a Wide Range of Automobiles Backup and Reverse Video System Safety Includes All Necessary Cables and Wiring Accessories Monitor: 7.0 lnch TET-LCD Screen Monitor 16:9 Wide Screen Touch Button Controls Pixels: 646 x 540 420 TV Line Resolution Universal LCD Mount: Stand & Suction Cup Included PAL/NTSC System HD High Resolution Display Two video inputs Power supply: DC12V Dimensions (W x H x D): 7.60″ x 5.24″ x 0.98′ Camera: Marine Grade Waterproof 1268 Rating Night Vision Low Light Capability Built-in Distance Scale Lines Universal Mount: Choose Flush or Hanging Mount 170 Degree Wide View Angle Lens Auto Image Adjustment & White Balance Video Output: I.OVpp-750hm Min. Illumination: 1.0 Lux Light Power Supply: DC 12 Volt Dimensions (L x W x H): 0.9″ x 0.67″ x 0.67″ Sold as: unit Weight: 1.86 lbs. 1 priority. If this item fails tomeet your expectations we will accept it back a full refund within the first 30 days. We also stand behind this product with a limited I-Year manufacturer. Contact us If the item should show any defect within the first year we will help exchange itfor a new one.

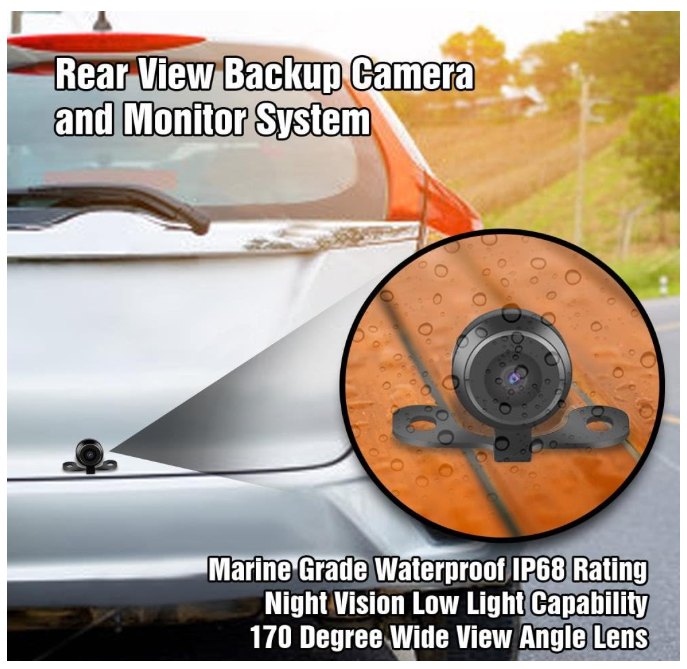

Rear View Backup Camera and Monitor System
Marine Grade Waterproof IP68 Rating Night Vision Low Light Capability 170 Degree Wide View Angle Lens

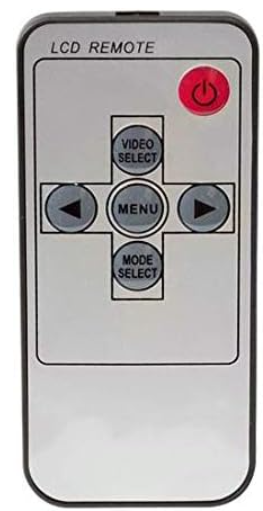

REMOTE

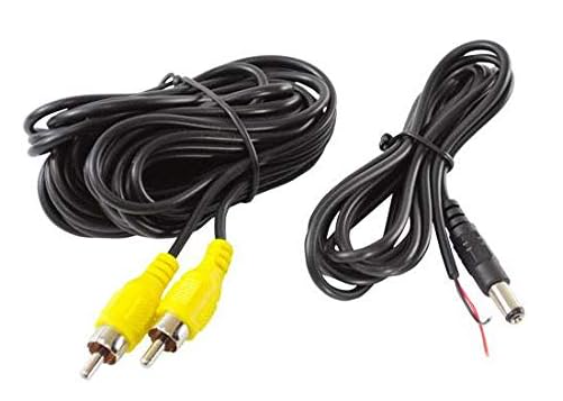

CHARGING CABLE

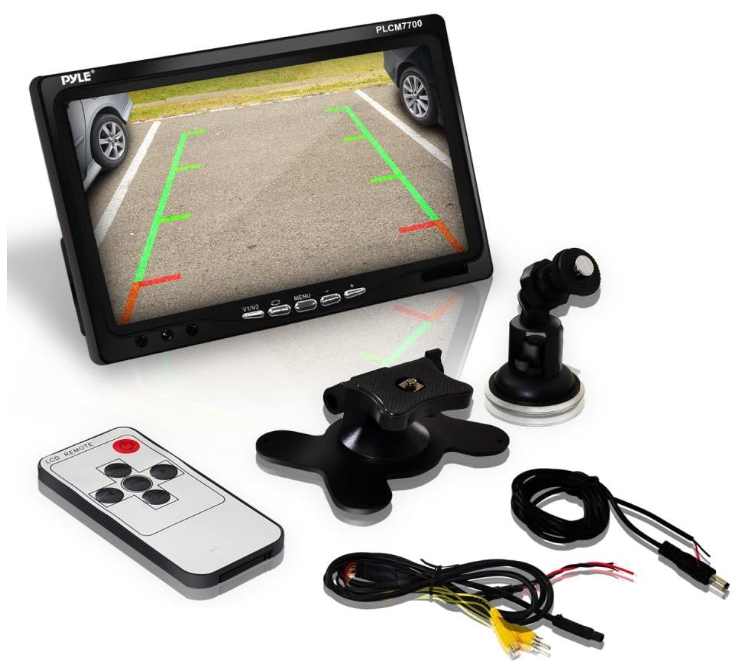

IN THE BOX
Troubleshooting
- Camera/component does not function after installation: Disconnect the power supply, then reinstall the component at the original vehicle interface and check that it is securely installed. Re-test by starting the vehicle.
- Risk of short circuit during operation: Do not operate the device while it is turned on; follow the manual’s instruction to avoid operating the device when powered.
- Safety concern or visible damage: Inspect the product before each use; do not use if the product is damaged, and ensure installation and operation follow the provided guidelines.
