Ingenuity 17419-090

Ingenuity 3Dquickclose CS+ Stroller Instruction Manual

Modelo: 17419-090

Informações importantes de segurança

AVISO: O não cumprimento destes avisos e instruções pode resultar em ferimentos graves ou morte.

  • Utilize sempre o sistema de retenção.
  • Nunca deixe uma criança sozinha.
  • Evite ferimentos graves por queda ou deslizamento.
  • Do not carry more than one child in the stroller.
  • Do not overload the storage basket or accessory pockets.
  • Certifique-se de que todos os dispositivos de travamento estejam acionados antes do uso.
  • Do not use the stroller if any parts are broken or missing.
  • Maximum weight capacity for the child is 22.5 kg (49.6 lbs).
  • Maximum weight capacity for the storage basket is 4.5 kg (10 lbs).
  • Mantenha as crianças afastadas das partes móveis durante o ajuste.
  • Este produto não é adequado para corrida ou patinação.

Conteúdo da embalagem

Verifique se todos os itens listados abaixo estão incluídos em seu pacote:

  • Ingenuity 3Dquickclose CS+ Stroller Frame
  • Barra de proteção removível
  • Cesta de armazenamento
  • Cinto de segurança de 5 pontos (pré-instalado)
  • Capa de chuva
  • Oversize Canopy (pre-installed)

Configurar

1. Desdobrando o carrinho

  1. Coloque o carrinho dobrado em uma superfície plana.
  2. Release any locking latches that secure the stroller in its folded position.
  3. Lift the handlebar firmly until the stroller frame fully extends and locks into place. Listen for an audible click.
  4. Ensure all frame locks are securely engaged before placing a child in the stroller.
Lado view of the Ingenuity 3Dquickclose CS+ Stroller in its unfolded state.

Imagem: Lado view of the Ingenuity 3Dquickclose CS+ Stroller, showing its full size when unfolded.

2. Attaching the Bumper Bar

  1. Locate the attachment points on both sides of the stroller frame near the seat.
  2. Align the bumper bar with these points and push until it clicks securely into place.
  3. To remove, press the release buttons on each side and pull the bumper bar away.
Frente view of the Ingenuity 3Dquickclose CS+ Stroller with the bumper bar attached.

Imagem: Frente view of the stroller, highlighting the attached bumper bar and the 5-point harness.

Instruções de operação

1. Uso Geral

The Ingenuity 3Dquickclose CS+ Stroller is designed for daily use and travel, providing comfort and safety for your child.

A woman pushing the Ingenuity 3Dquickclose CS+ Stroller with a happy baby seated inside.

Image: A woman pushing the stroller with a child, demonstrating typical use.

2. Folding the Stroller (3Dquickclose Technology)

The 3Dquickclose technology allows for a rapid, one-handed fold.

  1. Certifique-se de que a criança foi retirada do carrinho de bebê.
  2. Locate the quick-close mechanism (usually a handle or button) on the handlebar.
  3. Activate the mechanism and push the handlebar forward or downward, allowing the stroller to collapse.
  4. Secure the stroller with the auto-lock latch if present.
A person demonstrating the one-handed folding of the Ingenuity 3Dquickclose CS+ Stroller.

Image: A person folding the stroller, showcasing its compact design when collapsed.

3. Ajustando a inclinação do assento

The seat can be fully reclined for newborns and adjusted as your child grows.

  1. Locate the recline adjustment mechanism, typically a lever or strap behind the seat.
  2. Para reclinar, aperte a alavanca ou afrouxe a alça e empurre suavemente o assento para trás.
  3. To raise, pull the seat forward while adjusting the mechanism until the desired position is reached.
  4. Ensure the seat is securely locked in place before use.
A hand adjusting the recline mechanism of the Ingenuity 3Dquickclose CS+ Stroller seat.

Image: Close-up of a hand adjusting the seat recline, showing the mechanism for different positions.

4. Como prender seu filho com o cinto de segurança de 5 pontos

Utilize sempre o cinto de segurança de 5 pontos para prender a criança.

  1. Coloque a criança na cadeirinha.
  2. Passe as alças de ombro pelos ombros da criança e as alças da cintura ao redor da cintura dela.
  3. Insert the two buckle prongs into the center buckle until they click.
  4. Adjust the straps to ensure a snug fit, leaving no more than one finger's width between the strap and your child.
  5. Para soltar, pressione o botão na fivela central.
A hand fastening the 5-point safety harness buckle on a child in the Ingenuity 3Dquickclose CS+ Stroller.

Image: Close-up of the 5-point harness buckle being fastened, ensuring child safety.

5. Using the Oversize Canopy and Storage

The stroller features an extra-large adjustable canopy with a window and a visor for sun protection, along with ample armazenamento.

  • Marquise: Extend or retract the canopy as needed for sun and wind protection. Use the peek-a-boo window to check on your child.
  • Cesta de armazenamento: The large basket located under the seat provides space for essentials. Do not exceed the maximum weight capacity of 4.5 kg (10 lbs).
  • Accessory Pocket: A convenient pocket is located on the canopy for small items like a phone or keys.

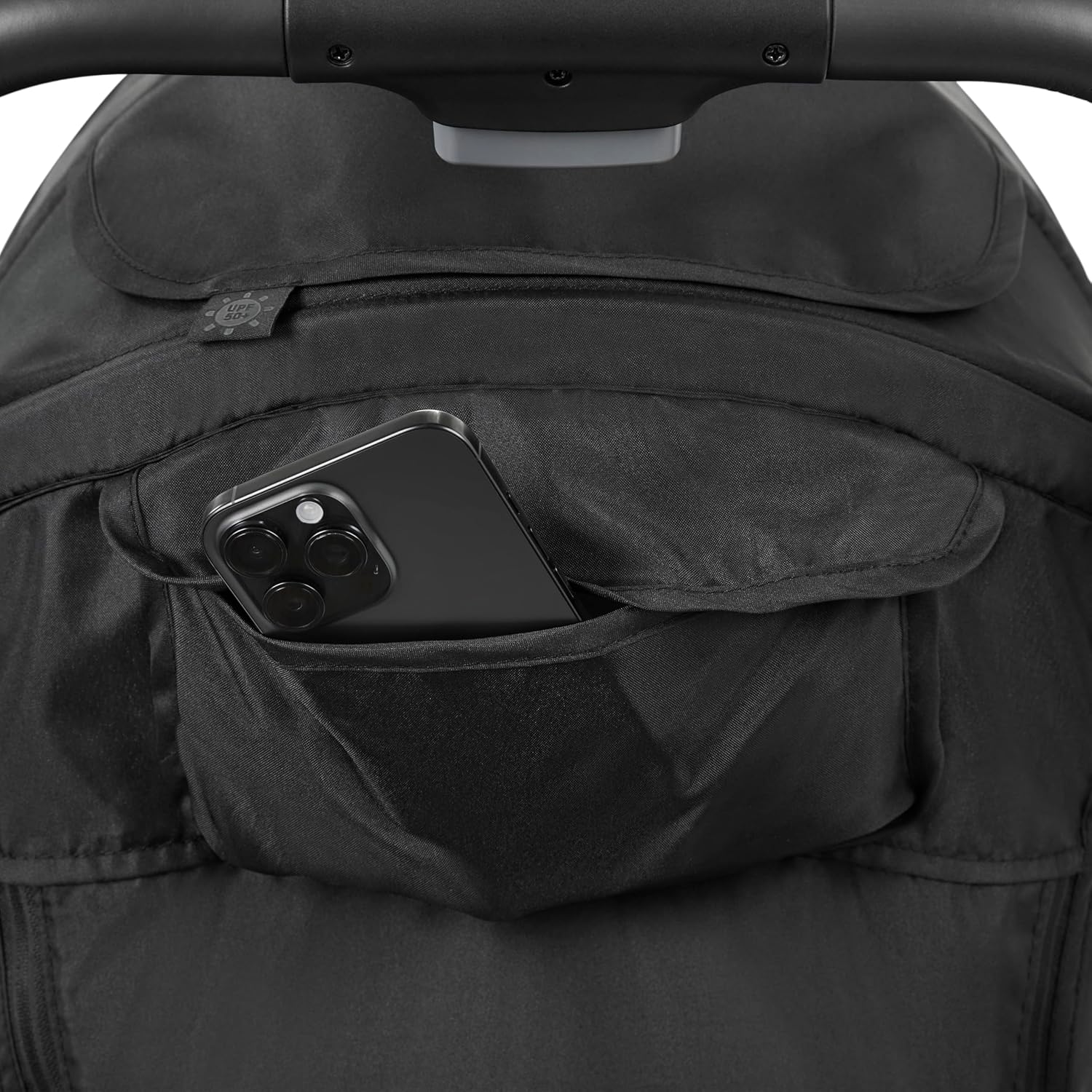

A smartphone placed in the accessory pocket on the canopy of the Ingenuity 3Dquickclose CS+ Stroller.

Image: Close-up of the canopy's accessory pocket, demonstrating its use for small personal items.

6. Attaching the Rain Cover

The included rain cover provides protection from wet weather.

  1. Unfold the rain cover.
  2. Drape it over the stroller, ensuring it covers the entire seating area and canopy.
  3. Secure the cover using any attached fasteners or elastic edges to prevent it from blowing off.
The Ingenuity 3Dquickclose CS+ Stroller with the clear rain cover fully installed.

Image: The stroller with its transparent rain cover installed, ready for inclement weather.

7. Car Seat Compatibility

The Ingenuity 3Dquickclose CS+ Stroller is compatible with various car seats from brands such as Britax, Maxi Cosi, and Nuna. Car seat adapters are sold separately.

Refer to the car seat manufacturer's instructions for proper installation and use with the stroller.

Manutenção

Instruções de limpeza

  • Tecido: Wipe fabric surfaces with a damp Pano e sabão neutro. Secar ao ar livre. Não usar alvejante.
  • Quadro: Limpe as partes metálicas e plásticas da estrutura com um pano macio e seco.amp pano. Seque bem.
  • Rodas: Periodically clean wheels and axles of dirt and debris. Lubricate moving parts with a silicone-based lubricant if necessary.
  • Capa de chuva: Limpe com anúncioamp cloth. Ensure it is completely dry before folding and storing to prevent mildew.

Armazenar

Store the stroller in a clean, dry place away from direct sunlight and extreme temperatures to prevent damage to materials.

Solução de problemas

ProblemaPossível causaSolução
Stroller does not fold or unfold easily.Locking mechanisms are not fully disengaged or engaged. Debris in moving parts.Ensure all locks are released before folding/unfolding. Check for obstructions and clear them. Lubricate moving parts if necessary.
As rodas estão rígidas ou rangendo.Dirt or debris in wheel axles. Lack of lubrication.Clean wheels and axles thoroughly. Apply a silicone-based lubricant to moving parts.
O cinto de segurança é difícil de afivelar ou desafivelar.Os pinos da fivela estão desalinhados ou sujos.Ensure prongs are clean and aligned correctly before inserting. Do not force the buckle.

Especificações

Número do modelo17419-090
Dimensões do produto (desdobrado)92 x 52.07 x 104.78 cm (36.2 x 20.5 x 41.25 polegadas)
Dimensões dobradas<92 cm x 52 cm x 105 cm
Peso do produto8.64 kg (19.05 libras)
Peso Máximo da Criança22.5 kg (49.6 libras)
Composição do material55% Fabric, 25% Plastic, 20% Metal
Tipo de arnês5 pontos
Tipo de roda4 rodas
Compatível com cadeirinha de carroYes (adapters sold separately)

Informações de garantia

Ingenuity products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Ingenuity website. Guarde o comprovante de compra para solicitações de garantia.

Suporte ao cliente

For further assistance, replacement parts, or to view additional product information, please contact Ingenuity customer service or visit our official store.

Loja online: Ingenuity Official Store on Amazon
