1. Introdução
The HAVA Dishwasher 2025 is a compact and portable appliance designed for efficient dish cleaning in various settings, including small homes, apartments, dorms, boats, caravans, and RVs. This model features an improved water softener, optimal energy efficiency with an ECO mode, and a user-friendly interface with 8 wash programs, child lock, and delayed start functions.
Figure 1: HAVA Dishwasher 2025. This image displays the HAVA Dishwasher 2025 from the front, with its door open to reveal a rack filled with dishes. The control panel with various program icons is visible above the door, and the interior is illuminated.
2. Configuração e instalação
The HAVA Dishwasher 2025 is designed for hassle-free installation, making it highly portable. It features a built-in 5-liter water tank, eliminating the need for permanent plumbing connections. This allows you to place the dishwasher almost anywhere, providing flexibility for small spaces or temporary setups.
Figure 2: Dishwasher Dimensions. This image shows the HAVA Dishwasher 2025 positioned on a kitchen counter next to a sink. Overlaid text indicates its external dimensions: 42.8 cm width, 42.5 cm depth, and 45.8 cm height, along with internal dimensions of 33.02 x 35 x 27.51 cm.
Componentes incluídos:

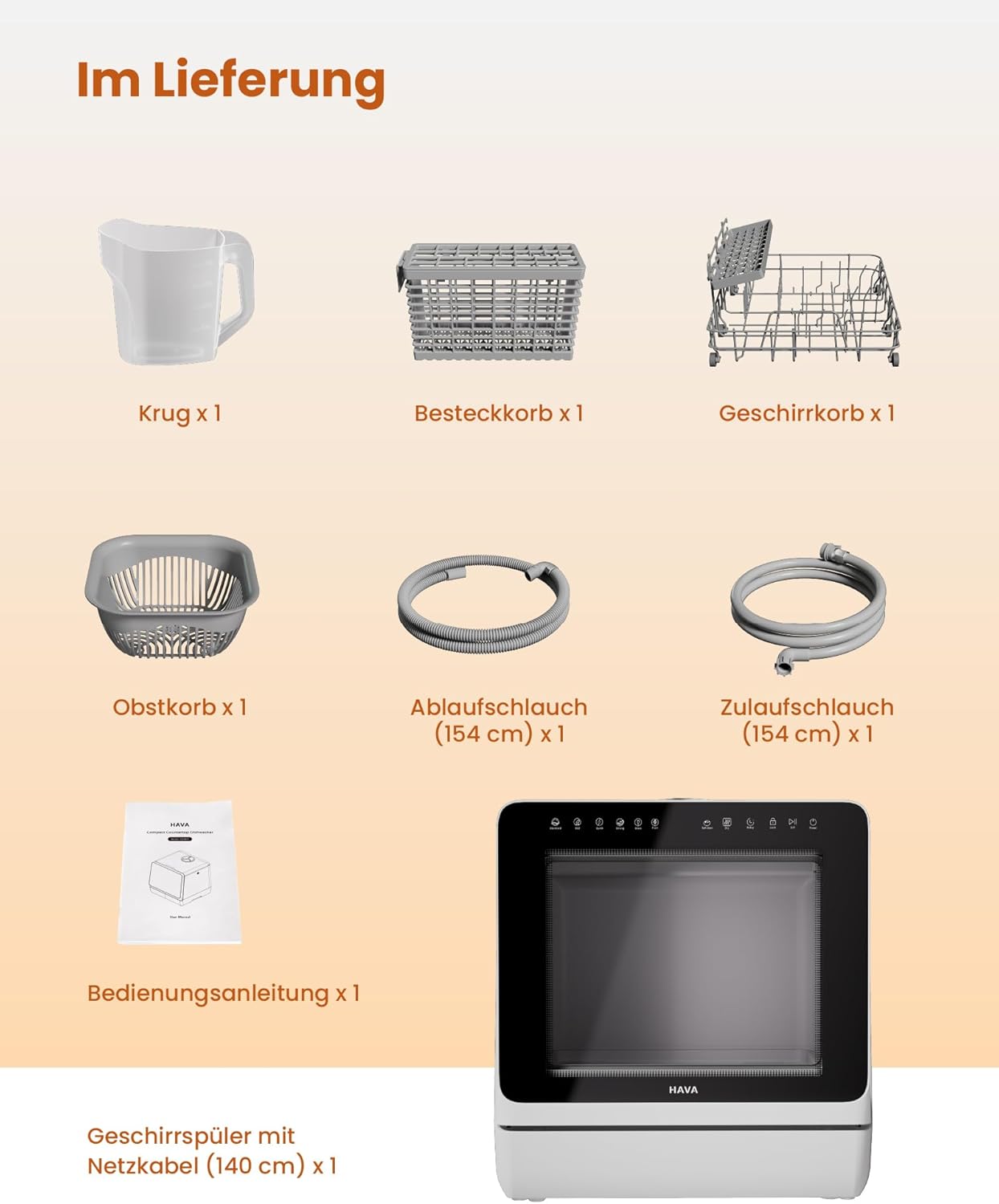

Figure 3: Included Accessories. This image presents all accessories and components included with the HAVA Dishwasher 2025. These include a measuring jug, cutlery basket, dish basket, fruit basket, drain hose, inlet hose, the dishwasher unit itself with power cable, and the user manual.
- Jarro de Medição
- Cesta de talheres
- cesto de pratos
- Cesta de frutas
- Mangueira de drenagem
- Mangueira de entrada
- Cabo de alimentação
- Manual do usuário
3. Instruções de operação
The HAVA Dishwasher features an easy-to-use touch interface with 8 wash programs to meet various cleaning needs. These programs include:
- Padrão
- ECO (Optimized for water and energy saving)
- Rápido
- Forte
- Vidro
- Fruta
- Auto limpeza
- Seco
Additional user-friendly functions include a child lock for safety and an 18-hour delayed start function for flexible operation.
The integrated water softener effectively addresses hard water issues. To ensure optimal cleaning results and prevent limescale buildup, adjust the rinse aid setting according to your local water hardness. The redesigned dish basket offers increased capacity and ensures a complete 360-degree cleaning of all items.
4. Manutenção
Regular maintenance is crucial for the longevity and performance of your dishwasher. The built-in water softener helps prevent limescale deposits, but it is important to periodically check and adjust the rinse aid setting based on your water hardness to maintain its effectiveness.
As part of quality control, each HAVA unit undergoes rigorous testing, which may result in a small amount of residual water inside the unit. This is normal and does not indicate a defect.
For optimal performance, regularly clean the filters and spray arms to ensure unobstructed water flow and efficient cleaning.
5. Solução De Problemas
Should you encounter any issues with your HAVA Dishwasher, please refer to the following general advice. For persistent problems, contact customer support.
- Ensure the dishwasher is properly connected to a power source.
- Verify that the water tank is filled or the inlet hose is correctly connected.
- Check for any blockages in the spray arms or filters.
- Confirm that the door is securely closed and latched.
6. Especificações técnicas
| Recurso | Especificação |
|---|---|
| Nome do modelo | R09 |
| Número do item | TDJR09 |
| Dimensões do produto (C x L x A) | 42.5 x 42.8 x 45.8 cm |
| Peso do item | 13 kg |
| Capacidade | 5 litros |
| Volumetage | 220 Volts |
| Consumo anual de energia | 150 quilowatts-hora por ano |
| Classificação de eficiência energética | Classe D |
| Nível de ruído | 60 dB |
| Número de programas de lavagem | 8 |
| Tipo de exibição | LIDERADO |
| Tipo de controle | Botão de pressão |
| Material | Aço inoxidável |
| Características especiais | Portable, Built-in water softener, Integrated softener |
| Tipo de instalação | Bancada |
| Cor | Branco e Azul |
For detailed energy information and product data, please refer to the official EPREL database:
7. Garantia e Suporte
HAVA offers a Garantia de 1 ano for this product. This warranty covers manufacturing defects and ensures the full operational functionality of your dishwasher.
If you have any questions about the product, require technical assistance, or need to claim warranty service, please do not hesitate to contact HAVA customer support:
- Fabricante: HAVA
- E-mail: info@cetproduct.com
- Telefone: +48 791019706
- Endereço: Ul. Dluga 33 102, 95-100 Zgierz, Poland
Please have your model number (TDJR09) and purchase details ready when contacting support to facilitate a quicker resolution.
