BOYI GMK104 Barebones Mechanical Keyboard Kit User Manual

Introdução

Welcome to the user manual for your BOYI GMK104 Barebones Mechanical Keyboard Kit. This guide provides detailed instructions for setting up, operating, and maintaining your keyboard. The GMK104 is a full-size, QMK/VIA programmable, tri-mode (Bluetooth 5.0, 2.4GHz, Type-C wired) keyboard kit featuring a gasket-mounted, hot-swappable PCB, RGB backlighting, and an integrated screen with a multi-functional knob.

O que está na caixa

• Extrator de Keycap
• Cabo USB
• Receptor 2.4G
• 104 Keyboard Kit

Configurar

1. Installing Switches and Keycaps

The GMK104 is a barebones kit, meaning switches and keycaps are not pre-installed. You will need to install your preferred mechanical switches and keycaps.

1. Align the pins of your desired mechanical switches with the hot-swap sockets on the PCB.
2. Gently press each switch until it clicks into place. Ensure pins are straight to avoid bending.
3. Place your chosen keycaps onto the installed switches, pressing firmly until they are seated.

Image shows the GMK104 barebones keyboard kit with hot-swap sockets and RGB lighting, ready for switch and keycap installation.

2. Conectando o teclado

The GMK104 supports three connection modes: wired, 2.4GHz wireless, and Bluetooth 5.0 wireless.

Wired Connection (Type-C)

Connect the provided USB Type-C cable to the keyboard's Type-C port and to your computer's USB port. The keyboard will automatically switch to wired mode and begin charging.

Conexão sem fio 2.4GHz

Locate the 2.4G USB receiver, typically stored in a compartment on the underside of the keyboard.

Conecte o receptor de 2.4 GHz a uma porta USB disponível no seu computador.

On the keyboard, switch the mode selector to 2.4GHz mode. The keyboard should connect automatically.

Image showing the underside of the GMK104 keyboard, highlighting the storage slot for the 2.4G USB receiver.

Bluetooth 5.0 Wireless Connection

No teclado, altere o seletor de modo para o modo Bluetooth.

Imprensa FN +Q, FN + W, ou FN + E to select one of three available Bluetooth channels. The corresponding key will flash, indicating pairing mode.

On your device (computer, tablet, smartphone), enable Bluetooth and search for "GMK104".

Select "GMK104" to pair. The flashing key will become solid once connected.

Para alternar entre dispositivos Bluetooth emparelhados, pressione FN + Q/W/E para o canal desejado.

Image illustrating the GMK104 keyboard connected to a laptop, tablet, and smartphone, demonstrating its tri-mode connectivity.

Instruções de operação

Smart Display and Knob Functions

The keyboard features a smart display and a multi-functional knob.

The display shows time, date, connection status, and battery level.

The knob controls volume by default. Pressing the knob can mute/unmute.

Two buttons next to the screen control backlight and screen display settings.

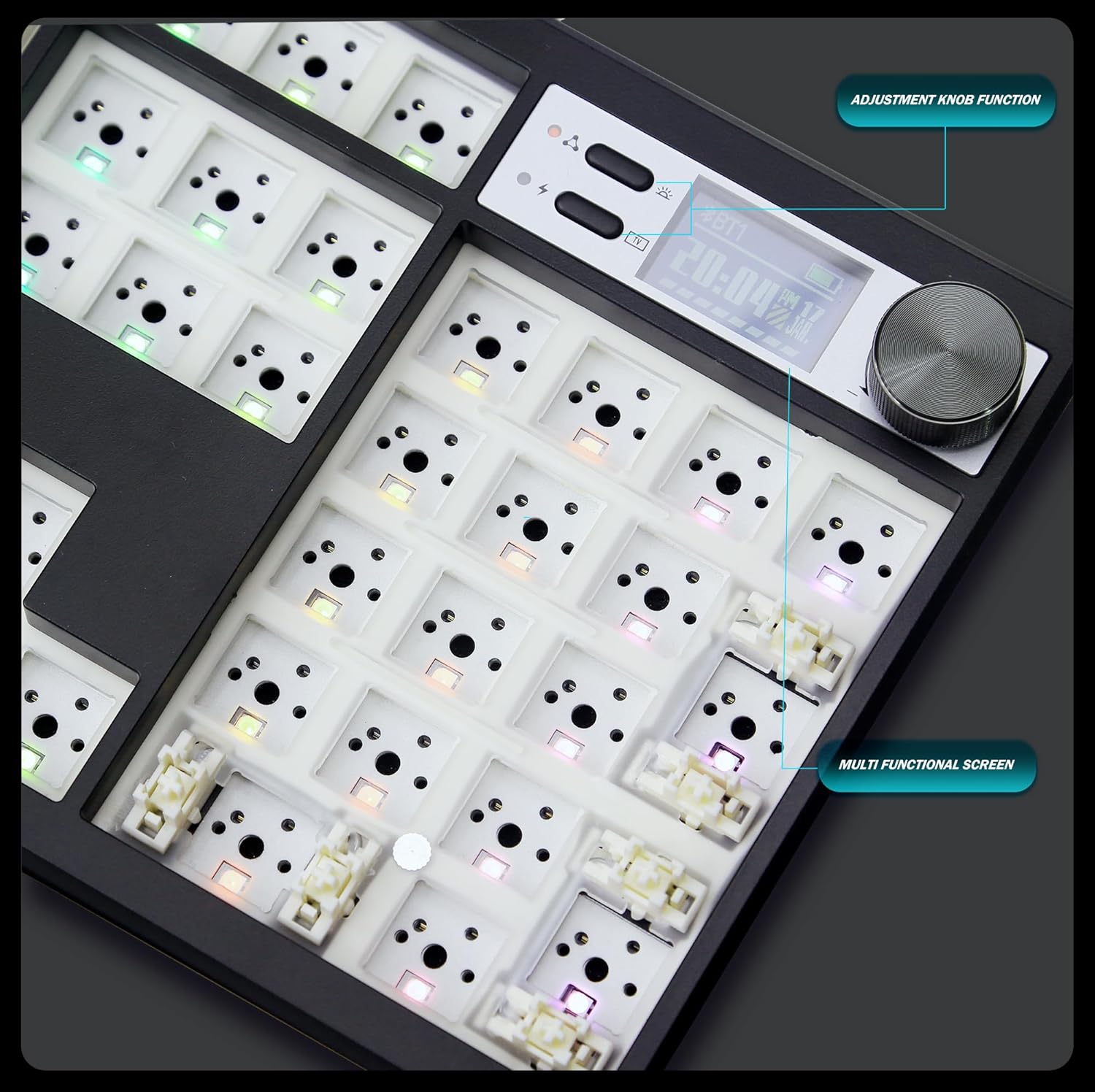

Close-up image of the GMK104 keyboard's smart display and multi-functional knob, showing the screen displaying time and battery status, and the two control buttons.

Retroiluminação RGB

The keyboard features south-facing RGB backlighting with multiple effects.

Usar FN + | to cycle through different RGB lighting modes.

Adjust brightness and speed using dedicated function key combinations (refer to the quick guide or VIA software for specific commands).

Imagem exibidaasing the vibrant RGB backlighting of the GMK104 keyboard with various color patterns.

QMK/VIA Programmability

The GMK104 is fully programmable using QMK/VIA software. This allows for key remapping, macro creation, and advanced lighting customization.

To use VIA, connect the keyboard via USB-C. Download the VIA software from the official website.

The software will automatically detect the keyboard, allowing you to customize key assignments and lighting layers.

Screenshot of the VIA software interface, demonstrating how to remap keys and customize keyboard functions.

Manutenção

Limpeza

Disconnect the keyboard from all devices before cleaning.

Use a soft, lint-free cloth to wipe the surface. For deeper cleaning, remove keycaps and switches.

Use ar comprimido para remover poeira e detritos entre as teclas.

Cuidados com a bateria

The keyboard has a built-in 4000mAh rechargeable battery.

Charge the keyboard using the provided USB Type-C cable.

Para prolongar a vida útil da bateria, evite descarregá-la completamente com frequência.

Solução de problemas

Teclado não responde

• Ensure the keyboard is properly connected (wired, 2.4GHz receiver, or Bluetooth paired).
• Verifique o nível da bateria. Recarregue se necessário.
• Try switching between connection modes.
• Reinicie seu computador/dispositivo.

As luzes RGB não estão funcionando.

• Certifique-se de que o teclado esteja ligado.
• Cycle through RGB modes using FN + |.
• Check VIA software for lighting settings.

Chaves não registradas

• For hot-swappable switches, ensure they are fully seated in the PCB sockets.
• Check for bent switch pins.
• Test with different switches if available.

A tela não está exibindo corretamente.

• Certifique-se de que o teclado esteja ligado.
• Use the screen control buttons next to the display to adjust settings or reset.
• If using custom GIFs, ensure the software is correctly installed and the files são compatíveis.

Especificações

Garantia e Suporte

For warranty information and technical support, please contact BOYI customer service.

E-mail: boyiservice2020@163.com

You can also visit the official BOYI store on Amazon for additional resources and contact options.

BOYI Amazon Store

Image showing customer service representatives, indicating available support channels.
