DECKED Truck Bed Storage System Instruction Manual

1. Introdução e maisview

The DECKED Truck Bed Storage System is an American-made, in-vehicle storage solution designed to maximize the utility of your truck bed. It provides weatherproof, secure, and ergonomic storage for tools, gear, and valuables, while maintaining the full cargo-carrying capabilities of your truck bed. The system features full bed-length drawers for organized storage below, and a heavy-duty flat deck above capable of supporting up to 2,000 lbs of cargo. It is an ideal solution for tradesmen, outdoor enthusiasts, and anyone requiring rugged and organized storage.

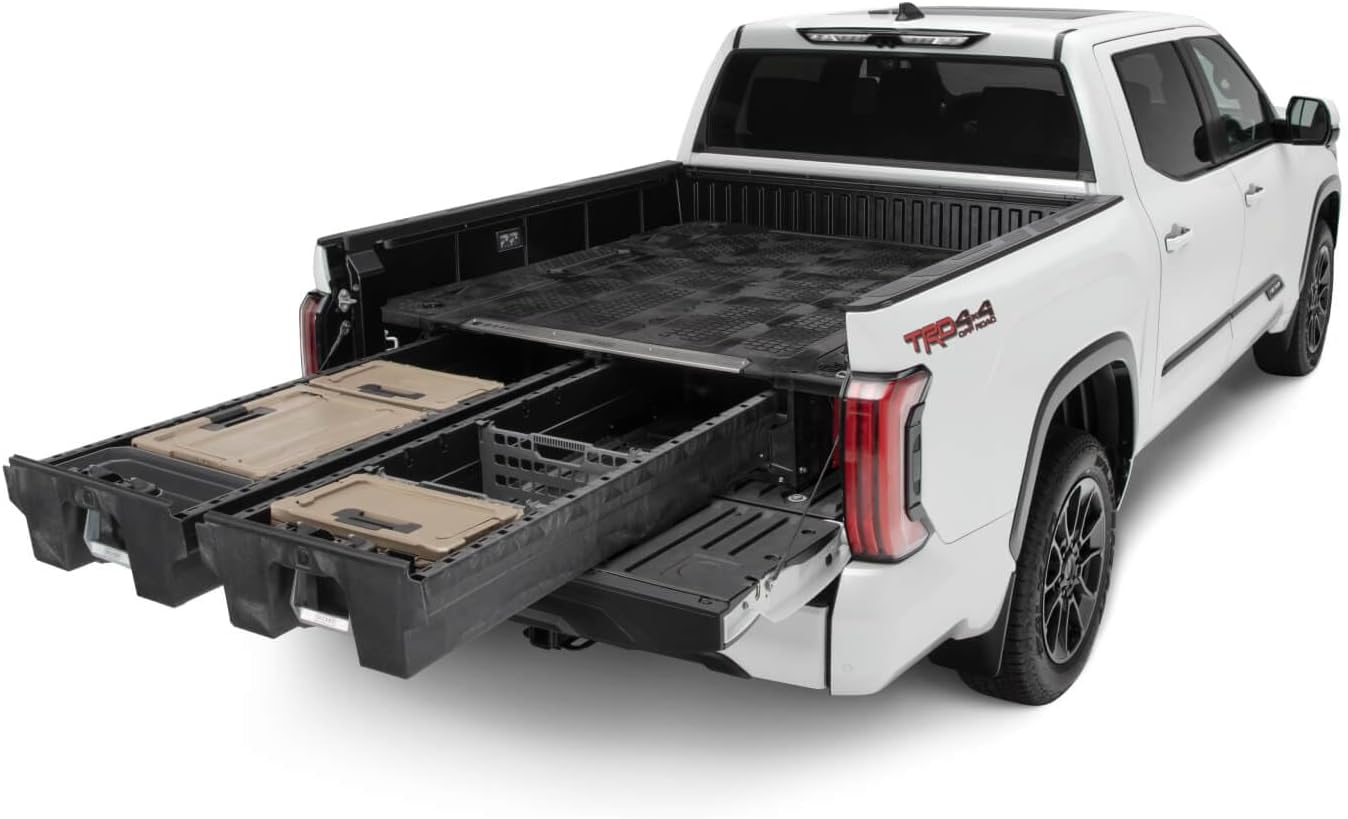

Figure 1.1: The DECKED Truck Bed Storage System with drawers fully extended, showcasing o ampo espaço de armazenamento.

Figura 1.2: Uma vista superior view of the DECKED system installed in a truck bed, highlighting the flat deck surface.

2. Recursos do Produto

• Compatibilidade: Specifically designed for Toyota Tundra models from 2007-2021 with a 5'7" truck bed length.
• Massive Storage & Payload: Offers significant storage volume in two full bed-length drawers. The heavy-duty flat deck supports up to 2,000 lbs of cargo. Each drawer has a 200 lb payload capacity.
• Weatherproof & Secure: Features updated drawer seals to protect contents from car washes, dust, and particulates. While not airtight, closeout panels minimize airborne particles. Drawers are secured via the locking tailgate or an optional keyed lock accessory (not included).
• Construção durável: Manufactured in the USA from recycled High-Density Polyethylene (HDPE) co-molded to a galvanized steel sub-frame. Built to withstand extreme weather and intense UV light exposure.
• Easy Installation & Removal: Initial installation typically takes 2-3 hours using common hand tools. Subsequent removal or re-installation can be completed in approximately 15 minutes.
• Compatibilidade de acessórios: Compatible with DECKED D-Co modular organization accessories (not included) for enhanced organization.

Figure 2.1: Visual representation of the system's 2000 lb payload capacity and included stash bins.

Figure 2.2: A demonstration of the system's weatherproof capabilities, showing water being poured over it.

3. Acessórios incluídos

Your DECKED Truck Bed Storage System comes with the following accessories to help you organize your gear:

• ONE Desert Tan D-co Case Sixer 16
• ONE Desert Tan D-co Case Halfrack 32
• ONE Drawerganizer Drawer Bin
• TWO Drawer Dividers
• TWO Shallow Stash Bins
• TWO Deep Stash Bins
• FOUR D-Ring Tie-downs

Figure 3.1: A visual display of the various accessories included with your DECKED system.

4. Configuração e instalação

Initial installation of the DECKED system typically takes 2 to 3 hours using common hand tools. The system is compatible with spray-in liners and most bed rugs, but it is NÃO compatible with drop-in plastic bed liners.

Ferramentas necessárias:

• 1/2 inch open-ended wrench
• Phillips chave de fenda
• 7/32 inch hex wrench
• soquete de 3/8 polegadas
• soquete de 17/16 polegadas

Etapas de instalação:

1. Prepare a carroceria da caminhonete: Ensure your truck bed is clean and clear of any debris.
2. Assemble the System: Follow the detailed instructions provided in the packaging for assembling the DECKED system components.
3. Posicione o sistema: Carefully place the assembled system into your truck bed.
4. Secure the System: Use the provided J-hooks to secure the system to your truck bed. Ensure the system is centered and aligned with the ribs or troughs on your bed floor for proper fitment. Snug the J-hooks down, but do not overtighten.
5. Instalar gavetas: Slide the drawers into their respective compartments.
6. Anexe acessórios: Place the included accessories (D-co cases, Drawerganizer, dividers, stash bins) into the drawers as desired.

Figure 4.1: All system components laid out, ready for assembly and installation.

Video Guide: How to Remove & Re-Install your DECKED System

5. Instruções de operação

The DECKED system is designed for ease of use and accessibility.

Operação da gaveta:

• To open a drawer, simply pull the handle outwards. The drawers are equipped with a smooth slide mechanism for easy access.
• To close a drawer, push it firmly back into the system until it latches securely.

Deck Usage:

• The flat deck surface can be used to haul large items, supporting up to 2,000 lbs.
• Utilize the integrated D-Ring tie-downs to secure cargo on top of the deck.

6. Manutenção

The DECKED system is built for durability and low maintenance. Regular cleaning and inspection will ensure its longevity.

• Limpeza: Clean the system with mild soap and water as needed. Avoid harsh chemicals that may damage the HDPE material.
• Drawer Seals: Periodically inspect the drawer seals for any signs of wear or damage. While designed to protect against elements, maintaining the seals ensures optimal performance.
• Partes móveis: The slide mechanism and wheels are designed for smooth operation. Keep them free of excessive dirt or debris.

7. Solução De Problemas

Aqui estão alguns problemas comuns e suas soluções:

• Gavetas não deslizam suavemente: Check for any obstructions in the drawer tracks or debris on the wheels. Clean the tracks and wheels if necessary.
• Water or dust ingress: Ensure the tailgate is properly closed and locked. Inspect the drawer seals for any damage or misalignment. While drawers are not airtight, closeout panels should minimize particulates.
• System appears misaligned after re-installation: Truck beds can frequently be out of square. When centering your system, use the ribs or troughs on your truck bed floor as the true reference for alignment, rather than the truck bed sides.

8. Especificações

9. Garantia e Suporte

The DECKED Truck Bed Storage System is built with quality and durability in mind. It is Com garantia vitalícia, reflecting the manufacturer's commitment to excellence and customer satisfaction.

For any questions, technical assistance, or warranty claims, please contact DECKED customer support directly. Refer to the contact information provided with your product packaging or visit the official DECKED website para obter os detalhes de suporte mais atualizados.
