د چاکون DI-O 54515 یونیورسل ډیمر سپین کارونکي لارښود

1. پیژندنه

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Chacon DI-O 54515 Universal Dimmer White. This device allows you to wirelessly control your lighting, integrating seamlessly with existing light switches and the DiO 1.0 ecosystem.

The DI-O 54515 micro-module is designed to be installed behind your existing light switch, enabling wireless ON-OFF control of your lights. It supports control via the physical switch, a remote control, or automatically through compatible motion or opening sensors. When connected to a LiteBox or DiO Home+ hub, it offers smartphone app control, timers, and scenario programming, including voice control via Amazon Echo or Google Home.

2. د خوندیتوب معلومات

مهرباني وکړئ د نصبولو او کارولو دمخه د خوندیتوب ټولې لارښوونې په دقت سره ولولئ. د دې لارښوونو په تعقیب کې پاتې راتلل ممکن د بریښنا شاک، اور، یا نورو خطرونو پایله ولري.

• Installation must be performed by a qualified electrician or in accordance with local electrical codes.
• د وسیلې نصبولو یا خدمت کولو دمخه تل د سرکټ بریکر بریښنا قطع کړئ.
• Do not exceed the maximum load ratings specified in the technical specifications.
• دا وسیله یوازې د داخلي کارونې لپاره ډیزاین شوې.
• وسیله له اوبو، رطوبت او سخت حرارت څخه لرې وساتئ.
• ډاډ ترلاسه کړئ چې ټولې اړیکې خوندي او په سمه توګه موصل شوي دي.

3. د بسته محتويات

کڅوړه باید لاندې توکي ولري:

• Chacon DI-O 54515 Universal Dimmer White Module
• د لارښود لارښود (دا سند)

Image 1: The Chacon DI-O 54515 Universal Dimmer White module, showing its compact design and wiring terminals.

4. د محصول ب Featuresې

• بې سیم کنټرول: Enables wireless ON-OFF control of lights when installed behind an existing switch.
• Multi-Control Options: Compatible with existing physical switches, DiO 1.0 remote controls, wireless switches, motion sensors, and opening sensors.
• د سمارټ کور ادغام: Connects to LiteBox or DiO Home+ for smartphone app control, timers, and scenario programming.
• د غږ کنټرول: Supports voice commands via Amazon Echo or Google Home when integrated with DiO Home+.
• اسانه نصب کول: Designed for simple connection behind an existing light switch, requiring no neutral wire.
• تړون ډیزاین: Dimensions (L x W x H): 41 x 42 x 13 mm, allowing it to fit into standard electrical boxes.

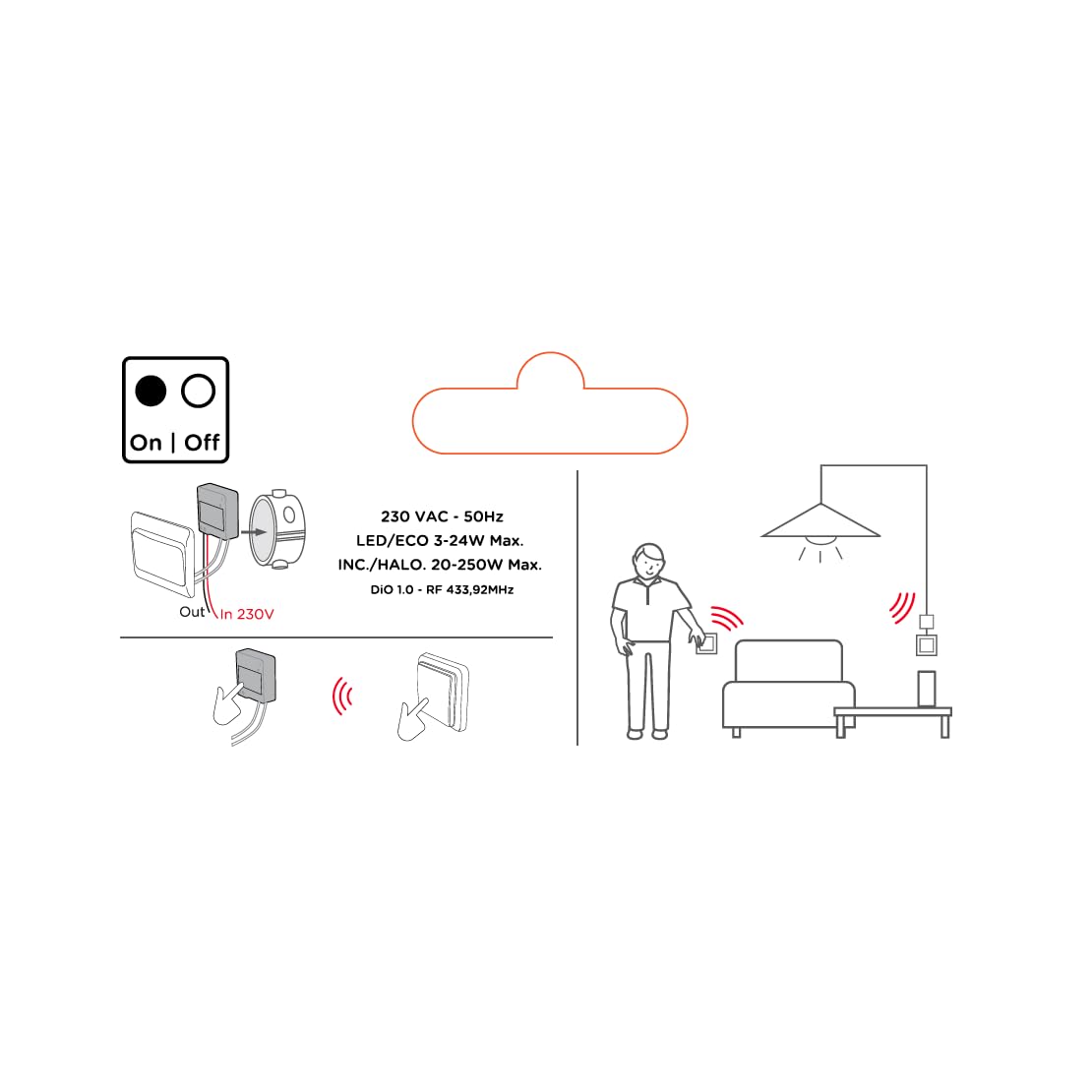

Image 2: An illustrative diagram detailing the wireless control capabilities and key electrical specifications of the module.

5. ترتیب او نصب کول

The installation of the Chacon DI-O 54515 module is designed to be straightforward. However, if you are unsure, consult a qualified electrician.

5.1 د تار لګولو لارښوونې

1. د بریښنا قطع کول: Before starting any electrical work, ensure the power supply to the circuit is turned off at the main circuit breaker.
2. Access Switch Box: Carefully remove your existing light switch from the wall box.
3. د نښلولو ماډل:
   • Connect the Live (L) wire from your electrical supply to the 'L' terminal on the DiO module.
   • Connect the wire going to your light fixture to the output terminal (often marked with a wave symbol or 'OUT') on the DiO module.
   • Connect the two wires from your existing light switch to the designated switch input terminals on the DiO module. This module does not require a neutral wire for operation.
4. د موقعیت ماډل: Carefully place the DiO module into the wall box behind your existing light switch. Ensure wires are not pinched.
5. Reinstall Switch: Reattach your existing light switch to the wall box.
6. د بریښنا بیرته راګرځول: په سرکټ بریکر کې بریښنا بیرته فعاله کړئ.

Image 3: A visual representation of the DiO module being installed within a standard electrical wall box, positioned behind an existing light switch.

انځور ۸: یو مفصل view of the Chacon DI-O 54515 module, highlighting its wiring terminals for proper connection.

5.2 Pairing with DiO 1.0 Controls

To enable wireless control, you need to pair the module with a compatible DiO 1.0 remote control, wireless switch, or sensor.

1. د جوړه کولو حالت دننه کړئ: Refer to the specific instructions for your DiO 1.0 control device to put it into pairing mode. Typically, this involves pressing a pairing button on the module or performing a specific sequence with the existing switch.
2. Activate Control: Once the module is in pairing mode, activate your DiO 1.0 control (e.g., press the 'ON' button on a remote or wireless switch).
3. تایید: The light connected to the module should flash or turn on/off to confirm successful pairing.
4. Repeat for Multiple Controls: You can pair multiple DiO 1.0 controls to the same module if desired.

6. عملیاتي لارښوونې

Once installed and paired, the Chacon DI-O 54515 module offers several ways to control your lighting:

• Existing Light Switch: You can continue to use your traditional wall switch to turn the lights on and off.
• DiO 1.0 Remote Control/Wireless Switch: Use any paired DiO 1.0 remote control or wireless switch to toggle the lights.
• DiO 1.0 Sensors: If paired with a DiO motion or opening sensor, the lights can be triggered automatically based on detected activity.
• Smartphone App (via DiO Home+ / LiteBox):
  1. Connect your DiO module to a DiO Home+ or LiteBox hub (sold separately).
  2. Download the free DiO smartphone app.
  3. Follow the app's instructions to add and configure your module.
  4. From the app, you can turn lights on/off, set timers, and create custom scenarios.
• Voice Control (via DiO Home+ and Smart Speaker):
  1. Ensure your DiO Home+ hub is integrated with Amazon Echo or Google Home.
  2. Use voice commands such as "Alexa, turn on the living room light" or "Hey Google, turn off the kitchen light."

7. ساتنه

The Chacon DI-O 54515 module requires minimal maintenance. Follow these guidelines to ensure optimal performance:

• پاکول: If necessary, gently wipe the module with a dry, soft cloth. Do not use liquid cleaners or solvents.
• معاینه: Periodically check the wiring connections to ensure they remain secure. Always disconnect power before inspection.
• د فرم ویئر تازه معلومات: If using with a DiO Home+ or LiteBox, ensure your hub's firmware and the smartphone app are kept up to date for the best performance and security.

8. ستونزه حل کول

9. مشخصات

Note on Dimming Functionality: While the product title includes "Dimmer" and "Switch Type" is listed as "Dimmer Switch", the official specifications list "Operation mode: ON-OFF". Some user reviews also indicate that newer versions of this module function as a simple ON/OFF switch rather than a dimmer. Please verify the specific functionality of your module upon receipt.

10. تضمین او ملاتړ

This Chacon DI-O 54515 Universal Dimmer White module comes with a 2 کلن تضمین د پیرود نیټې څخه، د تولید نیمګړتیاوې پوښي.

For technical support, troubleshooting assistance, or warranty claims, please contact your retailer or visit the official Dio website for contact information. Please have your proof of purchase and model number (54515) ready when contacting support.
