1. پیژندنه
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Millennium 1144-RBZ Traditional Four Light Semi-Flush Ceiling Mount. This fixture features a traditional design with four lights, finished in Rubbed Bronze, and is designed for semi-flush ceiling installation. Please read all instructions carefully before beginning installation.

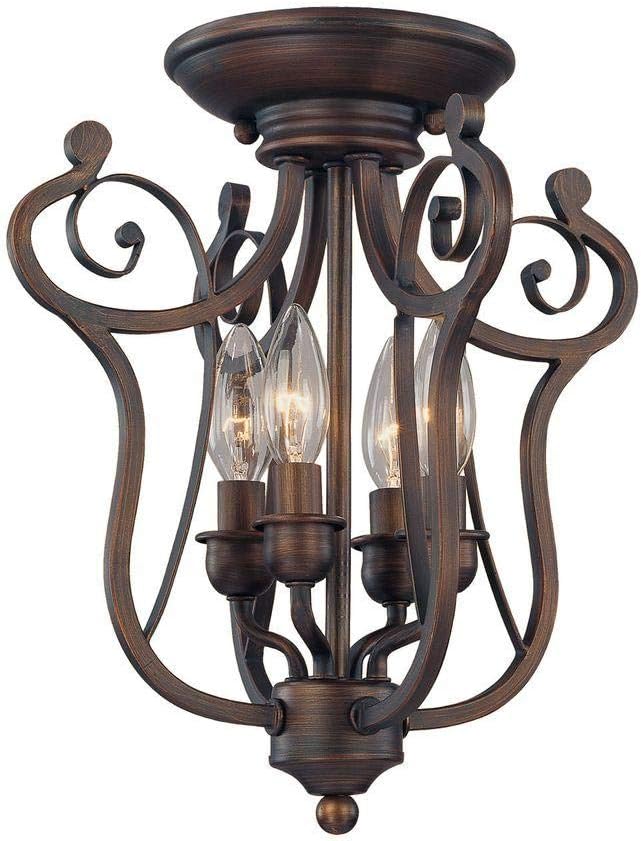

انځور 1.1: مخکی view of the Millennium 1144-RBZ Semi-Flush Ceiling Mount, showcasing its traditional design and rubbed bronze finish.
2. د خوندیتوب معلومات
خبرداری: د بریښنا د شاک خطر. د نصب یا خدمت کولو دمخه د فیوز بکس یا سرکټ بریکر کې بریښنا قطع کړئ. که تاسو د نصب کولو پروسې په اړه ډاډه نه یاست نو د وړ بریښنایی سره مشوره وکړئ.
- ډاډ ترلاسه کړئ چې ټول بریښنایی اړیکې د سیمه ایزو کوډونو او مقرراتو، او همدارنګه د ملي بریښنا کوډ (NEC) سره مطابقت لري.
- This fixture is intended for indoor use only and is rated for dry locations.
- یوازې د ټاکل شوي بلب ډول او واټ وکاروئtage. د اعظمي واټ څخه ډیر مه کوئtage په فکسچر کې اشاره شوې.
- د نصبولو پرمهال تل د خوندیتوب شیشې واغوندئ.
- د شیشې اجزا په احتیاط سره اداره کړئ ترڅو د ماتېدو مخه ونیول شي.
3. د بسته محتويات
Verify that all components are present and undamaged before proceeding with installation. If any parts are missing or damaged, do not attempt to install the fixture. Contact customer support for assistance.
- Four Light Semi-Flush Ceiling Mount Fixture (1)
- د نصب کولو هارډویر کټ (1)
- Installation Instructions (This Manual)
Note: Light bulbs are typically not included and must be purchased separately. This fixture requires four E12 base incandescent bulbs, up to 60 watts each.
4. ترتیب او نصب کول
Professional installation is recommended. If you are performing the installation yourself, ensure you have the necessary tools (screwdriver, wire strippers, electrical tape, safety glasses) and follow these general steps:
- د بریښنا بندول: د سرکټ بریکر یا فیوز بکس ومومئ او د جنکشن بکس ته بریښنا بنده کړئ چیرې چې فکسچر به نصب شي. د ول په کارولو سره تایید کړئ چې بریښنا بنده دهtage ټیسټر.
- د نصبولو چمتو کول: Attach the mounting bracket to the electrical junction box using the screws provided in the hardware kit. Ensure the bracket is securely fastened.
- د تار نښلول: Connect the fixture's wires to the corresponding house wires. Typically, connect the black wire from the fixture to the black (hot) wire from the junction box, the white wire from the fixture to the white (neutral) wire from the junction box, and the ground wire from the fixture to the bare copper or green ground wire from the junction box. Secure connections with wire nuts.
- د نصبولو فکسچر: Carefully push the wired connections into the junction box. Align the fixture with the mounting bracket and secure it using the provided screws or nuts.
- بلبونه نصب کړئ: Screw the recommended E12 base incandescent bulbs (up to 60W each) into the sockets.
- د بریښنا بیرته راګرځول: Turn the power back on at the circuit breaker or fuse box. Test the fixture to ensure it operates correctly.
Image 4.1: The Millennium 1144-RBZ Semi-Flush Ceiling Mount installed on a ceiling, with its four lights illuminated, showcasing its ambient lighting effect.
5. عملیاتي لارښوونې
The Millennium 1144-RBZ Semi-Flush Ceiling Mount is designed for simple operation via a standard wall switch. Once properly installed and powered, the fixture will turn on and off with the activation of the connected wall switch.
- Ensure the wall switch connected to the fixture is in the 'ON' position for the lights to operate.
- If the fixture is connected to a dimmer switch, ensure the dimmer is compatible with incandescent bulbs and is rated for the total wattage of the installed bulbs.
Image 5.1: The Millennium 1144-RBZ Semi-Flush Ceiling Mount installed on a ceiling, unlit, highlighting its decorative elements even when not in use.
6. ساتنه
Regular maintenance will help preserve the appearance and functionality of your lighting fixture.
- پاکول: To clean the fixture, ensure power is off. Wipe with a soft, dry cloth. Do not use abrasive cleaners, polishes, or solvents as they may damage the finish.
- د بلب بدلول: Before replacing bulbs, turn off power at the circuit breaker. Allow bulbs to cool completely. Unscrew old bulbs and replace with new E12 base incandescent bulbs, not exceeding 60 watts per bulb.
- معاینه: Periodically inspect the fixture for any loose wiring or damaged components. If any issues are found, disconnect power and consult a qualified electrician.
7. ستونزه حل کول
If your fixture is not operating correctly, refer to the following troubleshooting guide:
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| فکسچر نه روښانه کېږي. | فکسچر ته هیڅ ځواک نشته. لوڅ تار نښلول. ناقص بلبونه. | سرکټ بریکر/فیوز چیک کړئ. ډاډ ترلاسه کړئ چې ټول تارونه خوندي دي (د بریښنا بندیدو سره). بلبونه بدل کړئ. |
| څراغونه ځلېږي. | لوڅ بلب. نا مطابقت لرونکی ډیمر سویچ. لوز تار پیوستون. | بلبونه کلک کړئ. Ensure dimmer is compatible and rated correctly. د تار اتصالونه وګورئ (د بریښنا بندیدو سره). |
| بلبونه ژر سوځي. | غلط واټtage بلب. ډیر ولtage. | Ensure bulbs do not exceed 60W. د حجم چک کولو لپاره د بریښنایی سره مشوره وکړئtage. |
8. مشخصات
| فیچر | تفصیل |
|---|---|
| برانډ | ملیونیم |
| د ماډل شمیره | 1144-RBZ |
| سټایل | دودیز |
| د پای ډول | Bronze / Rubbed Bronze |
| مواد | شیشه، فلزي |
| د رڼا فکسچر فورمه | Ceiling (Semi-Flush Mount) |
| د رڼا سرچینو شمیر | 4 |
| د بلب اساس | E12 |
| مکس واټtage په هر بلب کې | ۴۵ واټه |
| والیtage | 120 ولټه |
| د کور دننه / بهر کارول | دننه |
| د خوندیتوب درجه | UL Listed (Dry Location) |
| د محصول ابعاد | 12.5 انچه (چړوالی) x 14 انچه (لوړوالی) |
| د توکي وزن | 5 پونډه |
9. د تضمین معلومات
This product is covered by a manufacturer's warranty. For specific details regarding warranty coverage, duration, and claims process, please refer to the documentation included with your purchase or visit the official Millennium Lighting webسایټ. د تضمین تصدیق لپاره د پیرود ثبوت وساتئ.
10. ملاتړ
For technical assistance, missing parts, or warranty inquiries, please contact Millennium Lighting customer support. You can often find contact information on the manufacturer's webسایټ یا د پرچون پلورونکي له لارې چیرې چې محصول اخیستل شوی و.
تاسو کولی شئ د MILLENNIUM Store on Amazon د اضافي محصول معلوماتو او ملاتړ سرچینو لپاره.
