د پرو ټیک ۵۲۳ د تیلو فلټر کارونکي لارښود

پیژندنه

This manual provides comprehensive instructions for the proper installation, operation, and maintenance of your ProTech 523 Fuel Filter. Please read this manual thoroughly before attempting any procedures to ensure safe and effective use of the product. Retain this manual for future reference.

د خوندیتوب معلومات

Always prioritize safety when working with fuel systems. Fuel is highly flammable and can cause serious injury or death if not handled properly. Ensure adequate ventilation and have a fire extinguisher readily available.

• Disconnect the vehicle's battery before starting any work.
• Relieve fuel system pressure before disconnecting fuel lines.
• مناسب شخصي محافظتي تجهیزات (PPE) واغوندئ، په شمول د خوندیتوب عینکې او دستکشې.
• Do not smoke or use open flames near fuel.
• Dispose of old fuel and filters according to local regulations.

تنظیم او نصب کول

The ProTech 523 Fuel Filter is designed for in-line installation in compatible vehicle fuel systems. Proper installation is crucial for optimal performance and safety.

اړین وسایل:

• Wrench set (appropriate sizes for fuel line fittings)
• د سونګ موادو لپاره د اوبو ایستلو پین
• د پلورنځي ټوټې
• د خوندیتوب شیشې او دستکشې

د نصبولو مرحلې:

1. موټر چمتو کړئ: Park the vehicle on a level surface and engage the parking brake. Allow the engine to cool down. Disconnect the negative terminal of the vehicle's battery.
2. Relieve Fuel Pressure: Consult your vehicle's service manual for the specific procedure to relieve fuel system pressure. This typically involves removing the fuel pump fuse or relay and cranking the engine.
3. زوړ فلټر ومومئ: Identify the existing fuel filter. It is usually located along the fuel line, often near the fuel tank or under the vehicle.
4. Prepare for Removal: Place a drain pan directly underneath the old fuel filter to catch any residual fuel.
5. زوړ فلټر لرې کړئ: Carefully disconnect the fuel lines from both ends of the old filter using appropriate wrenches. Be prepared for fuel spillage. Remove the old filter from its mounting bracket.
6. نوی فلټر نصب کړئ: Note the flow direction arrow on the new ProTech 523 Fuel Filter. Ensure it points in the direction of fuel flow towards the engine. Connect the fuel lines to the new filter, ensuring all connections are secure and leak-free. Use new sealing washers if provided.
7. خوندي فلټر: Mount the new filter securely in its bracket.
8. بیټرۍ بیا وصل کړئ: د موټر د بیټرۍ منفي ټرمینل بیا وصل کړئ.
9. د لیکونو لپاره چیک کړئ: Turn the ignition to the "ON" position (without starting the engine) for a few seconds to allow the fuel pump to prime the system. Check all connections for any signs of fuel leaks. Repeat this step a few times.
10. د انجن پیل کول: Start the engine and let it idle for a few minutes. Re-check for leaks.

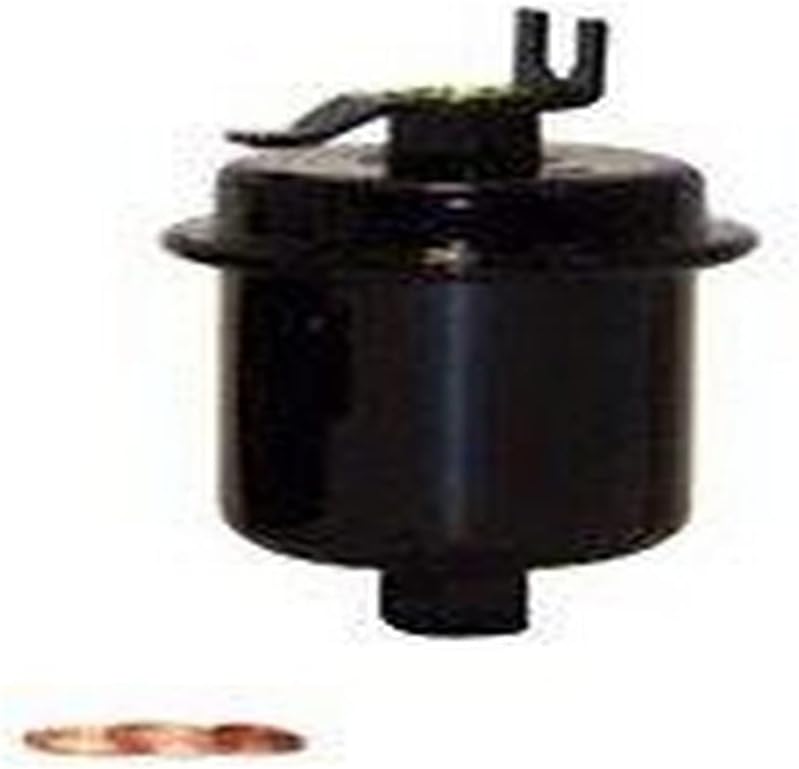

انځور 1: مخکی view of the ProTech 523 Fuel Filter. This image shows the main body of the filter, which is cylindrical and black, with the inlet/outlet connections visible at the top and bottom. A small copper washer is also shown, likely for sealing connections.

انځور ۵.۱: اړخ view of the ProTech 523 Fuel Filter, showing two filters and a washer. One filter is upright, displaying its top connection, while the other is on its side, revealing the internal connection point. A copper washer is also visible, indicating its use in sealing the fuel lines.

عملیات

Once installed, the ProTech 523 Fuel Filter operates passively as part of your vehicle's fuel system. Its primary function is to filter contaminants from the fuel before it reaches the engine, protecting sensitive fuel system components like injectors and the fuel pump from damage.

There are no user-adjustable settings or controls for the fuel filter itself. Its operation is continuous as long as the engine is running and fuel is flowing through the system.

ساتنه

The ProTech 523 Fuel Filter is a consumable component and requires periodic replacement. A clogged fuel filter can lead to various engine performance issues, including:

• د انجن ځواک کم شوی
• سخت بې کاره
• د پیل کولو مشکل
• د انجن بندیدل
• Decreased fuel efficiency

د ځای ناستي مهالویش:

Refer to your vehicle's owner's manual for the recommended fuel filter replacement interval. This typically ranges from every 15,000 to 30,000 miles, or every 1 to 2 years, depending on the vehicle manufacturer and driving conditions. If you frequently drive in dusty environments or use lower quality fuel, more frequent replacement may be necessary.

The replacement procedure is identical to the installation steps outlined in the "Setup and Installation" section.

د ستونزو حل کول

If you experience issues after installing or during the use of your ProTech 523 Fuel Filter, consider the following common problems and solutions:

که چیرې د ستونزو حل کولو ګامونه ستونزه حل نه کړي، نو سپارښتنه کیږي چې د موټر چلولو وړ تخنیکین سره مشوره وکړئ.

مشخصات

تضمین او ملاتړ

ProTech products are manufactured to high standards of quality and performance. For specific warranty information regarding your ProTech 523 Fuel Filter, please refer to the packaging or visit the official ProTech webسایټ. د تضمین شرایط معمولا د عادي استعمال لاندې موادو او کاریګرۍ نیمګړتیاوې پوښي.

For technical support, installation assistance, or warranty claims, please contact ProTech customer service through their official channels. Contact information can usually be found on the product packaging or their webسایټ

Note: Improper installation or use not in accordance with this manual may void the product warranty.
