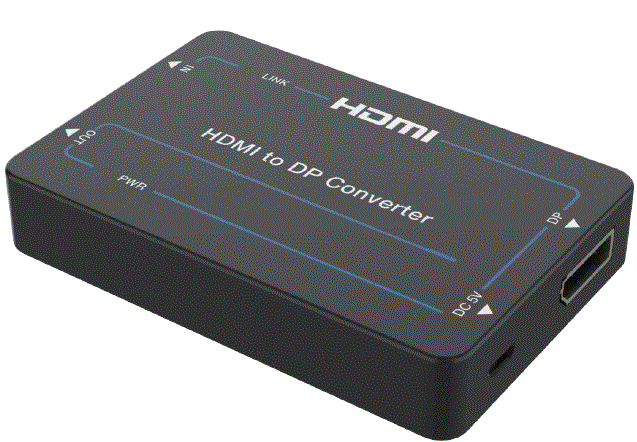

Prestel C-4KHDP HDMI to DP Converter
Specifications
- Technical:
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.2
- Video Bandwidth: 594MHz/18Gbps
- HDMI Input: Up to 4K@60Hz 4:4:4
- HDMI Loop out: 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
- DP Output: 480p60Hz, 576p50Hz~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
- Color Depth: 8/10/12-bit RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
- Audio Format Connection: Up to 7.1CH audio pass-through, supporting PCM, Dolby TrueHD, dts-HD Master Audio
Mechanical
- Housing: Plastic Enclosure
- Color: Dimensions
- Weight: 47g
- Power Supply: USB 5V / 1A
- Power Consumption: 3.2W (Max)
- Operation Temperature: Relative Humidity 20 – 90% RH (no condensation)
Product Usage Instructions
Operation Controls and Functions
The Prestel C-4KHDP HDMI to DP Converter has the following controls and functions:
- HDMI IN: HDMI signal input port, connect to a source device via the HDMI cable.
- HDMI OUT: HDMI signal loop out port, connect to a display device such as TV via the HDMI cable.
- LINK LED (Green): Lights up when HDMI LOOP OUT or DP port outputs signals to the connected display device.
- PWR LED (Green): Indicates the device is powered on.
- DP OUT: DP signal output port, connect to a display device with DP port.
- DC 5V: Power input port for DC 5V/1A.
Application Example
An application example for the HDMI to DP Converter is connecting a DVD or Blu-ray Player with a display having a DP port using the provided USB power cable.
FAQ
- Q: Can this converter support video resolution higher than 4K@60Hz?
A: No, the maximum supported video resolution is up to 4K@60Hz 4:4:4. - Q: What audio formats are supported for pass-through?
A: The converter supports up to 7.1CH audio pass-through, including PCM, Dolby TrueHD, and dts-HD Master Audio.
Prestel C-4KHDP
USER MANUAL
18Gbps
HDMI to DP Converter
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
Introduction
This HDMI to DP Converter has 1 HDMI INPUT, 1 HDMI LOOP OUT and 1 DP OUTPUT, which can convert HDMI signal to DP signal with video resolution up to 4K2K@60Hz 4:4:4. The DP port supports DP1.2. This converter can be wildly used in video conference, multi-media broadcasting and other related occasions.
Features
- HDMI 2.0b, HDCP 2.2, and DVI 1.0 compliant
- Support 18Gbps HDMI video bandwidth
- Video resolution up to 4K@60Hz 4:4:4
- Output supports DP1.2
- Up to 7.1CH audio pass-through, supporting PCM, Dolby TrueHD, DTS-HD Master Audio
- Compact in design, plug and play
Package Contents
- 1× HDMI to DP Converter
- 1× USB Shielded Cable (USB-A to Micro USB, 1m)
- 1× User Manual
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | HDMI input: Up to 4K@60Hz 4:4:4 HDMI Loop out: 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
DP output: 480p60Hz, 576p50Hz~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Audio Format | Up to 7.1CH audio pass-through, supporting PCM, Dolby TrueHD, dts-HD Master Audio |
| Connection | |
| Input | 1×HDMI IN [Type A, 19-pin female] |
| Outputs | 1×HDMI OUT [Type A, 19-pin female] 1×DP [20-pin female] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | 90mm[W] × 60mm[D] × 16mm[H] |
| Weight | 47g |
| Power Supply | USB 5V / 1A |
| Power Consumption | 3.2W (Max) |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |

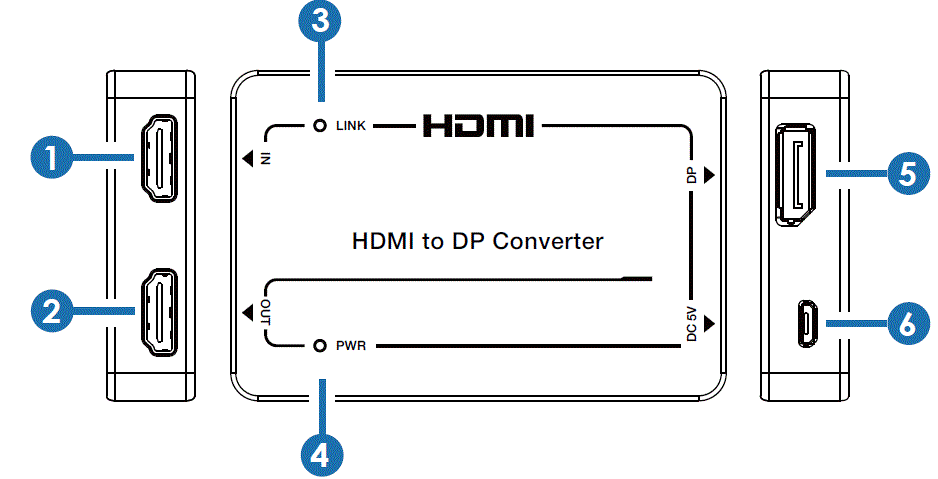

Operation Controls and Functions
| No. | Name | Function Description |
| 1 | HDMI IN | HDMI signal input port, connect to a source device via the HDMI cable. |
|
2 |
HDMI OUT | HDMI signal loop out port, connect to a display device such as TV via the HDMI cable. |
| 3 | LINK LED (Green) |
The link LED lights in green when the HDMI LOOP OUT port or DP port outputs signals to the connected display device. |
| 4 | PWR LED (Green) |
The power LED lights in green when the device is powered on. |
| 5 | DP OUT | DP signal output port, connect to a display device with DP port. |
| 6 | DC 5V | DC 5V/1A power input port. |

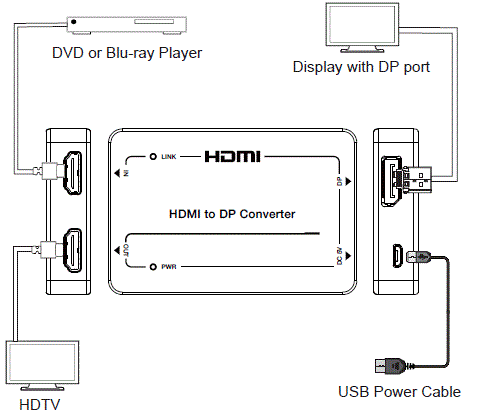

Application Example
The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
