SCT013-RJ11 Split core current transformer
User Guide

SCT013-RJ11
13 mm Aperture Split core current transformer

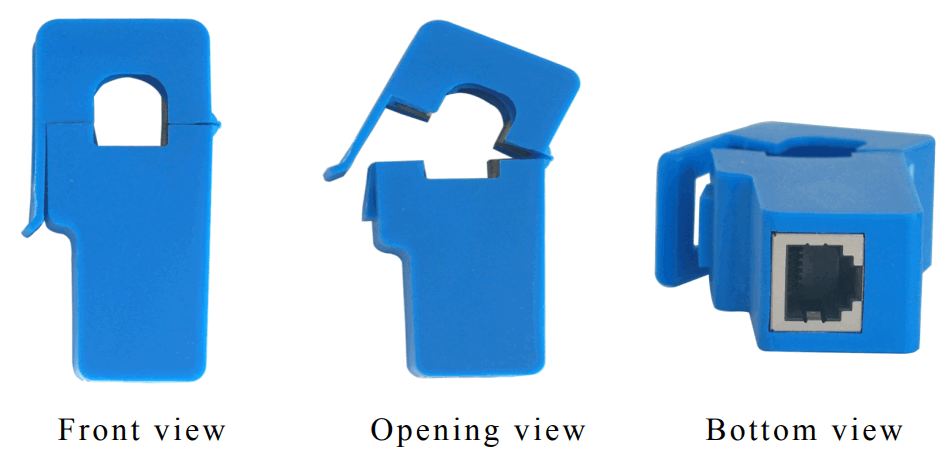

Poweruc SCT013-RJ11 Split core current transformer - Front view

Product features

·Safety lock buckle simple installation ·RJ11 interface output ·Suspended type

Product application

  • Portable instrument
  • Household metering
  • Monitoring the load of the machine

Product advantage

  • Small volume lightweight
  • Low cost
  • High turnsHigh precision

Installation diagram

Primary threading methodPoweruc SCT013-RJ11 Split core current transformer - diagram

www.power.pl

Typical technical index

  • Material of core—-Ferrite
  • Working voltage—-Phase voltage720V
  • Working temperature—–25+60
  • Storage temperature—–30+90
  • Frequency range—-50Hz1KHz
  • Dielectric strength—-Inputcbare conductor/output AC 800V/1min 5mA 50Hz
  • Output/Outer shell AC 3.5KV/1min 5mA 50Hz

Electrical parameters: The following parameters are typical values and actual values will be subject to product testing

Model Input current Input current Accuracy Load resistance Wiring schematic diagram
Poweruc SCT013-RJ11 Split core current transformer - figTVS: Transient voltage suppressor(7.5V) Current output type
Secondary doesn’t allow open circuit
SCT013-RJ11 50A 50A 1% 10Ω
SCT013-RJ11 100A 50mA 1% 10Ω
SCT013-RJ11
SCT013-RJ11
Model Input current Output Voltage AC Accuracy Load resistance Wiring schematic diagram:

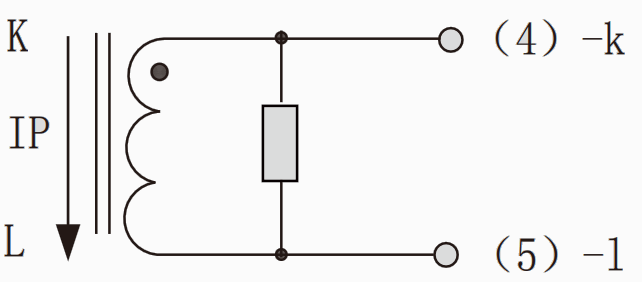

SCT013-RJ11 5A 0.333V 1% ≥10KΩ Poweruc SCT013-RJ11 Split core current transformer - fig 1Built-in sampling resistance
Voltage output type Secondary doesn’t allow short circuit
SCT013-RJ11 10A 0.333V 1% ≥10KΩ
SCT013-RJ11 15A 0.333V 1% ≥10KΩ
SCT013-RJ11 20A 0.333V 1% ≥10KΩ
SCT013-RJ11 25A 0.333V 1% ≥10KΩ
SCT013-RJ11 30A 0.333V 1% ≥10KΩ
SCT013-RJ11 50A 0.333V 1% ≥10KΩ
SCT013-RJ11 60A 0.333V 1% ≥10KΩ
SCT013-RJ11 100 0.333V 1% ≥10KΩ
Model Input current Output Voltage AC Accuracy Load resistance Wiring schematic diagram:
SCT013-RJ11 5A 1V 1% ≥10KΩ Poweruc SCT013-RJ11 Split core current transformer - fig 1Built-in sampling resistance
Voltage output type Secondary doesn’t allow short circuit
SCT013-RJ11 10A 1V 1% ≥10KΩ
SCT013-RJ11 15A 1V 1% ≥10KΩ
SCT013-RJ11 20A 1V 1% ≥10KΩ
SCT013-RJ11 25A 1V 1% ≥10KΩ
SCT013-RJ11 30A 1V 1% ≥10KΩ
SCT013-RJ11 50A 1V 1% ≥10KΩ
SCT013-RJ11 60A 1V 1% ≥10KΩ
SCT013-RJ11 100 1V 1% ≥10KΩ

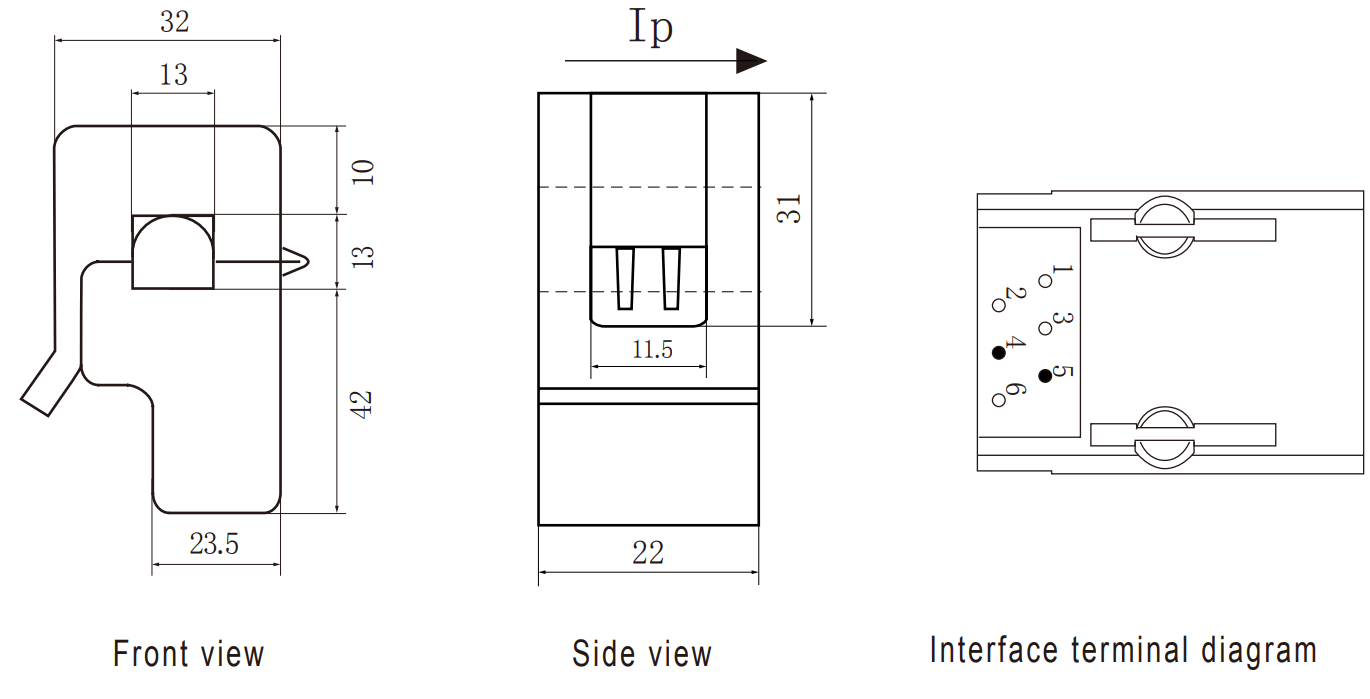

Dimensions: (in:mm±0.5)
Poweruc SCT013-RJ11 Split core current transformer - fig 3

www.power.pl
