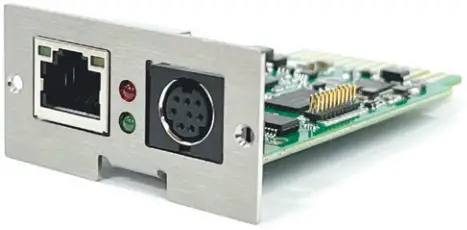

CYBER-SECURE SNMP
THE MOST POWERFUL UPS, SNMP AND IT INFRASTRUCTURE SOLUTION ON THE MARKET
The Cyber-Secure SNMP follows the Australian Cyber Security Centre (ACSC) Information Security Manual (ISM) framework for risk management and cyber threats to protect information and systems from external threats. The Cyber Secure Web card follows industry standards with the user interface offering complex emergency procedures to be enacted simply.
Made in Germany and the USA, the Cyber-Secure SNMP is the most flexible UPS, SNMP and IT infrastructure solution on the market. It is developed to meet the requirements of the USA IoT Cybersecurity Act and EU Cybersecurity Act addressing information privacy, specifically pertaining to connected devices and the European Unions Directives.
ACCESSORIES | NETWORK MANAGEMENT CARDS
FEATURES
LDAP AND RADIUS SUPPORT
More efficiency and more transparency than other devices. The Cyber-Secure SNMP provides enhanced connectivity via Radius for structured access according to local security compliance guidelines.
MODERN AND FLEXIBLE INTERFACE TO ENSURE COMFORT AND SECURITY
Access the Cyber-Secure SNMP directly via the modern and intuitive web interface to manage all requisite functions.
FULLY AUTOMATABLE FOR TIME-CRITICAL UPS AND IT MANAGEMENT
Benefit from the possibilities made by full integration of the Cyber-Secure SNMP as a management system for script solutions.
PRECISE EVENT AND MEASUREMENT LOGS
Log all measurement data and events with precise time stamps. The non-volatile memorystored records can be used to reconstruct the time line in case of an incident. Complex communication and notification system.
NETWORK SECURITY & SERVICES
Supports all common network services and fits seamlessly into any existing IT infrastructure.
2-YEAR WARRANTY
The Cyber-Secure SNMP comes with a 2-year warranty.

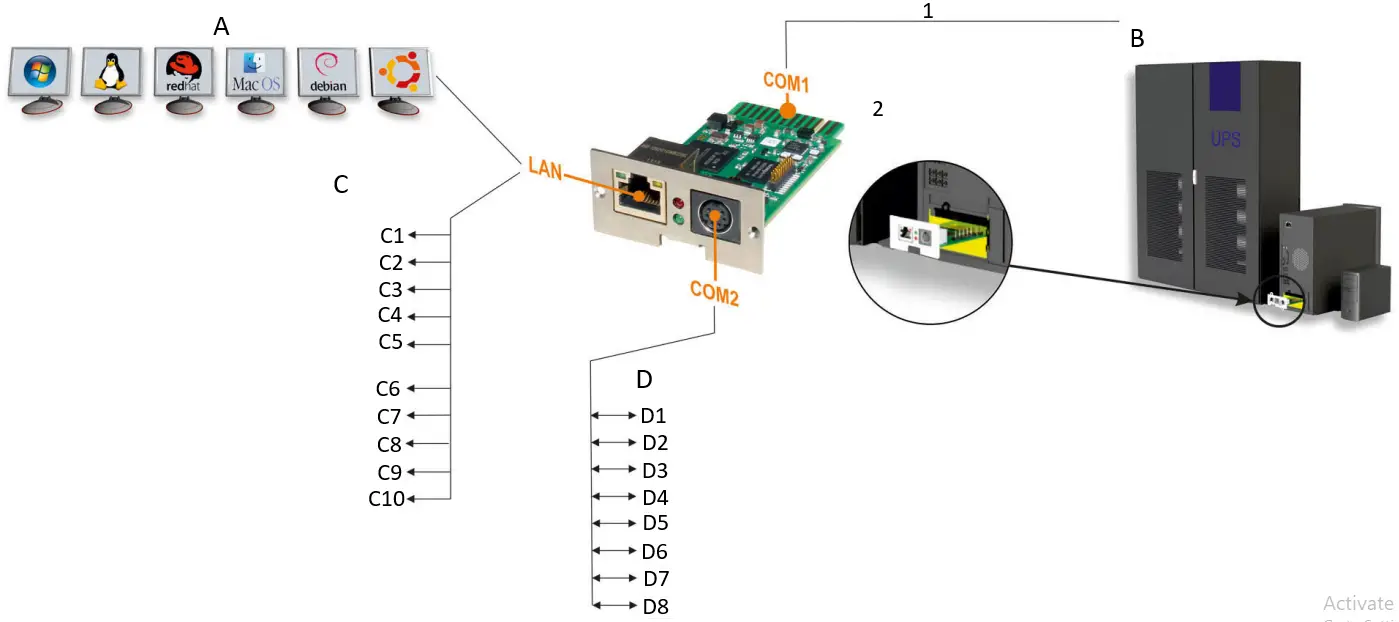

A Manage all stations in the network via RCCMD Shutdown + Messaging
B Compatible with different UPS Products and Power Generators
C Seemless integration with other network programs and other SNMP management systems
D Powerful COM2 facility management extension options
1. RS232
2. Slot Version
C1 HTTP /Java /UPSMON interface
C2
C:\myprogram.exe Remote Program start
C3 Network Message
C4 Major Alarm! SNMP Trap
C5 NEW SNMP RFC1628 communication with 3rd Party SNMP cards
C6 Email / SMS
C7 Facility/Building Management MODBUS over IP
C8 NEW BACnet
C9 Setup device SFTP, setup/update
C10 History Logfile
D1 SENSORMANAGER → Temperature monitoring
D2 Terminal Configuration → Setup device
D3 Pipe-Through RS-232 → Other application (RS-232)
D4 MODBUS RS232/485 → Facility/Building Management NEW
D5 UPS Dialer Modem/PPP
D6 PROFIBUS optional
D7 SM_T_COM → Temperature
D8 SM_T_H_COM → Temperature and Humidity
CYBER-SECURE SNMP SPECIFICATIONS
| MODEL |
CYBER-SEC SNMP |
| Model Number |
PSCSSNMP |
| Power consumption |
12V (min. 9V, max. 30V DC), 150 mA |
| Network / LAN |
10/ 100Mbit Base-T auto sense |
| RS-232 Interface |
2 |
| RS-485 Interface |
COM2 MINIDIN connector for RS232 |
| USB Interface |
Optional separate card |
| AUX Interface |
not supported on cs141 Mini card |
| MODBUS over IP |
Standard |
| BACnet over IP |
Standard |
| Remote Syslog |
Standard |
| Radius Server support |
Standard |
| Status LEDs |
Green LED |
| MIB file available |
Red LED |
| PHYSICAL | |
| Dimension L x W x H (mm) |
42 x 80 x 26 |
| Net Weight (g) |
36 |
| OPERATING ENVIRONMENT | |
| Temperature |
0–70°C |
| Storage |
0–70°C |
| Max. operating ambient Temperature |
55°C |
| CPU |
Cortex A8 800 MHz |
| Flash Memory |
512 MB |
| RAM |
128 MB DDR3 RAM |
| Humidity |
20-95%, not condensing |
| Max. operating ambient Temperature |
55°C |
| CERTIFICATION | |
| Standards |
CE, UL/NEMKO |
| MTBF (EN/IEC 61709) |
916.028 hours (104.6 years) |
| WARRANTY | |
| Standard Warranty |
2 Years |
