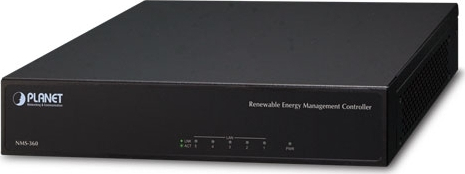

PLANET Renewable Energy Management Controller NMS-360

PLANET Renewable Energy Management Controller NMS-360

Package Contents

Thank you for purchasing PLANET Universal Network Management Controller.
The description of the model is shown below:
NMS-360 Renewable Energy Management Controller
“NMS-360 Controller” is used as an alternative name in this Quick Installation Guide.

PLANET Renewable Energy Management Controller NMS-360 package content

Package Contents:

  • The NMS-360 Controller x 1
  • Quick Installation Guide x 1
  • RS232 to RJ45 Console Cable x 1
  • Adapter with Power Cord x 1
  • UTP Cable x 1
  • Round Gasket x 4

If any item is found missing or damaged, contact your local reseller for replacement.

Hardware Description

PLANET Renewable Energy Management Controller NMS-360 Hardware Description

Reset Button: < 5 sec: System reboot; > 5 sec: Factory default

Hardware Interface Definition
InterfaceDescription
Power SwitchPress the power switch to power on the device
DC INDC jack power input 12V, 5A
Console PortConnect PC through the RS232 to RJ45 serial cable (115200, 8, N, 1) to enter the management interface
USB PortConnect the USB HDD to enable USB backup/restoration function
Reset Button< 5 sec: System reboot

> 5 sec: Factory default

LAN Ports (1~5)10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
PWR LEDIndicates that the device is powered on (Blue)
LAN LEDLink: Steady Green (Green) Active: Flashing Green (Green)

Remarks: The console port is used for technology maintenance.

RJ45 LEDColorFunction
1000

LNK/ACT

GreenLightsTo indicate the port is successfully established at 1000Mbps.
BlinksTo indicate that the switch is actively sending or receiving data over that port.
100

LNK/ACT

OrangeLightsTo indicate the port is successfully established at 100Mbps.
BlinksTo indicate that the switch is actively sending or receiving data over that port.
Physical Specifications
Dimensions (W x D x H)232 x 153 x 44 mm
Weight1.15 kg

PLANET Renewable Energy Management Controller NMS-360 Physical Specifications

PLANET Renewable Energy Management Controller NMS-360 Physical Specifications-1

Product Features
DashboardProviding the at-a-glance view of system, power, traffic,

system statistics and device event statuses.

Device ListProviding devices status overview and managed function
Setup WizardEasy-to-use step-by-step guidance.
Node DiscoveryManagement is carried out once a BSP-360-powered device is detected.
App-like Device ViewingApp-like devices that are compliant with SNMP, MQTT, and Smart Discovery.
Event TableThe status of system can be reported via event alarm.
Alarm SystemE-mail alerts for the administrator via the SMTP server.
Device ProvisioningEnabling BSP-360 to be configured and upgraded at the

same time.

Site MapReal-time site map of BSP-360 and IP cams on the user-

defined map to optimize energy deployment.

Remote PoE controlReal-time remote PoE on/off to reboot connected devices.
User ControlAllowing on-demand account creation and user-defined

access policy.

ScalabilityFree system upgrade and BSP-360 firmware bulk upgrade

capability.

Maximum Scalability1 site map, 512 nodes, 2048 managed IP cameras.
Specifications


Product

NMS-360
Renewable Energy Management Controller
Platform
Form FactorDesktop
Physical Specifications
I/O InterfaceFive 10/100/1000BASE-T RJ45 ports with auto-MDI/MDI-X
2 USB 3.0 ports (They cannot be used at the same time.)
1 RS232-to-RJ45 console port (115200, 8, N, 1)
1 DC jack power input
1 power switch
1 reset button
Storage8GB EMMC5.1, 15nm/2 eMLC
Dimensions (W x D x H)

232 x 153 x 44 mm

Weight1.15 kg
EnclosureMetal
Power Requirement60W adapter 12V 5A with DC jack
AC 100~240V, 3~1.5A, 60~50Hz.
Environment & Certification
TemperatureOperating: 0 ~ 40 degrees C

Storage: -20 ~ 75 degrees C

HumidityOperating: 10 ~ 85% (non-condensing)

Storage: 10~85% @ 40 degrees C (non-condensing)

MTBF (Hours)120,000 @ 25 degrees C

Remarks:  Hold the Reset Button for < 5 sec for System reboot; hold the button >  5 sec for Factory default.

Devices Management
Number of Managed Devices*1512 BSP-360 (V2)
Number of IP Cameras2,048
Network Management Feature
DashboardProviding the at-a-glance view of system, power,

traffic, and device event statuses

Setup WizardEasy-to-use step-by-step guidance
Node DiscoveryManagement is carried out once a BSP-360-powered device is detected.
App-like Device ViewingApp-like devices that are compliant with SNMP, MQTT, and Smart Discovery
Event TableThe status of system can be reported via event alarm
Alarm SystemE-mail alerts for the administrator via the SMTP server
Device ProvisioningEnabling BSP-360 to be configured and upgraded at

the same time

Site MapReal-time site map of BSP-360 and IP cams on the

user-defined map to optimize energy deployment

Remote PoE ControlReal-time remote PoE on/off to reboot connected devices
User ControlAllowing on-demand account creation and user-

defined access policy

ScalabilityFree system upgrade and BSP-360 firmware bulk

upgrade capability

Maximum Scalability1 site map, 512 nodes, 2048 managed IP cameras.
Backup/Restoration/ReadProvides system and profile backup/restoration/read raw data from USB
User Account ManagementSupports on-demand account creation per user-

defined access policy

Remarks: *1 BSP-360 Hardware version 2 is required  and please also  refer  to  the PLANET Web site for the latest firmware that supports NMS Control features.

Network Services
NetworkDDNSSupports PLANET DDNS/Easy DDNS
DHCPBuilt-in DHCP server for auto IP assignment to APs
ManagementConsole; Telnet; SSL; Web browser (Chrome is recommended);

SNMP v1, v2c, v3

DiscoverySupports SNMP, ONVIF, PLANET Smart Discovery
MaintenanceBackupSystem backup and restore to local or USB HDD
RebootProvides system reboot manually or automatically per power schedule
DiagnosticProvides IPv4/IPv6 ping and trace route
Standards Conformance
Regulatory ComplianceCE, FCC
Standards ComplianceIEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX

IEEE 802.3ab Gigabit 1000BASE-T

Deployed Devices Monitored via NMS-360 Controller

Prior installation
The NMS-360 is used to centrally manage a large number of BSP-360s(V2). Therefore, you need to upgrade the BSP-360(V2) firmware before using NMS-360.
Please download and use the latest BSP-360(V2) firmware from the website so that setting can be completed smoothly.
The NMS-360 incorporated in a workstation or PC can monitor the BSP-360s compliant with the MQTT Protocol, SNMP Protocol, ONVIF Protocol and PLANET Smart Discovery utility.

Follow the steps below to set up the NMS-360 and BSP-360(V2) accordingly.
Step 1. Connect the devices, NMS-360 Controller and your computer, to the same network.

PLANET Renewable Energy Management Controller NMS-360 Deployed Devices Monitored-1

Step 2. BSP-360: Log in to the Switch’s Web User Interface and enable the SNMP and NMS controller functions.

PLANET Renewable Energy Management Controller NMS-360 Deployed Devices Monitored-2

PLANET Renewable Energy Management Controller NMS-360 Deployed Devices Monitored-3

Wired Network Configuration

A computer with wired Ethernet connection is required for the first-time configuration of the NMS-360 Controller.

PLANET Renewable Energy Management Controller NMS-360 Deployed Devices Monitored-4

  1. Go to “Control Panel-> Network and Sharing Center-> Change Adapter Settings”.
  2. Double-click “Local Area Connection”.
  3. Select “Internet Protocol version 4 (TCP/IPv4)” and click “Properties”.
  4. Select “Use the following IP address” and then  click  the  “OK”  button twice to save the For example, the default IP address of the NMS-360 Controller is 192.168.1.100, then the manager PC should be set to 192.168.1.x (where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0.

PLANET Renewable Energy Management Controller NMS-360 Deployed Devices Monitored-5

Entering into the Web Management

Default IP Address: 192.168.1.100
Default Management Port: 8888
Default Username: admin
Default Password: admin

Launch the Web browser (Google Chrome with seamless mode is recommended.) and enter the default IP address “https://192.168.1.100:8888”. Then, enter the default username and password shown above to log on to the system.
The secure login with SSL (HTTPS) prefix is required.

PLANET Renewable Energy Management Controller NMS-360 Deployed Devices Monitored-6

After logging on, connect the NMS-360 Controller to the managed network to centrally control PLANET managed devices.

Setup Wizard

    1. Account Modification: Set a new account and password for security.PLANET Renewable Energy Management Controller NMS-360 Deployed Devices Monitored-7
    2. IP Configuration Setting: Set the NMS-360’s IP into the same local network segment.PLANET Renewable Energy Management Controller NMS-360 Deployed Devices Monitored-8
    3. Devices Discovery: Search the managed devices and add to (Finish Wizard)PLANET Renewable Energy Management Controller NMS-360 Deployed Devices Monitored-9
    4. If added devices are successful, you can see them in Device List / Management page.

PLANET Renewable Energy Management Controller NMS-360 Deployed Devices Monitored-10

Further Information

The above  steps  introduce  the simple installations  and configurations of the NMS- 360 Controller. For further configurations of PLANET NMS-360, please refer to the user manual, which can be downloaded from the website.
PLANET online FAQs: http://www.planet.com.tw/en/support/faq
Support team mail address: support@planet.com.tw
User’s Manual: https://www.planet.com.tw/en/product/nms-360

(Please select your model name from the Product Model drop-down menu.)
If you have further questions, please contact the local dealer or distributor where you purchased this product.

Copyright © PLANET Technology Corp. 2020.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.
