ANCEL BT310 12V 24V Car Battery Tester and ANCEL TD700 Diagnostic Tool User Manual

1. Wprowadzenie

This manual provides detailed instructions for the ANCEL BT310 12V 24V Car Battery Tester and the ANCEL TD700 Diagnostic Tool. This bundle offers comprehensive solutions for vehicle battery health assessment and advanced automotive diagnostics. The BT310 is designed to accurately test 12V and 24V vehicle batteries, including cranking and charging system analysis. The TD700 is a specialized diagnostic scanner for Toyota vehicles, offering multi-system diagnosis and special functions, alongside standard OBD2 capabilities for all vehicle brands.

2. ANCEL BT310 Battery Tester Overview

The ANCEL BT310 is a professional tool for evaluating the health of 12V and 24V automotive batteries. It performs battery tests, cranking tests, and charging system tests to provide a complete picture of your vehicle's electrical system. It supports a wide range of battery types and CCA values.

2.1 Key Features of BT310

• Obsługuje akumulatory 12V i 24V.
• Tests batteries with Cold Cranking Amps (CCA) ratings from 100 to 2000.
• Wykonuje test akumulatora, test rozruchu i test ładowania.
• Compatible with various battery types: Flooded, EFB, GEL, AGM Spiral, AGM Flat Plate, and Lithium-Ion.
• Provides detailed results including Voltage, Measured CCA, State of Charge, State of Health, and Internal Resistance.

Figure 2.1: ANCEL BT310 Battery Tester connected to a vehicle battery, illustrating its primary function.

Figure 2.2: BT310 compatibility with different battery technologies (Flooded, EFB, GEL, AGM, Lithium-Ion) and vehicle types (ATV, Boat, Car, SUV, Pickup, Motorcycle).

3. ANCEL TD700 Diagnostic Tool Overview

The ANCEL TD700 is a professional-level diagnostic scanner specifically designed for Toyota vehicles, offering in-depth system diagnostics and special service functions. It also provides full OBD2 functionality for all OBD2-compliant vehicles, making it a versatile tool for automotive enthusiasts and professionals.

3.1 Key Features of TD700

• Toyota Multi-System Diagnosis: Accesses Engine, Transmission, Airbag, TPMS, ABS, SAS, BMS, EPB, GPS, ESP, A/C, and more.
• Professional-Level Toyota Functions: Includes Oil Reset, EPB Reset, ETC Reset, TPMS Reset, BMS Reset, ABS Bleeding, SAS Calibration, DPF Regeneration, Throttle Learning, Battery Registration, Injector Coding. Note: Specific functions may vary by vehicle model and year.
• Pełne funkcje OBD2: Read Codes, Erase Codes, Live Data Stream, I/M Readiness, Evap System Test, Vehicle Information, DTC Lookup, Turn off Malfunction Indicator Lamp (TYSIĄC).
• Dodatkowe funkcje: Pojemność bateriitage Check, One-click Smog Check, Auto VIN detection.

Figure 3.1: ANCEL TD700 displaying its multi-system diagnostic menu for Toyota vehicles.

Figure 3.2: ANCEL TD700 showing its professional-level special functions menu for Toyota vehicles.

Figure 3.3: ANCEL TD700 displaying its OBD2 diagnostic menu, applicable to all vehicle brands.

4. Konfiguracja i połączenie

4.1 ANCEL BT310 Battery Tester Setup

1. Przygotuj baterię: Ensure the vehicle's ignition is off and all accessories are turned off. The battery terminals should be clean and free of corrosion.
2. Połącz Clamps: Podłącz czerwony dodatni (+) clamp of the BT310 to the positive (+) terminal of the battery. Connect the black negative (-) clamp do ujemnego (-) zacisku akumulatora.
3. Włączanie: The BT310 will power on automatically once correctly connected to the battery.
4. Ustawienia początkowe: Follow the on-screen prompts to select language and other initial settings if required.

Figure 4.1: Proper connection of the BT310 clampdo akumulatora pojazdu.

4.2 ANCEL TD700 Diagnostic Tool Setup

1. Zlokalizuj port OBD2: The OBD2 diagnostic port is typically located under the dashboard on the driver's side. Refer to your vehicle's manual if you cannot find it.
2. Connect TD700: Plug the TD700's OBD2 connector firmly into the vehicle's OBD2 port.
3. Włączanie: The TD700 will power on automatically once connected to the vehicle's OBD2 port.
4. Zapłon pojazdu: Turn the vehicle's ignition to the 'ON' position (engine off) for most diagnostic functions. For some tests, the engine may need to be running.

5. Operating the ANCEL BT310 Battery Tester

After connecting the BT310, use the navigation buttons (ENTER, EXIT, Up/Down arrows) to select desired tests from the main menu.

5.1 Test baterii

1. From the main menu, select "Battery Test" and press ENTER.
2. Select the battery type (e.g., Flooded, AGM, GEL, Lithium-Ion) and press ENTER.
3. Wprowadź zimny rozruch akumulatora Amps (CCA) rating as specified on the battery label and press ENTER.
4. Tester przeprowadzi analizę i wyświetli wyniki.
5. Interpretacja wyników:
   • Dobra bateria: Bateria jest w dobrym stanie.
   • Good-Recharge: Battery is good but needs recharging.
   • Charge & Retest: Battery needs charging, then retest to confirm health.
   • Wymień baterię: Akumulator jest uszkodzony i należy go wymienić.
   • Bad Cell-Replace: One or more cells are faulty; replace the battery.

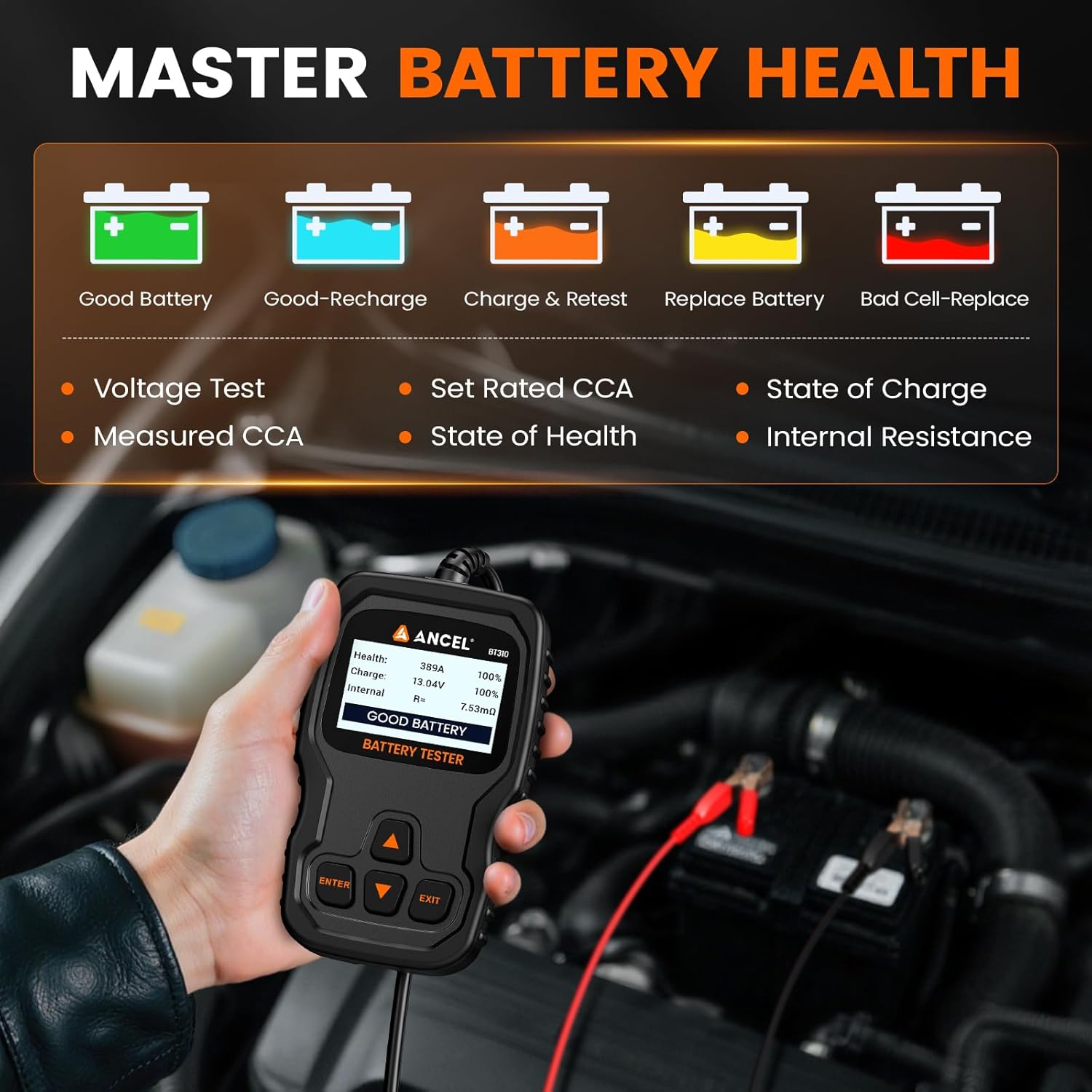

Figure 5.1: BT310 displaying comprehensive battery health results.

5.2 Test rozruchu

1. From the main menu, select "Cranking Test" and press ENTER.
2. Postępuj zgodnie z instrukcjami wyświetlanymi na ekranie, aby uruchomić silnik pojazdu.
3. Tester przeanalizuje objętość rozruchowątage and time, then display the results.
4. Interpretacja wyników: The display will show cranking time and voltage. A 'CRANKING NORMAL' message indicates a healthy starter system. Low voltage or extended cranking time may indicate issues with the battery or starter.

5.3 Test ładowania

1. From the main menu, select "Charging Test" and press ENTER.
2. Follow the on-screen instructions to start the vehicle's engine and perform any requested actions (e.g., revving the engine).
3. The tester will measure the alternator's output under various conditions (unloaded, loaded) and check for excessive ripple voltage.
4. Interpretacja wyników: The display will show unloaded voltage, załadowana objętośćtage i ripple voltage. A 'VOLTAGE NORMAL' message indicates a healthy charging system. Readings outside the normal range may indicate issues with the alternator or voltagregulator.

Figure 5.2: BT310 displaying Cranking Test and Charging Test results.

5.4 Odnośnieview Dane

Wybierz „Review Data" from the main menu to view previously saved test results. This allows for comparison and tracking of battery health over time.

6. Operating the ANCEL TD700 Diagnostic Tool

After connecting the TD700 to the vehicle's OBD2 port and turning the ignition on, the device will boot up. Use the navigation buttons (OK, ESC, Up/Down/Left/Right arrows) to navigate the menus.

6.1 Toyota Multi-System Diagnosis

1. From the main menu, select the Toyota diagnostic option.
2. The tool will automatically identify the vehicle or prompt you to enter vehicle information.
3. Select the desired system for diagnosis (e.g., Engine, Transmission, ABS, Airbag).
4. Choose to Read Codes, Erase Codes, or view Live Data Stream for the selected system.
5. Notatka: Some advanced features and system access may only be supported on specific Toyota models. If a feature is not available, please confirm compatibility with your vehicle.

6.2 Toyota Professional-Level Functions

1. From the Toyota diagnostic menu, navigate to "Special Functions" or a similar option.
2. Select the desired function (e.g., Oil Reset, EPB Reset, BMS Reset).
3. Follow the on-screen instructions carefully to perform the service function. Ensure all prerequisites (e.g., engine off, ignition on) are met.
4. Ostrożność: Special functions can alter vehicle settings. Ensure you understand the procedure before proceeding. Compatibility varies by vehicle.

6.3 OBD2 Functions (All Vehicle Brands)

1. From the main menu, select "OBDII/EOBD" or a similar option.
2. Choose from the available functions:
• Przeczytaj kody: Retrieves Diagnostic Trouble Codes (DTCs) from the Powertrain Control Module (PCM).
• Usuń kody: Czyści kody DTC i wyłącza wskaźnik awarii Lamp (TYSIĄC).
• Transmisja danych na żywo: Displays real-time sensor data from the vehicle.
• Gotowość I/M: Sprawdza stan monitorów związanych z emisjami.
• Test układu parowania: Rozpoczyna test układu kontroli emisji par paliwa.
• Informacje o pojeździe: Pobiera numer identyfikacyjny pojazdu (VIN), identyfikator kalibracji itp.
• Wyszukiwanie kodu DTC: Zawiera definicje ogólnych kodów DTC.

6.4 Additional Features of TD700

• Pojemność bateriitage Sprawdź: Quickly checks the current voltage akumulatora pojazdu.
• One-click Smog Check: Provides a quick status check for emissions readiness.
• Numer VIN samochodu: Automatically retrieves the vehicle's VIN for quick identification.

Figure 6.1: TD700 displaying additional features such as Battery Voltage Check and Auto VIN.

7. Konserwacja

• Czyszczenie: Use a soft, dry cloth to clean the device casings. Avoid using abrasive cleaners or solvents.
• Składowanie: Przechowuj urządzenia w suchym i chłodnym miejscu, z dala od bezpośredniego światła słonecznego i ekstremalnych temperatur. Przechowuj je w oryginalnym opakowaniu lub etui ochronnym, gdy nie są używane.
• Pielęgnacja kabli: Inspect cables regularly for damage. Do not bend or crimp cables excessively.
• Aktualizacje oprogramowania: Okresowo sprawdzaj urzędnika ANCEL website for available software updates for both the BT310 and TD700 to ensure optimal performance and compatibility with newer vehicles.

8. Rozwiązywanie Problemów

9. Specyfikacje

9.1 ANCEL BT310 Battery Tester

• Tomtage Zakres: 9 V - 30 V prądu stałego
• Zakres testowy: 100 - 2000 CCA
• Obsługiwane typy baterii: Flooded, EFB, GEL, AGM Spiral, AGM Flat Plate, Lithium-Ion
• Temperatura pracy: 0°C do 50°C (32°F do 122°F)
• Temperatura przechowywania: -20°C do 70°C (-4°F do 158°F)

9.2 ANCEL TD700 Diagnostic Tool

• Wyświetlacz: Kolorowy wyświetlacz LCD
• Łączność: Standard 16-pin OBD2 connector
• Obsługiwane protokoły: OBDII/EOBD compliant protocols
• Pokrycie pojazdu: Toyota (multi-system & special functions), All OBD2 compliant vehicles (engine diagnostics)
• Temperatura pracy: 0°C do 50°C (32°F do 122°F)
• Temperatura przechowywania: -20°C do 70°C (-4°F do 158°F)

10. Gwarancja i wsparcie

ANCEL products typically come with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your product or visit the official ANCEL website. If you encounter any issues or have questions regarding the ANCEL BT310 or TD700, please contact ANCEL customer support through the following channels:

• Odwiedź oficjalną stronę ANCEL webwitryna zawierająca zasoby pomocy technicznej i informacje kontaktowe.
• Contact the seller directly via the Amazon messaging system for assistance.
