1. Wprowadzenie i koniecview
The SuperFire Y29-2 is a high-performance rechargeable LED flashlight designed for various applications, offering powerful illumination, multiple lighting modes, and durable construction. Its compact size and robust features make it suitable for home use, outdoor activities, and emergency situations. This manual provides essential information for the safe and effective operation of your new flashlight.
2. Zawartość opakowania
Sprawdź, czy w przesyłce znajdują się wszystkie elementy:
- SuperFire Y29-2 Rechargeable Flashlight
- 3000mAh Rechargeable Lithium-Ion Battery (built-in)
- Kabel ładujący USB-C
- Smycz do noszenia
- Instrukcja obsługi (ten dokument)
- Pudełko do przechowywania
Image: The SuperFire Y29-2 flashlight, along with its USB-C charging cable and carrying lanyard.
3. Konfiguracja
3.1 Pierwsze ładowanie
Before first use, fully charge the flashlight using the provided USB-C cable. Connect the USB-C end to the flashlight's charging port and the USB-A end to a compatible USB power adapter (not included). The power indicator lights will show charging progress. A full charge typically takes approximately 4 hours.

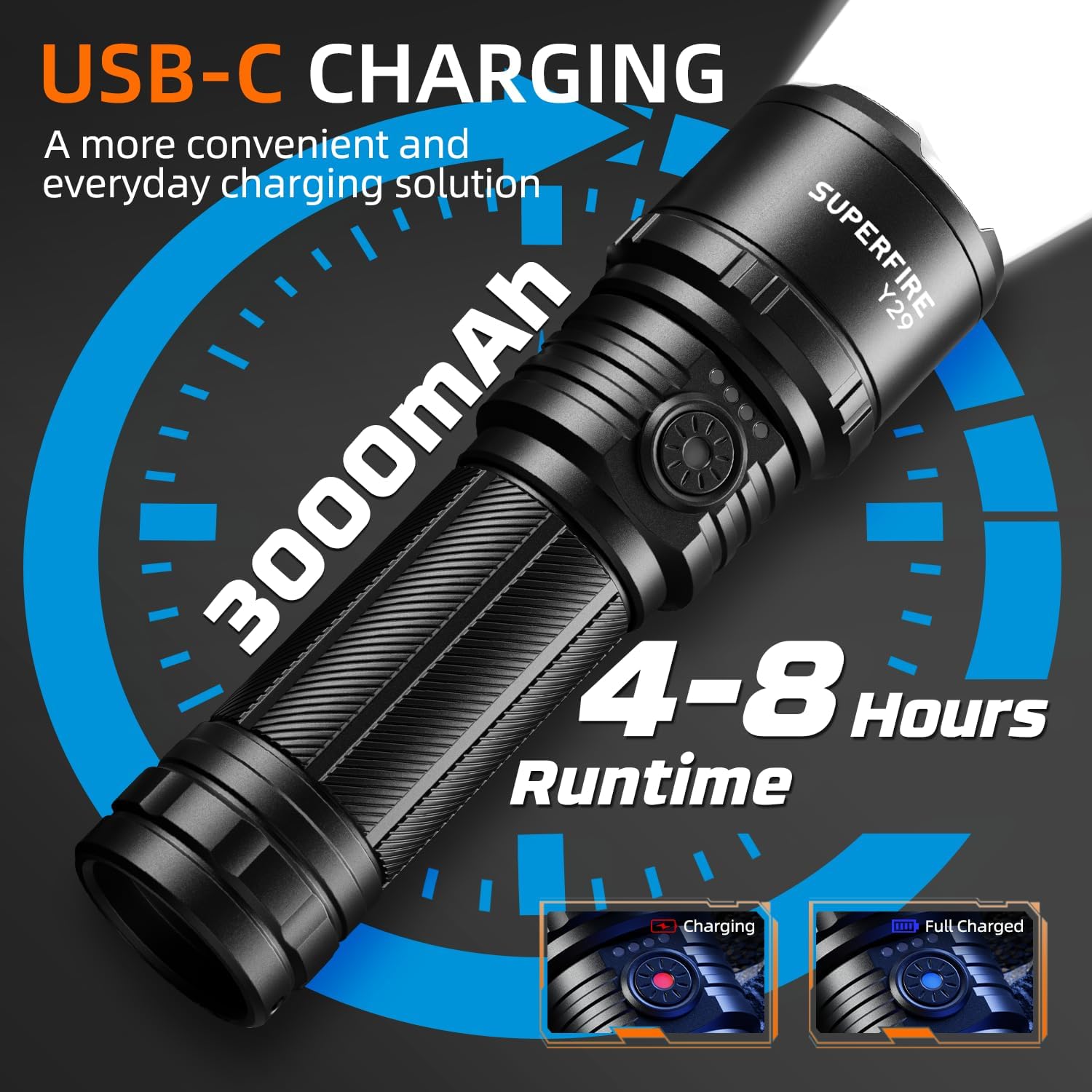

Image: Illustration of the USB-C charging port and the estimated 4-8 hour runtime, indicating charging status with blue and red lights.
3.2 Mocowanie smyczy
Attach the carrying lanyard to the designated loop on the flashlight's tail cap for secure handling and to prevent accidental drops during use.
4. Instrukcja obsługi
4.1 Włączanie/wyłączanie i wybór trybu
Press the power button located on the side of the flashlight to turn it on or off. With the flashlight on, short press the power button to cycle through the 5 lighting modes: High, Medium, Low, Strobe, and SOS. The flashlight features a memory function, which means it will turn on in the last used mode (excluding Strobe and SOS) when reactivated. To turn off the flashlight from any mode, long press the power button for 2 seconds.
Image: Visual representation of the five lighting modes: High, Medium, Low, Strobe, and SOS, demonstrating their respective light outputs.
4.2 Funkcja zoomu
To adjust the beam from a wide floodlight to a narrow spotlight, gently slide the head of the flashlight forward or backward. Zoom in for a wide beam covering over 200 square meters, and zoom out for a focused spotlight with a range of up to 1000 meters (3280 feet).
Image: Comparison of the flashlight's wide beam (floodlight) and narrow beam (spotlight) capabilities, illustrating the zoom function.
4.3 Wyświetlacz mocy
The integrated 4-LED indicator lights display the remaining battery power in real-time. Each light represents approximately 25% of the battery capacity. Charge the flashlight when the indicators show low power to ensure continuous operation and avoid sudden power loss.

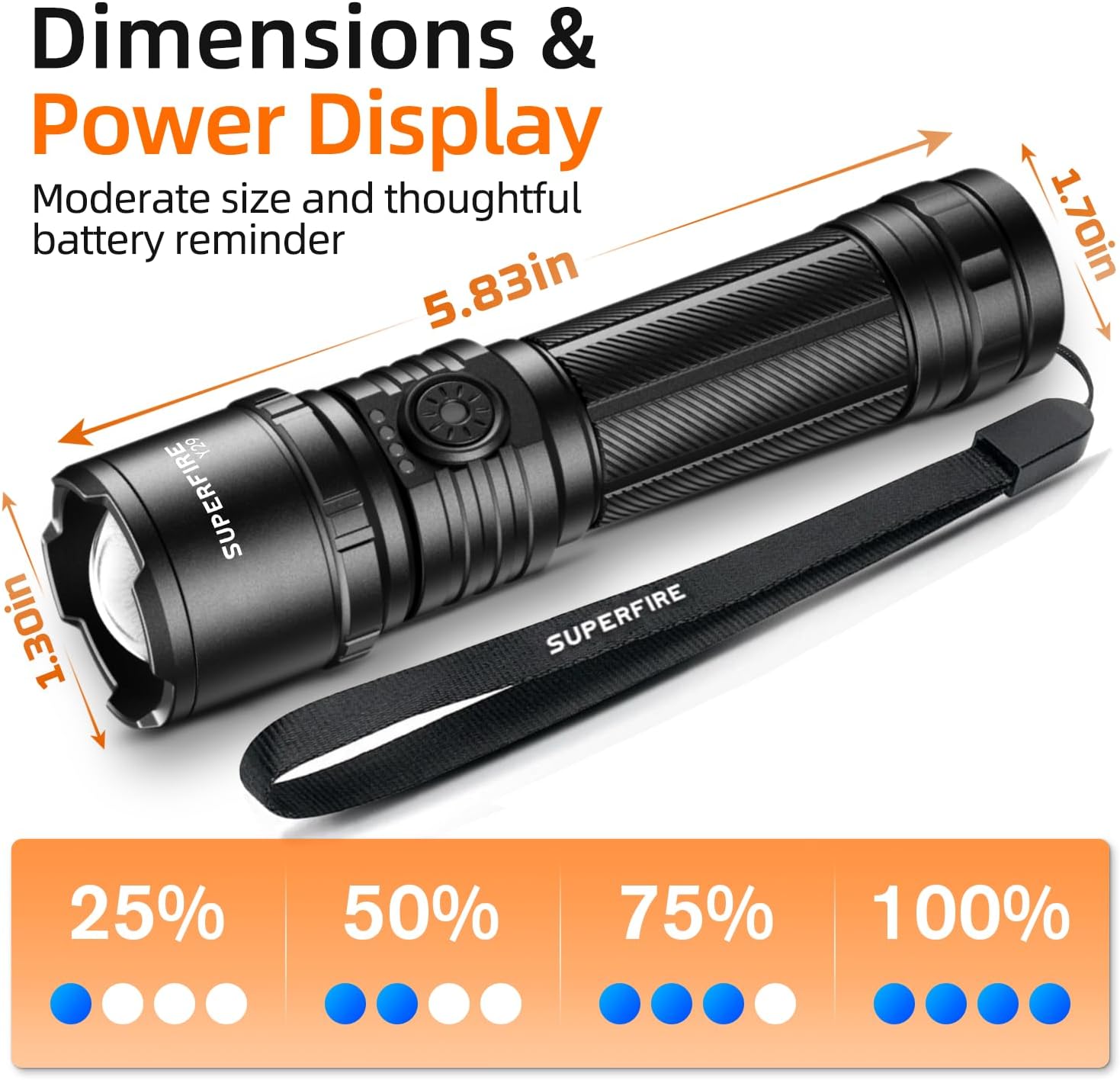

Image: Diagram showing the flashlight's dimensions and the 4-LED power indicator, illustrating battery levels from 25% to 100%.
5. Konserwacja
5.1 Czyszczenie
Przetrzyj korpus latarki miękką szmatką.amp cloth. Do not use abrasive cleaners, harsh chemicals, or solvents, as these may damage the finish or internal components.
5.2 Pielęgnacja baterii
To prolong battery life, avoid fully discharging the battery frequently. Recharge the flashlight regularly, especially if it will not be used for an extended period (e.g., every 3-6 months) to maintain battery health.
5.3 Przechowywanie
Store the flashlight in a cool, dry place away from direct sunlight, high humidity, and extreme temperatures. Ensure the charging port cover is securely closed to prevent dust or moisture ingress.
Image: The SuperFire flashlight demonstrating its IP44 waterproof capabilities in various weather conditions, including rain, snow, and ice.
6. Rozwiązywanie Problemów
- Latarka się nie włącza: Ensure the battery is charged. Check the charging cable and adapter for proper connection.
- Moc światła jest słaba: Recharge the battery. The battery may be low.
- Beam does not zoom smoothly: Clean the zoom mechanism area. Avoid forcing the zoom.
- Wnikanie wody: While waterproof, ensure the charging port cover is securely closed before exposure to water.
- Flashlight gets warm during prolonged use: This is normal for high-lumen flashlights due to heat dissipation from the LED. If it becomes excessively hot, turn it off and allow it to cool down.
7. Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Model | Y29-2 |
| Marka | SuperOgień |
| Źródło światła | PROWADZONY |
| Jasność | 1000 lumenów |
| Odległość wiązki | Do 1000 metrów (3280 stóp) |
| Tryby oświetlenia | Wysoki, średni, niski, stroboskop, SOS |
| Typ baterii | 3000mAh Rechargeable Lithium-Ion (Built-in) |
| Port ładowania | USB-C |
| Czas wykonania | Approximately 4 hours (High mode) |
| Tworzywo | Stop aluminium |
| Odporność na wodę | Wodoodporność IP44 |
| Wymiary (dł. x szer. x wys.) | 4.5" x 1.1" x 1.1" |
| Waga | 10.8 uncji |
| Cechy specjalne | Zoomable, Power Display, Memory Function |
Image: Illustration demonstrating the flashlight's powerful 1000 lumens and long beam range of 1000 meters (3280 feet).
8. Gwarancja i wsparcie
For any product issues, such as not working, lack of accessories, or broken packaging, please contact SuperFire customer support through Amazon. We are committed to resolving your concerns promptly and ensuring your satisfaction.
Please refer to your purchase platform for specific warranty details and return policies.
