JUBEST 42"x84" Sliding Barn Door Instruction Manual

Wstęp

This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your JUBEST 42"x84" Sliding Barn Door. Please read all instructions carefully before beginning installation to ensure proper setup and safe use.

Rysunek 1: Examples of JUBEST Sliding Barn Door applications in different rooms.

Zawartość opakowania

Before starting assembly, verify that all components listed below are present in your package. If any parts are missing or damaged, please contact customer support.

Figure 2: Complete package contents including door panels and hardware kit.

• Door Panels (42" W x 84" H, 1 3/8" thickness)
• Sliding Track (84" length)
• Heavy-duty Carbon Steel Hardware Kit (rollers, hangers, stoppers, floor guide)
• Door Handle (two-side design)
• Fasteners and Installation Tools (screws, wrenches)
• Instrukcja instalacji

Konfiguracja i instalacja

This section guides you through the assembly of the door panels and the installation of the sliding barn door system. Ensure you have the necessary tools and a clear workspace.

Montaż panelu drzwi

The door panels are designed for easy assembly with pre-drilled holes. Follow the instructions provided in the included installation manual for detailed steps.

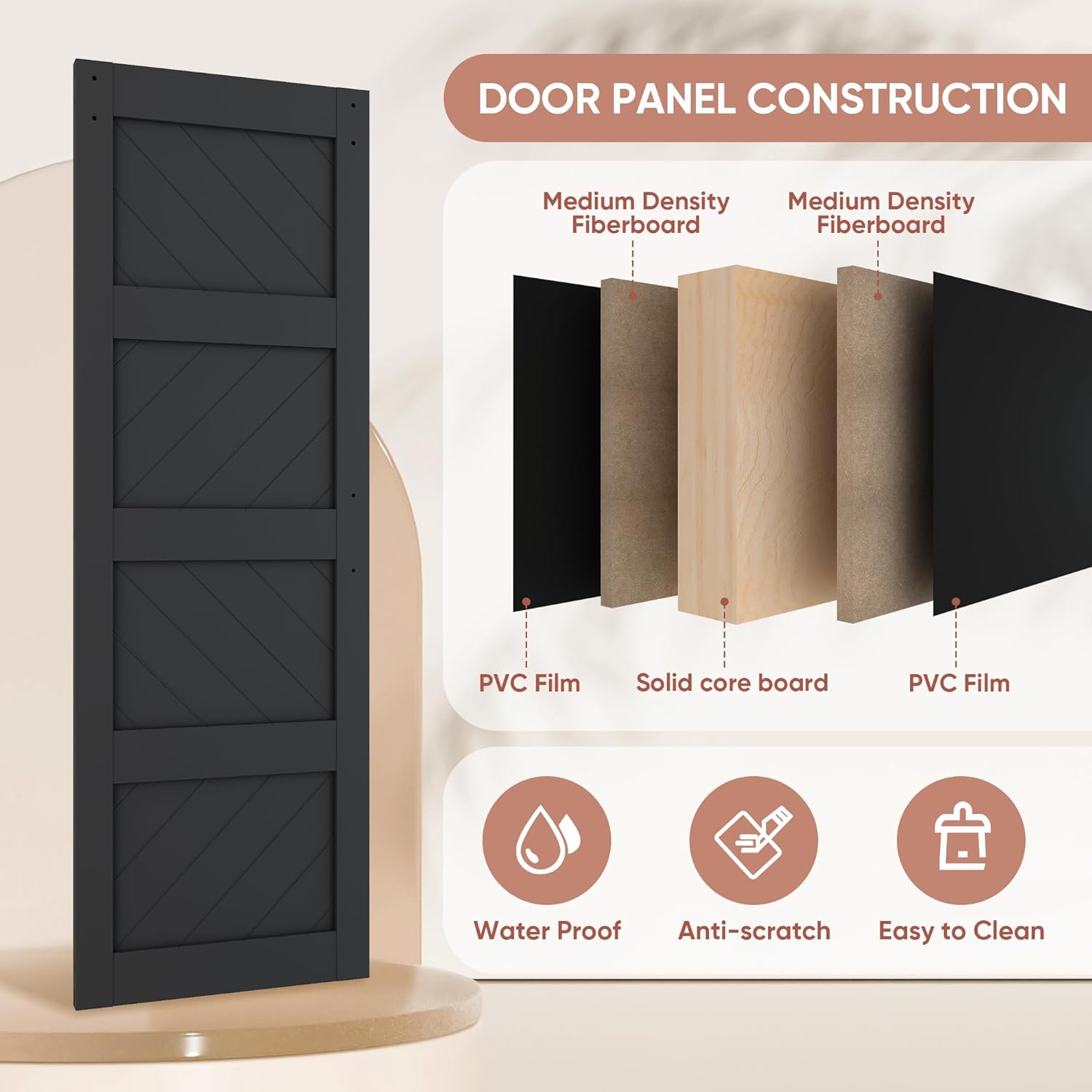

Figure 3: Door panel construction details, emphasizing durability and ease of maintenance.

The door is constructed from PVC-coated solid wood with Medium Density Fiberboard (MDF) layers, providing stability and resistance to deformation. The PVC surface is waterproof and scratch-resistant.

Instalacja sprzętu

The hardware kit includes all necessary components for mounting the track and hanging the door. It is recommended to have two people for installation due to the door's weight.

1. Krok 1: Przygotuj ścianę. Identify the studs in your wall. The track must be securely mounted into wall studs or a sturdy header board. Note: Wall blocking is not included. Ensure proper support before mounting.
2. Step 2: Install the Track. Mount the 84-inch track securely to the wall using the provided fasteners. Ensure the track is level.
3. Step 3: Attach Rollers to Door. Secure the premium nylon rollers to the top edge of the assembled door panel using the provided hardware.
4. Step 4: Hang the Door. Carefully lift the door and hang the rollers onto the track. Install the door stoppers at the desired positions on the track to prevent the door from sliding too far.
5. Step 5: Install Floor Guide. Install the floor guide to prevent the door from swinging out from the wall.
6. Step 6: Install Handle. Attach the two-sided handle to the door panel.

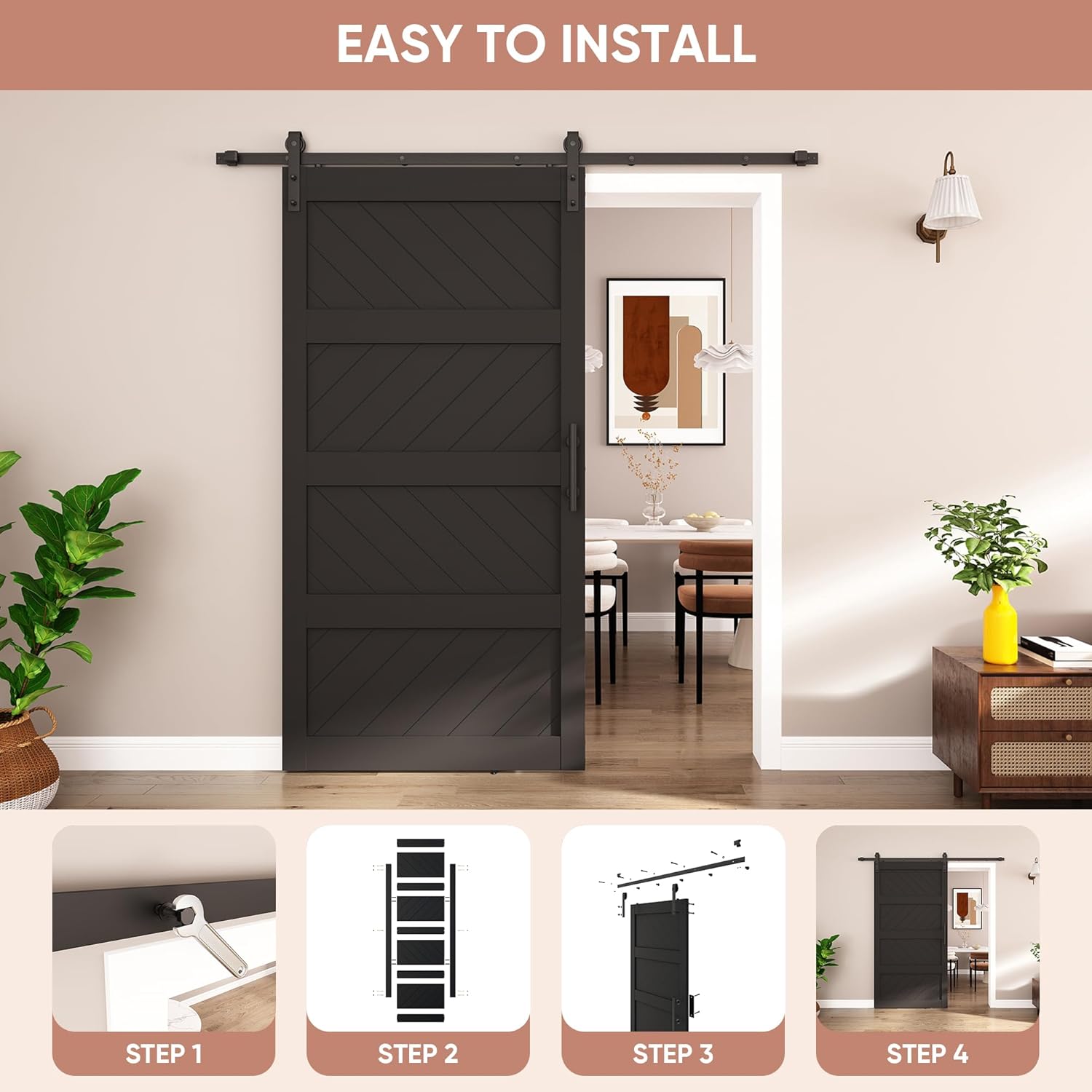

Rysunek 4: Koniecview procesu instalacji.

For detailed visual guidance, refer to the official installation video:

No official seller installation videos were provided in the product information. Please refer to the included paper manual for detailed visual instructions.

Działanie

The JUBEST Sliding Barn Door is designed for smooth and quiet operation. To open or close the door, gently slide it along the track using the handle. The premium nylon wheels ensure minimal friction and noise.

• Always use the handle to slide the door.
• Avoid forcing the door if it encounters resistance. Check for obstructions on the track or floor guide.
• The door stoppers are adjustable to control the maximum open and closed positions.

Konserwacja

Regular maintenance will ensure the longevity and smooth operation of your barn door.

• Czyszczenie: The PVC-coated surface is waterproof and easy to clean. Wipe the door panels with a soft, damp szmatką. Unikaj środków czyszczących o działaniu ściernym i silnych środków chemicznych, które mogłyby uszkodzić wykończenie.
• Gąsienice i rolki: Periodically inspect the sliding track and rollers for any debris or dust accumulation. Clean the track with a dry cloth or vacuum cleaner. If the rollers become stiff, a small amount of silicone-based lubricant can be applied to the wheel bearings, avoiding the track surface itself.
• Sprawdzenie sprzętu: Annually check all screws and fasteners for tightness. Re-tighten if necessary to maintain stability and prevent sagging.
• Door Condition: Inspect the door panels for any signs of wear or damage. The solid wood reinforcements help prevent bending or sagging.

Rozwiązywanie problemów

If you encounter any issues with your JUBEST Sliding Barn Door, refer to the following common solutions:

• Drzwi trudno się przesuwają:
  • Check the track for obstructions (dust, debris). Clean thoroughly.
  • Inspect rollers for damage or excessive wear.
  • Ensure the track is level and securely mounted. Re-tighten mounting screws if loose.
  • Verify the floor guide is properly aligned and not causing friction.
• Door makes noise when sliding:
  • Lubricate roller bearings with a silicone-based lubricant.
  • Check for loose hardware on the door or track. Tighten as needed.
  • Ensure the door is not rubbing against the wall or floor. Adjust the floor guide if necessary.
• Drzwi nie zamykają się całkowicie:
  • Adjust the position of the door stoppers on the track.
  • Sprawdź, czy nie ma przeszkód uniemożliwiających całkowite zamknięcie.

Specyfikacje

Key specifications for the JUBEST 42"x84" Sliding Barn Door:

Rysunek 5: Wymiary produktu.

Gwarancja i wsparcie

JUBEST is committed to providing quality products and customer satisfaction.

Informacje o gwarancji

Specific warranty details are typically provided with your purchase documentation. For information regarding product warranty, please refer to the warranty card included in your package or contact JUBEST customer service.

Obsługa klienta

If you have any questions, encounter quality problems, missing parts, or require assistance with installation, please contact our professional customer service team. They are available to help you with any concerns.

Contact information can typically be found on the product packaging or on the official JUBEST webstrona.
