Ferroli BLUEHELIX THETA 24 C Condensing Boiler Instruction Manual

1. Wprowadzenie

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Ferroli BLUEHELIX THETA 24 C condensing boiler. Please read these instructions carefully before installation and use, and keep them for future reference. This appliance must be installed and serviced by qualified personnel in accordance with local regulations and standards.

2. Informacje dotyczące bezpieczeństwa

• Profesjonalna instalacja: Installation, first start-up, and maintenance must be carried out by qualified and authorized personnel only.
• Dostawa gazu: Ensure the gas supply type matches the boiler's configuration. Do not attempt to modify the gas type without proper authorization and technical expertise.
• Wentylacja: Należy zapewnić odpowiednią wentylację, zgodnie z lokalnymi przepisami dotyczącymi urządzeń gazowych.
• Ciśnienie wody: Maintain correct system water pressure as specified in the technical data.
• Podłączenie elektryczne: Connect the boiler to a properly grounded electrical supply.
• Materiały łatwopalne: Nie należy przechowywać materiałów łatwopalnych w pobliżu kotła.
• Dzieci i osoby nieupoważnione: Trzymaj dzieci i osoby nieupoważnione z dala od urządzenia.

3. Koniec produktuview

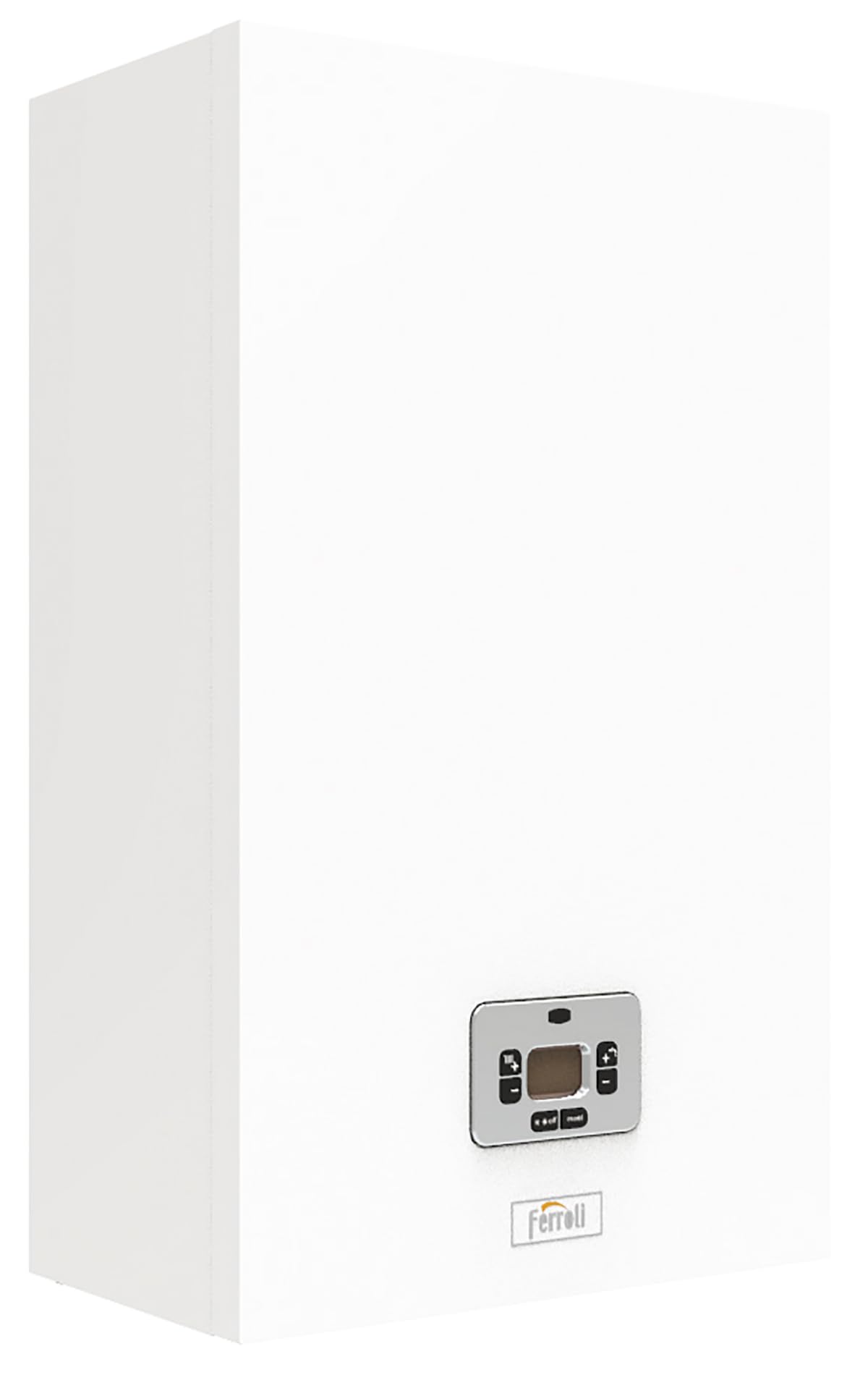

The Ferroli BLUEHELIX THETA 24 C is a wall-mounted condensing boiler designed for both central heating and instant domestic hot water production. It features advanced technology for high efficiency and adaptability.

Główne cechy:

• Stainless Steel Primary Exchanger: Monocircuit design without junctions or welds, ensuring high efficiency even with older installations.
• MC2 (Multi Combustion Control): Patented gas-adaptive technology for optimal combustion and adaptability to varying gas network conditions (e.g., pressure fluctuations).
• M.G.R. (Methane, LPG, Propane Air Ready): Configurable for Methane, LPG, or Propane Air without additional conversion kits.
• Instant Domestic Hot Water: Dedicated plate heat exchanger for immediate hot water supply.
• Interfejs użytkownika: Equipped with a display and multifunction keys for easy parameter adjustment and setting.
• Objazd: Integrated bypass as standard.
• Łatwa konserwacja: Casing removable in 3 parts for quick and simple servicing.
• ErP Ready: Low consumption modulating heating circulator (Class A).
• Digital Flame Control: Includes three re-ignition attempts in case of flame detection failure (for methane models).
• F.P.S. (Flue Protection System): Optional accessory (041106X0 - exhaust gas valve kit) allows connection to collective pressurized flue systems.
• Instalacja zewnętrzna: Suitable for partially protected outdoor installation down to -5 °C as standard, and down to -15 °C with the optional anti-freeze resistance kit.

Wymiary i przyłącza:

The following diagram illustrates the boiler's dimensions and connection points. All measurements are in millimeters.

Opis obrazu: Technical drawing showing the Ferroli BLUEHELIX THETA 24 C boiler from front, side, top, and bottom views with key dimensions. The front view shows the control panel. The top view (VISTA SUPERIORE) indicates a width of 420mm and depth of 250mm. The bottom view (VISTA INFERIORE) details various connection points labeled 7 through 11, and A6, with specific spacing measurements. The overall height is 700mm, width 420mm, and depth 250mm.

• Wymiary całkowite: Height: 700 mm, Width: 420 mm, Depth: 250 mm.
• Bottom Connections (VISTA INFERIORE): Numbered connections for various circuits, including gas, heating flow/return, and domestic hot water. Specific spacing is provided for installation planning.

4. Konfiguracja i instalacja

Installation must be performed by a certified professional. Ensure all local codes and regulations are followed.

Kroki instalacji (podsumowanie):

1. Montowanie: Securely mount the boiler to a suitable wall using the provided mounting bracket, ensuring it is level and stable.
2. System kominowy: Connect the flue system according to manufacturer instructions and local regulations. Ensure proper sealing.
3. Połączenia hydrauliczne: Connect the heating flow and return pipes, domestic hot water inlet and outlet, and condensate drain. Refer to the 'VISTA INFERIORE' diagram for connection points.
4. Podłączenie gazu: Connect the gas supply line to the boiler's gas inlet. Perform a leak test.
5. Podłączenie elektryczne: Connect the boiler to the main electrical supply. Ensure proper grounding.
6. Napełnianie systemu: Napełnij system ogrzewania wodą i odpowietrz go. Sprawdź szczelność.
7. Gas Type Configuration: Configure the boiler for the specific gas type (Methane, LPG, or Propane Air) using the user interface, if not already set by the installer.

5. Instrukcja obsługi

The boiler's user interface consists of a display and multifunction keys for controlling its operation.

Podstawowa obsługa:

• Włączanie/wyłączanie: Use the main power switch to turn the boiler on or off.
• Regulacja temperatury grzania: Use the designated keys on the control panel to increase or decrease the central heating water temperature.
• Domestic Hot Water Temperature Adjustment: Adjust the desired domestic hot water temperature using the relevant controls.
• Tryby pracy: Select between heating only, hot water only, or combined heating and hot water modes as needed.
• Sliding Temperature Operation: If an optional outdoor probe is installed, the boiler can operate in a sliding temperature mode, automatically adjusting the heating water temperature based on external conditions for optimized efficiency.

Refer to the detailed user interface section in the full manual for specific button functions and display indicators.

6. Konserwacja

Regular maintenance is crucial for the safe, efficient, and long-lasting operation of your Ferroli BLUEHELIX THETA 24 C boiler. All maintenance should be performed by qualified service personnel.

Zalecana konserwacja:

• Roczna inspekcja: Have the boiler inspected and serviced annually by a qualified technician. This includes checking combustion efficiency, gas tightness, water pressure, and cleaning components.
• Casing Removal: The boiler's casing is designed to be easily removed in three parts, facilitating quick access for maintenance and cleaning.
• Water Pressure Check: Periodically check the system water pressure on the boiler's display. If it falls below the recommended level, repressurize the system according to the instructions.
• Ochrona przed zamarzaniem: If the boiler is installed in an area prone to freezing temperatures, ensure the optional anti-freeze resistance kit is installed and functioning, or take other appropriate measures to prevent freezing.

7. Rozwiązywanie Problemów

If you encounter issues with your boiler, refer to the following common troubleshooting points. For complex problems, contact a qualified service technician.

• No Heating/Hot Water:
  • Sprawdź czy kocioł jest włączony.
  • Verify the system water pressure.
  • Sprawdź, czy termostat jest ustawiony prawidłowo i czy włącza ogrzewanie.
  • Sprawdź kody błędów na wyświetlaczu.
• Kody błędów: If an error code appears on the display, consult the full user manual for its meaning and recommended action. Some errors may require a technician.
• Digital Flame Control: The boiler features digital flame control with three re-ignition attempts. If the flame fails to establish after these attempts, the boiler will lock out. This often indicates a gas supply issue or a fault with the ignition system.
• F.P.S. (Flue Protection System): If the optional F.P.S. accessory is installed and an issue with the flue system is detected, the boiler may shut down for safety.

Ważny: Do not attempt to repair internal components yourself. Always contact a qualified technician for repairs.

8. Specyfikacje

Technical specifications for the Ferroli BLUEHELIX THETA 24 C boiler:

9. Gwarancja i wsparcie

For warranty information, please refer to the documentation provided with your purchase or contact your authorized Ferroli dealer. Keep your proof of purchase for warranty claims.

Obsługa klienta:

For technical assistance, spare parts, or service requests, please contact your local authorized Ferroli service center or the retailer from whom you purchased the product. Ensure you have the boiler's model number (BLUEHELIX THETA 24 C) and manufacturer reference (0TPY2AWA) available when contacting support.
