Rii K12+ Mini Wireless Keyboard with Touchpad Mouse

Produkt ponadview

The Rii K12+ Mini Wireless Keyboard with Touchpad Mouse is an ultra-slim, portable input device designed for convenience and versatility. Featuring a durable stainless steel back cover and 2.4 GHz wireless technology, it provides a seamless experience for controlling various devices.

Główne cechy:

• Ultra-slim design with stainless steel construction.
• Przenośny i elegancki.
• Wbudowany akumulator litowo-jonowy.
• Integrated touchpad with multi-finger functions: single-finger click for left mouse function, two-finger click for right mouse function.
• Automatic sleep mode for enhanced battery life.
• Conveniently stored USB receiver in the keyboard's back cover.

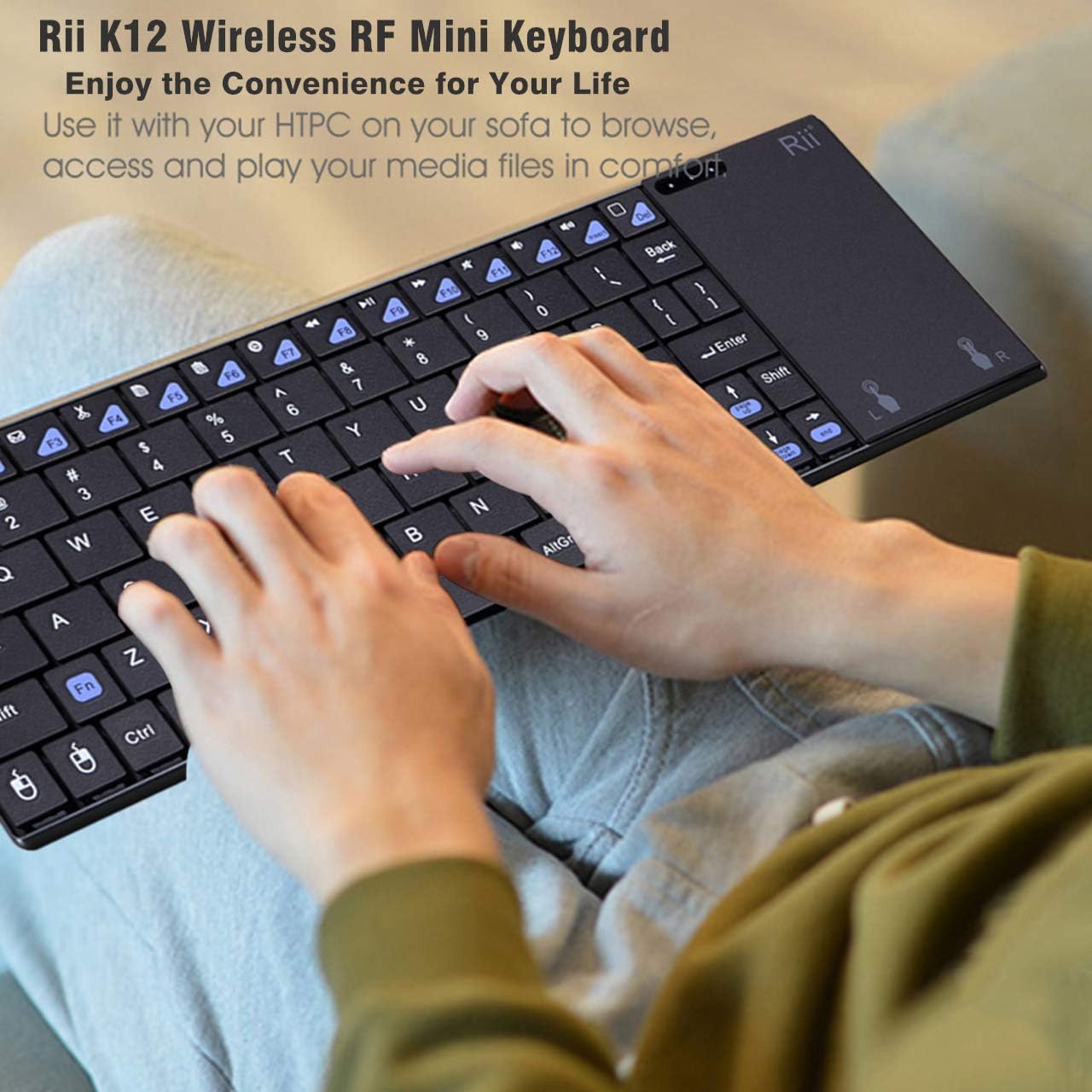

Image: The Rii K12+ Mini Wireless Keyboard being used, demonstrating its compact and portable nature.

Instrukcje konfiguracji

Follow these steps to set up your Rii K12+ Mini Wireless Keyboard:

1. Zawartość opakowania: Ensure you have the mini wireless keyboard, 2.4G receiver adapter, charging data cable, and user manual.
2. Naładuj klawiaturę: Connect the provided USB charging cable to the keyboard and a power source (e.g., computer USB port, USB wall adapter). The red indicator light will illuminate during charging and turn off when fully charged. A full charge typically takes about 3 hours.
3. Zlokalizuj odbiornik USB: The wireless USB receiver is stored in a compartment on the back of the keyboard for safekeeping. Gently slide open the compartment to retrieve it.
4. Podłącz odbiornik USB: Insert the 2.4G USB receiver adapter into an available USB 2.0 port or above on your device (PC, laptop, Smart TV, etc.).
5. Włączanie: Locate the power switch on the keyboard (usually on the top or side) and slide it to the 'ON' position. The keyboard will automatically connect to the receiver.

Obraz: Szczegółowy view of the keyboard's side and back, indicating the USB charging port, power switch, and the storage location for the USB receiver.

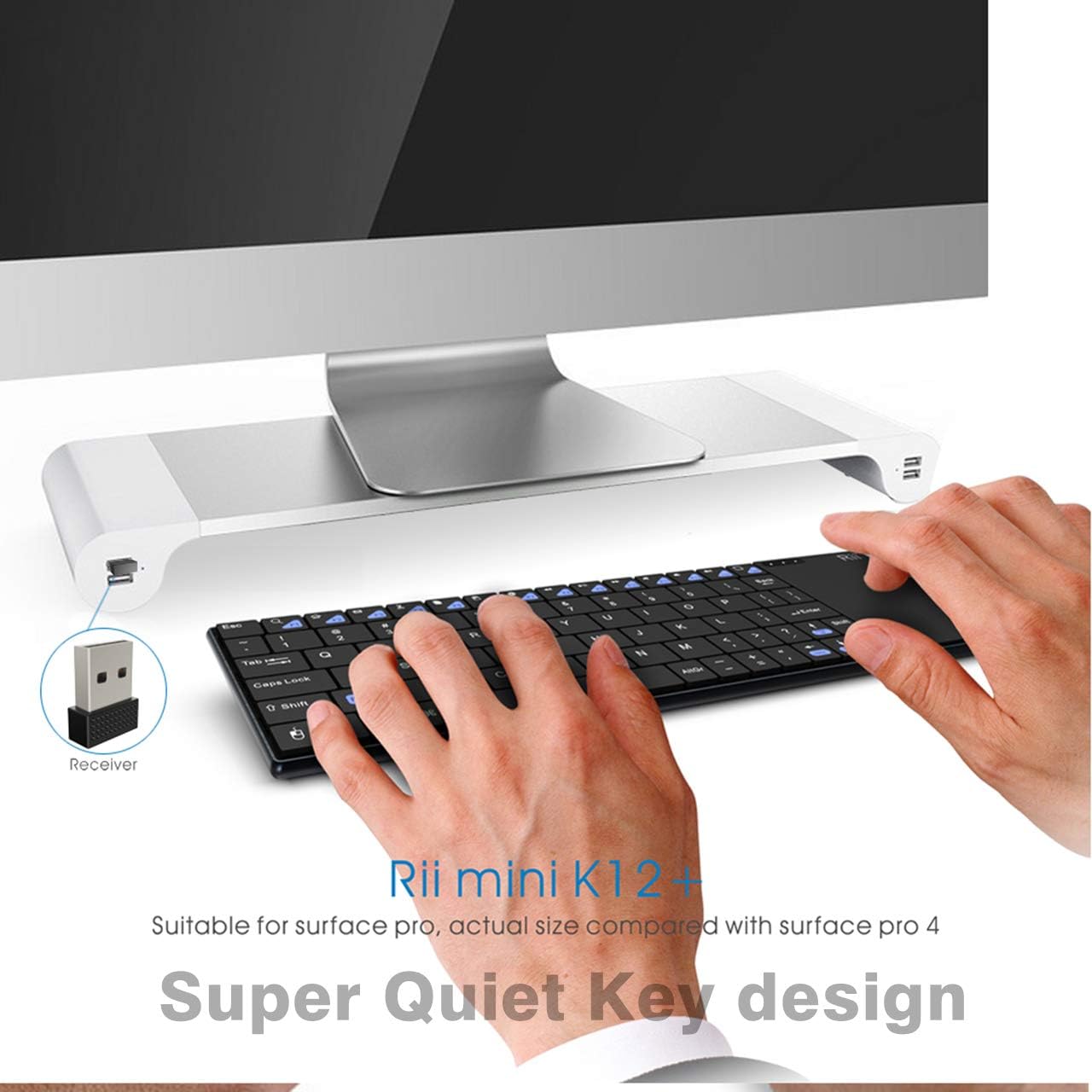

Image: The keyboard in use with a desktop computer, showing the USB receiver plugged into a port.

Instrukcja obsługi

Your Rii K12+ keyboard is ready for use after successful setup. Here's how to operate its key features:

Funkcje klawiatury

• Pisanie na maszynie: Do standardowego wprowadzania tekstu użyj układu QWERTY.
• Klawisze funkcyjne (Fn): Press the 'Fn' key in combination with other keys (e.g., F1-F12, multimedia keys) to access secondary functions.
• Podświetlenie: The keyboard features a backlight for improved visibility in low-light conditions. Refer to the specific key combinations in your quick guide for backlight control (e.g., changing colors or turning on/off).

Funkcje touchpada

The integrated touchpad supports multi-finger gestures:

• Lewy przycisk myszy: Single-finger tap on the touchpad or press the dedicated left mouse button.
• Kliknij prawym przyciskiem myszy: Two-finger tap on the touchpad or press the dedicated right mouse button.
• Przewijanie: Slide one finger along the right edge of the touchpad to scroll vertically.

Obraz: szczegółowy view of the keyboard's layout, including LED indicators for charging, Caps Lock, and RF signal, along with visual guides for touchpad gestures.

Konserwacja

To ensure the longevity and optimal performance of your Rii K12+ Mini Wireless Keyboard, follow these maintenance guidelines:

• Ładowanie: Charge the keyboard for approximately 3 hours to achieve a full battery. Avoid overcharging for extended periods.
• Ochrona baterii: The keyboard features an auto-sleep function to conserve battery power. To reactivate, simply click any key.
• Czyszczenie: Use a soft, dry cloth to clean the keyboard surface. Avoid using harsh chemicals or abrasive materials.
• Składowanie: When not in use, store the USB receiver in its designated compartment on the back of the keyboard to prevent loss. Store the keyboard in a cool, dry place.

Rozwiązywanie problemów

If you encounter issues with your Rii K12+ Mini Wireless Keyboard, refer to the following common problems and solutions:

• Q1: Keyboard and touchpad do not respond, and indicators are not illuminated.
  A: Check whether the switch is in the 'ON' position. If it is in the 'ON' position, please charge the battery with the USB charging cable located in the bottom.
• Q2: How long is required to charge the battery?
  A: The red indicator will be lighted during charging and off when it is fully charged. It requires about 3 hours to charge the battery fully.
• Q3: The USB cable in the bottom can be used for data transmission?
  A: No. It is only used to charge the battery.
• Q4: The keyboard works but the touchpad does not respond.
  A: Naciśnij klawisz F5.
• Q5: The blue indicator (the fourth one) keeps blinking.
  A: It is to indicate that the battery power is low. You need to charge the battery.

Specyfikacje

Image: Visual representation of the Rii K12+ keyboard's broad compatibility with different devices and operating systems.

Gwarancja i wsparcie

Rii provides a 12-month repair warranty for this product, ensuring quality and reliability. For any inquiries, technical assistance, or warranty claims, please contact customer support:

E-mail: service_support@riitek.com

Zachowaj dowód zakupu w celu potwierdzenia gwarancji.
