Produkt ponadview
This manual provides essential information for the proper installation, use, and maintenance of the Mueller Industries PVC Nipple Schedule 80. This product is designed for specific plumbing applications requiring high-pressure resistance and chemical compatibility.

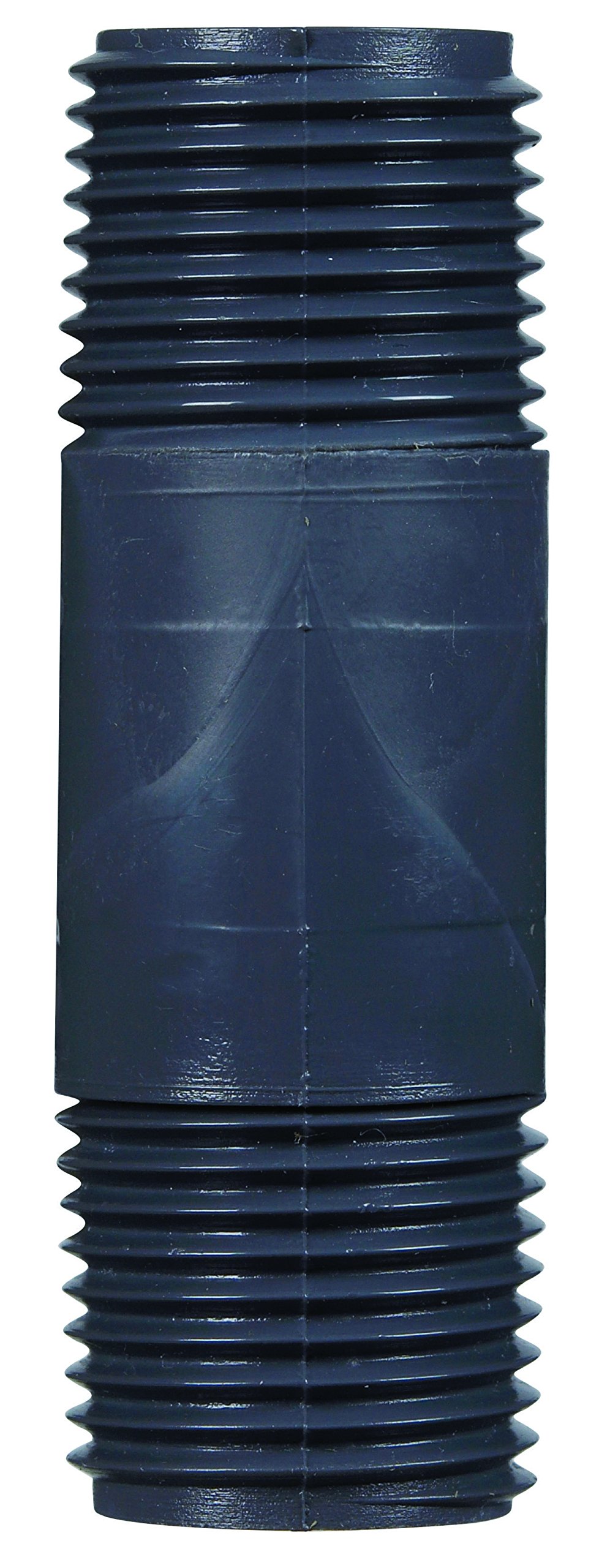

Rysunek 1: Mueller Industries PVC Nipple Schedule 80. This image displays the gray PVC nipple, highlighting its robust construction suitable for demanding applications.
Informacje dotyczące bezpieczeństwa
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Always handle with care and follow local safety guidelines.
- Always wear appropriate personal protective equipment (PPE), including gloves and eye protection, when handling and installing PVC products.
- Ensure adequate ventilation when working with PVC cement and primer.
- Do not use PVC products for applications involving compressed air or gases.
- Consult local building codes and regulations for proper installation practices.
Instrukcja instalacji
1. Przygotowanie
- Inspect the PVC nipple for any damage or defects before installation.
- Ensure all connecting pipes and fittings are clean, dry, and free from burrs or sharp edges.
- Gather necessary tools: PVC cutter, deburring tool, primer, PVC cement, measuring tape, marker.
2. Kroki instalacji
- Zmierz i tnij: If necessary, cut the PVC pipe to the desired length using a PVC cutter. Ensure cuts are straight and clean.
- Deburr and Chamfer: Use a deburring tool to remove any burrs from the inside and outside edges of the cut pipe. Chamfer the outside edge slightly to aid in assembly.
- Dopasowanie na sucho: Temporarily assemble the nipple with the connecting pipes and fittings to ensure proper alignment and fit. Mark the insertion depth on the pipe.
- Nałóż podkład: Apply a liberal coat of PVC primer to the outside of the pipe end and the inside of the fitting socket. Allow the primer to soften the surfaces for the recommended time (refer to primer manufacturer's instructions).
- Apply Cement: While the primer is still wet, apply an even, generous coat of PVC cement to the primed surfaces of both the pipe and the fitting socket.
- Gromadzić się: Immediately insert the pipe into the fitting socket, rotating the pipe a quarter turn (90 degrees) to ensure even distribution of cement. Hold the joint firmly for at least 30 seconds to prevent the pipe from pushing out.
- Czas utwardzania: Allow the joint to cure for the recommended time before handling or pressurizing the system. Cure times vary based on temperature, humidity, and pipe size (refer to cement manufacturer's instructions).
Wytyczne dotyczące obsługi i użytkowania
The Mueller Industries PVC Nipple Schedule 80 is designed for conveying fluids in various industrial and commercial applications. Schedule 80 PVC is thicker and more durable than Schedule 40, making it suitable for higher pressure and temperature applications.
- Ensure the system pressure and temperature do not exceed the ratings for Schedule 80 PVC.
- Verify chemical compatibility of the fluid being conveyed with PVC material to prevent degradation.
- Avoid exposing the PVC system to direct sunlight for prolonged periods without UV protection, as this can degrade the material over time.
Konserwacja
Proper maintenance ensures the longevity and reliable performance of your PVC system.
- Regularna kontrola: Periodically inspect all joints and pipes for signs of leaks, cracks, or damage. Address any issues promptly.
- Czyszczenie: Clean the exterior of the pipes and fittings as needed using mild soap and water. Avoid harsh chemicals that may degrade PVC.
- Ochrona środowiska: If the system is exposed to outdoor elements, consider painting the PVC with a water-based latex paint to provide UV protection.
Rozwiązywanie problemów
| Wydanie | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Leaking Joint | Improper cement application, insufficient cure time, damaged fitting. | Cut out the faulty joint and re-install following proper procedures. Ensure adequate cure time. |
| Pipe not fitting into socket | Incorrect pipe size, burrs on pipe, insufficient chamfering. | Verify pipe and fitting sizes. Deburr and chamfer pipe ends properly. |
| System pressure loss | Undetected leaks, system damage, exceeding pressure limits. | Inspect entire system for leaks. Verify operating pressure is within Schedule 80 limits. |
Specyfikacje
| Atrybut | Szczegół |
|---|---|
| Nazwa produktu | PVC Nipple Schedule 80 |
| Marka | Müllera |
| Numer modelu | 505-020 |
| Tworzywo | Polichlorek winylu |
| Kolor | Szary |
| Typ złącza | Sutek |
| Rozmiar nominalny | 1 cala x 2 cala |
| Harmonogram | 80 |
| Pozycja Wymiary (dł. x szer. x wys.) | 10 x 1.3 x 1.3 cala |
| Waga przedmiotu | 1 funt |
| UPC | 032888990234 |
| Producent | Mueller Industries |
Gwarancja i wsparcie
For specific warranty information regarding the Mueller Industries PVC Nipple Schedule 80, please refer to the documentation provided at the point of purchase or contact Mueller Industries directly. Warranty terms typically cover manufacturing defects.
For technical support or further inquiries, please contact the manufacturer:
- Producent: Mueller Industries
- Webstrona: www.muellerindustries.com
- Wsparcie sprzedawcy: For purchase-related support, please contact your retailer.
