Instrukcja obsługi mini zamrażarki pionowej Whynter CUF-210SS

Wstęp

This manual provides essential information for the safe and efficient operation of your Whynter CUF-210SS Upright Small Mini Freezer. Designed for compact spaces, this freezer offers reliable cold storage for various environments, including kitchens, offices, garages, and basements. Please read these instructions thoroughly before installation and use to ensure optimal performance and longevity of your appliance.

Rycina 1: Przód view of the Whynter CUF-210SS Upright Mini Freezer, showcasing its stainless steel door and compact design.

Konfiguracja i instalacja

1. Rozpakowywanie

• Carefully remove all packaging materials, including the foam base and adhesive tape.
• Inspect the freezer for any shipping damage. Report any damage to the retailer immediately.
• Keep packaging materials for future storage or transport if needed.

2. Umieszczenie

• Zamrażarkę należy ustawić na płaskiej i stabilnej powierzchni, która będzie wystarczająco mocna, aby utrzymać urządzenie po pełnym załadowaniu.
• Ensure adequate air circulation around the freezer. Maintain at least 5 inches (12.7 cm) of space from the back and sides, and 10 inches (25.4 cm) from the top.
• Avoid direct sunlight or heat sources (e.g., stoves, radiators) as these can increase energy consumption.
• This compact freezer is suitable for various small spaces, including bedrooms, dorms, garages, and offices.

Figure 2: The Whynter CUF-210SS mini freezer positioned in an office environment, demonstrating its suitability for various small spaces. Note the built-in door lock for security.

3. Poziomowanie

• The freezer must be level for proper operation. Adjust the leveling legs at the bottom of the unit to achieve a stable and level position.
• A level unit ensures the door closes properly and prevents excessive vibration.

4. Podłączenie zasilania

• Connect the freezer to a dedicated 115 Volt, 60 Hz grounded electrical outlet.
• Nie używaj przedłużaczy ani wtyczek przejściowych.
• Allow the freezer to stand upright for at least 4 hours before plugging it in. This allows the refrigerant to settle, preventing potential damage to the cooling system.

5. Możliwość odwrócenia drzwi

The freezer features a reversible-swing door, allowing you to change the direction it opens to best suit your space and layout. Refer to the detailed instructions in the full user manual for the procedure to reverse the door swing.

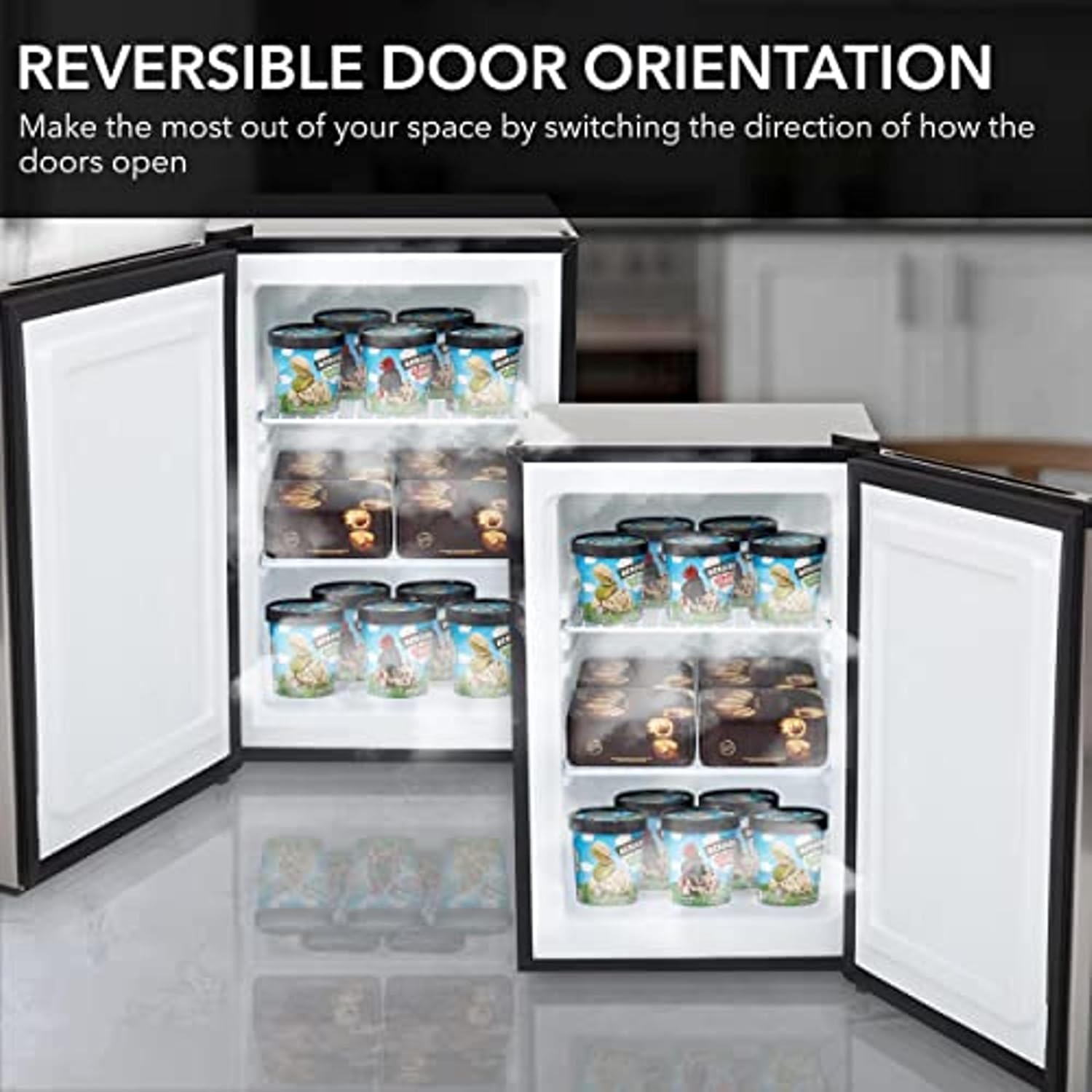

Figure 3: Illustration of the reversible door orientation feature, showing the freezer door opening from both left and right sides to maximize space utilization.

Instrukcja obsługi

1. Kontrola temperatury

• The freezer is equipped with a mechanical temperature control knob.
• The temperature range can be adjusted from approximately -10°F to 2°F (-23°C to -17°C).
• Turn the knob to the desired setting. A lower number indicates a warmer temperature, and a higher number indicates a colder temperature.
• Allow several hours for the temperature to stabilize after adjustment.

Figure 4: The interior of the freezer showing the adjustable thermostat control knob, with indicators for minimum (-10°F) and maximum (2°F) temperature settings.

2. Przechowywanie żywności

• The 2.1 cubic feet interior volume provides ample space for various frozen items.
• The freezer includes a removable slide-out wire shelf for flexible organization of contents.
• Ensure proper packaging of food items to prevent freezer burn and maintain freshness.

Figure 5: The spacious yet compact interior of the 2.1 cu. ft. freezer, illustrating its capacity for storing items like ice cream, frozen meat, and ready-made meals.

3. Blokada bezpieczeństwa

For added security, especially in shared environments or for sensitive contents, the freezer is equipped with a cylinder lock and two keys. Use the key to lock and unlock the door as needed.

Konserwacja

1. Czyszczenie

• Odłącz zamrażarkę przed czyszczeniem.
• Oczyść powierzchnie wewnętrzne i zewnętrzne łagodnym detergentem i ciepłą wodą.
• Wipe dry with a soft cloth. Do not use abrasive cleaners or harsh chemicals.
• Aby zachować wydajność, należy regularnie czyścić wężownice skraplacza znajdujące się z tyłu urządzenia.

2. Rozmrażanie

This is a manual defrost freezer. Frost buildup on the interior walls can reduce cooling efficiency. Defrost the unit when the frost layer is about 1/4 inch (0.6 cm) thick. To defrost:

1. Odłącz zamrażarkę od zasilania.
2. Wyjmij wszystkie produkty spożywcze i przechowuj je w innej zamrażarce lub chłodziarce.
3. Pozostaw drzwi otwarte, aby szron naturalnie się stopił. Możesz położyć ręczniki na dnie, aby wchłonęły wodę.
4. Po rozmrożeniu dokładnie wyczyść i osusz wnętrze przed ponownym podłączeniem urządzenia i włożeniem żywności.

Rozwiązywanie problemów

For common issues and solutions, please refer to the official Troubleshooting Guide available as a PDF document. This guide covers problems such as the freezer not operating, temperature issues, excessive noise, and door sealing problems.

Access the Troubleshooting Guide here: Whynter CUF-210SS Troubleshooting Guide (PDF)

If problems persist after consulting the guide, contact Whynter customer support for assistance.

Specyfikacje

Produkt ponadview Wideo

Gwarancja i wsparcie

The Whynter CUF-210SS Upright Mini Freezer comes with a One Year Limited Manufacturer Warranty. Please retain your proof of purchase for warranty claims.

For further assistance, technical support, or warranty inquiries, please visit the official Whynter weblub skontaktuj się z działem obsługi klienta. Dane kontaktowe zazwyczaj można znaleźć na stronie producenta. webmiejscu lub w oryginalnym opakowaniu produktu.

You can also refer to the full User Manual (PDF) for more detailed information: Whynter CUF-210SS User Manual (PDF)
