Victor 0384-2543 G250-540/510 Acetylene Torch Outfit Instruction Manual

Wstęp

This manual provides essential instructions for the safe and effective setup, operation, and maintenance of the Victor 0384-2543 G250-540/510 Acetylene Torch Outfit. Please read this manual thoroughly before using the equipment to ensure proper handling and to prevent injury or damage.

Informacje dotyczące bezpieczeństwa

WARNING: Welding and cutting processes can be hazardous. Always follow safety precautions to prevent serious injury or death.

• Always wear appropriate personal protective equipment (PPE), including welding helmet, safety glasses, gloves, and protective clothing.
• Aby uniknąć wdychania oparów, należy zapewnić odpowiednią wentylację w miejscu pracy.
• Miej gaśnicę zawsze pod ręką.
• Never use oxygen or fuel gas from cylinders without proper regulators.
• Check all connections for leaks using a leak detection solution.
• Store gas cylinders upright and secured, away from heat sources.
• Do not allow oil or grease to come into contact with oxygen cylinders or equipment.
• Always open cylinder valves slowly.
• Refer to local and national safety standards for additional guidelines.

Zawartość opakowania

Verify that all components listed below are present in your Victor 0384-2543 G250-540/510 Acetylene Torch Outfit package:

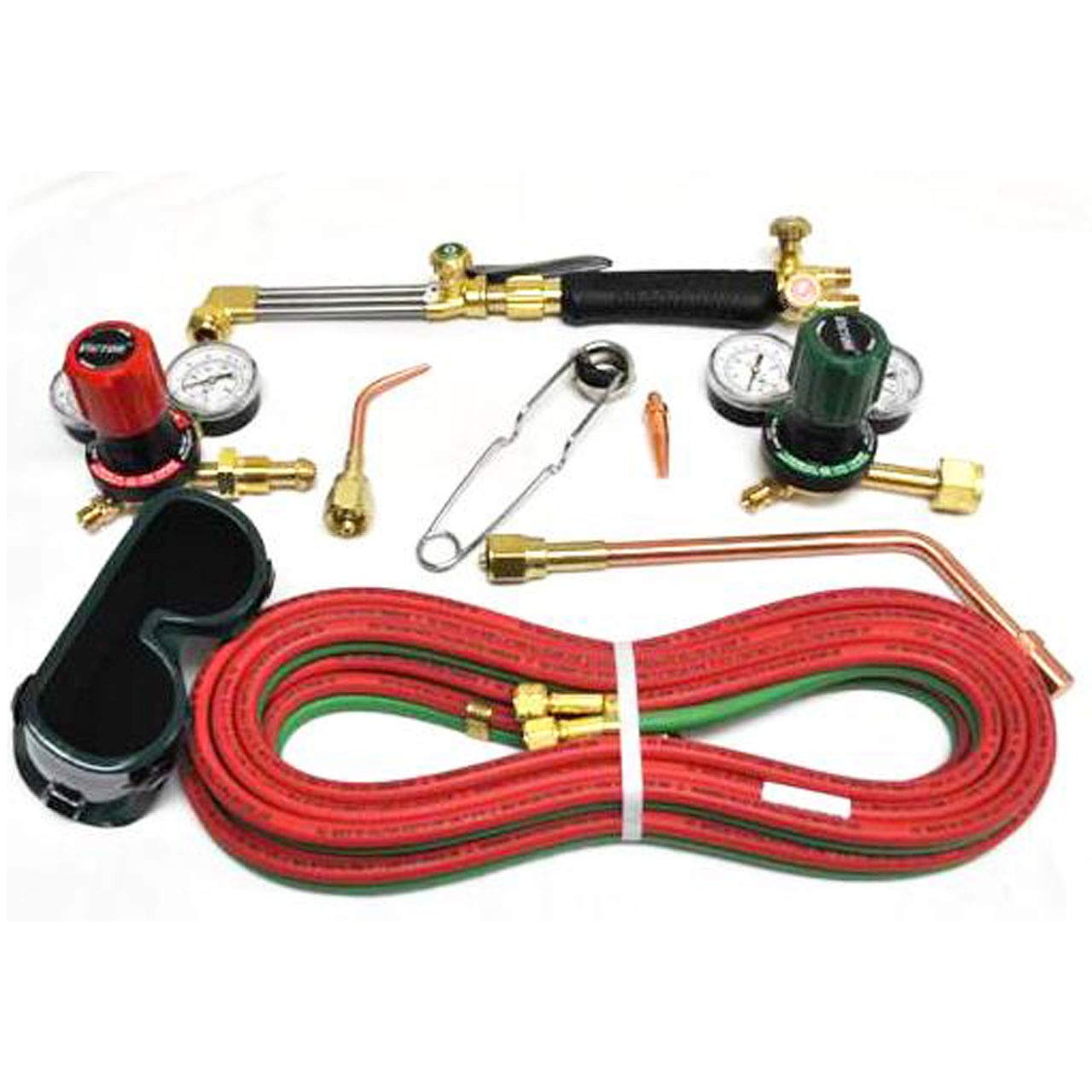

Rysunek 1: Koniecview of the Victor 0384-2543 G250-540/510 Acetylene Torch Outfit components.

• D250-15-510 Acetylene 250 Series Regulator
• D250-80-540 Oxygen 250 Series Regulator
• WH270FC-V Torch Handle with built-in flashback arrestors and check valves
• CA 270-V Cutting Attachment
• 0-UM-1 Welding Nozzle
• Series 3 Cutting Tip
• #6 MFA Heating Tip (Rosebud)
• 20' R Grade Hose (Oxygen and Acetylene)
• Strajkowicz
• Soft Sided Goggles

Instrukcje konfiguracji

1. Bezpieczne cylindry: Ensure oxygen and acetylene cylinders are secured upright to prevent tipping.
2. Clear Cylinder Valves: Briefly open and close the cylinder valves (cracking the valve) to clear any dust or debris from the outlets. Stand to the side of the valve when doing this.
3. Attach Regulators:
   • Attach the D250-80-540 Oxygen Regulator to the oxygen cylinder valve. The oxygen connection typically has right-hand threads. Tighten securely with a wrench.
   • Attach the D250-15-510 Acetylene Regulator to the acetylene cylinder valve. The acetylene connection typically has left-hand threads (indicated by a groove on the nut). Tighten securely with a wrench.
4. Podłącz węże:
   • Connect the green hose (oxygen) to the oxygen regulator outlet and the oxygen inlet on the WH270FC-V Torch Handle.
   • Connect the red hose (acetylene) to the acetylene regulator outlet and the acetylene inlet on the WH270FC-V Torch Handle.
   • Ensure all hose connections are tight. Oxygen connections use right-hand threads; acetylene connections use left-hand threads.
5. Attach Torch Components:
   • For cutting, attach the CA 270-V Cutting Attachment to the WH270FC-V Torch Handle.
   • For welding, attach the 0-UM-1 Welding Nozzle to the WH270FC-V Torch Handle.
   • For heating, attach the #6 MFA Heating Tip (Rosebud) to the WH270FC-V Torch Handle.
   • Ensure the attachment/nozzle is securely tightened to prevent gas leaks.
6. Sprawdź, czy nie ma wycieków: Before opening cylinder valves, ensure all regulator adjusting screws are backed out (turned counter-clockwise until loose). Slowly open cylinder valves. Apply a leak detection solution to all connections. Bubbles indicate a leak. Tighten connections or replace faulty components if leaks are found.

Instrukcja obsługi

A. Starting the Torch

1. Otwórz zawory cylindrów: Slowly open the oxygen cylinder valve fully. Slowly open the acetylene cylinder valve no more than 1/4 to 1/2 turn.
2. Set Regulator Pressures:
   • Turn the oxygen regulator adjusting screw clockwise to set the desired working pressure (refer to tip manufacturer's recommendations).
   • Turn the acetylene regulator adjusting screw clockwise to set the desired working pressure (refer to tip manufacturer's recommendations).
3. Purge Hoses: Briefly open the oxygen valve on the torch handle to purge air, then close. Repeat for the acetylene valve.
4. Light the Torch:
   • Slightly open the acetylene valve on the torch handle.
   • Use the striker to ignite the gas.
   • Slowly open the oxygen valve on the torch handle and adjust both oxygen and acetylene valves to achieve the desired flame (neutral, carburizing, or oxidizing).

B. Shutting Down the Torch

1. Close Acetylene Valve: Zamknij zawór acetylenu na uchwycie palnika.
2. Close Oxygen Valve: Close the oxygen valve on the torch handle.
3. Zamknij zawory cylindrów: Close the oxygen cylinder valve, then close the acetylene cylinder valve.
4. Węże odpowietrzające: Open the oxygen valve on the torch handle to release pressure from the oxygen regulator and hose until both regulator gauges read zero. Close the oxygen torch valve. Repeat for the acetylene side.
5. Back Out Regulator Screws: Turn both oxygen and acetylene regulator adjusting screws counter-clockwise until they are loose. This relieves spring tension and prolongs regulator life.

Konserwacja

• Regularna kontrola: Periodically inspect hoses for cuts, cracks, or wear. Check all connections for tightness.
• Czyszczenie końcówek: Use a tip cleaner to remove carbon deposits from welding and cutting tips. Never use hard objects that could damage the tip orifice.
• Kontrola szczelności: Perform a leak check with a leak detection solution regularly, especially after changing cylinders or components.
• Składowanie: Store the torch outfit in a clean, dry place, protected from damage.

Rozwiązywanie problemów

Specyfikacje

Gwarancja i wsparcie

For warranty information, technical support, or service inquiries regarding your Victor 0384-2543 G250-540/510 Acetylene Torch Outfit, please contact Victor Equipment customer service directly. Retain your proof of purchase for warranty claims.

Contact information for Victor Equipment can typically be found on their official webwitryny lub opakowania produktu.
