Roger DigiMaster /V2
User GuidePHONAK Roger DigiMaster V2 Speaker Column

Contents hide
1 Start
2 Operating range
3 Audio connection
4 Documents / Resources
4.1 References
5 Related Posts

Start

Components and functions
Roger DigiMasterPHONAK Roger DigiMaster V2 Speaker Column - FIGURE 1

  1. On/off
  2. 3.5 mm audio input
  3. Power socket
  4. USB C
  5. Indicator light (LED)
  6. 3.5 mm audio output
  7. Bluetooth

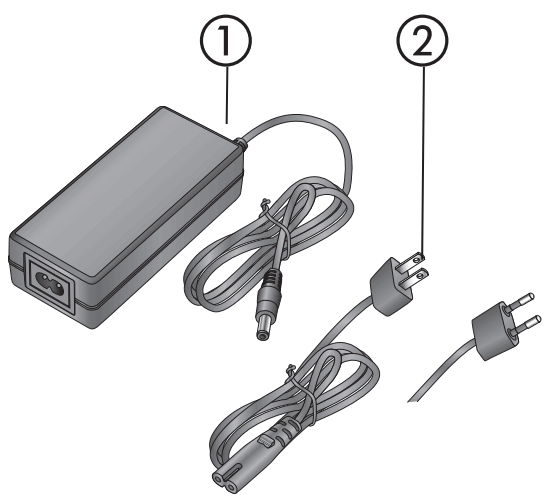

Power supply

PHONAK Roger DigiMaster V2 Speaker Column - FIGURE 2

  1. Power supply
  2. US and EU cable

Package contents may vary slightly depending on your country

Option:

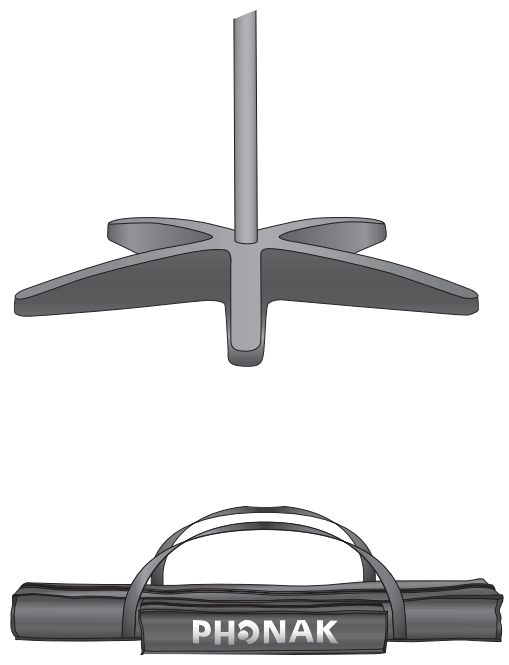

DigiMaster Floor stand + bag
PHONAK Roger DigiMaster V2 Speaker Column - FIGURE 4		 Option:
Wall mount kit PHONAK Roger DigiMaster V2 Speaker Column - FIGURE 5

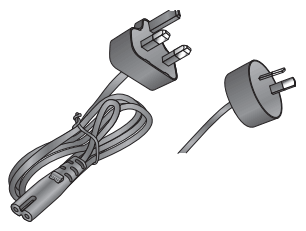

Option:
UK and AU cablePHONAK Roger DigiMaster V2 Speaker Column - FIGURE 6

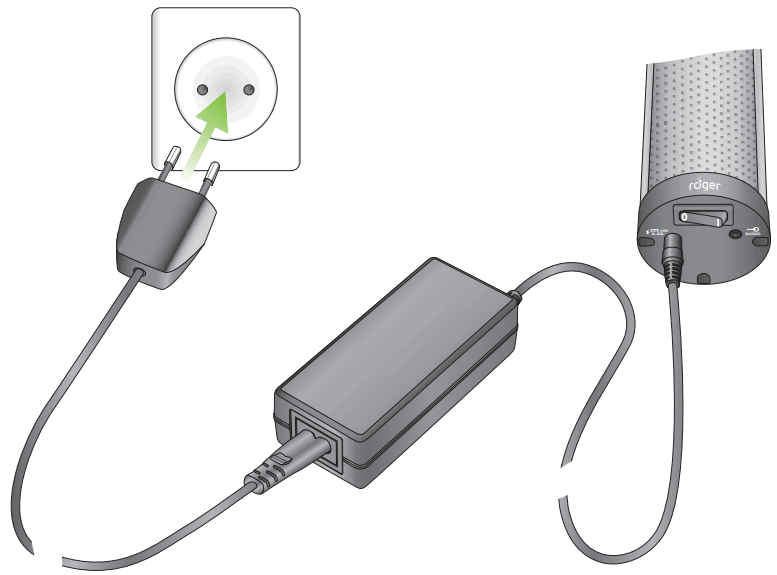

1. Mains

PHONAK Roger DigiMaster V2 Speaker Column - FIGURE 7

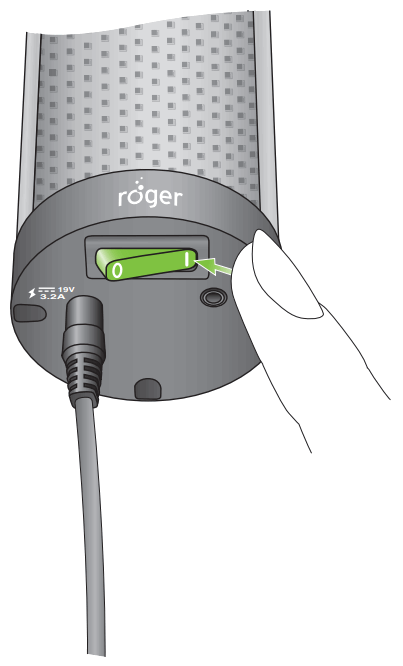

2. Switching Roger DigiMaster on

PHONAK Roger DigiMaster V2 Speaker Column - FIGURE 8

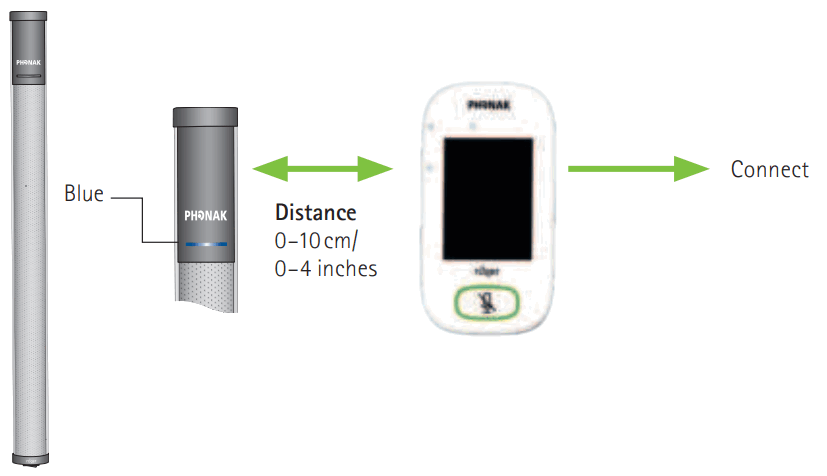

3. Connecting Roger DigiMaster

PHONAK Roger DigiMaster V2 Speaker Column - FIGURE 9

warning 2 Connect Roger DigiMaster before first use (Connect).

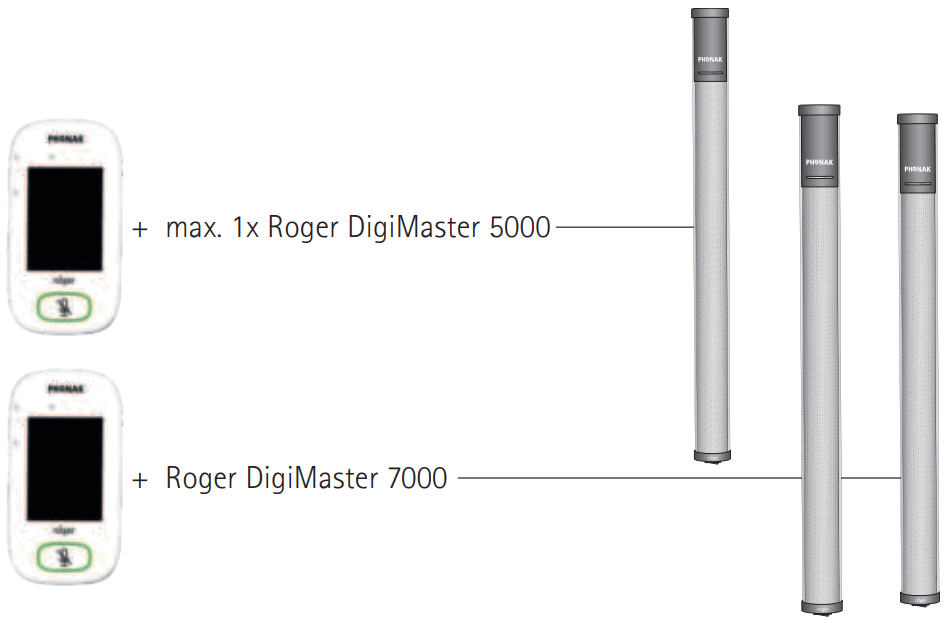

Connecting Roger DigiMaster

PHONAK Roger DigiMaster V2 Speaker Column - FIGURE 10

4. How to use Roger DigiMaster

PHONAK Roger DigiMaster V2 Speaker Column - FIGURE 11

warning 2 Same loudspeaker position whether using floor stand or wall mount.
5. Bluetooth® Pairing

PHONAK Roger DigiMaster V2 Speaker Column - FIGURE 12

  1. Press shortly the Bluetooth button on the DigiMaster
  2. LED: fast blue blinking (60 s pairing mode)
  3. Pair the device (BT settings: DigiMaster xxxx)
  4. LED: connected, blinking blue twice (1 s)

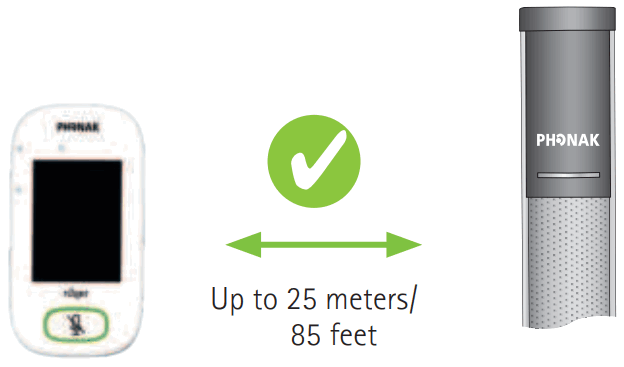

Operating range

Roger microphone

Roger DigiMaster
PHONAK Roger DigiMaster V2 Speaker Column - FIGURE 13

warning 2Out of range! If distance greater than 25 meters / 85 feet

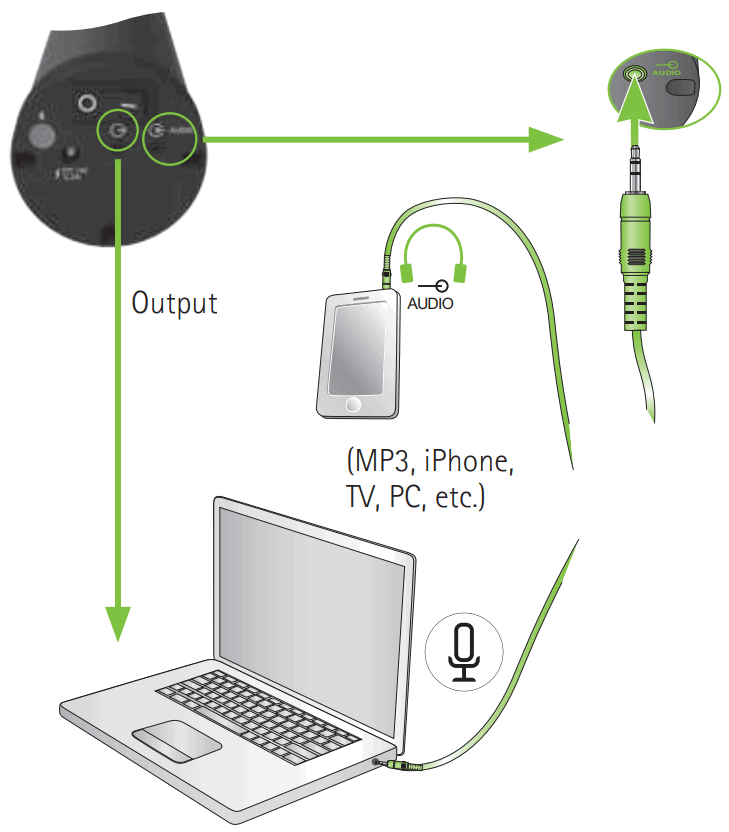

PHONAK Roger DigiMaster V2 Speaker Column - FIGURE 14Audio connection

Roger DigiMaster

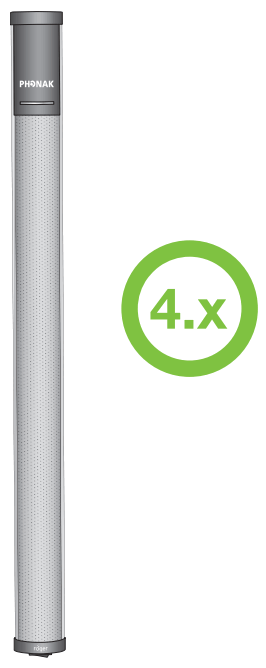

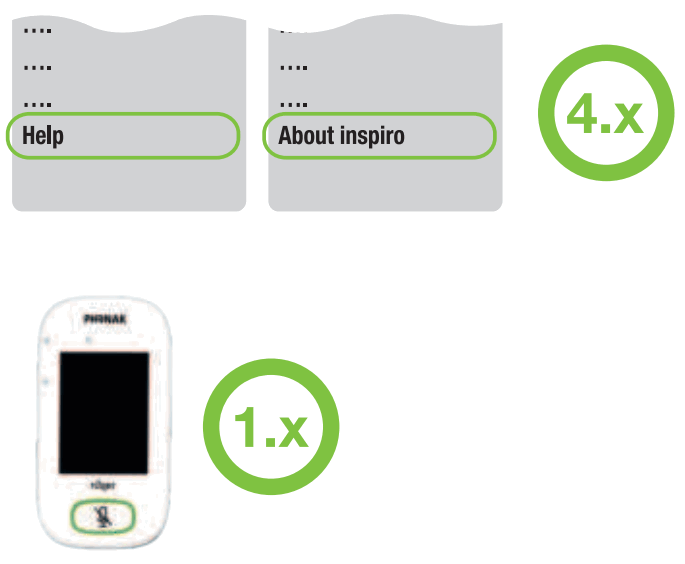

PHONAK Roger DigiMaster V2 Speaker Column - FIGURE 15Network compatibility

PHONAK Roger DigiMaster V2 Speaker Column - FIGURE 16 PHONAK Roger DigiMaster V2 Speaker Column - FIGURE 17

Indicator light (LED status)

PHONAK Roger DigiMaster V2 Speaker Column - FIGURE 18 Roger DigiMaster off
Standard operation mode
Roger Microphone off / out of range
Muted
Volume +/–
Software update
Call technician

Operating conditions
+0° to +40° Celsius / +32° to + 104° Fahrenheit
< 95% (non condensing) relative humidity
warning 2Use of accessories, transducers and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation.
warning 2Do not expose your device to temperatures and humidity outside of the recommended conditions stated in the User Guide.
warning 2For charger , use only IEC 62368- and/or EN60601-1 certified equipment with an output rating of 19 VDC, 3200 mA.
warning 2Do not use the device in areas where electronic equipment is prohibited.
warning 2Keep this device out of reach of children aged under 3 years.
PHONAK Roger DigiMaster V2 Speaker Column - BluetoothThe Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sonova AG is under license.

EspenstrasseSonova Communications AG
Herrenschwandweg 4
CH-3280 Murten
SwitzerlandPHONAK Roger LOGO 2PHONAK Roger DigiMaster V2 Speaker Column - ICON029-3306/V1.00/2022-09/na © 2022 Sonova AG
All rights reserved
