PHILLIPS CONNECT Arrow-QG Vehicle Tracking Device
PHILLIPS CONNECT Arrow-QG Vehicle Tracking Device
MODEL
ArrowQG Arrow-VI
4-6340-17-12V
4-6340-10
4-6341-17
4-6341-10
Vehicle Tracking Device
The information presented in this document is strictly confidential and contains trade secrets and other confidential information that are the exclusive property of Phillips Connect Technologies.
Introduction
The Arrow-QG (Arrow-VI) is a self-Contained vehicle tracking device that combines GPS location with LTE and BLE connectivity.
The Arrow-QG (Arrow-VI) appears to a user or a server application as a single endpoint device. It can be queried, updated and configured either through a serial connection or an over-the-air LTE IP connection. The Arrow-QG (Arrow-VI) presents itself over these connections as an enhanced cellular modem with attached functional elements. These elements include:
- GPS location engine
- General Purpose Bidirectional I/O (GPIO) pins
- Relay drive pin output
- Serial UART port
- CAN Communication (optional)
- BLE5.0

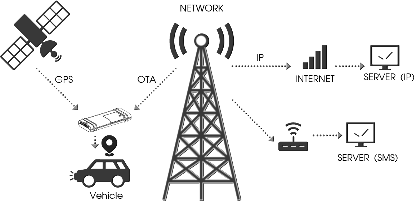

Application scene
Design
Basic Hardware
| Items | Requirement |
| Baseband Chipset | Qualcomm Cat.M1 |
| RF Transceiver | Qualcomm SDR |
| Memory | Internal |
| Air Interface | Support for LTE Cat.M1 |
| Frequency | 4G band support : Band2/4/5/12/13/25/26 BLE5.0 : 2.4GHz |
| Antenna | Internal Antenna / Chip Antenna |
| GPS Antenna | Dedicated high performance ceramic antenna |
| Interface | UART TX |
| UART RX | |
| 12V DC Input （1A current ） | |
| Relay Drive | |
| GPIO | |
| CAN(Option) | |
| Voltage Monitor | Supported |
| Watchdog | Supported |
| Motion Detect | Supported |
| LED | 2 LED Supported |
| Battery | Built in battery for backup （< 90mAH） |
| Power Cable connector type | 8 pin |
| Power Consumption | < 5Watts |
The Arrow-QG (Arrow-VI) provides support for specialized hardware features through extended AT commands. The features supported include the following.
GPS
The major functionality of the GPS system is to compute the correlation results between the incoming signal and the selected PRN code based on certain Carrier Doppler Frequency, Code Doppler Frequency, code phase, carrier phase, and the particular satellite the system is tracking or acquiring.
GPIO
The GPIO pins are presented to the external environment on the main connector. They are general-purpose bidirectional lines capable of providing system interrupts to
generate a report or drive logic levels to external devices. These lines are 2.8V logic level and are 16V tolerant.
LED’s
Two LED status indicators are provided to verify correct installation and operation.
UART
A UART port is provided for AT command and data interaction and optionally for application-specific control.
Relay Driver
A 500mA sink capable output pin is provided. This pin is meant to drive a relay coil intended to interrupt the starter solenoid relay for the ignition circuit to a car.
Voltage Monitor
The battery monitor is internal analog input scaled such that the DC value of the power input pin to the Arrow-QG (Arrow-VI) system is measured.
Watchdog
MDM9207-1 chipset provide internal software and hardware Watchdog.
Motion Detect
This function will work with firmware power down options to keep the Arrow-QG (Arrow-VI) in a very low power down state until motion is detected. Upon wakening,
a report can then be generated.
CAN
This function is an option for watching the information of vehicle.
Basic RF Performance
| Items | Requirements | Remark |
| TRP free space | CTIA | TRP free space |
| TIS free space | CTIA | TIS free space |
| Board RF Specification | |
| 4G LTE Cat.1 | |
| Band | Band 2/4/5/12/13/25/26 |
| Rx Spec | Follow TS 36.521 Ch.7 |
| Tx Spec | Follow TS 36.521 Ch.6 |
| BLE5.0 | |
| ISM Band | 2.4GHz |
| Rx Spec | Follow chipset |
| Tx Spec | Follow chipset |
| GPS | |
| Frequency Support | L1-band (1.57542GHz) |
Certification and Safety
| Items | Requirement |
| Drop Design | 0.8meter 6 direction standard drop test |
| Temperature Range | 0 to +60°C Operation -40 to +85°C Storage |
| Humidity: | 20% to 90% Operation 10% to 95% Storage |
| Altitude: | -500 to +18,000m |
| FCC Certification | FCC Part 15/22/24/27/90 |
| IC Certification | RSS-130/132/133/139/247 |
| ESD Requirement | 8KV non-Conductive |
Testing
| Test Item | Description |
| Baseband Function Test | • Power Input Test • Power Consumption and Current Test • Heat Dissipation Test • UART Stability Test • GPIO Level Test • Drop Down Test • ESD Test • High/Low Temperature Test |
| RF Test | • LTE Performance Test • GPS Performance Test • BLE Performance Test • Antenna Performance Test |
Mechanical Structure(mm)
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
IMPORTANT NOTE
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Industry Canada statement
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
- This device may not cause interference
- This device must accept any interference, including interference that may cause undesired operation of the device
Radiation Exposure Statement
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
© 2021 Phillips Connect Technologies LLC.
DOWNLOAD RESOURCES
- PHILLIPS CONNECT Arrow-QG Vehicle Tracking Device [pdf] User Manual AQG01, 2ASKHAQG01, 4-6340-17-12V, 4-6340-10, 4-6341-17, 4-6341-10, Arrow-QG, Arrow-VI, Arrow-QG Vehicle Tracking Device, Vehicle Tracking Device
- Read more: https://manuals.plus/phillips-connect/arrow-qg-vehicle-tracking-device-manual#ixzz7eAIPMBxY
FAQ’S
Yes, the Arrow-QG (Arrow-VI) can be configured to work without a SIM card. However, it will not be able to connect to the LTE network.
Yes, the Arrow-QG (Arrow-VI) can be configured to work without a GPS antenna. However, it will not be able to report its position.
Yes, you can use any SIM card with the Arrow-QG (Arrow-VI). However, you will need to ensure that your SIM card is compatible with the LTE Bands supported by your carrier.
Yes, you can connect an external GPS antenna to the Arrow-QG (Arrow-VI). However, you will need to ensure that your external GPS antenna is compatible with the GPS frequency band supported by your carrier.
Use a plug-in GPS blocker. A plug-in GPS blocker creates an interference signal that blocks vehicle GPS tracking. Simply plug it into your car’s cigarette lighter or auxiliary power outlet. When you turn the car on, the blocking device also turns on and your vehicle disappears from GPS monitors.
Think of them like a tape recorder. Instead of sound, the unit just records your location, but the recording cannot be accessed until someone gets the unit back and plays back the data. These passive trackers are impossible to detect with any electronic detectors because they simply don’t give off any kind of signal.
You’ll see a little arrow in the right-hand corner um if an app is tracking your location or has tracked your location. If we open up weather.
Common hiding places for tracking devices under your hood include behind the radiator, next or between batteries, in air ducts, or even in the air filter.
GPS trackers maintain a constant connection and can provide an updated location at any time. Bluetooth trackers have a 200 – 300 ft maximum range because they depend on the strength of the Bluetooth signal between the finder and your mobile device.
Can you Track a Car with Bluetooth. Yes, but you would need a bluetooth tracking device in the car and people with special apps installed on their phone. Bluetooth does not have much range. However, you can use a WiFi GPS Tracker, like Trakkit to track your car.
Yes, other people can track your location by sending you a text message on chat platforms or via SMS. They may send you a malicious link, install a hidden app, or triangulate your location using phone company data. However, it’s much harder to track your location based on a text you send to someone.
The simplest way to stop a GPS tracking device from functioning is to place it in a metal box. Any electrically conductive metal will reflect and absorb the device’s incoming and outgoing signals and interfere with its operation.
