wireless kit installation

PN: RMW

RMW Red Module Wireless Kit

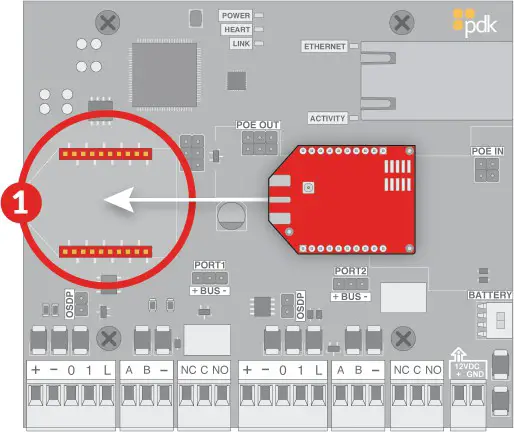

  1. Plug the wireless module into the Red 2 board as shown in the image.
    Ensure that the wireless module’s 20 pins align with the corresponding holes on the Red 2 board. Gently & carefully press the module into the board.
    pdk RMW Red Module Wireless Kit - Product Overview 1

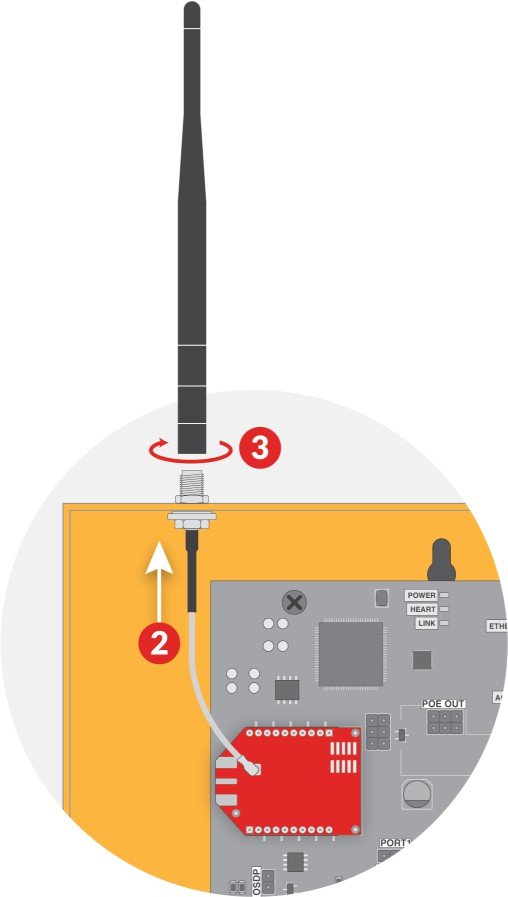

  2. Push the threaded end of the antenna wire (connected to the module) through the hole at the top of the Red 2 metal can.
  3. Connect the antenna to the antenna wire to the top of the enclosure.
    The antenna should point straight up.
    pdk RMW Red Module Wireless Kit - Product Overview 2

Got a question or need help?
801.317.8802 option #2 support@prodatakey.com
REV 05202021
