PDC UV-C LED Bore Disinfection System
IMPORTANT INSTRUCTIONS
Step 1: Watch the 6-minute UV-C Quick Start video and read below STEPS before proceeding (scan QR code above or go to http://bit.ly/3FBbSDy)
Step 2: Position UV-C cart near end of patient table farthest from magnet bore. Ensure it’s at least 5 ft. from bore

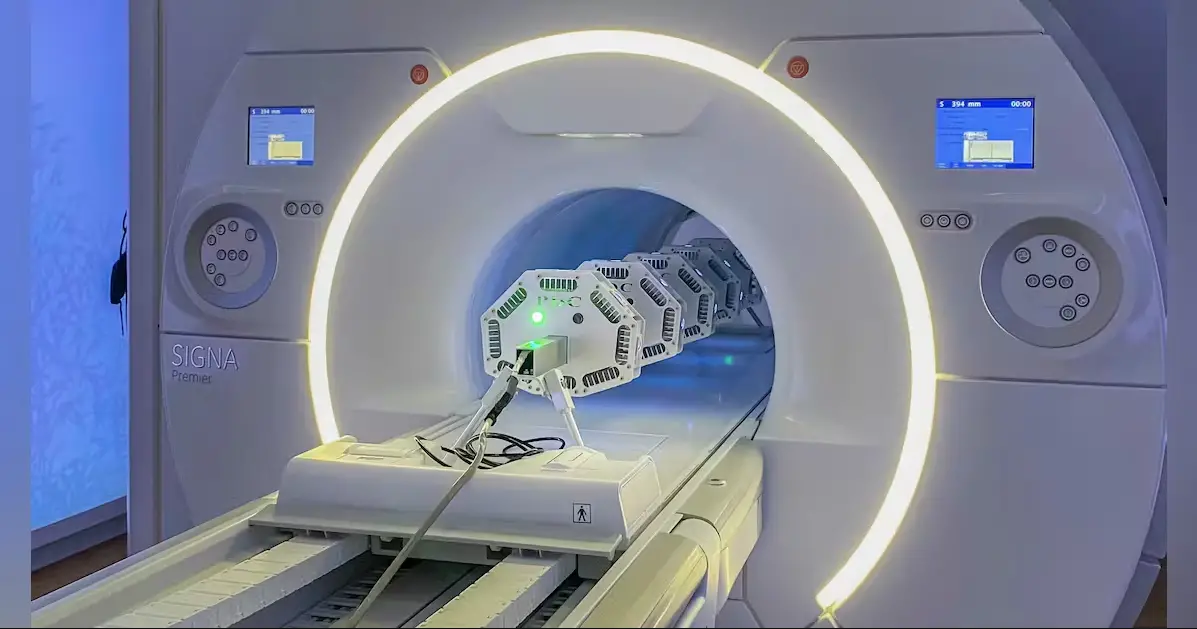

Step 3: Remove SECTION 1 from cart and place it on patient table with its support legs near magnet bore
Step 4: Remove SECTION 2 from cart and place it on patient table with its support legs near end of table farthest from bore
Step 5: Connect both sections together as shown in the video
Step 6: Move the patient table into the bore
Step 7: Plug the GREY UV-C cable into SECTION 2 as shown in the video
Step 8: Plug the BLACK power cord into a wall outlet – BLUE light starts flashing* for 60 seconds while UV-C System initializes (during steps 8-11)
Step 9: Position UV-C cart so lights are visable from viewing window
Step 10: Turn key to ENABLE SYSTEM – key must be turned on while BLUE light is flashing
Step 11: Push Power button beside key switch – while BLUE light is flashing UV-C System will not start until motion sensors detect no motion in the room
Step 12: Walk out of room and close the door
– Refer to UV-C System LIGHT KEY on back
– If motion is detected before cycle begins, GREEN light will flash rapidly until no motion has been detected for 30 seconds
Step 13: Disinfection cycle begins and lasts 3 minutes
– BLUE light is ON, GREEN light is flashing slowly
– If cycle is interrupted, turn key to DISABLE and start at Step 10
– Once ALL 3 lights on the cart are ON – Disinfection cycle is COMPLETE
Step 14: Enter room and turn key to DISABLE – BLUE light starts flashing
Step 15: Unplug the BLACK power cord and hang it on UV-C cart
Step 16: Unplug the GREY UV-C cable and hang it on UV-C cart
Step 17: Return patient table to Home position
Step 18: Disconnect SECTIONS 1 and 2 and hang each section on UV-C cart
– Support legs near bottom of cart facing in
*If an error condition occurs, the RED lights will flash intermittently. See back of card.
LIGHT KEY: Flashing
Constant ON
| ERROR CODE PER FLASHING SEQUENCE OF RED LIGHTS | |
| ERROR CODE | FOLLOW THESE STEPS |
| RED LIGHT | Turn key OFF |
| FLASHES | Go to Step 10 on Quick Start Guide. Begin at Step 10 and continue |
| 2 Slow Flashes | until complete |
| 1 Fast Flash | If condition repeats contact PDC at 262-369-1929 |
| CONNECTION ERROR CONDITION | |
| BLUE LIGHT AND RED LIGHTS FLASHING | Verify both SECTION 1 and SECTION 2 are connected and together at connecting point Verify UV-C cable is plugged securely into the end of SECTION 2 |
| KEY – UV-C SYSTEM LIGHTS | |
|
FLASHING BLUE |
UV-C System Initializing |
|
SOLID BLUE |
UV-C System Ready |
|
SOLID GREEN |
Disinfection Cycle Started – verifying no motion |
|
FAST FLASHING GREEN |
Motion Detected before UV-C Disinfection Cycle starts, UV-C Disinfection Cycle will start 30 seconds after last motion is detected |
|
SLOW FLASHING GREEN |
UV-C System Running |
|
ALL 3 SOLID |
Disinfection Cycle Complete |
|
FLASHING RED |
Error (refer to error code guide above) |
PDC UV-C Quick Start Video
Technical Support: 1-262-369-1929 •
pdcbiz.com
