Instruction Manual
Botzee mini
Screen-free Coding Robot
Product Information
Product Name: Botzees Mini
Product Number: 83122
Product Material: ABS plastic
Suitable Age: 3 years old and above
Manufacturer: Pai Technology Ltd.
Address: Building 10, Block 3, No.1016 Tianlin
Road, Minhang District, Shanghai, CHINA
Website: www.paibloks.com
Service Number: 400 920 6161

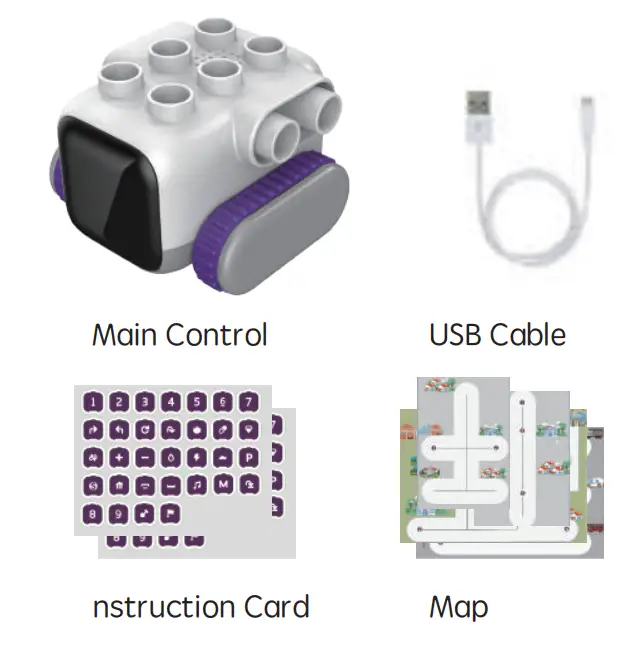

Product List:
Features

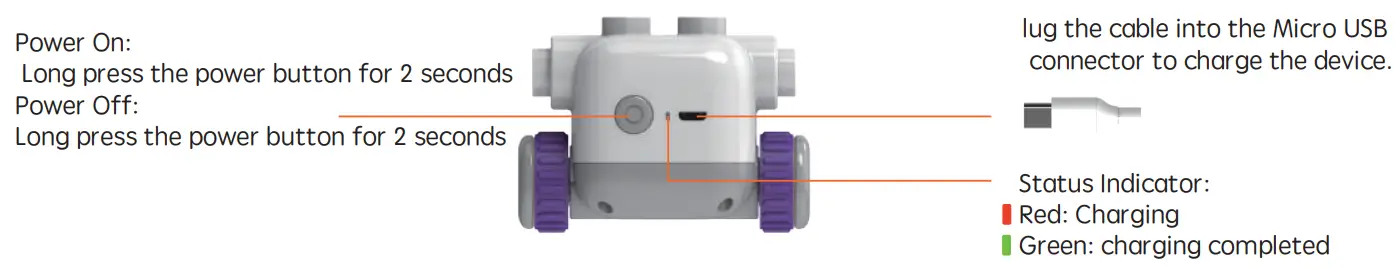

Power On/Power Off/Charging

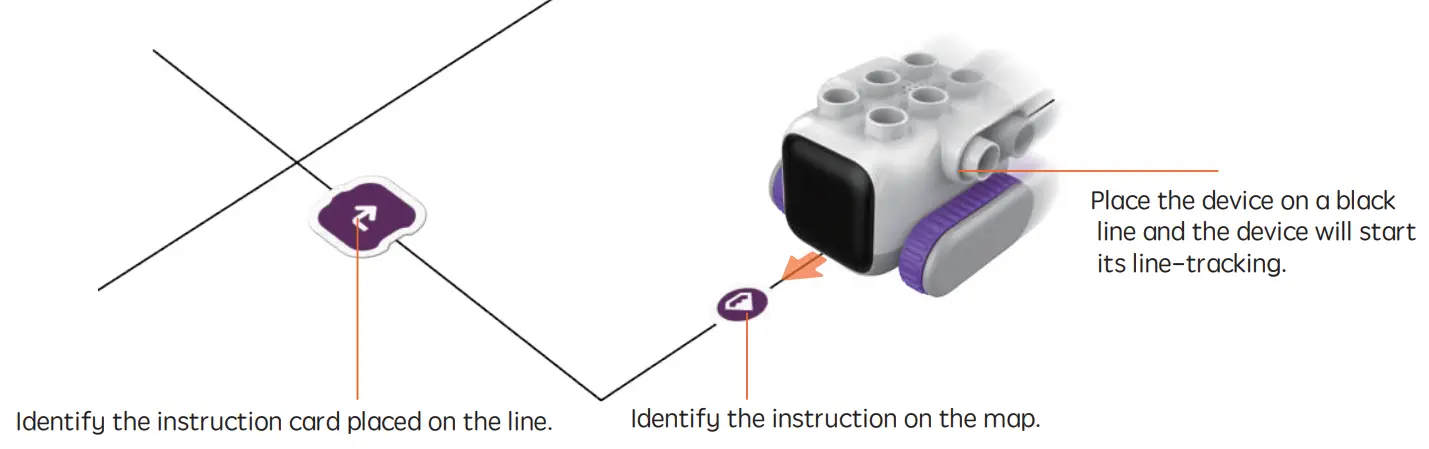

Line-tracking/Command Recognition
How to use the Instruction Card:
Notes:
Note: The device will play the corresponding note sound effect immediately after it recognizes the command during line tracking.
Movement & other commands
 | Turn right: The device will turn right at the front intersection after recognizing this command during line-tracking |
 | Stop (Endpoint): The device will stop and play a victory sound as soon as it recognizes this command during line tracking. |
 | Turn left: The device will turn left at the front intersection after recognizing this command during line-tracking. |
 | Start: The device will play the Start sound as soon as it recognizes this command during line-tracking. |
 | Temporary stop: The device will stop for 2 seconds as soon as it recognizes this command during line-tracking. |
 | Treasure: The device will record a treasure and play corresponding sound effects after it recognizes this command during line tracking. |

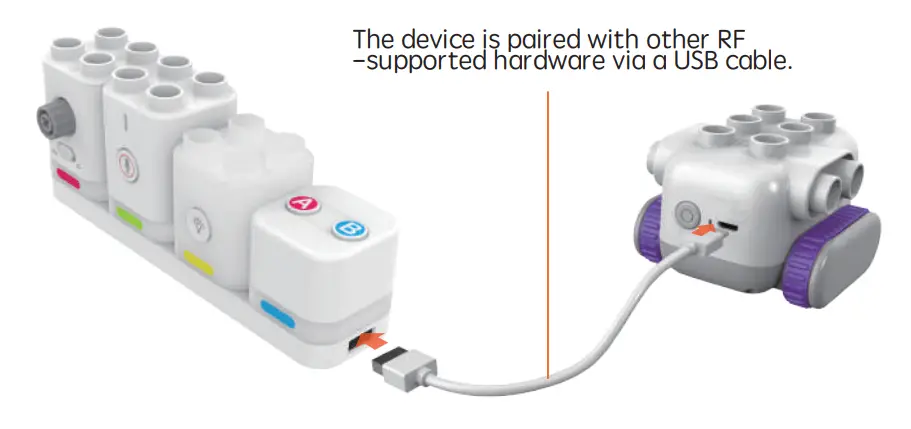

Paired with an RF device
 |  |  |  |  |  |
| The motor turns clockwise for 2 seconds | The motor turns counterclockwise for 2 seconds | The steering gear rotates 90° clockwise | The steering gear rotates 90° counterclockwise | The recording module plays sound. | The light module lights up/goes out. |
Please take attention that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
- The battery is not replaceable.
- It shall be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they must not be used until the damage has been repaired.
- The toy is not to be connected to more than the recommended number of power supplies.
- Rechargeable batteries are only to be charged under adult supervision.
FCC ID: 2APRA83004
