Mawu Oyamba
This manual provides essential information for the proper installation, operation, and maintenance of your Predator K19 10KW Antenna. Designed for high-performance communication, this antenna features a robust build suitable for various applications. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your antenna.
Zathaview

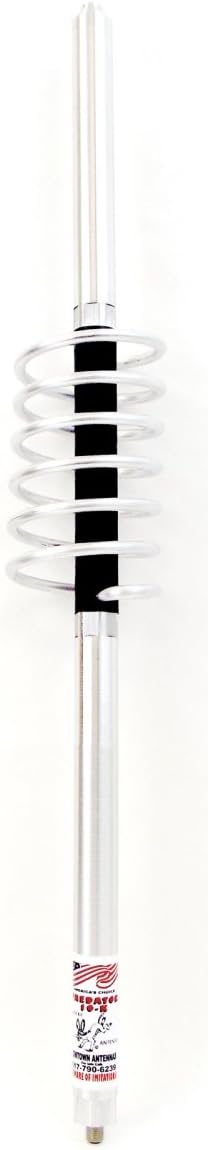

Figure 1: Predator K19 10KW Antenna. This image displays the full length of the antenna, highlighting its silver shaft, black coil section, and the distinctive silver spring-like coil structure. The base shows the branding and contact information.
The Predator K19 antenna is a high-power capable antenna designed for radio communication. It features a durable construction with a 9-inch shaft and a 58-inch whip, optimized for 10KW power handling. Its design incorporates a distinctive coil for efficient signal transmission and reception.
Kukhazikitsa ndi Kuyika
Proper installation is crucial for the performance and safety of your Predator K19 antenna. It is recommended that installation be performed by a qualified technician if you are unfamiliar with antenna systems.
1. Malo Okwera
- Choose a mounting location that provides a clear, unobstructed path for the antenna, away from other metallic objects that could interfere with its performance.
- Ensure the mounting surface is sturdy enough to support the antenna's weight and withstand wind forces.
- For vehicle installations, consider roof, trunk, or mirror mounts that offer a good ground plane.
2. Kuyika pansi
- A good ground connection is vital for optimal antenna performance and safety. Ensure the antenna mount has excellent electrical contact with the vehicle's chassis or a dedicated ground plane.
- Clean any paint or rust from the mounting surface to ensure a solid metal-to-metal connection.
3. Coaxial Cable Connection
- Use high-quality RG-58 or RG-8X coaxial cable with appropriate connectors (e.g., PL-259).
- Route the cable carefully, avoiding sharp bends, kinks, or areas where it could be pinched or damaged.
- Onetsetsani kuti zolumikizira zonse ndi zolimba komanso zopanda dzimbiri.
4. SWR Tuning
- After installation, it is imperative to tune the antenna for the lowest possible Standing Wave Ratio (SWR) using an SWR meter.
- An SWR reading of 1.5:1 or lower is generally acceptable, with 1.0:1 being ideal. High SWR can damage your radio equipment.
- Adjust the antenna's whip length (if adjustable) or use a tuning slug/screw at the base of the antenna to achieve optimal SWR across your desired frequency range.
- Perform SWR checks on multiple channels (e.g., Channel 1, Channel 20, Channel 40) to ensure broad band coverage.
Malangizo Ogwiritsira Ntchito
Once installed and tuned, the Predator K19 antenna is ready for use with your compatible radio system.
- Kugwiritsa Ntchito Mphamvu: This antenna is rated for 10KW. Ensure your radio equipment's output power does not exceed this rating to prevent damage to the antenna or radio.
- Nthawi zambiri: The antenna is designed for specific communication bands. Refer to your radio's specifications for compatible frequencies.
- Kutumiza: When transmitting, ensure the antenna has a clear path and is not obstructed by nearby objects.
- Kulandila: Optimal reception will be achieved when the antenna is properly tuned and positioned.
Kusamalira
Regular maintenance will help prolong the life and maintain the performance of your Predator K19 antenna.
- Kuyeretsa: Periodically clean the antenna with a mild soap and water solution to remove dirt, grime, and road salt. Rinse thoroughly and dry. Avoid abrasive cleaners.
- Kuwona Malumikizidwe: Regularly inspect all cable connections (at the antenna and radio) for tightness and signs of corrosion. Loose or corroded connections can degrade performance.
- Kuyang'ana Kwathupi: Check the antenna for any physical damage, such as bends in the whip, cracks in the coil housing, or loose mounting hardware. Address any issues promptly.
- SWR Re-check: If you notice a drop in performance or after significant environmental changes (e.g., extreme weather), re-check your SWR to ensure the antenna is still optimally tuned.
Kusaka zolakwika
This section addresses common issues you might encounter with your antenna.
| Vuto | Chifukwa Chotheka | Yankho |
|---|---|---|
| High SWR Reading |
|
|
| Poor Transmission/Reception |
|
|
| Antenna Noise/Static |
|
|
Zofotokozera
| Mbali | Tsatanetsatane |
|---|---|
| Chitsanzo | k19 |
| Mtundu | Zolusa |
| Kugwiritsa Ntchito Mphamvu | 10KW |
| Kutalika kwa Shaft | 9 mu |
| Kutalika kwa Chikwapu | 58 mu |
| Makulidwe Onse (L x W x H) | 59 L x 4 W x 4 H inches (approximate) |
| Kulemera | 10.5 lbs |
| Mtundu | Black (coil) / Silver (shaft/whip) |
| Mtundu wa Antenna | Wailesi |
| Chiwerengero cha Channels | 1 (referring to single antenna, not radio channels) |
| UPC | 652118391671 |
Chidziwitso cha Chitsimikizo
Specific warranty details for the Predator K19 antenna are not provided in this manual. Please refer to the product packaging or contact Predator customer support for information regarding warranty coverage and terms.
Thandizo la Makasitomala
For technical assistance, troubleshooting beyond this guide, or inquiries about your Predator K19 antenna, please contact Predator customer support. Contact information may be available on the product packaging or the official Predator webmalo.
