NUOENX W71 Digital Wireless Backup Camera
System Instruction Manual

Part 1 Main Menu Options

1. Indicate Light, Light Up After Powered
2. Turn ON/OFF the Monitor
3. Function Up/Down
4. Switch for Camera 1/Camera 2
5. Menu: Pairing/Picture/Mir-Flip/Cam Setup/System
6. Select to Enter

Part 2 Package Content

* If you find the package is missing some accessories, please contact us.
* Here is our 24h-online Customer Service Email: Nuoenx@outlook.com

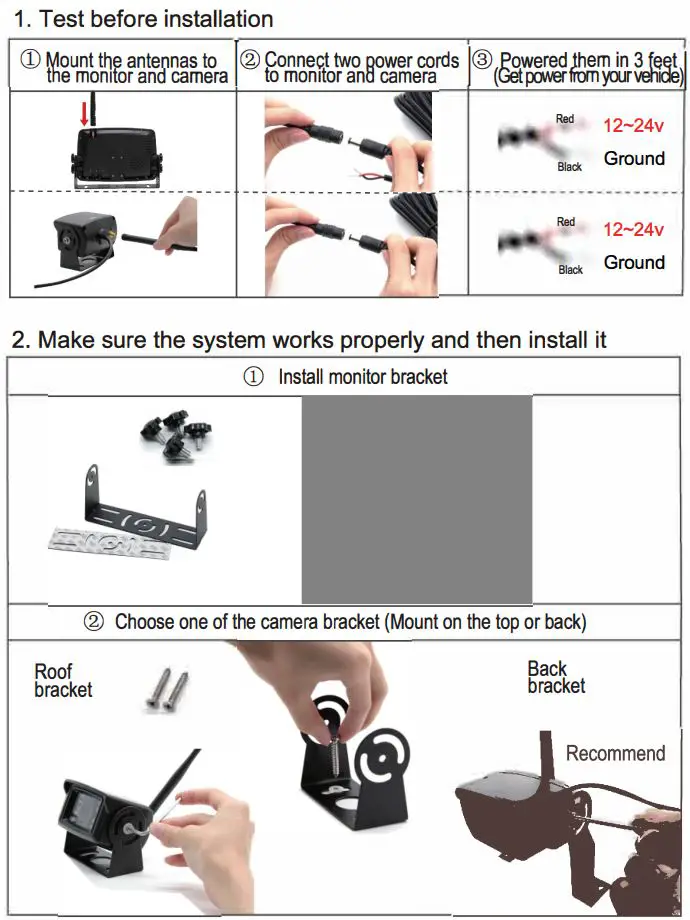

Part 3 Assemble and Install

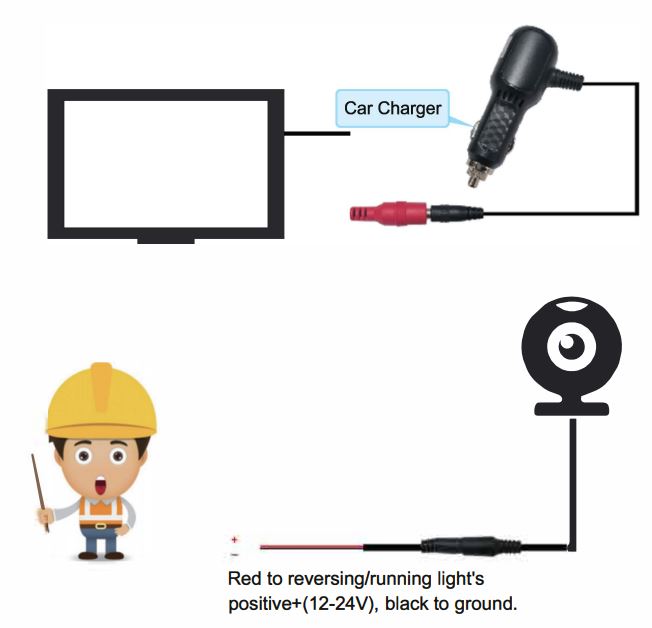

Part 4 Wiring Guide

Note: You can add a license plate camera for reversing or hitch rear view or front view (Not Included in package)
For the second camera, you can click our store to look through or contact us via Nuoenx@outlook.com

Part 4.1 Power the monitor

Connect the accessory plug of car charger with the monitor wire connector, then insert it into the cigarette lighter receptacle Part

Part 4.2 Power the camera

(1) Connect the black wire to Negative(-)/Ground/Sheet metal on the car (2) A – Camera on when the car is reversing: Connect the red wire to the positive(+) of the backup light B – Camera on when the car starts: Connect the red wire to the (+) of running light/ACC

Part 5 Pairing Method

* If you find the system hasn’t been paired, please pair them as the following method.

1. Short press (M) button to choose the Menu and find the Pairing function
2. Press (S) button to select and enter the pairing status
3. Please wait about 20 seconds, camera images appear and complete pairing

Note: If you have any question in this part, please feel free to contact us: Nuoenx@outlook.com

⚠ Please keep this instructions or write down our email: Nuoenx@outlook.com, so you can contact us in time once you have any problems. We will be here for you forever!

Part 6 Trouble Shooting

Q1: How to turn on/off parking lines?
A: Power monitor and make sure it is on, and then press the (M) button to choose the SY STEM, then press (S) to enter setup page and turn on/off parking lines.
Q2: The display screen is blurred/abnormal.
A: The camera lens may be dirty or fogged.
Q3: No power to monitor
A: – Car ignition switch not engaged. Place car ignition switch in the “Aux” position or start car engine . Make sure cigarette lighter plug is fully in
– May be caused by incorrect wiring connection, check the wiring
– Monitor may not be on, press the power ON/OFF button
Q4: No power to camera
A: – Car ignition switch not engaged. Place car ignition switch in the Aux” position or start car engine
– Incorrect wiring connection, check wiring
– If camera power is derived from vehicle running lights, running lights must be on
– Incorrect power range, try another power source with correct voltage (12 – 24 V)
Q5: Can I add a second camera?
A: Yes, this wireless backup camera system can add no more than 2 cameras. Click our store to look through or contact us via
Nuoenx@outlook.com

WARRANTY CARD

Buyer Name ____________________
Order Number____________________
Email Address____________________
Item Model (ASIN)____________________
Purchasing Date____________________
Problem Details____________________

1. Received the defective product/Package missing parts
2. You do not want it when received
3. Need some technical supports
4. Product destroyed during use
5. Product do not meet your expectation
6. Other Reason For any problem you may have, just contact us via Nuoenx@outlook.com

We hope this product could work as your expectation. If you have any suggestions for us to improve it or would like to share your experience with us, please feel free to contact the Customer Service Representative(Mia Li), we greatly appreciate and a special gift has been prepared for you

Email: Nuoenx@outlook.com
Contact Person : Mia Li
Warranty: 2Year Factory Warranty
24 Hours Customer Service
