1. Introduksjon og overview
The MMS MS380W Mini Wheel Skid Steer Loader is a compact and versatile piece of equipment designed for various tasks in confined spaces such as courtyards, warehouses, farms, and construction sites. Its small size and maneuverability enhance operational efficiency in complex environments.
Nøkkelfunksjoner inkluderer:
- Compact and Flexible Design: Allows for easy operation in small areas.
- Sammenleggbar fotpedal: Enhances operator comfort during long work periods and saves storage space.
- Multi-Purpose Capability: The detachable loader bucket can be interchanged with various sliding loader attachments to suit different operational needs, including drilling, excavation, pruning, and mixing.
- Vacuum Type Tires: High-density rubber with a deep textured grip ensures stability on complex road surfaces and allows for a safe climbing angle of up to 30 degrees.
- Independent Dual Hydraulic Circuit: Separates forward drive and boom control, enabling simultaneous lifting/flipping of the bucket while moving, which improves composite action smoothness and reduces maintenance costs.
2. Sikkerhetsinformasjon
Operating heavy machinery requires strict adherence to safety protocols to prevent injury or damage. Read and understand all safety warnings before operating the MMS MS380W.
- Always wear appropriate personal protective equipment (PPE), including hard hat, safety glasses, hearing protection, and steel-toed boots.
- Sørg for at arbeidsområdet er fritt for tilskuere, spesielt barn og kjæledyr.
- Inspect the machine before each use for any signs of damage, leaks, or loose components.
- Never operate the loader under the influence of alcohol or drugs.
- Maintain a safe distance from slopes, trenches, and unstable ground.
- Lower the bucket to the ground and turn off the engine before leaving the operator's position.
- Familiarize yourself with all controls and emergency shutdown procedures.
3. Pakkens innhold
Upon receiving your MMS MS380W Mini Wheel Skid Steer Loader, please verify that all components are present and undamaged.
- MMS MS380W Mini Wheel Skid Steer Loader Unit
- Wide Bucket Toolbox (includes standard bucket attachment)
- Brukerhåndbok (dette dokumentet)
Hvis noen gjenstander mangler eller er skadet, kontakt leverandøren din umiddelbart.
4. Oppsett og montering
The MMS MS380W is largely pre-assembled. Follow these steps for initial setup:
- Utpakking: Carefully remove the loader from its packaging. The unit may be packed in a wooden crate and require a forklift for safe unloading.
- Innledende inspeksjon: Conduct a thorough visual inspection for any shipping damage. Check all hoses, connections, and structural components.
- Montering av vedlegg: Attach the standard bucket or any other desired attachment to the loader's quick-attach system. Ensure all pins and locking mechanisms are securely fastened. Refer to the image below for hydraulic connections.
- Væskenivåer: Check engine oil, hydraulic fluid, and fuel levels. Refer to the Specifications section for recommended fluid types and capacities.

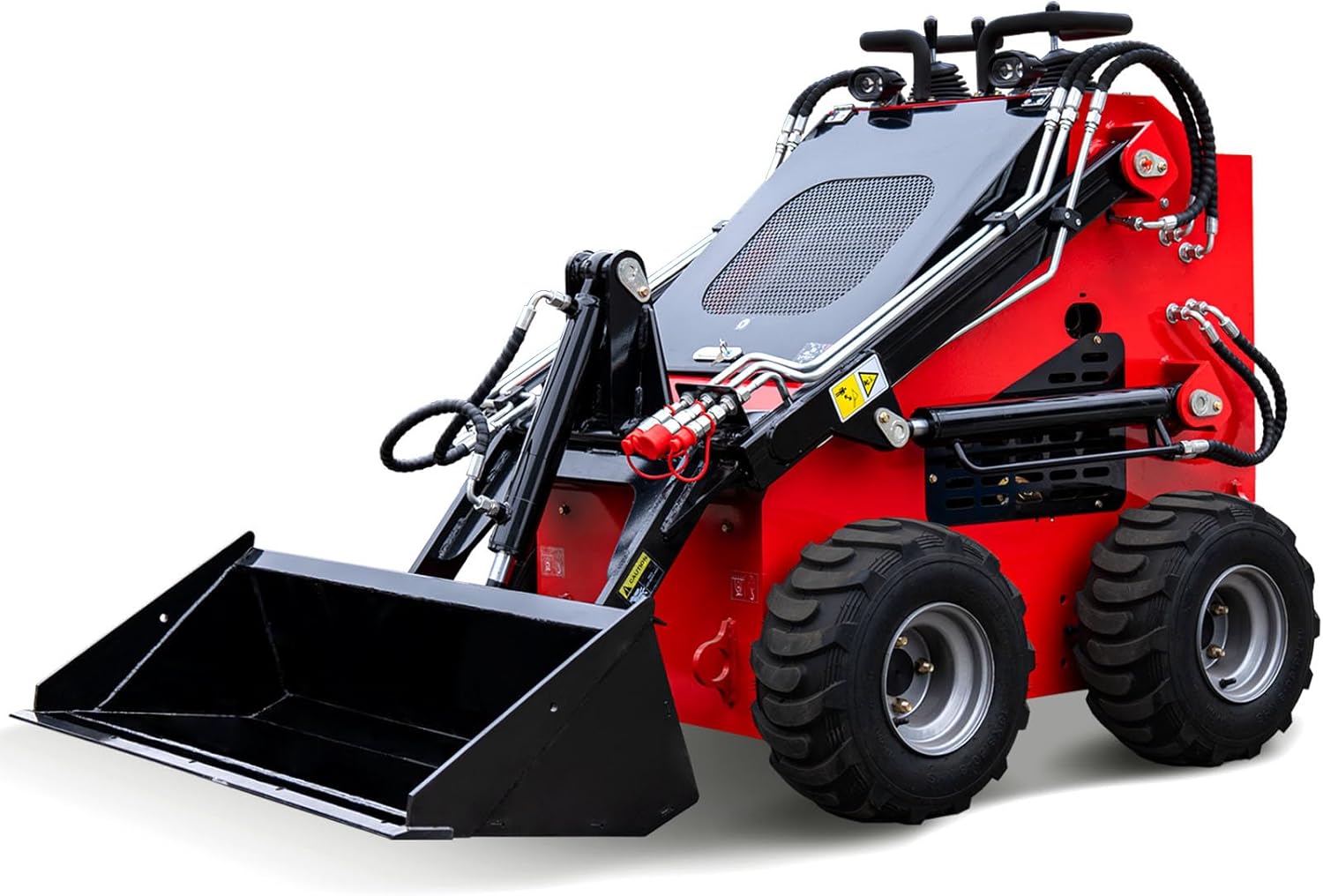

Figure 4.1: MMS MS380W Mini Wheel Skid Steer Loader with standard bucket.
Figure 4.2: Hydraulic connections for multi-attachment compatibility.
5. Bruksanvisning
Før bruk, sørg for at du har lest og forstått sikkerhetsinformasjonen.
5.1 kontroller overview
The MMS MS380W features a user-friendly control console. Familiarize yourself with the functions of each lever, button, and gauge.
Figure 5.1: Operator control console.
5.2 Starte motoren
- Sørg for at parkeringsbremsen er aktivert.
- Sett nøkkelen i tenningen og vri den til «ON»-posisjonen.
- Turn the key further to the 'START' position. Release once the engine starts.
- Allow the engine to warm up for a few minutes before operation.
5.3 Kjøring og manøvrering
The loader utilizes an independent dual hydraulic circuit for precise control.
- Use the left joystick to control the forward/reverse movement and steering.
- Use the right joystick to control the lift arm and bucket functions (raise, lower, dump, curl).
- The foldable foot pedal provides a stable platform for the operator, reducing fatigue during extended use.
- The vacuum-type tires provide excellent traction, allowing the loader to handle inclines up to 30 degrees safely.
Figure 5.2: Loader demonstrating climbing capability.
Figure 5.3: Foldable foot pedal and bucket detail.
5.4 Bruk av vedlegg
The MMS MS380W is compatible with a variety of attachments. Ensure the correct attachment is securely mounted and hydraulic lines are properly connected for optimal performance.
Figur 5.4: Eksamples of adaptive attachments (sold separately).
5.5 Stoppe motoren
- Senk skuffen eller tilbehøret ned til bakken.
- Sett på parkeringsbremsen.
- Vri tenningsnøkkelen til «AV»-posisjonen.
- Ta ut nøkkelen for å forhindre uautorisert bruk.
6. Vedlikehold
Regular maintenance is crucial for the longevity and safe operation of your MMS MS380W.
6.1 Daglige kontroller
- Sjekk motoroljenivået.
- Inspect hydraulic fluid level.
- Verify tire pressure and condition.
- Se etter eventuelle væskelekkasjer.
- Ensure all lights and safety features are operational.
- Clean debris from the engine compartment and radiator.
6.2 Planlagt vedlikehold
Refer to the service schedule in the full owner's manual for detailed maintenance intervals, including:
- Skifte av motorolje og filter.
- Hydraulic fluid and filter replacement.
- Inspeksjon og utskifting av luftfilter.
- Greasing pivot points and moving parts.
- Battery inspection and cleaning.
7. Feilsøking
This section provides solutions to common operational issues. For complex problems, contact qualified service personnel.
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Motoren starter ikke | Lavt drivstoff, dødt batteri, defekt tenning | Check fuel level, charge/replace battery, inspect ignition system |
| Tap av hydraulisk kraft | Lavt hydraulikkoljenivå, tett filter, pumpeproblem | Check fluid level, replace filter, contact service |
| Loader moves slowly or weakly | Engine underperforming, hydraulic pressure low | Check engine performance, inspect hydraulic system |
| Overdreven vibrasjon eller støy | Loose components, worn parts, engine issue | Inspect for loose parts, check engine mounts, contact service |
8. Spesifikasjoner
Detailed technical specifications for the MMS MS380W Mini Wheel Skid Steer Loader.
Figure 8.1: MMS MS380W Loader specifications overview.
| Spesifikasjon | Verdi |
|---|---|
| Produsent | MMS |
| Modell | MMS 380W |
| Varevekt | 1800 pund |
| Pakkedimensjoner | 78 x 65 x 55 tommer |
| Wattage | 16 KW |
| Engine Rated Power | 16 kW/3600 o/min |
| Roterende hastighet (rpm) | 3600 |
| Noise (Db) | <95 |
| Trykk (Mpa) | 0-17 MPa |
| Strømningshastighet | 0-21L |
| Operating Load Lifting Force | 662 lb |
| Bøttekapasitet | 0.15 m³ |
| Maks løftekraft | 838 lb |
| Reisehastighet | 0-4.5 km / t |
| Driftsvekt | 1764 lb |
| Drivstofftype | Bensin |
| Maks arbeidshøyde | 83.5 tommer |
| Max Pin Height | 74.4 tommer |
| Max Dumping Height | 57.7 tommer |
| Max Dumping Angle | 32° |
| Total høyde | 51.8 tommer |
| Bakkeklarering | 4.5 tommer |
| Hjulbase | 26.8 tommer |
| Overall Length (without Bucket) | 65 tommer |
| Total bredde | 44 tommer |
| Bøttebredde | 45.3 tommer |
| Total Length (with Bucket) | 82 tommer |
9. Garanti og støtte
MMS is committed to providing quality products and support.
9.1 Beskyttelsesplaner
Extended protection plans are available for your MMS MS380W Mini Wheel Skid Steer Loader:
- 3-årig beskyttelsesplan: Provides extended coverage for your equipment.
- 4-årig beskyttelsesplan: Offers comprehensive long-term protection.
For detaljer om dekning og vilkår, se den spesifikke dokumentasjonen for beskyttelsesplanen.
9.2 Kundestøtte
For technical assistance, parts, or service inquiries, please contact MMS Customer Support. Our professional sales and maintenance teams are available to provide consultation and after-sales support.
Selger: MMS Excavator
Returnerer: 30-day easy returns policy applies.
10. Offisielle produktvideoer
Ingen relevante offisielle produktvideoer fra selgeren ble funnet i de oppgitte dataene som kan legges inn i denne håndboken.
