1. Produktet er overview
The Candy Smart Linea Pura air conditioner is a monosplit system designed for efficient cooling and heating of indoor spaces. This model features a 24000 BTU indoor unit, suitable for rooms up to 70 m², and includes a heat pump for year-round comfort. It also incorporates a Self-Clean function for improved air quality and can be controlled remotely via the hOn app.
Figur 1: Candy Smart Linea Pura Air Conditioner indoor and outdoor units. The image displays both the indoor unit (top) and the outdoor unit (bottom) of the Candy Smart Linea Pura air conditioner, providing a complete view of the system components.
2. Sikkerhetsinformasjon
Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, injury, or property damage.
- Installation must be performed by a qualified professional in accordance with local and national electrical and safety codes.
- Ikke forsøk å reparere eller modifisere enheten selv. Kontakt kvalifisert servicepersonell for alle reparasjoner.
- Sørg for at strømforsyningen samsvarer med spesifikasjonene som er oppført på enhetens navneplate.
- Hold området rundt utendørsenheten fritt for hindringer.
- Ikke stikk fingre eller gjenstander inn i luftinntaket/-utløpet.
- If abnormal operation (e.g., burning smell, unusual noise) occurs, immediately turn off the unit and disconnect power.
3. Pakkens innhold
Bekreft at alle følgende varer er inkludert i pakken din:
- 1 x Indoor Unit (24000 BTU)
- 1 x utendørsenhet
- 1 x fjernkontroll
- Brukerhåndbok (dette dokumentet)
- Installation Kit (may vary, consult installer)
4. Oppsett og installasjon
The Candy Smart Linea Pura air conditioner is a split system requiring professional installation. This section provides general guidance; refer to the detailed installation manual provided to your installer for specific instructions.
4.1 Room Suitability
The 24000 BTU indoor unit is designed for optimal performance in rooms up to approximately 70 m² with a standard ceiling height of 2.7 meters. Ensure the chosen location allows for proper airflow and maintenance access.

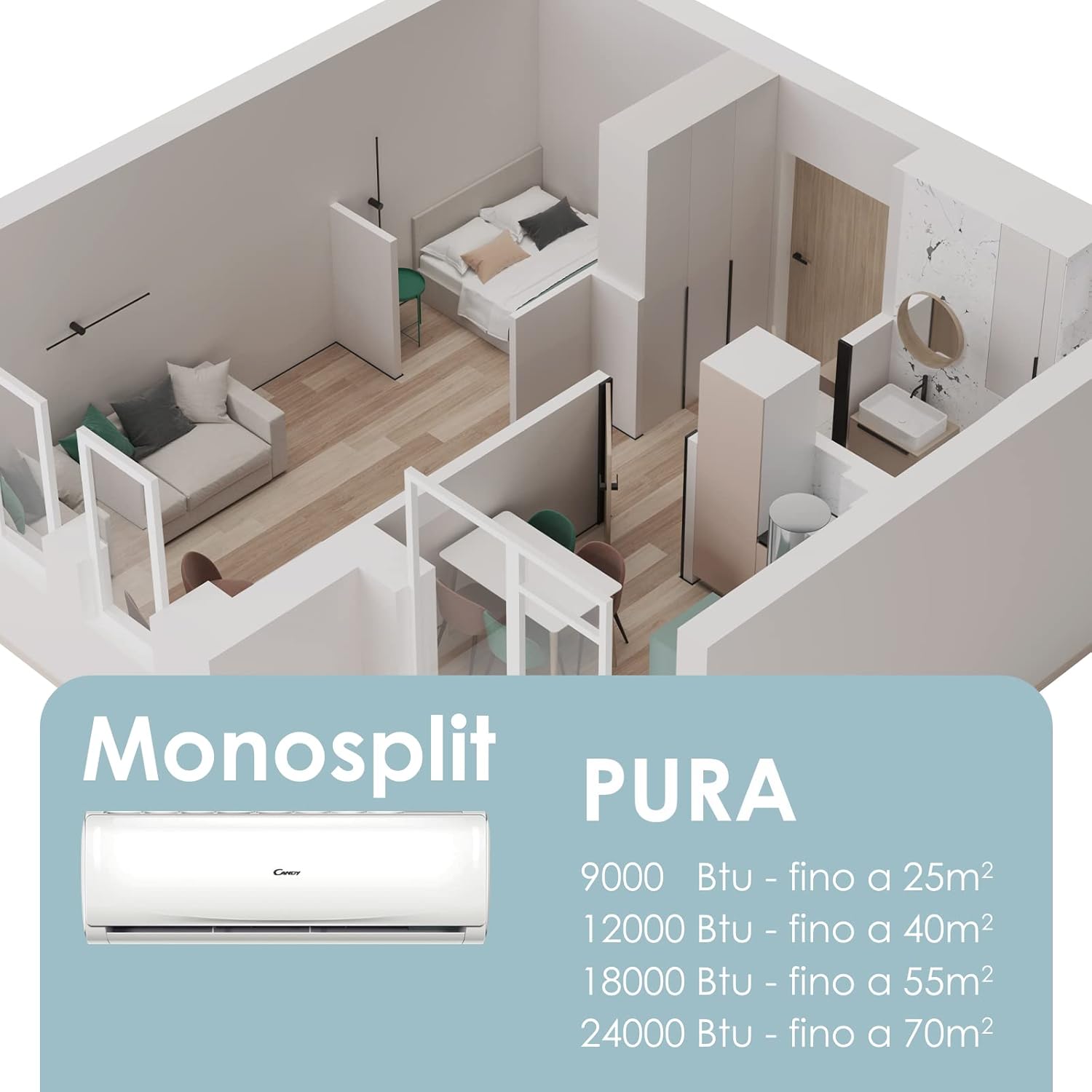

Figur 2: Room size recommendations for Candy Pura air conditioners. A diagram illustrating recommended room sizes in square meters for various BTU capacities of the Candy Pura monosplit air conditioners, including the 24000 BTU model suitable for up to 70 m².
4.2 Profesjonell installasjon
Due to the complexity of refrigerant handling and electrical connections, professional installation is mandatory for this split-system air conditioner. Your installer will handle:
- Mounting the indoor and outdoor units.
- Connecting refrigerant lines.
- Elektriske ledninger.
- Drainage pipe installation.
- System vacuuming and refrigerant charging.
- Initial system testing.
5. Bruksanvisning
Your Candy Smart Linea Pura air conditioner offers various modes and functions for optimal comfort. Control is primarily done via the included remote control or the hOn app.
5.1 Betjening av fjernkontroll
The remote control allows you to adjust temperature, select operating modes, set fan speed, and activate special functions.
Figur 3: Remote control usage. A woman is shown comfortably adjusting the settings of the Candy Smart Linea Pura air conditioner using its remote control, highlighting ease of use.
- Strømknapp: Trykk for å slå enheten PÅ eller AV.
- Modusvalg: Cycle through modes: Cool, Heat, Fan, Dry, Auto.
- Temperaturjustering: Use ▲ / ▼ buttons to set desired temperature.
- Viftehastighet: Juster viftehastigheten (Lav, Middels, Høy, Auto).
- Swing funksjon: Activate horizontal and/or vertical louver swing for even air distribution.
- Timer funksjon: Set the unit to turn ON or OFF automatically after a specified time.
5.2 timer i appen-tilkobling
The hOn app allows for remote control and advanced management of your air conditioner from your smartphone or tablet.
Figur 4: Controlling the unit with the hOn app. This image illustrates a user interacting with the hOn application on a smartphone to remotely manage the Candy Smart Linea Pura air conditioner's functions.
- Download the hOn app from your device's app store.
- Opprett en konto eller logg inn.
- Follow the in-app instructions to connect your Candy Smart Linea Pura air conditioner to your Wi-Fi network.
- Once connected, you can adjust temperature, change settings, select modes, and program schedules remotely.
6. Vedlikehold
Regular maintenance ensures optimal performance, energy efficiency, and longevity of your air conditioner.
6.1 Selvrensende funksjon
The Self-Clean function utilizes cold expansion technology to remove accumulated dirt, bacteria, and mold from the evaporator coil during defrosting, promoting cleaner air and maintaining efficiency.
Figur 5: Self-Clean function. The image highlights the Self-Clean function of the air conditioner, indicating its capability to maintain internal cleanliness and hygiene.
To activate the Self-Clean function, refer to your remote control or hOn app instructions. It is recommended to use this function periodically, especially during high usage seasons.
6.2 Rengjøring av luftfilter
Rengjør luftfiltrene annenhver uke eller oftere hvis enheten brukes mye eller i støvete omgivelser. Tette filtre reduserer effektiviteten og luftstrømmen.
- Slå av klimaanlegget og koble fra strømmen.
- Åpne frontpanelet til innendørsenheten.
- Fjern luftfiltrene.
- Rengjør filtrene med en støvsuger eller vask dem med lunkent vann og et mildt vaskemiddel.
- Rinse thoroughly and allow to dry completely in a shaded area before reinserting.
- Lukk frontpanelet og sett strømmen på igjen.
6.3 Generell rengjøring
Tørk av utsiden av innendørsenheten med en myk klutamp cloth. Do not use harsh chemicals, abrasives, or solvents. For the outdoor unit, ensure coils are free of debris and fins are not bent. Professional cleaning of coils is recommended annually.
7. Feilsøking
Før du kontakter service, prøv følgende løsninger for vanlige problemer:
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Enheten slår seg ikke på | Ingen strøm, lavt batterinivå i fjernkontrollen | Check power supply, replace remote batteries. |
| Utilstrekkelig kjøling/oppvarming | Clogged air filters, windows/doors open, incorrect mode, temperature setting too high/low | Clean filters, close openings, select correct mode, adjust temperature. |
| Uvanlig støy | Loose parts, foreign objects, normal operating sounds (e.g., refrigerant flow) | Check for loose parts, remove objects. If persistent or loud, contact service. |
| Vannlekkasje fra innedel | Tett avløpsrør, feil installasjon | Check and clear drain pipe. If issue persists, contact installer. |
Hvis problemet vedvarer etter at du har forsøkt disse løsningene, må du kontakte kvalifisert servicepersonell.
8. Spesifikasjoner
Key technical specifications for the Candy Smart Linea Pura Air Conditioner (Model: HRPURASET0004):
| Trekk | Spesifikasjon |
|---|---|
| Merke | SUKKERTØY |
| Modellnummer | HRPURASET0004 |
| Kjølekapasitet | 24000 XNUMX BTU |
| Oppvarmingsfunksjon | Yes (Heat Pump) |
| Energieffektivitet (kjøling) | A++ |
| Energieffektivitet (oppvarming) | A+ |
| Sesongbasert energieffektivitetsforhold (SEER) | 16 |
| Voltage | 230 Volt vekselstrøm |
| Støynivå (innendørsenhet) | 33 dBa (minimum) |
| Støynivå (utendørsenhet) | 64 desibel |
| Spesielle funksjoner | Self-Clean, hOn App Connectivity |
| Anbefalt romstørrelse | Opptil 70 m² |
Figur 6: Energy efficiency label. An energy label is displayed, detailing the energy efficiency ratings (A++ for cooling, A+ for heating) of the Candy Smart Linea Pura air conditioner.
9. Garanti og støtte
Your Candy Smart Linea Pura air conditioner is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including warranty period and coverage details.
For technical support, service requests, or warranty claims, please contact Candy customer service or your authorized dealer. Ensure you have your model number (HRPURASET0004) and proof of purchase available when contacting support.
Kontaktinformasjon: Please visit the official Candy webnettstedet for den mest oppdaterte kontaktinformasjonen for din region.
