1. Inleiding

The SecuFirst CWL401S.32G is a comprehensive outdoor surveillance camera kit designed for reliable security monitoring. It features a 2K outdoor camera and a 7-inch indoor touchscreen monitor, offering a standalone surveillance solution that operates without requiring an internet connection or smartphone for basic functions. The system includes 32GB of local storage, expandable up to 2TB, and supports remote access via an optional smartphone application when connected to the internet.

2. Inhoud van het pakket

Controleer of alle hieronder vermelde artikelen in uw pakket zijn opgenomen:

• 1 x Outdoor Camera
• 1 x 7-inch Touchscreen Monitor
• 2 x AC Power Adapters (1.8m cable)
• 1 x Power Extension Cable (1.8m)
• 1 x 32GB SD Card (pre-installed in monitor)
• 1 x Ethernet-kabel

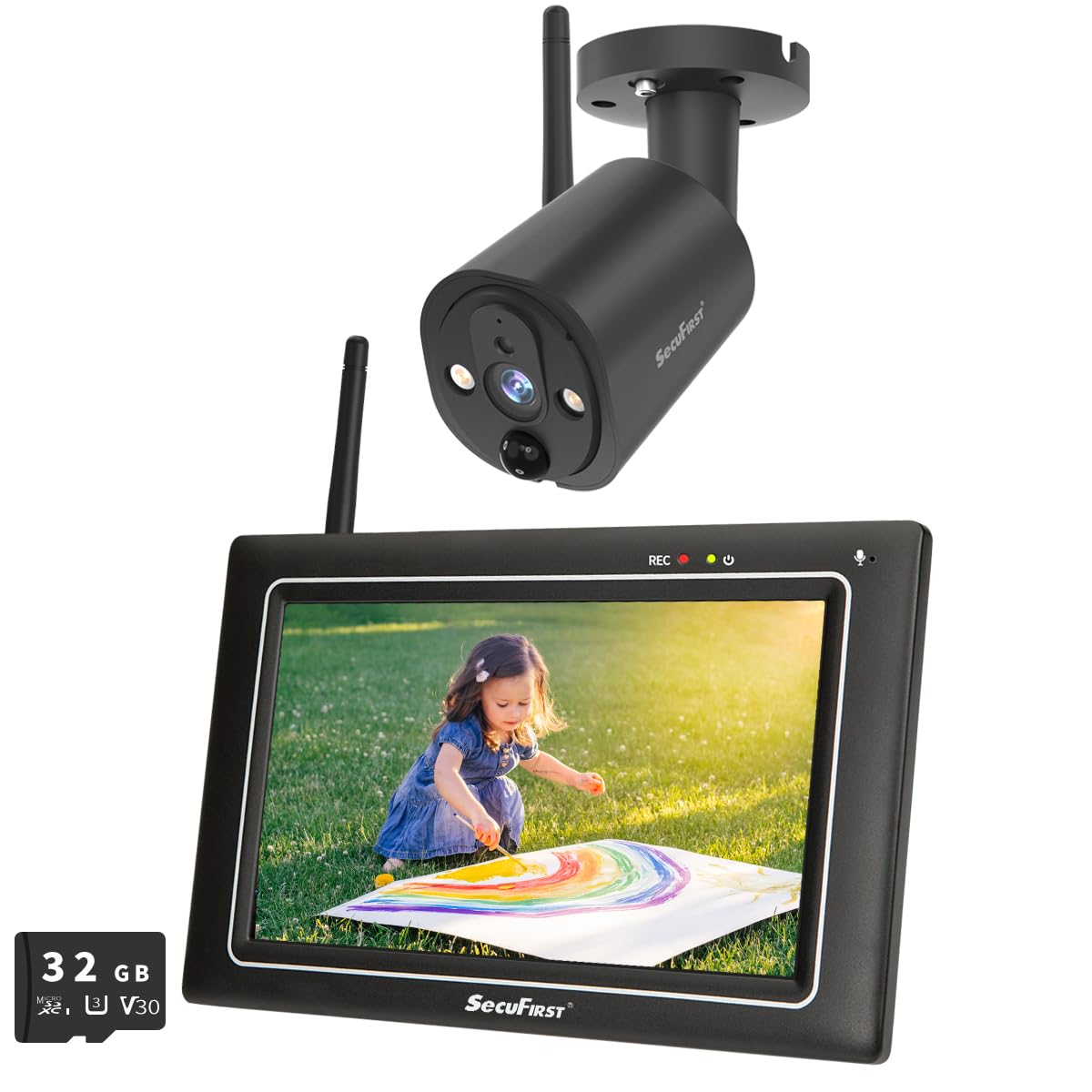

Afbeelding: Overview of the SecuFirst surveillance camera kit components, including the camera, monitor, and accessories.

3. Product voorbijview

3.1. 7-inch touchscreenmonitor

The monitor serves as the central control unit for your surveillance system. It features a responsive touchscreen for easy navigation and viewing of live and recorded footage.

Image: Detailed diagram of the 7-inch touchscreen monitor, highlighting its various ports and indicators such as the recording indicator, power indicator, monitor microphone, power button, antenna connector, USB jack, speaker, monitor stand, Ethernet port, and SD card slot.

• Monitor met touchscreen: Voor interactieve bediening en viewind.
• Opname-indicator: Het lampje gaat branden wanneer er wordt opgenomen.
• Stroomindicator: Geeft de stroomstatus weer.
• Monitormicrofoon: Voor tweerichtingsaudiocommunicatie.
• Aan/uit-knop: Houd 3 seconden ingedrukt om aan/uit te zetten.
• Antenne-aansluiting: Voor draadloze signaalontvangst.
• USB-aansluiting: Voor externe opslag of accessoires.
• Spreker: Voor audio-uitgang.
• Monitorstandaard: Integrated for desktop placement.
• Ethernet-aansluiting (netwerkpoort): Voor optionele internetverbinding.
• SD-kaartsleuf: For inserting the 32GB SD card (included) or an expandable card.

3.2. Outdoor Surveillance Camera

The 2K outdoor camera is designed for robust performance in various weather conditions, featuring an IP66 weatherproof metal casing.

Image: Detailed diagram of the outdoor surveillance camera, showing its components such as the power status LED, light sensor, IR LEDs, passive infrared motion sensor, audio speaker, microphone, adjustable camera stand, antenna, and power connections.

• Voedingsstatus-LED: Indicates camera operational status.
• Lichtsensor: Detecteert omgevingslicht voor automatische omschakeling van dag-/nachtmodus.
• IR LED's: Infrarood-leds voor nachtzicht.
• Passive Infrared Motion Sensor: Detects thermal motion for accurate alerts.
• Audio-luidspreker: Voor tweeweg audio-uitvoer.
• Microfoon: Voor tweeweg audio-ingang.
• Verstelbare camerastandaard: Allows for flexible mounting and angle adjustment.
• Antenne: Voor draadloze signaaloverdracht naar de monitor.
• Wisselstroomkabel: Wordt aangesloten op de voedingsadapter.

4. Instellen

4.1. Initial Setup (No Wi-Fi Required)

The SecuFirst system is designed for easy plug-and-play installation. The camera and monitor are pre-paired at the factory, allowing for immediate use without complex network configuration.

1. Connect the provided AC power adapters to the camera and the monitor.
2. Plug both adapters into power outlets.
3. The camera and monitor will automatically connect within seconds. Live video will appear on the monitor.

Image: Illustration showing the SecuFirst system operating without the need for internet or a smartphone, emphasizing its direct wireless connection.

The wireless range in open spaces is approximately 200 meters. This range may be reduced by walls, windows, and other obstructions. Avoid installing the outdoor camera near large metal objects, as this can interfere with the wireless signal.

4.2. Camera-installatie

The camera is designed for wall mounting with screw-in installation.

1. Kies een geschikte buitenlocatie die aan de gewenste eisen voldoet. viewing angle and is within range of the monitor.
2. Use the provided screws and anchors to securely mount the camera to a wall or ceiling.
3. Adjust the camera stand to achieve the optimal viewhoek.

Image: The SecuFirst outdoor camera mounted securely under an eave, demonstrating a typical installation scenario.

4.3. Plaatsing van de monitor

Place the 7-inch touchscreen monitor in a convenient indoor location where you can easily view and interact with it. The integrated stand allows for stable placement on a desk or table.

Image: The SecuFirst monitor placed on a wooden surface indoors, displaying a live feed of a child playing, with a smartphone showing the companion app in the foreground.

5. Gebruiksaanwijzing

5.1. Leven View en opname

Once powered on, the monitor will automatically display the live feed from the camera. You can navigate through different views if multiple cameras are connected.

• Live View: Het 7-inch touchscreen stelt u in staat om view live video directly.
• Opname: The system automatically records based on motion detection. Recordings are stored on the included 32GB local memory within the monitor.
• Afspelen: Toegang tot opgenomen footage directly from the monitor. The system overwrites the oldest recordings when the memory is full.
• Opslaguitbreiding: The local memory can be expanded with a 128GB SD card or up to 2TB using an external hard drive or USB stick (not included).

Image: The SecuFirst monitor displaying a list of recorded events, with playback controls visible, and an illustration of inserting an SD card for storage expansion.

5.2. Tweerichtingsaudio

The system supports two-way audio, allowing you to speak through the monitor and hear audio from the camera's location.

• To speak, press and hold the microphone button on the monitor's touchscreen.
• Laat de knop los om te luisteren.

Image: The SecuFirst monitor displaying a live feed with two-way audio controls, alongside a smartphone showing the app interface with similar audio functions.

5.3. Motion Detection and Privacy Masking

The camera features an AI + PIR thermal motion detector for precise event triggering. You can customize detection settings directly from the monitor.

• Bewegingsdetectiezones: Definieer specifieke gebieden binnen de camera view waar bewegingsdetectie actief moet zijn.
• Privacymaskering: Mask out areas of the camera's view to protect privacy. These masked areas will not be recorded or displayed.
• Alarmmeldingen: Configure alarm volume on the monitor and push notifications to the app (if connected to internet).

Image: The SecuFirst monitor displaying a live view with a highlighted 'Zone' area, indicating a configured motion detection zone.

Image: The SecuFirst monitor displaying a live view with a 'Privacy' box overlaying a section of the image, demonstrating the privacy masking feature.

5.4. Nachtzicht

The camera is equipped with IR LEDs to provide clear night vision, ensuring continuous surveillance even in low-light conditions.

Image: A split image demonstrating the camera's capability, showing a scene in clear color during the day and in black and white with night vision at night.

5.5. Smartphone App (Optional)

For remote access and advanced features, you can connect the monitor to the internet and use the dedicated smartphone application.

1. Connect the monitor to your internet router via the Ethernet cable or Wi-Fi.
2. Download the "Observer HD+" application from your smartphone's app store.
3. Follow the in-app instructions to pair your monitor with the application.
4. Eenmaal verbonden, kunt u: view live video, listen, talk, and play back recordings from your smartphone or tablet anywhere.

Image: A smartphone displaying the "Observer HD+" app interface, showing options for live view, recorded video playback, and two-way audio, with a live feed of a child playing.

5.6. Uitbreidbaarheid

The SecuFirst system is expandable and can support up to four cameras simultaneously, providing comprehensive coverage for your property.

Image: Visual representation of the SecuFirst system's expandability, showing configurations with one, two, and four cameras connected to a single monitor.

6. Onderhoud

Regular maintenance ensures optimal performance and longevity of your SecuFirst surveillance system.

• Cameralens: Maak de cameralens regelmatig schoon met een zachte doek.amp doek om stof en vuil te verwijderen. Vermijd schurende reinigingsmiddelen.
• Scherm: Wipe the touchscreen monitor with a microfiber cloth to keep it clean and clear.
• Stroomaansluitingen: Zorg ervoor dat alle stroomadapters en kabels goed zijn aangesloten en onbeschadigd zijn.
• Opslag: Regularly check the available storage space on the SD card or external drive. Back up important recordings as needed.

7. Probleemoplossing

If you encounter issues with your SecuFirst system, refer to the following common problems and solutions:

8. Specificaties

9. Garantie en ondersteuning

For warranty information, technical assistance, or any product-related inquiries, please contact SecuFirst customer service. Refer to your purchase documentation or the official SecuFirst website voor specifieke garantievoorwaarden en contactgegevens.

Fabrikant: ALC Electronics BV
