Imou 3K/5MP Outdoor Solar PTZ Wireless IP Surveillance Camera User Manual

Invoering

The Imou 3K/5MP Outdoor Solar PTZ Wireless IP Surveillance Camera (Model: IPC-B7C-5M0WEH) provides comprehensive outdoor security with advanced features. This manual guides you through the setup, operation, and maintenance of your camera to ensure optimal performance and security.

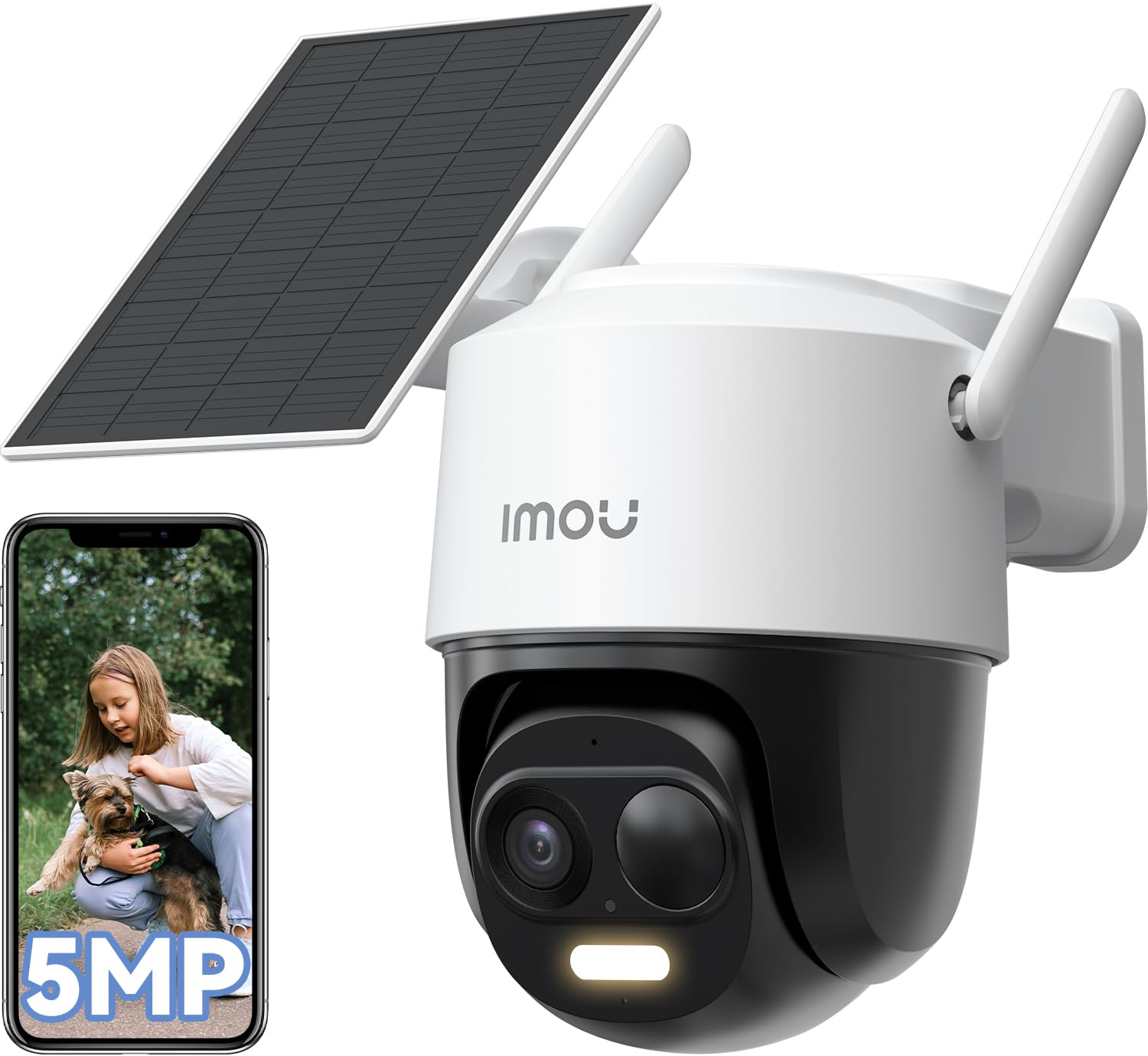

Image: The Imou 3K/5MP Outdoor Solar PTZ Wireless IP Surveillance Camera, showcasing zijn compacte ontwerp.

1. Instellen

1. Uitpakken en componenten: Verify all components are present: camera unit, solar panel, mounting kit, USB-C cable.
2. Opladen: Ensure the camera has an initial charge. The solar panel will maintain power after installation.
3. App-installatie: Download the "Imou Life" app from your smartphone's app store. Create an account or log in.
4. Camera-koppeling:
   • Zet de camera aan.
   • Open de Imou Life-app en tik op het "+" pictogram om een ​​nieuw apparaat toe te voegen.
   • Scan de QR-code op de camera of de verpakking.
   • Follow the in-app instructions to connect the camera to your 2.4GHz Wi-Fi network. Ensure your router is configured for 2.4GHz as 5GHz is not supported for initial setup.
5. Montage:
   • Choose a suitable outdoor location with direct sunlight exposure for the solar panel and a clear view voor de camera.
   • Use the provided mounting template and screws to securely attach the camera and solar panel.
   • Connect the solar panel to the camera using the 4-meter USB-C cable. Ensure the connection is secure and waterproof.

Image: The Imou camera mounted with its solar panel, illustrating outdoor installation.

2. Gebruiksaanwijzing

1. Live View: Open de Imou Life-app en selecteer je camera om view de live-feed.
2. PTZ-bediening: Use the pan-tilt-zoom controls within the app to adjust the camera's viewing angle (360° horizontal rotation). You can set multiple preset positions for quick access.
3. Resolution and Zoom: The camera records in 5MP (3K QHD) resolution. Use the digital zoom feature in the app to magnify details.
4. Nachtzicht: The camera automatically switches to night vision in low-light conditions, providing clear images up to 20 meters. Color night vision is available when sufficient ambient light or the camera's spotlight is active.
5. AI-detectie:
   • Enable Person/Vehicle Detection in the app settings. This feature uses AI to distinguish between humans, vehicles, and other moving objects, reducing false alarms.
   • Slimme tracking: When a person or vehicle is detected, the camera can automatically track their movement within its field of view.
6. Geluids- en lichtalarm: Configure the camera to activate a powerful spotlight and siren upon detection of suspicious activity.
7. Tweerichtingsaudio: Use the microphone and speaker in the camera to communicate with visitors or deter intruders. The app allows for customizable voice options (original, male, robot).
8. Privacymodus: Activate privacy mode via the app to temporarily disable video streaming and recording, ensuring personal privacy when needed.
9. Alexa-integratie: Connect your Imou camera to Amazon Alexa for voice control and live view display on compatible devices.
10. Opslagbeheer:
    • Micro SD kaart: Insert a microSD card (up to 256GB, not included) into the designated slot for local video storage.
    • Imou Cloud Storage: Utilize the optional Imou Cloud service for secure, remote video storage (30-day trial, 7-day recording plan available).
11. Bewegingsdetectiezones: Pas specifieke gebieden binnen de camera aan view for motion detection to focus on critical zones and minimize unnecessary alerts.

Image: The Imou camera's dome design, indicating its pan-tilt-zoom capabilities for wide area coverage.

3. Onderhoud

• Schoonmaak: Maak de cameralens en het zonnepaneel regelmatig schoon met een zachte, damp doek voor een heldere beeldkwaliteit en efficiënte zonne-energie-oplading. Vermijd schurende reinigingsmiddelen.
• Firmware-updates: Check the Imou Life app periodically for firmware updates to ensure your camera has the latest features and security enhancements.
• Batterijstatus: The solar panel is designed to keep the internal battery charged. In prolonged periods of low sunlight, the battery may deplete. Ensure the solar panel is free from obstructions like snow or debris.

4. Probleemoplossing

• Camera maakt geen verbinding met wifi: Ensure your Wi-Fi network is 2.4GHz. Verify the Wi-Fi password. Move the camera closer to the router during setup.
• Vaak voorkomende valse alarmen: Adjust the sensitivity of motion detection in the app. Utilize AI Person/Vehicle Detection to filter out irrelevant movements. Define specific motion detection zones.
• Slechte nachtzichtkwaliteit: Ensure the camera lens is clean. Check for obstructions blocking the infrared lights.
• Zonnepaneel laadt niet op: Ensure the solar panel is positioned in direct sunlight and free from dirt or obstructions. Verify the USB-C cable connection is secure.
• Geen geluid of slechte tweewegsgeluidsoverdracht: Check microphone and speaker settings in the app. Ensure there are no physical obstructions.

5. Specificaties

6. Garantie

This product comes with a standard manufacturer's warranty. Please refer to the official Imou webRaadpleeg de website of uw aankoopdocumentatie voor de specifieke garantievoorwaarden.

7. Ondersteuning

For technical assistance, troubleshooting, or further inquiries, please refer to the Imou Life app's help section or visit the official Imou support website. The Imou Life app supports smartphones, tablets, and PCs.
