hygger Aquarium Light Clip Holder (for HG-957) Instruction Manual

1. Inleiding

Thank you for choosing the hygger Aquarium Light Clip Holder (Model HG-957-Clip). This holder is designed to securely mount your hygger HG-957 series aquarium light above your fish tank, providing adjustable height and positioning. Constructed from durable plastic and aluminum, it ensures stability and longevity. Please read this manual thoroughly before installation and use to ensure proper setup and operation.

2. Veiligheidsinformatie

• Ensure the aquarium light is unplugged from the power source before installation or adjustment.
• Verify that the fish tank wall thickness is suitable for the clip holder (up to 1 inch / 2.5 cm).
• Do not overtighten screws, as this may damage the aquarium glass or the holder components.
• Keep all components away from children and pets.
• Dit product is uitsluitend ontworpen voor gebruik binnenshuis met aquariums.
• Regularly check the holder for any signs of wear or damage. Replace if necessary.

3. Inhoud van het pakket

The hygger Aquarium Light Clip Holder package includes the following components:

• Uitschuifbare arm
• Metalen paal
• Tank klamp
• Short Screws (for attaching extendable arm and tank clamp)
• Long Screws (for securing the tank clamp)

Figuur 3.1: Geëxplodeerd view of the hygger Aquarium Light Clip Holder components, showing the extendable arm, metal pole, tank clamp, and various screws.

4. Installatiehandleiding

Follow these steps to properly install your hygger Aquarium Light Clip Holder:

4.1. Assemble the Holder

1. Attach the extendable arm to the top of the metal pole using one short screw. Ensure it is securely fastened but do not overtighten.
2. Attach the tank clamp to the bottom of the metal pole using another short screw.

Figure 4.1: Assembly of the extendable arm to the metal pole using a short screw.

Figure 4.2: Assembly of the tank clamp to the metal pole using a short screw.

4.2. Mount to Aquarium

3. Position the assembled holder onto the edge of your aquarium. Ensure the tank clamp securely grips the aquarium wall. This holder is suitable for fish tank wall thickness up to 1 inch (2.5 cm).
4. Insert the two long screws into the tank clamp and tighten them to secure the holder firmly to the aquarium. Do not overtighten.

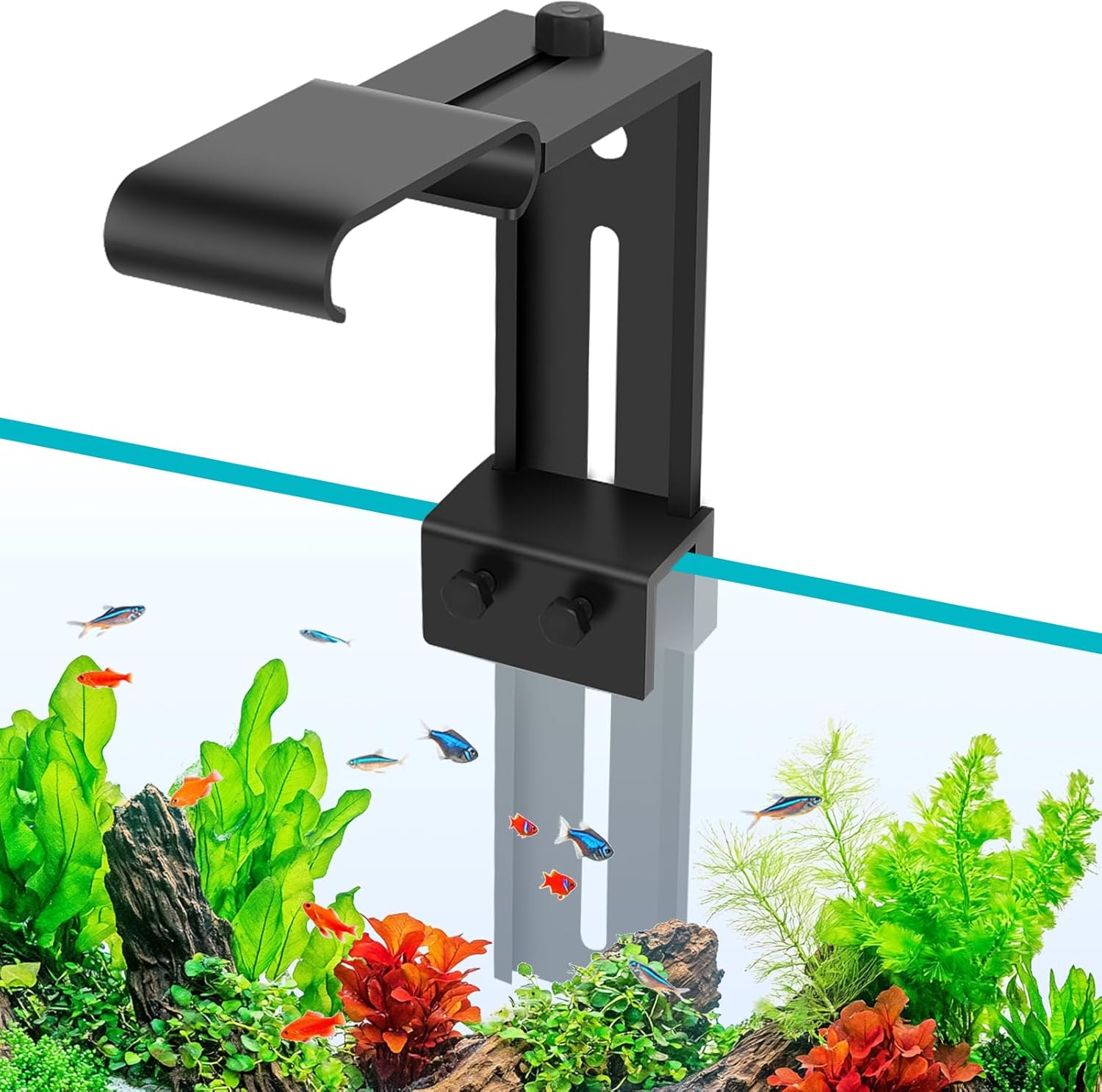

Figure 4.3: The hygger Aquarium Light Clip Holder securely mounted on an aquarium.

Figure 4.4: Detail of the tank clamp attachment to the aquarium glass.

4.3. Attach the Aquarium Light

5. Slide your hygger HG-957 series aquarium light onto the extendable arm. The arm is designed to hold the light securely.

Figure 4.5: Attaching the aquarium light to the extendable arm. Note: Light not included.

Figure 4.6: The hygger Aquarium Light Clip Holder with a compatible light installed.

5. Bediening en afstellingen

The hygger Aquarium Light Clip Holder offers flexibility in positioning your aquarium light.

5.1. Hoogte aanpassen

To adjust the height of the light above the water surface:

1. Loosen the plastic screw on the metal pole that secures the tank clamp.
2. Slide the metal pole up or down to achieve the desired height. The pole features a size scale (inches and centimeters) for precise adjustment, up to 10.5 inches (26.5 cm).
3. Once the desired height is reached, tighten the plastic screw to secure the position.

Figure 5.1: The holder's metal pole with a ruler scale for precise height adjustment, up to 10.5 inches (26.5 cm).

Figure 5.2: Detail of the height adjustment mechanism, showing the plastic screw and scale.

5.2. Adjusting Extension (Forward/Backward)

To adjust the horizontal position of the light (closer or further from the tank edge):

1. Loosen the plastic screw on the extendable arm.
2. Slide the arm forward or backward to position the light as desired.
3. Tighten the plastic screw to secure the arm in place.

Figure 5.3: The adjustable extension plate allows for forward and backward positioning of the light.

Figure 5.4: Detail of the extension adjustment, showing the screw for securing the arm's position.

6. Onderhoud

To ensure the longevity and proper function of your hygger Aquarium Light Clip Holder, follow these simple maintenance guidelines:

• Schoonmaak: Veeg de houder regelmatig af met een zachte, droge doek.amp cloth to remove dust or water spots. Avoid using abrasive cleaners or solvents, as these can damage the finish.
• Inspectie: Regularly check all screws and connections to ensure they remain tight. If any component appears loose, gently tighten it.
• Corrosiecontrole: Although made of durable materials, inspect for any signs of corrosion, especially in humid environments.

7. Probleemoplossing

If you encounter any issues with your hygger Aquarium Light Clip Holder, refer to the following common problems and solutions:

8. Specificaties

9. Garantie en ondersteuning

For warranty information or technical support, please refer to the official hygger website or contact hygger customer service directly. Keep your purchase receipt for warranty claims.

Contactgegevens:

• Official hygger Webwebsite: Bezoek de Hygger Store op Amazon.
• Customer Service: Refer to product packaging or the official website voor de meest actuele contactgegevens.
