VEVOR 48" x 48" Vertical Strip Vinyl Privacy Fence Panels Instruction Manual

1. Product voorbijview

The VEVOR 48" W x 48" H Vertical Strip Vinyl Privacy Fence Panels are designed to provide privacy and enclosure for various outdoor applications. These panels are suitable for concealing air conditioning units, trash cans, pool equipment, or defining pet play areas and garden spaces. Constructed from premium PVC material, the fence panels offer durability, waterproofing, and corrosion resistance, ensuring long-lasting performance in outdoor environments. The design prioritizes both functionality and aesthetics, featuring a smooth, easy-to-clean surface and a ventilated strip panel structure for optimal airflow.

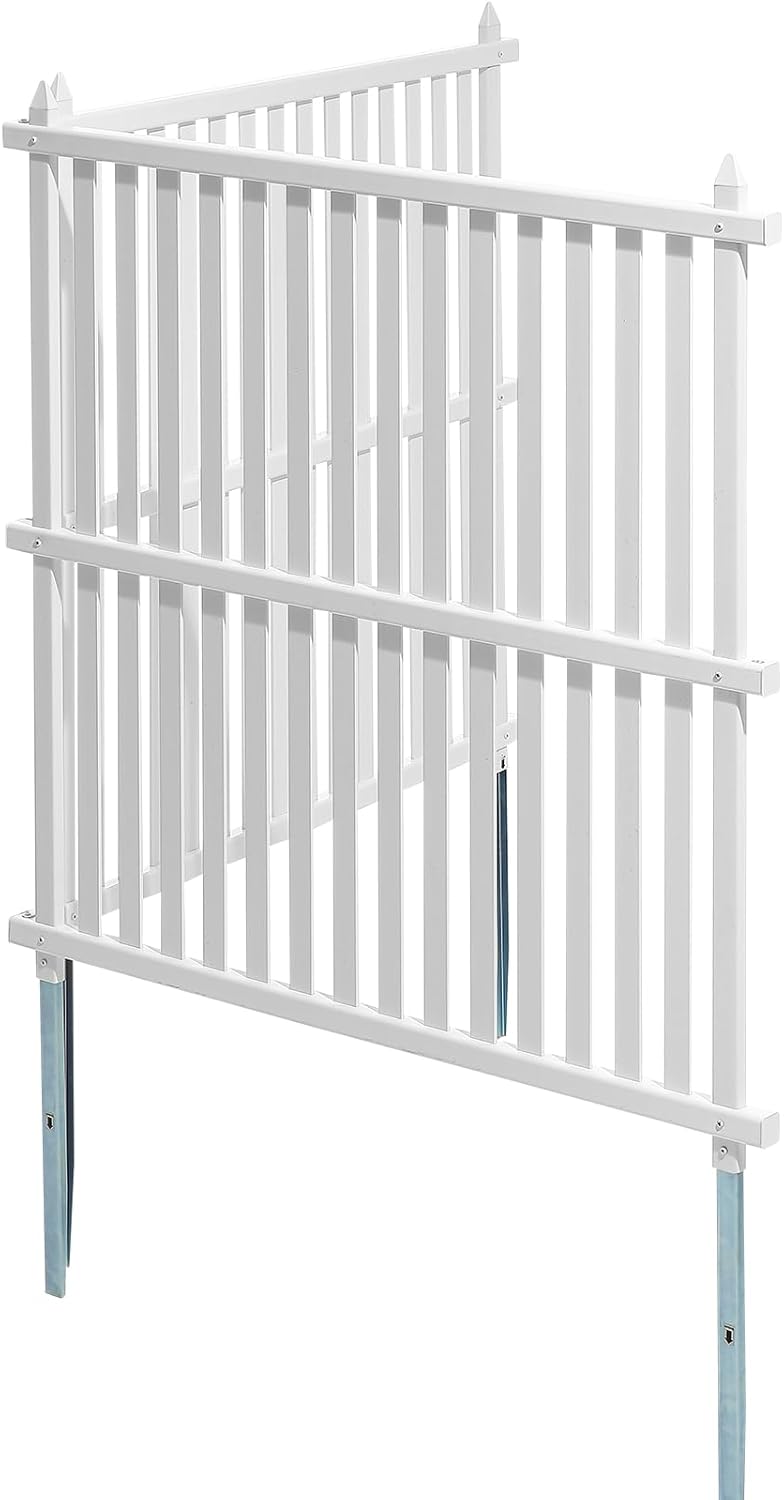

Afbeelding 1.1: voorbijview of VEVOR PVC Strip Panels, highlighting durable, waterproof, and ventilated design.

Belangrijkste kenmerken:

• Considerate Strip Panels: Measuring 48" x 48", these panels provide ventilation and airflow, making them ideal for enclosing equipment or creating pet-friendly spaces without restricting air circulation.
• Premium PVC Material: Crafted from high-quality PVC, the panels are waterproof, corrosion-resistant, and feature a smooth surface that repels dust and stains for easy cleaning.
• Dual Wind-Resistant Design: Features galvanized metal stakes, extending 19.7" for deep soil anchoring, providing enhanced stability and resistance against wind and storms. The metal legs are embedded into the posts to reduce direct damage.
• Eenvoudige installatie: The kit includes all necessary accessories and detailed instructions for quick and straightforward assembly, supporting both vertical and horizontal installations.
• Suitable for Various Soft Grounds: Equipped with pointed metal ground stakes, the panels can be directly inserted into soft grounds such as soil, gravel, or sand without the need for extensive digging.
• Aesthetic & Practical: The white PVC construction offers a clean, complementary look for any outdoor setting, while protective caps prevent water accumulation.

2. Componenten- en onderdelenlijst

Before beginning assembly, ensure all components listed below are present and undamaged. If any parts are missing or damaged, contact VEVOR customer support.

Image 2.1: Detailed diagram of all included components and overall dimensions.

Meegeleverde componenten:

• PVC Strip Panels (Quantity: As per package, typically 2 panels for this model)
• Galvanized Metal Ground Stakes (Quantity: 4)
• Posts (Quantity: 4)
• Post Caps (Quantity: 4)
• Connecting Pieces (Quantity: 2)
• Ground Stake Positioning Board (Quantity: 1)
• Screws (Generous supply)

3. Installatie en installatie

This section provides step-by-step instructions for assembling and installing your VEVOR privacy fence panels. It is recommended to have a second person assist with installation for ease and safety.

Benodigde gereedschappen (niet inbegrepen):

• Hamer of hamer
• Meetlint
• Marker of potlood
• Safety Gloves (recommended)
• Safety Glasses (recommended)

Installatiestappen:

1. Bereid het gebied voor: Clear the installation area of any debris, rocks, or vegetation. Ensure the ground is relatively level.
2. Panelen samenstellen: Begin by assembling the horizontal and vertical PVC strip panels. Slide the horizontal strips into the grooves of the vertical posts. Ensure they are securely fitted.
3. Install Protective Top Covers: Once the panels are assembled, install the protective top covers onto the posts. These caps help prevent water accumulation and enhance the fence's appearance.
4. Positie grondpalen: Use the provided Ground Stake Positioning Board to mark the exact locations for the metal ground stakes. Place the board on the ground where the fence will be installed, aligning it with the desired fence line. Mark the stake positions as indicated on the board.
5. Plaats metalen palen: Carefully hammer the galvanized metal ground stakes into the marked positions. Ensure the stakes are driven deep enough (approximately 19.7 inches) into the soft ground (soil, gravel, or sand) for maximum stability.
6. Attach Posts to Stakes: Once the stakes are in place, insert the bottom of the fence posts onto the metal stakes. The posts are designed to fit snugly over the stakes, providing a secure connection.
7. Secure Connecting Pieces: Use the provided connecting pieces and screws to join multiple fence panels together if you are creating a longer or corner enclosure.

Image 3.1: Visual guide for the installation process, from panel assembly to stake insertion.

Image 3.2: Illustration of the extended galvanized metal stakes providing enhanced support.

Image 3.3: The pointed metal ground stakes are suitable for various soft grounds like soil, gravel, or sand.

Afbeelding 3.4: Example of the fence panels used to enclose an air conditioning unit.

4. Gebruiksaanwijzing

The VEVOR privacy fence panels are designed for passive use as a privacy screen or enclosure. Once properly installed, no further 'operation' is required. Ensure the panels are securely anchored and regularly check for stability, especially after strong winds or heavy rain.

5. Onderhoud

Regular maintenance will help preserve the appearance and longevity of your VEVOR privacy fence panels.

• Schoonmaak: The smooth PVC surface repels dust and stains. Clean the panels periodically with mild soap and water using a soft cloth or sponge. Avoid abrasive cleaners or harsh chemicals that could damage the material.
• Inspectie: Periodically inspect the fence for any signs of damage, loose connections, or shifting stakes. Re-secure any loose components as needed.
• Afwatering: The umbrella-shaped protective caps are designed to reduce water accumulation. Ensure that water drains properly around the base of the posts to prevent soil erosion or pooling.

6. Probleemoplossing

This section addresses common issues you might encounter with your privacy fence panels.

Veelvoorkomende problemen:

• Het hek is instabiel:
  • Ensure ground stakes are driven deep enough (19.7 inches) into the ground.
  • Verify that the posts are securely fitted onto the metal stakes.
  • Check if the ground type is suitable (soft soil, gravel, or sand). If installed in hard ground, stakes may not be fully inserted.
• Panels appear misaligned:
  • Recheck the alignment of the ground stakes using the positioning board.
  • Ensure horizontal strips are fully seated in the vertical post grooves.
• Moeilijkheden bij het plaatsen van de palen:
  • Ensure the ground is soft enough. If the ground is too hard, consider moistening the soil or selecting an alternative location.
  • Use a hammer or mallet to drive the stakes, ensuring even force.

7. Specificaties

8. Garantie en ondersteuning

Voor garantie-informatie, technische ondersteuning of om vervangende onderdelen te kopen, kunt u terecht bij de officiële VEVOR website or contact VEVOR customer service directly. Keep your purchase receipt and model number (12220) handy for faster service.
