VYANLIGHT VL310-12 Wireless Motion Sensor LED Under Cabinet Lights Instruction Manual

Invoering

Thank you for choosing the VYANLIGHT VL310-12 Wireless Motion Sensor LED Under Cabinet Lights. This product is designed to provide convenient and efficient lighting for various indoor spaces such as kitchens, pantries, closets, bathrooms, and hallways. Featuring a sleek, ultra-thin design, a rechargeable battery, and multiple operating modes including motion and hand wave sensing, these lights offer a versatile and user-friendly lighting solution.

Inhoud van het pakket

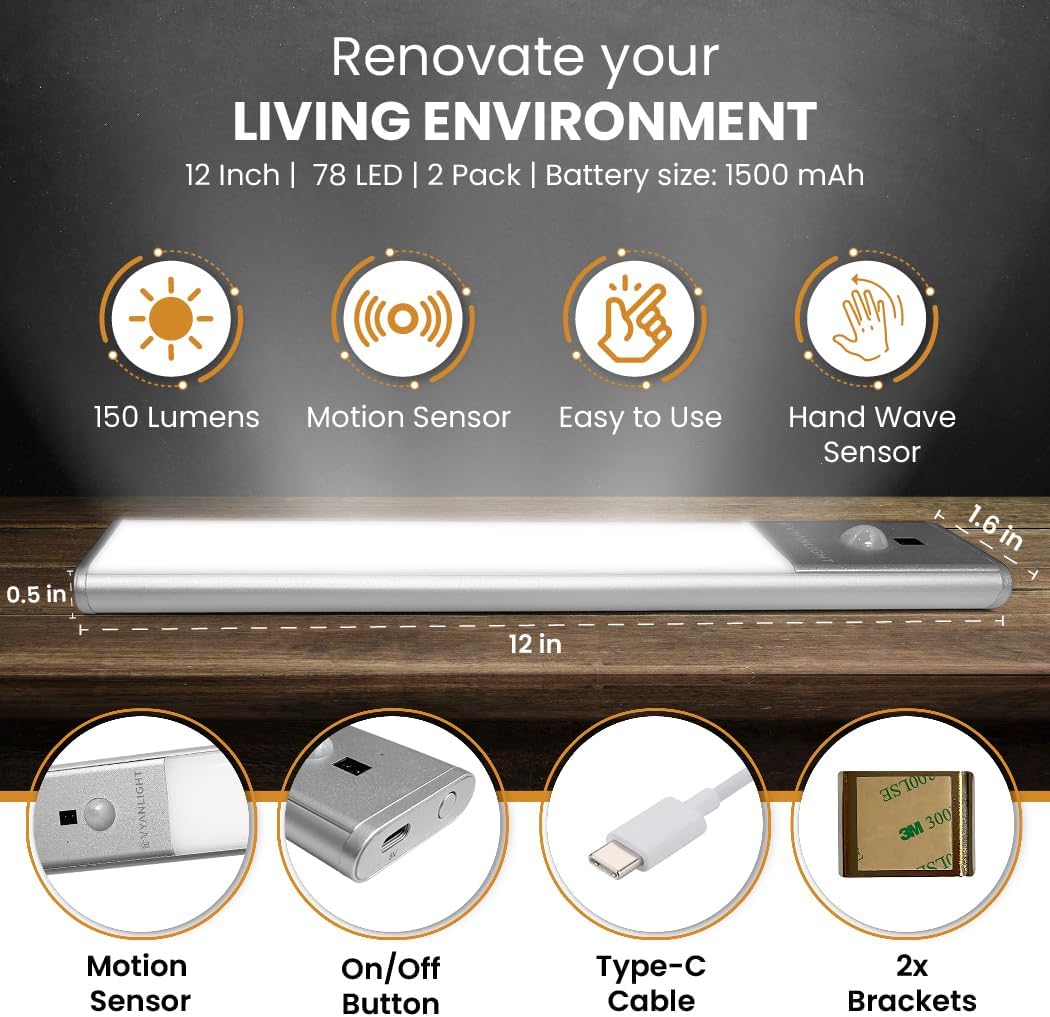

• VYANLIGHT VL310-12 LED Light Bar (2 units)
• USB-oplaadkabel (1 stuk)
• Metal Mounting Plates with Adhesive Backing (4 units)

Instellen en installeren

The VYANLIGHT LED lights are designed for easy, wireless installation without the need for drilling or complex wiring. Follow these steps for proper setup:

1. Bereid het oppervlak voor: Ensure the installation surface is clean, dry, and smooth. Wipe away any dust or debris for optimal adhesive performance.
2. Montageplaten bevestigen: Peel off the protective film from the adhesive backing of the metal mounting plates. Firmly press the plates onto the desired location under your cabinet, inside a closet, or on any other suitable surface. Apply pressure for a few seconds to ensure a strong bond.
3. Monteer de lichtbalk: The LED light bar has built-in magnets. Align the light bar with the installed metal plates and allow the magnets to securely attach the light. This magnetic attachment allows for easy removal for charging or repositioning.

Gebruiksaanwijzing

The VYANLIGHT LED light bar offers multiple operating modes and light settings for customized illumination.

Functies van de aan/uit-knop

• Eerste druk: Activates the light in Hand Wave Sensor Mode.
• Tweede druk: Activates Night Sensor Mode (sensor dome flashes green). In this mode, the light will only activate in dark conditions when motion is detected.
• Derde pers: Activates Daylight Sensor Mode (sensor dome flashes red). In this mode, the light will activate in both bright and dark conditions when motion is detected.
• Vierde druk: Schakelt het licht UIT.
• Ingedrukt houden: Changes the light color temperature (3000K Warm White, 4500K Natural White, 6000K Cool White).

Handgolfsensor

When in Hand Wave Sensor Mode, wave your hand in front of the sensor to turn the light ON or OFF. Hold your hand in front of the sensor to adjust the brightness (stepless dimming).

Bewegingssensor

In Night Sensor Mode or Daylight Sensor Mode, the light will automatically turn on when motion is detected within a 9-foot sensing distance and a 120-degree angle. The light will automatically turn off after 15 seconds of no motion detection.

Onderhoud

De batterij opladen

The VYANLIGHT LED light bar is equipped with a 1500mAh rechargeable Lithium Ion battery. When the battery is low, the indicator light will turn red during charging and blue when fully charged. Use the provided USB charging cable to connect the light bar to a 5V DC power source.

Schoonmaak

To clean the light bar, gently wipe it with a soft, dry cloth. Do not use abrasive cleaners or immerse the device in water, as it is not water-resistant.

Probleemoplossing

• Licht gaat niet aan:
  • Ensure the battery is charged. Connect the light to the USB charging cable.
  • Check the operating mode. Press the power button to cycle through modes (Hand Wave, Night Sensor, Daylight Sensor, OFF).
  • In Night Sensor Mode, ensure the environment is dark enough for activation.
• Motion sensor is not detecting movement:
  • Verify the light is in either Night Sensor Mode (green indicator) or Daylight Sensor Mode (red indicator).
  • Zorg ervoor dat er geen obstakels zijn die de sensor blokkeren.
  • Confirm movement is within the 9-foot sensing range and 120-degree angle.
• De batterijduur is korter dan verwacht:
  • Frequent activation, especially in high-traffic areas, will consume battery power more quickly.
  • Zorg ervoor dat de lamp vóór gebruik volledig is opgeladen.
  • Consider using Night Sensor Mode in areas where light is only needed in complete darkness to conserve battery.

Specificaties

Garantie-informatie

This VYANLIGHT product comes with a Beperkte garantie. For specific details regarding the warranty period, coverage, and terms, please refer to the documentation included with your product packaging or visit the official VYANLIGHT webwebsite. Bewaar uw aankoopbewijs voor garantieclaims.

Klantenservice

Should you encounter any issues or have questions regarding your VYANLIGHT VL310-12 LED Under Cabinet Lights, please contact VYANLIGHT customer support. Refer to the contact information provided in your product packaging or on the official VYANLIGHT website voor hulp.
