Gebruikershandleiding voor de Rosieres RHG6D5WC5X gaskookplaat

1. Inleiding

This manual provides essential instructions for the safe installation, operation, and maintenance of your Rosieres RHG6D5WC5X gas hob. Please read this manual thoroughly before using the appliance and keep it for future reference. Proper use and care will ensure optimal performance and longevity of your gas hob.

The Rosieres RHG6D5WC5X gas hob features four burners of varying power, robust cast iron grates, and advanced safety mechanisms including Chef-flamme technology for precise flame control and a thermocouple system that automatically cuts off gas supply if a flame extinguishes.

2. Belangrijke veiligheidsinstructies

• Gasveiligheid: Ensure proper ventilation. Do not store or use flammable materials near the appliance. In case of a gas leak, turn off the main gas supply, open windows, and do not operate electrical switches. Contact a qualified technician immediately.
• Elektrische veiligheid: This appliance must be properly earthed. Do not use adapters or extension cords. Disconnect power before any maintenance or cleaning.
• Kinderen en kwetsbare personen: Dit apparaat is niet bedoeld voor gebruik door personen (inclusief kinderen) met verminderde fysieke, sensorische of mentale vermogens, of gebrek aan ervaring en kennis, tenzij zij toezicht of instructies hebben gekregen over het gebruik van het apparaat door een persoon die verantwoordelijk is voor hun veiligheid. Kinderen moeten worden begeleid om ervoor te zorgen dat ze niet met het apparaat spelen.
• Hete oppervlakken: The hob surface and surrounding areas become hot during use. Avoid touching hot surfaces. Use oven mitts or pot holders.
• Oververhitting: Laat koken nooit onbeheerd achter. Oververhitte vetten en oliën kunnen ontbranden.
• Installatie: Installation and servicing must be carried out by a qualified technician in accordance with local regulations and standards.

3. Product voorbijview

The Rosieres RHG6D5WC5X gas hob is designed for efficient and safe cooking. It features four gas burners, each with individual control knobs, and durable cast iron pan supports.

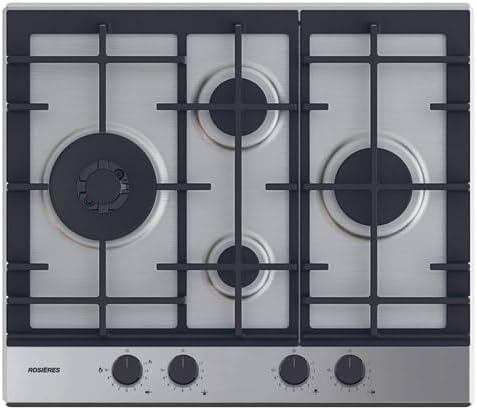

Afbeelding 1: Bovenkant view of the Rosieres RHG6D5WC5X gas hob. This image displays the stainless steel surface, four black gas burners with their respective caps, and robust black cast iron pan supports. Below the cooking surface, there are four silver control knobs for adjusting the flame intensity of each burner. The Rosieres logo is visible on the lower left.

Componenten:

• Branders: Four gas burners of varying sizes for different cooking needs.
• Pan-steunen: Robust cast iron grates designed to hold cookware securely.
• Bedieningsknoppen: Individual knobs for igniting and adjusting the flame intensity of each burner.
• Ontstekingssysteem: Integrated electronic ignition for easy start-up.
• Thermocouple Safety Device: Automatically cuts off gas supply if the flame accidentally extinguishes.

4. Installatie en installatie

Installation must be performed by a qualified and authorized technician in accordance with all local codes and regulations. Incorrect installation can lead to serious injury or damage.

4.1 Uitpakken

• Haal de kookplaat voorzichtig uit de verpakking.
• Check for any damage during transit. Do not install a damaged appliance.
• Bewaar het verpakkingsmateriaal voor eventueel toekomstig transport of retourzending.

4.2 Countertop Preparation and Dimensions

Ensure the countertop opening meets the specified dimensions for a secure fit.

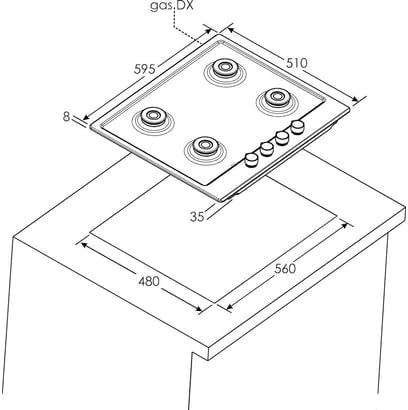

Afbeelding 2: Dimensional diagram for the Rosieres RHG6D5WC5X gas hob. This technical drawing shows the required cutout dimensions for installation into a countertop. The hob itself measures 595mm in width and 510mm in depth. The recommended countertop cutout dimensions are 560mm in width and 480mm in depth, with a minimum clearance of 35mm from the front edge and 8mm from the rear edge. The gas connection point is also indicated.

• Hob Dimensions (LxHxP): 59.5x3.8x51cm
• Required Cutout Dimensions (LxP): 56 x 48 cm (refer to Image 2 for detailed measurements and clearances).
• Zorg voor voldoende ventilatie rond het apparaat.

4.3 Gasaansluiting

The appliance is designed for Natural Gas. Ensure the gas supply pressure is compatible with the appliance specifications.

• Connect the hob to the main gas supply using a flexible or rigid pipe, ensuring all connections are gas-tight.
• Perform a leak test on all connections using a soapy water solution. Do not use an open flame.
• Ensure the gas shut-off valve is easily accessible after installation.

4.4 Elektrische aansluiting

The hob requires an electrical connection for the electronic ignition system.

• Sluit het apparaat aan op een geaard stopcontact.
• Zorg ervoor dat de voltage en frequentie komen overeen met de vereisten van het apparaat.
• The electrical supply must be protected by an appropriate circuit breaker.

5. Gebruiksaanwijzing

5.1 Een brander ontsteken

1. Place your cookware on the chosen burner's cast iron grate.
2. Druk de bijbehorende bedieningsknop naar beneden en draai deze tegen de klok in tot de maximale vlamstand (groot vlamsymbool).
3. Hold the knob down for a few seconds until the flame ignites. The integrated ignition system will spark automatically.
4. Once the flame is stable, release the knob. If the flame extinguishes, repeat the process, holding the knob down slightly longer.

5.2 Adjusting the Flame (Chef-flamme Technology)

The Chef-flamme technology allows for precise control over the flame intensity with 9 distinct power settings.

• After ignition, turn the control knob to the desired flame size. The knob will click into specific positions, indicating the 9 power levels.
• A larger flame is suitable for rapid boiling or searing.
• A smaller flame is ideal for simmering or keeping food warm.

5.3 Thermocouple Safety System

Your Rosieres gas hob is equipped with a thermocouple safety device on each burner. This system is designed to prevent gas leaks.

• If a flame accidentally extinguishes (e.g., due to a draft or liquid boiling over), the thermocouple sensor will cool down.
• This cooling signals the system to automatically cut off the gas supply to that specific burner, preventing unburnt gas from escaping.
• To re-ignite the burner, wait a few moments for the system to reset, then follow the ignition steps (Section 5.1).

5.4 Een brander uitschakelen

To turn off a burner, simply turn the corresponding control knob clockwise to the "OFF" position (small dot symbol).

6. Onderhoud en reiniging

Regular cleaning and maintenance will keep your gas hob in excellent condition and ensure safe operation. Always ensure the appliance is cool and disconnected from the power supply before cleaning.

6.1 Cleaning the Stainless Steel Surface

• Gebruik een zachte doek of spons met warm zeepsop.
• Gebruik voor hardnekkige vlekken een niet-schurend reinigingsmiddel voor roestvrij staal.
• Veeg altijd met de richting van de nerf mee om krassen te voorkomen.
• Spoel grondig af en droog met een zachte, schone doek om watervlekken te voorkomen.
• Gebruik geen schurende schoonmaakmiddelen, schuursponsjes of agressieve chemicaliën.

6.2 Cleaning Cast Iron Grates and Burner Components

• Remove the cast iron grates and burner caps/crowns when cool.
• Wash them in warm soapy water. For baked-on food, soak them before cleaning.
• Use a non-abrasive brush or sponge to remove food residues.
• Ensure all components are completely dry before reassembling them. Moisture can affect ignition.
• Periodically check burner holes for blockages and clean with a fine wire or needle if necessary.

6.3 bedieningsknoppen

• The control knobs can be pulled off for easier cleaning.
• Wash them with warm soapy water and dry thoroughly before reattaching.

7. Probleemoplossing

Voordat u contact opneemt met de klantenservice, controleer dan de volgende veelvoorkomende problemen en oplossingen:

8. Specificaties

9. Garantie en klantenondersteuning

Your Rosieres RHG6D5WC5X gas hob comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the duration and coverage. Keep your proof of purchase for warranty claims.

For technical assistance, spare parts, or to schedule a service appointment, please contact Rosieres customer support. Contact details can typically be found on the manufacturer's official webwebsite of in de documentatie die bij uw apparaat is geleverd.

Opmerking: Repairs should only be carried out by authorized service personnel. Unauthorized repairs may void your warranty and pose safety risks.
