1. Belangrijke veiligheidsinstructies
Please read and understand all safety instructions before operating this airbrush compressor. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always ensure the compressor is connected to a grounded electrical outlet with the correct voltage (230 volt).
- Gebruik de compressor niet in natte of damp conditions. Keep it away from water.
- Ensure adequate ventilation around the compressor during operation to prevent overheating.
- Never point the airbrush nozzle at yourself or others.
- Always wear appropriate personal protective equipment, including eye protection and a respirator, when airbrushing.
- Disconnect the power cable from the outlet before performing any maintenance or when the compressor is not in use.
- Houd kinderen en huisdieren uit de buurt van de compressor als deze in werking is.
2. Inhoud van het pakket
Controleer of alle artikelen in het pakket aanwezig zijn:
- Fengda AS-06-1 Mini Airbrush Compressor Unit
- Luchtslang
- Stroomkabel
- Luchtfilter
3. Product voorbijview
The Fengda AS-06-1 is a compact and efficient mini airbrush compressor designed for various airbrushing applications. It provides a consistent air supply for detailed work.

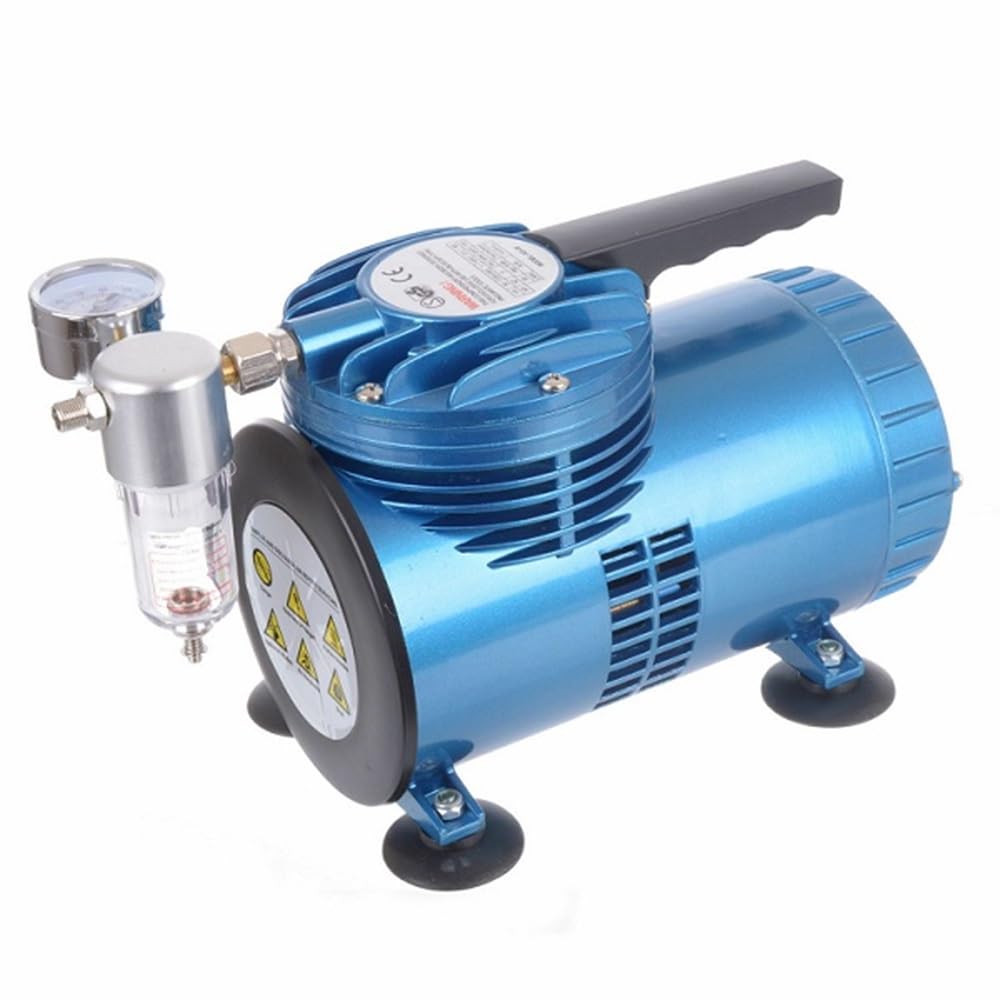

Image of the Fengda AS-06-1 Mini Airbrush Compressor, showing its compact design and main components.
4. Instellen
- Plaatsing: Place the compressor on a stable, level surface in a well-ventilated area. Ensure there is enough space around the unit for proper airflow.
- Luchtslang aansluiten: Connect one end of the air hose to the air outlet on the compressor. Connect the other end of the air hose to your airbrush. Ensure connections are secure to prevent air leaks.
- Luchtfilter installeren: If not already installed, attach the air filter to the compressor's air outlet before connecting the air hose. This helps to remove moisture and particles from the air supply.
- Sluit stroom aan: Plug the power cable into the compressor's power inlet, then plug the other end into a standard 230 Volt grounded electrical outlet.
5. Gebruiksaanwijzing
- Inschakelen: Locate the power switch on the compressor and turn it to the 'ON' position. The compressor will begin to build pressure.
- Airbrush voorbereiden: Fill your airbrush cup with the desired paint or medium, ensuring it is properly thinned for airbrushing.
- Beginnen met airbrushen: Hold the airbrush and begin your work. The compressor will automatically maintain pressure as you spray.
- Uitschakelen: When finished, turn the power switch to the 'OFF' position. Disconnect the airbrush and clean it thoroughly.
- Stroom loskoppelen: Unplug the power cable from the electrical outlet when the compressor is not in use.
6. Onderhoud
Regular maintenance ensures optimal performance and extends the lifespan of your compressor.
- Schone luchtfilter: Periodically check the air filter for dust and debris. Clean or replace it as necessary to ensure clean air delivery and prevent strain on the compressor.
- Buitenreiniging: Veeg de buitenkant van de compressor af met een zachte, damp lap. Gebruik geen agressieve chemicaliën of schurende schoonmaakmiddelen.
- Opslag: Bewaar de compressor op een schone, droge plaats wanneer deze niet in gebruik is.
7. Probleemoplossing
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Compressor gaat niet aan | Geen stroomtoevoer; Stroomschakelaar uit; Defecte stroomkabel | Check power outlet; Ensure power switch is ON; Inspect power cable for damage. |
| Geen lucht uit airbrush | Air hose disconnected; Airbrush clogged; Compressor not running | Check air hose connections; Clean airbrush; Ensure compressor is ON. |
| Lage luchtdruk | Air leaks; Clogged air filter; Compressor malfunction | Check all connections for leaks; Clean or replace air filter; Contact support if issue persists. |
8. Specificaties
- Model: AS-06-1
- Merk: Fengda
- Deeltage: 230 Volt
- Energiebron: Elektrische kabel
- Aanbevolen gebruik: Airbrushen
- Artikelgewicht: Ongeveer 11.02 pond (5 kg)
- Pakket afmetingen: 31x22x15.6cm
- Meegeleverde componenten: Air hose, power cable, air filter
9. Garantie en ondersteuning
Voor garantie-informatie of technische ondersteuning kunt u de documentatie raadplegen die u bij aankoop hebt ontvangen of contact opnemen met uw winkelier. Bewaar uw aankoopbewijs.
