Floating Shelf
Installation Manual
Safety Notes:
- Ensure at least one bracket is securely fastened to a wall stud to support the weight of the shelf and the items it will hold.
- Use appropriate drywall anchors if a stud is not available to prevent the shelf from pulling out of the wall.
- Do not overload the shelf beyond its weight capacity to avoid accidents.
- Keep the installation tools and small parts out of reach of children.
| Step 1 | Determine the location for installation, using measuring tape for the required height and width. |
| Step 2 | Use a level to draw a line under the shelf board |
| Step 3 | Measure the space for the hidden bracket at the back of the shelf board |
| Step 4 | Use the measurement of the bracket space, draw line with the level for the bracket. Align the brackets to the line and mark the spots for drilling holes for screws.  |

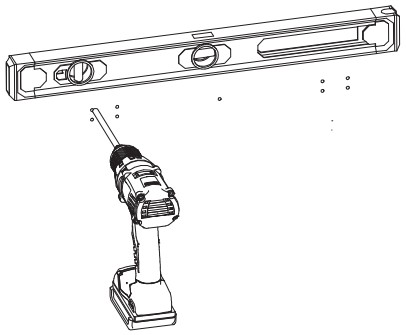

| Step 5 | Determine if studs behind the marks with a stud finder. Drill the pilot holes on the marks, double check that the marks are level and aligned. |
| Step 6 | Use a hammer to insert anchors into the holes without a stud behind. Do not insert anchors if a stud is behind the holes.  |
| Step 7 | Using tools (screw driver) to fastern the brackets to the wall with the 2-inch screws provided. |
| Step 8 | Insert the shelf board on top of the brackets and secure the board using the 1-inch screws provided. |
Included parts:
 Brackets |
 Shelf Board |
 2-inch screws |
 Anchors |
 1-inch screws |
|
Tools needed (not included)
 Hammer |
 Drill |
 Screwdriver |
 Level |
 Pencil |
 Measuring tape |
