neptronic CMMB100 Dual Mini Input Communication Module
Specifications:
- Model: CMMB100
- Input Voltage: Universal
- Communication: BACnet, Modbus
- Operational Temperature: TBD
- Storage Temperature: TBD
- Relative Humidity: TBD
- Weight: TBD
- Dimensions:
- A = 3.18 / 81 mm
- B = 4.93 / 125 mm
- C = 2.27 / 58 mm
Product Usage Instructions
Connections and Configurations:
Please note that all jumper settings must also be set to the same value through BACnet. Some additional configurations are only available through BACnet.
Network Settings:
- Mode:
- If BACnet:
- Auto Detect (default)
- Manual settings available through DS2-1 & DS2-2
- If Modbus:
- Config via Modbus Register
- No parity, 2 stop bits
- If BACnet:
- Baud Rate:
- 9600, 19200, 38400, or 76800 (BACnet) / 57600 (Modbus)
- MAC Address: Set using the 8 DIP switches representing a binary logic.
Network Port and Inputs:
- End of Line: Default is None, with an option for 120 ohms.
- Network Port:
- A+: BACnet/Modbus A+
- B-: BACnet/Modbus B-
- BCOM: Common
- Voltage Input: Max 175mA, supports both 24 Vac or Vdc.
LED Indicators:
- Power On/Off
- Status Flashing: Normal operation
- RX/TX Flashing: Indicates receiving/transmitting data for BACnet or Modbus
- Input Status: Indicates input status – On/Off/Flashing based on connection
FAQ
- How do I configure the MAC address on the CMMB100?
- The MAC address can be configured using the 8 DIP switches on DS1. The default setting is all OFF, but you can set binary logic to calculate the MAC address.
- What are the default settings for Baud Rate and Mode options?
- The default setting for Baud Rate is based on the communication protocol: 76800 for BACnet and 57600 for Modbus. The default mode is Auto Detect for BACnet and Config via Modbus Register for Modbus.
Description
The CMMB extends your BACnet or Modbus network when your application requires additional inputs on a physical controller. Combining the 8 inputs of the CMMB with your Building Automation System provides simple expansion of a new or existing controller andreduces unnecessary costs of additional components.
Features
Power & Communication
- 24Vac or 24Vdc supply
- BACnet® MS/TP or Modbus communication port (selectable)
Inputs
- 8 universal inputs
Installation
- LED status indication of each input
- DIN rail mounting
- Removable, non-strip, raising clamp terminals
- Removable see-through panel for easy access to DIP switches
Network Communication
- BACnet® MS/TP or Modbus communication port (selectable via DIP switch)
- Select the MAC address via the DIP switch or via the network
BACnet®
- MS/TP @ 9600, 19200, 38400 or 76800 bps
- Automatic baud rate detection
- Automatic device instance configuration
- Copy & broadcast configuration to other CMMB modules
Modbus
- Modbus @ 9600, 19200, 38400 or 57600 bps
- RTU Slave, 8 bits (configurable parity and stop bits)
- Connects to any Modbus master
Technical Specifications
| Specifications | CMMB100 |
| Input Voltage | 24 Vac or 24 Vdc |
| Consumption | 3VA (175mA @ 24 Vac) |
| Universal Inputs | 8 [0.00-10.00Vdc, 10KΩ/20KΩ/30KΩ, on/off (dry contact), 4.00-20.00mA] / 12b hardware resolution with oversampling |
| BACnet | BACnet® MS/TP @ 9600, 19200, 38400 or 76800 bps (BAS-C) |
| Modbus | Modbus RTU slave @ 9600, 19200, 38400 or 57600. Selectable parity and stop bit configuration:
· No parity, 2 stop bit · Even parity, 1 stop bit · Odd parity, 1 stop bit |
| Communication Connections | 24 AWG twisted-shield cable (Belden 9841 or equivalent) |
| Electrical Connections | 0.8 mm2 [18 AWG] minimum |
| Operational Temperature | 0ºC to 50ºC [32ºF to 122ºF] |
| Storage Temperature | -30ºC to 50ºC [-22ºF to 122ºF] |
| Relative Humidity | 5 a 95% non condensed |
| Weight | 0.2 kg [0.4 lb] |

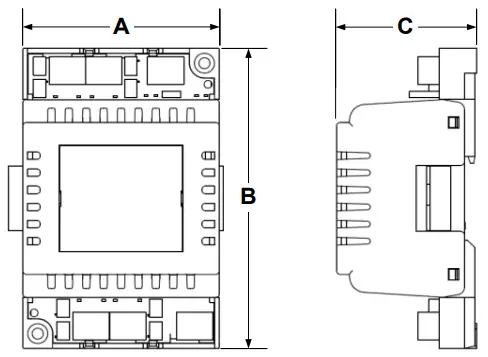

| Dimensions
A = 3.18” / 81 mm B = 4.93” / 125 mm C = 2.27” / 58 mm |
|

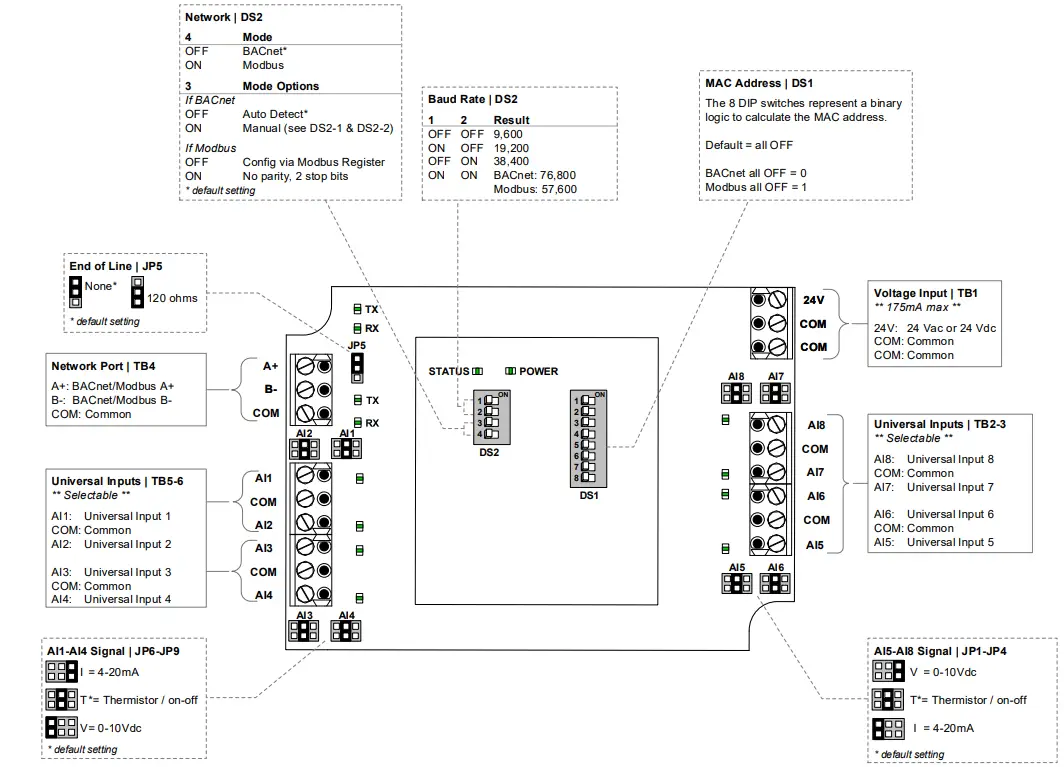

Connections and Configurations
Please note that all jumper settings must also be set to the same value through BACnet. Some additional configurations are only available through BACnet (see Network Conditions
LEDs
Power
On = Input voltage normal
Off = No power
Status
Flashing = Normal operation (watchdog)
RX/TX (BACnet)
Flashing = Receiving (RX) and/or transmitting (TX) data.
RX/TX (Modbus)
Flashing = Receiving (RX) and/or transmitting (TX) data.
Input Status
On = Input on
Off = Input off
Flashing = Input not connected (thermistor setting only)
Analog = When Universal Inputs are set to analog values (Vdc, mA, or Thermistor); the LED intensity corresponds to the input value.
For example: At 10Vdc, the LED will be fully on. At 5Vdc, the LED will be at 50% intensity. At 0 Vdc, the LED will be off.
MAC Address DIP Switch (DS1)
MAC addresses for BACnet and Modbus communication, are selectable by DIP switch DS1 using binary logic.
BACnet
- The highest MAC address is 254.
- Default is all switches OFF = MAC address 0
- If you do not change the device instance in program mode, it will be automatically modified according to the MAC address.
| MAC Address | DS.1 = 1 | DS.2 = 2 | DS.3 = 4 | DS.4 = 8 | DS.5 = 16 | DS.6 = 32 | DS.7 = 64 | DS.8 = 128 | Default Device Instance |
| 0 | OFF | OFF | OFF | OFF | OFF | OFF | OFF | OFF | 153000 |
| 1 | ON | OFF | OFF | OFF | OFF | OFF | OFF | OFF | 153001 |
| 2 | OFF | ON | OFF | OFF | OFF | OFF | OFF | OFF | 153002 |
| 3 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | 153003 |
| 4 | OFF | OFF | ON | OFF | OFF | OFF | OFF | OFF | 153004 |
| … | … | … | … | … | … | … | … | … | … |
| 126 | OFF | ON | ON | ON | ON | ON | ON | OFF | 153126 |
| … | … | … | … | … | … | … | … | … | … |
| 254 | OFF | ON | ON | ON | ON | ON | ON | ON | 153254 |
Modbus
- Highest MAC address is 247.
- Default is all switches OFF = MAC address 1
- MAC address is binary value +1
- There is no device instance for Modbus.
| MAC Address | DS.1 = 1 | DS.2 = 2 | DS.3 = 4 | DS.4 = 8 | DS.5 = 16 | DS.6 = 32 | DS.7 = 64 | DS.8 = 128 |
| 0+1 = 1 | OFF | OFF | OFF | OFF | OFF | OFF | OFF | OFF |
| 1+1 = 2 | ON | OFF | OFF | OFF | OFF | OFF | OFF | OFF |
| 2+1 = 3 | OFF | ON | OFF | OFF | OFF | OFF | OFF | OFF |
| 3+1 = 4 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF |
| 4+1 = 5 | OFF | OFF | ON | OFF | OFF | OFF | OFF | OFF |
| … | … | … | … | … | … | … | … | … |
| 126+1 = 127 | OFF | ON | ON | ON | ON | ON | ON | OFF |
| … | … | … | … | … | … | … | … | … |
| 246+1 = 247 | OFF | ON | ON | OFF | ON | ON | ON | ON |
Network Conditions
Please note that all jumper settings must also be set to the same value through BACnet or Modbus. The following is a list of conditions and additional BACnet or Modbus objects.
Universal Inputs (AI1-AI8)
- For temperature thermistor reading: with the jumper set to Thermistor, set the AI input type to 10K_TypeG, 10K_Type3A1, 10K_Type4A1, 10K_NTC, 20K_Type6A1 or 30K_Type6A1.
- For on/off contact input reading: with the hardware jumper set to Thermistor, set the AI input type to Digital_Input. The polarity can also be set to direct or reverse. For example, in Reverse an “on” signal would be recognized as an “off” signal.
- For analog 0-10 Vdc input reading: with the hardware jumper set to 0-10 Vdc, set the AI input type to 0_10V.

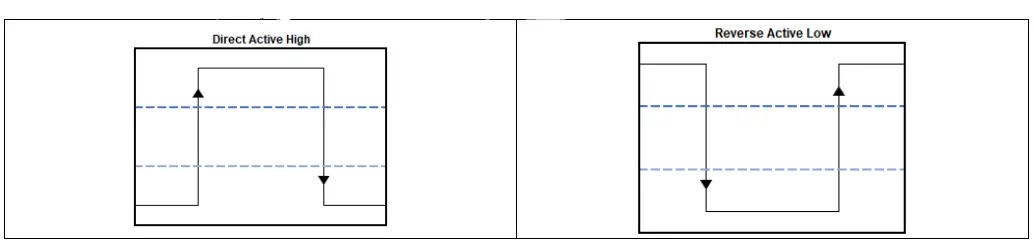

Pulse Counting Feature
The pulse counting feature enables counting the number of pulses detected by the inputs.
- When an active edge is detected, the Pulse Count is incremented by 1 up to the Prescaler value. When the Prescaler value is reached, the Accumulator is incremented by 1 and the Pulse Count is reset to 0.
- A value that is higher than 80% of the input’s saturation confirms a high level. A value that is lower than 20% of the input’s saturation confirms a low level.
- The maximum frequency is 100Hz and the minimum pulse length is 5ms/50%D.C
BACnet Objects Table
|
ID1 |
Name |
Description |
Writable? |
Notes (* = default)
(† = only when UniversalInputxFunction is set to 10K_Type3/G) |
|
AI.1 |
UniversalInput1 |
Universal input 1 mode selected by MSV.1 |
Out of service |
0 to 10Volt or -40 to 100ºC (150ºC)† or
-40 to 212ºF (302ºF)† or 4 to 20mA or 0 to 1 Resolution: 0.01Volt or 0.01ºC/0.02ºF or 0.01mA or 1 |
|
AI.2 |
UniversalInput2 |
Universal input 2 mode selected by MSV.12 |
Out of service |
0 to 10Volt or -40 to 100ºC (150ºC)† or
-40 to 212ºF (302ºF)† or 4 to 20mA or 0 to 1 Resolution: 0.01Volt or 0.01ºC/0.02ºF or 0.01mA or 1 |
|
AI.3 |
UniversalInput3 |
Universal input 3 mode selected by MSV.15 |
Out of service |
0 to 10Volt or -40 to 100ºC (150ºC)† or
-40 to 212ºF (302ºF)† or 4 to 20mA or 0 to 1 Resolution: 0.01Volt or 0.01ºC/0.02ºF or 0.01mA or 1 |
|
AI.4 |
UniversalInput4 |
Universal input 4 mode selected by MSV.48 |
Out of service |
0 to 10Volt or -40 to 100ºC (150ºC)† or
-40 to 212ºF (302ºF)† or 4 to 20mA or 0 to 1 Resolution: 0.01Volt or 0.01ºC/0.02ºF or 0.01mA or 1 |
|
AI.5 |
UniversalInput5 |
Universal input 5 mode selected by MSV.57 |
Out of service |
0 to 10Volt or -40 to 100ºC (150ºC)† or
-40 to 212ºF (302ºF)† or 4 to 20mA or 0 to 1 Resolution: 0.01Volt or 0.01ºC/0.02ºF or 0.01mA or 1 |
|
AI.6 |
UniversalInput6 |
Universal input 6 mode selected by MSV.58 |
Out of service |
0 to 10Volt or -40 to 100ºC (150ºC)† or
-40 to 212ºF (302ºF)† or 4 to 20mA or 0 to 1 Resolution: 0.01Volt or 0.01ºC/0.02ºF or 0.01mA or 1 |
|
AI.7 |
UniversalInput7 |
Universal input 7 mode selected by MSV.59 |
Out of service |
0 to 10Volt or -40 to 100ºC (150ºC)† or
-40 to 212ºF (302ºF)† or 4 to 20mA or 0 to 1 Resolution: 0.01Volt or 0.01ºC/0.02ºF or 0.01mA or 1 |
|
AI.8 |
UniversalInput8 |
Universal input 8 mode selected by MSV.60 |
Out of service |
0 to 10Volt or -40 to 100ºC (150ºC)† or
-40 to 212ºF (302ºF)† or 4 to 20mA or 0 to 1 Resolution: 0.01Volt or 0.01ºC/0.02ºF or 0.01mA or 1 |
| AV.1 | UI1PulseCount | Universal input 1 pulse count. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.2 | UI2PulseCount | Universal input 2 pulse count. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.3 | UI3PulseCount | Universal input 3 pulse count. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.4 | UI4PulseCount | Universal input 4 pulse count. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.5 | UI5PulseCount | Universal input 5 pulse count. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.6 | UI6PulseCount | Universal input 6 pulse count. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.7 | UI7PulseCount | Universal input 7 pulse count. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.8 | UI8PulseCount | Universal input 8 pulse count. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.11 | UI1Accumulator | Universal input 1 pulse counter rollovers. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.12 | UI2Accumulator | Universal input 2 pulse counter rollovers. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.13 | UI3Accumulator | Universal input 3 pulse counter rollovers. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.14 | UI4Accumulator | Universal input 4 pulse counter rollovers. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.15 | UI5Accumulator | Universal input 5 pulse counter rollovers. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.16 | UI6Accumulator | Universal input 6 pulse counter rollovers. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.17 | UI7Accumulator | Universal input 7 pulse counter rollovers. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.18 | UI8Accumulator | Universal input 8 pulse counter rollovers. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.226 | UniversalInput1Offset | Universal input 1 offset | Present Value | -5.00 to 5.00 ºC/ºF/Volt/mA (default 0*)
Resolution: 0.1 ºC/ºF/Volt/mA |
| AV.227 | UniversalInput2Offset | Universal input 2 offset | Present Value | -5.00 to 5.00 ºC/ºF/Volt/mA (default 0*)
Resolution: 0.1 ºC/ºF/Volt/mA |
1 ID is equal to ObjectType.Instance
|
ID1 |
Name |
Description |
Writable? |
Notes (* = default)
(† = only when UniversalInputxFunction is set to 10K_Type3/G) |
| AV.228 | UniversalInput3Offset | Universal input 3 offset | Present Value | -5.00 to 5.00 ºC/ºF/Volt/mA (default 0*)
Resolution: 0.1 ºC/ºF/Volt/mA |
| AV.229 | UniversalInput4Offset | Universal input 4 offset | Present Value | -5.00 to 5.00 ºC/ºF/Volt/mA (default 0*)
Resolution: 0.1 ºC/ºF/Volt/mA |
| AV.230 | UniversalInput5Offset | Universal input 5 offset | Present Value | -5.00 to 5.00 ºC/ºF/Volt/mA (default 0*)
Resolution: 0.1 ºC/ºF/Volt/mA |
| AV.231 | UniversalInput6Offset | Universal input 6 offset | Present Value | -5.00 to 5.00 ºC/ºF/Volt/mA (default 0*)
Resolution: 0.1 ºC/ºF/Volt/mA |
| AV.232 | UniversalInput7Offset | Universal input 7 offset | Present Value | -5.00 to 5.00 ºC/ºF/Volt/mA (default 0*)
Resolution: 0.1 ºC/ºF/Volt/mA |
| AV.233 | UniversalInput8Offset | Universal input 8 offset | Present Value | -5.00 to 5.00 ºC/ºF/Volt/mA (default 0*)
Resolution: 0.1 ºC/ºF/Volt/mA |
| AV.468 | CopyCfgStartAdd | Copy configuration start address | Present Value | 0-254 Address of first CMMB to copy Available only if BV.101 is set to No |
|
AV.469 |
CopyCfgEndAdd |
Copy configuration end address |
Present Value |
AV.468 – (AV.468 + 64)
Address of last CMMB to copy Available only if BV.101 is set to No |
|
AV.470 |
CopyCfgResult2 |
Copy configuration result |
Present Value |
AV.468 – AV.469
Result of copy is available on Description property and is available only if BV.101 is set to Yes. Results: Succeed, Prog_Error, Type_Error, Model_Error, FW_Error, Mem_Error, Size_Error, Comm_Error, SlaveDevice, InProgress, AllSucceed |
| AV.509 | UI1PulsePrescaler | Universal input 1 pulse counter rollover threshold. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.510 | UI2PulsePrescaler | Universal input 2 pulse counter rollover threshold. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.511 | UI3PulsePrescaler | Universal input 3 pulse counter rollover threshold. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.512 | UI4PulsePrescaler | Universal input 4 pulse counter rollover threshold. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.513 | UI5PulsePrescaler | Universal input 5 pulse counter rollover threshold. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.514 | UI6PulsePrescaler | Universal input 6 pulse counter rollover threshold. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.515 | UI7PulsePrescaler | Universal input 7 pulse counter rollover threshold. | Present Value | 0 to 16777216, Resolution: 1 |
| AV.516 | UI8PulsePrescaler | Universal input 8 pulse counter rollover threshold. | Present Value | 0 to 16777216, Resolution: 1 |
| BV.93 | UI1_DI_Polarity | Polarity of universal input 1 when used in digital input mode | Present Value | 0= Direct *
1= Reverse |
| BV.94 | UI2_DI_Polarity | Polarity of universal input 2 when used in digital input mode | Present Value | 0= Direct *
1= Reverse |
| BV.95 | UI3_DI_Polarity | Polarity of universal input 3 when used in digital input mode | Present Value | 0= Direct *
1= Reverse |
| BV.96 | UI4_DI_Polarity | Polarity of universal input 4 when used in digital input mode | Present Value | 0= Direct *
1= Reverse |
| BV.97 | UI5_DI_Polarity | Polarity of universal input 5 when used in digital input mode | Present Value | 0= Direct *
1= Reverse |
| BV.98 | UI6_DI_Polarity | Polarity of universal input 6 when used in digital input mode | Present Value | 0= Direct *
1= Reverse |
| BV.99 | UI7_DI_Polarity | Polarity of universal input 7 when used in digital input mode | Present Value | 0= Direct *
1= Reverse |
| BV.100 | UI8_DI_Polarity | Polarity of universal input 8 when used in digital input mode | Present Value | 0= Direct *
1= Reverse |
|
BV.101 |
CopyCfgExecute |
Start or stop copy configuration |
Present Value |
0= No *
1= Yes Start copy and give results, must be reset by user. |
| BV.102 | SystemUnit | Select the unit system to use on the device | Present Value | 0= Celsius *
1= Fahrenheit |
2 Write the address in the present value, result will be available in the description.
Modbus Registers
- Register address
- As per the protocol base (base 0); for PLC add 1 to the protocol base.
- As per holding register (base 40001)
- Functions :
- 03 Read Holding Register
- 06 Write Single Register
- 16 Write Multiple Registers
- Error Codes :
- 02 Illegal Data Address
- 03 Illegal Value
- 06 Slave Device Busy
- W = Writable register, [blank] = read-only.
- No Real number in Modbus register, use scale to calculate real number. Register = Real number * Scale => Real number = Register / Scale. Scale could be 1, 10 or 100
- Attention when writing a register that contains a bit string. If bit is writable (conditional or not), the write will always be accepted. If bit is reserved or not writable, the write will be ignored and will keep its actual state.
- Use the READ-MODIFY-WRITE sequence.•
Register address
- o As per the protocol base (base 0); for PLC add 1 to the protocol base.
o As per holding register (base 40001)
Functions :
-
- 03 Read Holding Register
- 06 Write Single Register
- 16 Write Multiple Registers
Error Codes :
-
- 02 Illegal Data Address
- 03 Illegal Value
- 06 Slave Device Busy
- W = Writable register, [blank] = read-only.
- No Real number in Modbus register, use scale to calculate real number. Register = Real number * Scale => Real number = Register / Scale. Scale could be 1, 10 or 100
- Attention when writing a register that contains a bit string. If bit is writable (conditional or not), the write will always be accepted. If bit is reserved or not writable, the write will be ignored and will keep its actual state.
- Use the READ-MODIFY-WRITE sequence.
|
Protocol Base |
Holding Register |
Description |
Data Type |
MSB/LSB |
Units/Values |
Writable |
Default Value | |||
| MB | LB | |||||||||
| 0 | 40001 | MSB = Neptronic Device ID LSB = MAC Address | Unsigned | 105 (69h) | [1..247]
(1h- F7h) |
* MAC address is writable if all DIP switches of DS2 are OFF. | W* | 69h | 1h | |
|
1 |
40002 |
Device Baud Rate |
Unsigned Scale 0.01 |
[96] [192] [384] [576] | 9,600
19,200 38,400 57,600 |
96 |
||||
|
2 |
40003 |
COM Port Configuration
IMPORTANT: The default value is “no parity, 2 stop bits”. To change the value, you must set DIP switch DS1-3 to OFF. If set to ON, it will always remain at the default value. Refer to
|
Unsigned |
[0..2] |
0 = no parity, 2 stop bits 1 = even parity, 1 stop bit 2 = odd parity, 1 stop bit |
W |
0 |
|||
| 3 | 40004 | Product Name (characters 8 & 7) | 2 x ASCII | char 8 | char 7 | Valid ASCII character: 32 (20h) – 122 (7ah), Empty = 0 | W | 43h [C] | 40h [M] | |
| 4 | 40005 | Product Name (characters 6 & 5) | 2 x ASCII | char 6 | char 5 | Valid ASCII character: 32 (20h) – 122 (7ah), Empty = 0 | W | 40h [M] | 42h [B] | |
| 5 | 40006 | Product Name (characters 4 & 3) | 2 x ASCII | char 4 | char 3 | Valid ASCII character: 32 (20h) – 122 (7ah), Empty = 0 | W | 31h [1] | 30h [0] | |
| 6 | 40007 | Product Name (characters 2 & 1) | 2 x ASCII | char 2 | char 1 | Valid ASCII character: 32 (20h) – 122 (7ah), Empty = 0 | W | 36h [6] | 20h [ ] | |
| 7 | 40008 | Firmware Version | Unsigned Scale 100 | 102 | 1.02 | 102 | ||||
|
Protocol Base |
Holding Register |
Description |
Data Type |
MSB/LSB |
Units/Values |
Writable |
Default Value | |
| MB | LB | |||||||
| 8 | 40009 | Application Version | Unsigned Scale 100 | 100 | 1.00 | 100 | ||
|
9 |
40010 |
System Status 1 |
Bit String |
[B0..B15] |
0 = Normal
1 = Fault – – – – – – – – – – – – – – – – – – – B0 = System operation |
0000, 0001, 1111, 1110b |
||
| 10 | 40011 | System Status 2 | Bit String | [B0..B15] | Always 0 | 0000, 0000, 0000, 0000b | ||
| 11 | 40012 | Analog Input 1 |
0-10V: Type: Unsigned, Scale:100, Unit: Volt, Range: 0.00-10.00V, Resolution: 0.01 4-20mA: Type: Unsigned, Scale:100, Unit: mA, Range: 4.00-20.00 mA, Resolution: 0.01 10K Type 3A1, 10K Type 4AI, 10K Type 2, 20K Type 6AI, 30K Type 6AI: Type: Signed, Scale:100, Unit: ºC, Range: -40.00 – 100.00 ºC, Resolution: 0.01 Type: Signed, Scale:100, Unit: ºF, Range: -40.00 – 212.00 ºF, Resolution: 0.02 10K Type 3/G: Type: Signed, Scale:100, Unit: ºC, Range: -40.00 – 150.00 ºC, Resolution: 0.01 Type: Signed, Scale:100, Unit: ºF, Range: -40.00 – 302.00 ºF, Resolution: 0.02 DI: Type: Unsigned, Scale:1, No Unit, Range: 0-1, Resolution: 1 |
0 | ||||
| 12 | 40013 | Analog Input 2 | 0 | |||||
| 13 | 40014 | Analog Input 3 | 0 | |||||
| 14 | 40015 | Analog Input 4 | 0 | |||||
| 15 | 40016 | Analog Input 5 | 0 | |||||
| 16 | 40017 | Analog Input 6 | 0 | |||||
| 17 | 40018 | Analog Input 7 | 0 | |||||
| 18 | 40019 | Analog Input 8 | 0 | |||||
| 19 to 25 | 40020 to
40026 |
Reserved | ||||||
| 26 | 40027 | Universal Input 1 Function |
Unsigned |
[1..10] |
1= 0_10V 2= 4_20mA 3= 10K_Type3/G * 4= 10K_Type3A1 5= 10K_Type4A1 6= 10K_Type2 7= 20K_Type6A1 8= 30K_Type6A1 9= Digital_Input 10= 10K_NTC_Carel |
W |
3 | |
| 27 | 40028 | Universal Input 2 Function | 3 | |||||
| 28 | 40029 | Universal Input 3 Function | 3 | |||||
| 29 | 40030 | Universal Input 4 Function | 3 | |||||
| 30 | 40031 | Universal Input 5 Function | 3 | |||||
| 31 | 40032 | Universal Input 6 Function | 3 | |||||
| 32 | 40033 | Universal Input 7 Function | 3 | |||||
| 33 | 40034 | Universal Input 8 Function | 3 | |||||
| 34 | 40035 | Universal Input 1 Offset |
Signed Scale 100 |
[0..100] |
Range: +/- 5.00, Resolution: 0.1 |
W |
0 | |
| 35 | 40036 | Universal Input 2 Offset | 0 | |||||
| 36 | 40037 | Universal Input 3 Offset | 0 | |||||
| 37 | 40038 | Universal Input 4 Offset | 0 | |||||
| 38 | 40039 | Universal Input 5 Offset | 0 | |||||
| 39 | 40040 | Universal Input 6 Offset | 0 | |||||
|
Protocol Base |
Holding Register |
Description |
Data Type |
MSB/LSB |
Units/Values |
Writable |
Default Value | |
| MB | LB | |||||||
| 40 | 40041 | Universal Input 7 Offset | Signed Scale 100 | [0..100] |
Range: +/- 5.00, Resolution: 0.1 |
W |
0 | |
| 41 | 40042 | Universal Input 8 Offset | 0 | |||||
| 42 to 53 | 40043 to
40054 |
Reserved | ||||||
|
54 |
40055 |
System Options
* = digital input mode only |
Bit String |
[B0..B15] |
0 = Direct
1 = Reverse – – – – – – – – – – – – – – – – – – – B0 to B3 = Reserved B4 = AI1 polarity * B5 = AI2 polarity * B6 = AI3 polarity * B7 = AI4 polarity * B8 = AI5 polarity * B9 = AI6 polarity * B10 = AI7 polarity * B11 = AI8 polarity * B8 to B14 = Reserved – – – – – – – – – – – – – – – – – – – 0 = Celsius 1 = Fahrenheit – – – – – – – – – – – – – – – – – – – B15 = System Unit |
W |
0000, 0000, 0000, 0000b |
|
| 55 to 76 | 40056 to
40077 |
Reserved | ||||||
| 77 | 40078 | UI1 Pulse Prescaler (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 1 | |
| 78 | 40079 | UI1 Pulse Prescaler (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 79 | 40080 | UI2 Pulse Prescaler (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 1 | |
| 80 | 40081 | UI2 Pulse Prescaler (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 81 | 40082 | UI3 Pulse Prescaler (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 1 | |
| 82 | 40083 | UI3 Pulse Prescaler (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 83 | 40084 | UI4 Pulse Prescaler (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 1 | |
| 84 | 40085 | UI4 Pulse Prescaler (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 85 | 40086 | UI5 Pulse Prescaler (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 1 | |
| 86 | 40087 | UI5 Pulse Prescaler (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
|
Protocol Base |
Holding Register |
Description |
Data Type |
MSB/LSB |
Units/Values |
Writable |
Default Value | |
| MB | LB | |||||||
| 87 | 40088 | UI6 Pulse Prescaler (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 1 | |
| 88 | 40089 | UI6 Pulse Prescaler (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 89 | 40090 | UI7 Pulse Prescaler (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 1 | |
| 90 | 40091 | UI7 Pulse Prescaler (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 91 | 40092 | UI8 Pulse Prescaler (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 1 | |
| 92 | 40093 | UI8 Pulse Prescaler (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 93 | 40094 | UI1 Pulse Count (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 94 | 40095 | UI1 Pulse Count (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 95 | 40096 | UI2 Pulse Count (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 96 | 40097 | UI2 Pulse Count (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 97 | 40098 | UI3 Pulse Count (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 98 | 40099 | UI3 Pulse Count (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 99 | 40100 | UI4 Pulse Count (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 100 | 40101 | UI4 Pulse Count (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 101 | 40102 | UI5 Pulse Count (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 102 | 40103 | UI5 Pulse Count (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 103 | 40104 | UI6 Pulse Count (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 104 | 40105 | UI6 Pulse Count (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 105 | 40106 | UI7 Pulse Count (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 106 | 40107 | UI7 Pulse Count (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 107 | 40108 | UI8 Pulse Count (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 108 | 40109 | UI8 Pulse Count (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 109 | 40110 | UI1 Accumulator (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 110 | 40111 | UI1 Accumulator (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
|
Protocol Base |
Holding Register |
Description |
Data Type |
MSB/LSB |
Units/Values |
Writable |
Default Value | |
| MB | LB | |||||||
| 111 | 40112 | UI2 Accumulator (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 112 | 40113 | UI2 Accumulator (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 113 | 40114 | UI3 Accumulator (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 114 | 40115 | UI3 Accumulator (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 115 | 40116 | UI4 Accumulator (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 116 | 40117 | UI4 Accumulator (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 117 | 40118 | UI5 Accumulator (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 118 | 40119 | UI5 Accumulator (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 119 | 40120 | UI6 Accumulator (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 120 | 40121 | UI6 Accumulator (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 121 | 40122 | UI7 Accumulator (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 122 | 40123 | UI7 Accumulator (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
| 123 | 40124 | UI8 Accumulator (0) | Unsigned Scale 1 | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | W | 0 | |
| 124 | 40125 | UI8 Accumulator (1) | [0…16777216] | Range: 0 to 16777216, Resolution: 1 | ||||
Recycling at end of life: please return this product to your Neptronic local distributor for recycling. If you need to find the nearest Neptronic authorized distributor, please consult www.neptronic.com.
400 Lebeau blvd, Montreal, Qc, H4N 1R6, Canada
Toll-free in North America: 1-800-361-2308 Tel.: 514-333-1433 Fax: 514-333-3163 Customer service fax: 514-333-1091
Monday to Friday: 8:00 am to 5:00 pm (Eastern time)
Documents / Resources
 |
neptronic CMMB100 Dual Mini Input Communication Module [pdf] Instruction Manual CMMB100 Dual Mini Input Communication Module, CMMB100, Dual Mini Input Communication Module, Mini Input Communication Module, Input Communication Module, Communication Module, Module |
