1. परिचय
The M5Stack Core2 is a versatile IoT development kit designed for rapid prototyping and deployment of various applications. It features an ESP32-D0WDQ6-V3 microcontroller, a 2-inch TFT LCD touch screen, and integrated Wi-Fi and Bluetooth connectivity. This manual provides essential information for setting up, operating, and maintaining your Core2 device.
Figure 1.1: M5Stack Core2 IoT Development Kit, showcasing यसको कम्प्याक्ट डिजाइन र डिस्प्ले।
२. बक्समा के छ?
तल सूचीबद्ध सबै वस्तुहरू तपाईंको प्याकेजमा समावेश छन् भनी प्रमाणित गर्नुहोस्:
- 1 x M5Stack Core2 Unit
- 1 x USB Type-C Cable (20cm)
- X x हेक्स रिन्च
Figure 2.1: Contents of the M5Stack Core2 package, including the Core2 unit, USB-C cable, and hex wrench.
Figure 2.2: Visual representation of the shipping list for the M5Stack Core2.
3. उत्पादन समाप्तview
The M5Stack Core2 is built around the ESP32-D0WDQ6-V3 chip, offering robust performance for various applications. Key features include:
- शक्तिशाली प्रदर्शन: Equipped with an ESP32-D0WDQ6-V3 microcontroller for high computing performance.
- टच स्क्रिन डिस्प्ले: Features a 2-inch TFT LCD touch screen (320x240 resolution) for intuitive user interaction.
- ताररहित कनेक्टिविटी: Integrated Wi-Fi and Bluetooth capabilities for seamless communication.
- Expandable Functionality: Multiple expansion ports (GPIO, I2C, SPI, UART) for connecting additional modules and sensors.
- बिल्ट-इन स्पिकर: अडियो आउटपुट को लागी।
- कम्पन मोटर: ह्याप्टिक प्रतिक्रिया प्रदान गर्दछ।
- माइक्रोफोन: अडियो इनपुटको लागि।
- SD कार्ड स्लट: विस्तारयोग्य भण्डारणको लागि।

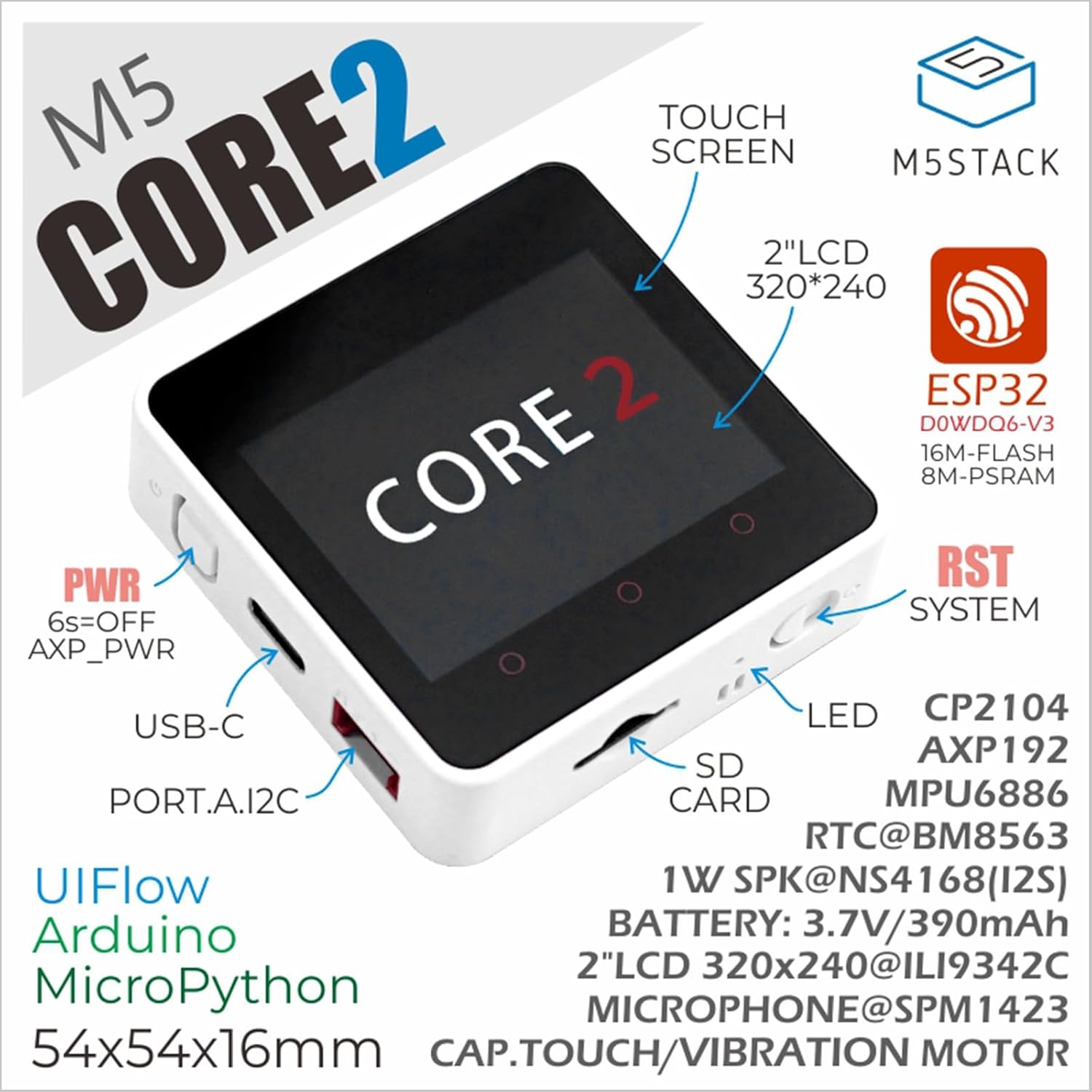

Figure 3.1: Annotated diagram of the M5Stack Core2, highlighting its main components and interfaces.
Figure 3.2: Key features of the M5Stack Core2, including memory and display type.
4. निर्दिष्टीकरणहरू
The following table details the technical specifications of the M5Stack Core2:
| निर्दिष्टीकरण | प्यारामिटर |
|---|---|
| SoC | ESP32-D0WDQ6-V3, 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi |
| फ्ल्यास | २ एमबी |
| PSRAM | २ एमबी |
| इनपुट भोल्यूमtage | 5V @ 500mA |
| होस्ट इन्टरफेस | टाइप-सी x १, ग्रोभ(I2C+I/O+UART) x १ |
| एलईडी | हरियो शक्ति सूचक प्रकाश |
| बटनहरू | Power button, RST button, screen virtual buttons x 3 |
| कम्पन चेतावनी | कम्पन मोटर |
| वस्तुको वजन | 2.82 औंस (लगभग 80 ग्राम) |
| प्याकेज आयामहरू | १० x ३ x ३ इन्च |
| ब्याट्रीहरू | 1 लिथियम आयन ब्याट्री (समावेश) |
Figure 4.1: M5Stack Core2 weight measurement.
Figure 4.2: M5Stack Core2 dimensions.
5. सेटअप
To begin using your M5Stack Core2, follow these initial setup steps:
- चार्ज गर्दै: Connect the M5Stack Core2 to a 5V USB power source using the provided USB Type-C cable. The device will begin charging.
- पावर अन: Press and hold the power button (usually located on the side) for approximately 6 seconds to turn on the device.
- सफ्टवेयर वातावरण: The Core2 supports various development environments, including UIFlow, Arduino, and MicroPython. Choose your preferred environment and set up the necessary drivers and IDE on your computer.
- First Program: Refer to the official M5Stack documentation for guides on uploading your first program or firmware to the Core2.
6. सञ्चालन निर्देशनहरू
The M5Stack Core2 is designed for flexible operation depending on your application. Here are general guidelines:
- टच स्क्रिन अन्तरक्रिया: Navigate menus and interact with applications using the 2-inch capacitive touch screen.
- भर्चुअल बटनहरू: The three virtual buttons below the screen can be programmed for various functions within your applications.
- भौतिक बटनहरू: The physical RST (Reset) button can be used to restart the device. The power button can be used for power cycling.
- बाह्य मोड्युलहरू: Connect compatible M5Stack modules and sensors to the GROVE port to expand functionality. Ensure proper connection and power supply for external modules.
- SD कार्ड प्रयोग: Insert a microSD card into the designated slot for additional storage. Ensure the card is formatted correctly (e.g., FAT32).
7. मर्मतसम्भार
Proper maintenance ensures the longevity and optimal performance of your M5Stack Core2:
- सरसफाई: उपकरण सफा गर्न नरम, सुख्खा कपडा प्रयोग गर्नुहोस्। तरल क्लिनर वा घर्षण गर्ने सामग्रीहरू प्रयोग नगर्नुहोस्।
- भण्डारण: उपकरणलाई प्रत्यक्ष घाम र अत्यधिक तापक्रमबाट टाढा चिसो, सुख्खा ठाउँमा भण्डार गर्नुहोस्।
- ब्याट्री केयर: Avoid fully discharging the battery frequently. If storing for extended periods, charge the battery to about 50-70% to preserve its lifespan.
- फर्मवेयर अपडेट: Regularly check the official M5Stack website for firmware updates to ensure your device has the latest features and bug fixes.
- भौतिक सुरक्षा: While durable, avoid dropping the device or exposing it to excessive force or moisture.
T. समस्या निवारण
This section addresses common issues you might encounter with your M5Stack Core2.
- Q1: What is the maximum supported capacity of the SD card, and why is there no response when the SD card is inserted?
- Theoretically, devices based on ESP32 support up to 16GB. We recommend using a SD card model SDSQUNC-016G-ZN6MA. Ensure the SD card is properly inserted and formatted.
- Q2: Using the battery in either of the battery ports on the USB unit or the Core2 forces the unit to stay powered on continuously. Any attempt to shut down using the side button causes the device to restart after.
- We have found that the reason is that the filter capacitor capacity of the USB 1.2 module is too large. If you still need to use batteries to power the Core2 + USB 1.2 solution, to avoid frequent restarts, the following two solutions can be adopted:
- Remove the filter capacitor.
- Replace it with a smaller capacity filter capacitor (10uF is recommended).
- Q3: How to extend the Core2 with an extension module?
- You must remove the original bottom and battery of the Core2, then you can stack another module extension.
Figure 8.1: Common questions and solutions for the M5Stack Core2.
Application. अनुप्रयोगको क्षेत्र
The M5Stack Core2 is suitable for a wide range of applications, including but not limited to:
- स्मार्ट गृह उपकरणहरू: Control and monitor home automation systems.
- STEM शिक्षा: An excellent tool for learning about IoT, programming, and electronics.
- IoT Controller: Serve as a central controller for various Internet of Things projects.
- DIY परियोजनाहरू: Ideal for custom electronic projects and rapid prototyping.
चित्र १३: पूर्वamples of M5Stack Core2 applications.
Figure 9.2: Further illustration of the M5Stack Core2's versatile applications.
३.१। समर्थन र स्रोतहरू
For more detailed tutorials, documentation, and community support, please visit the official M5Stack webसाइट:
Figure 10.1: Guide to accessing online tutorials and documentation.
Figure 10.2: Official M5Stack webसमर्थन को लागी साइट।
