परिचय
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Runleader BI001-12/24V LED Battery Capacity Meter. This device is designed to monitor the charge and discharge status of 12V to 24V lead-acid batteries, providing clear visual feedback through a 10-segment LED bar graph. Please read this manual thoroughly before use to ensure proper function and longevity of the product.
उत्पादन सुविधाहरू
- एलईडी ब्याट्री सूचक: 10-bar LED display with 3 colors (1 red, 2 yellow, 7 green) to indicate battery power. Each bar represents 10% battery capacity.
- Battery State of Charge & Discharge: Displays charge status by LED bars ascending and discharge status by LED bars descending. Features a charge delay time of 200 seconds and a discharge delay time of 155 seconds.
- कम ब्याट्री रिमाइन्डर: Provides visual warnings when battery capacity is low. One flashing LED bar indicates ≤20% capacity, and two alternately flashing bars indicate ≤10% capacity.
- सजिलो स्थापना: Designed for snap-in panel mounting with a cut-out size of 37.00mm x 25.00mm (1.46 inches x 0.98 inch).
- Flexible Power Connection: Supports both direct power connection and key switch power connection.
- पानी प्रतिरोध: Favorable water resistance rating of IP65.
निर्दिष्टीकरणहरू
| सुविधा | विवरण |
|---|---|
| मोडेल नम्बर | BI001-12/24V |
| लागू हुने ब्याट्री प्रकार | Lead-acid batteries (12V to 24V) |
| प्रदर्शन प्रकार | 10-segment LED bar graph (1 Red, 2 Yellow, 7 Green) |
| Charge Delay Time | ३ सेकेन्ड |
| Discharge Delay Time | ३ सेकेन्ड |
| Panel Cut-out Size | 37.00mm x 25.00mm (1.46 inches x 0.98 inch) |
| उत्पादन आयामहरू | 53.1mm (2.09in) x 31.1mm (1.22in) x 34.8mm (1.37in) |
| वस्तुको वजन | 1.41 औंस |
| पानी प्रतिरोध मूल्याङ्कन | IP65 |
स्थापना
1. Snap-in Mounting
The Runleader BI001-12/24V is designed for easy snap-in panel mounting. Follow these steps:
- Prepare a panel cut-out with dimensions of 37.00mm x 25.00mm (1.46 inches x 0.98 inch).
- Insert the meter into the prepared opening. The snap-in design will secure the meter in place.
2. पावर जडान
The meter offers two methods for power connection:
- प्रत्यक्ष जडान: Connect the meter directly to the battery system.
- Key Switch Connection: Connect the meter through a key switch, allowing the meter to be powered on/off with the vehicle or equipment.
महत्त्वपूर्ण: Ensure the 'C' pole (control/signal terminal) is connected to the positive (+) terminal of the battery system for normal battery power display. Refer to the wiring diagram below.
सञ्चालन
1. Battery State Display

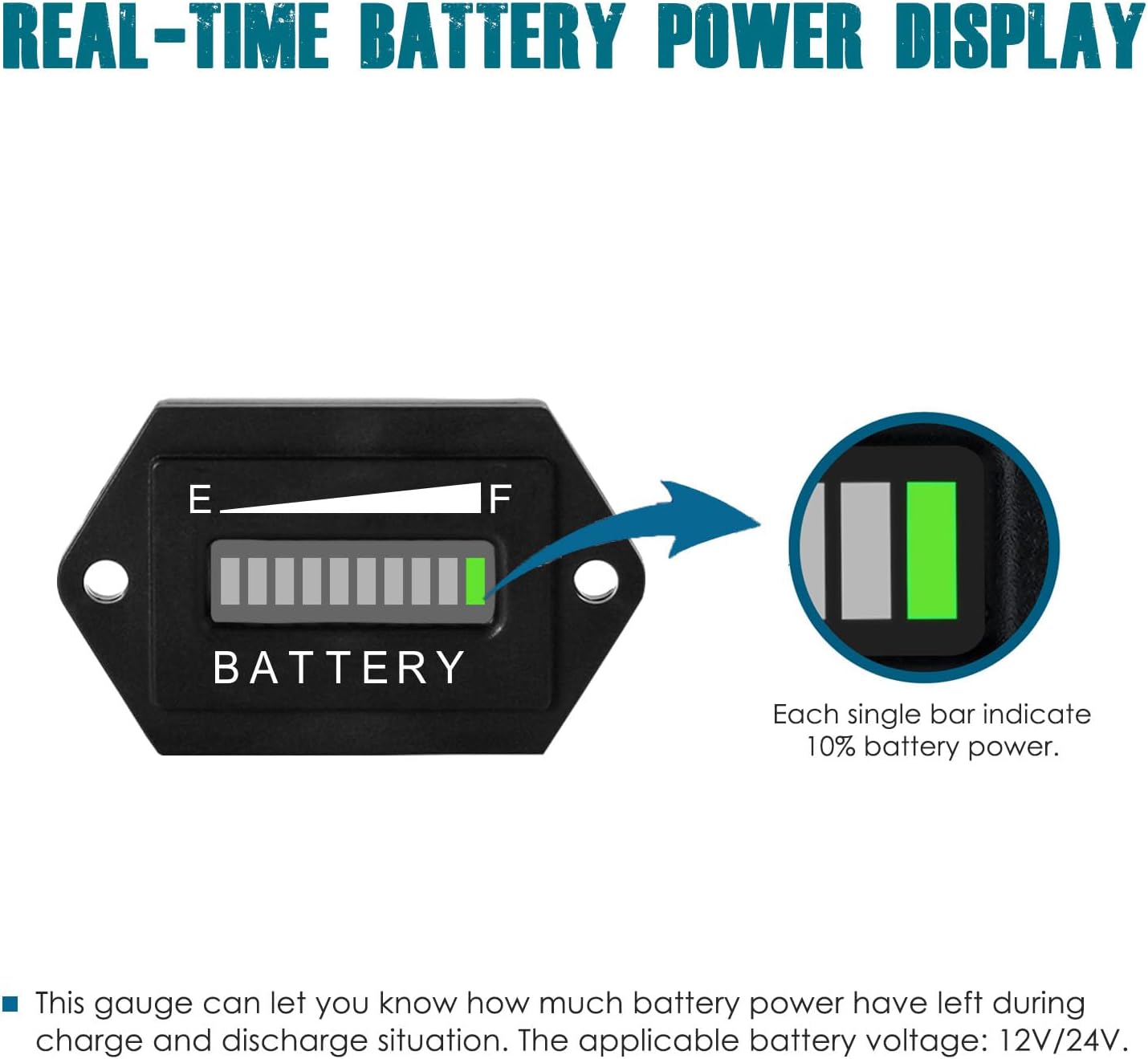

The meter utilizes a 10-segment LED bar graph to indicate the battery's charge level. Each illuminated bar represents approximately 10% of the battery's capacity. The display scans from 'Empty' to 'Full' upon connection and then settles at the actual voltagई स्तर।
2. Charge and Discharge Indication
- चार्ज गर्दै: When the battery is charging, the LEDs will quickly and repeatedly scan from 'Empty' to 'Full', indicating that charging is in progress. Once fully charged, only the 10th LED will remain lit.
- डिस्चार्ज गर्दै: During discharge, the LED bars will progressively turn off from 'Full' to 'Empty'.
3. कम ब्याट्री रिमाइन्डर
The meter provides visual alerts for low battery conditions:
- When battery capacity is ≤20%, the second LED bar from the left will flash to remind you to charge.
- When battery capacity is ≤10%, the first and second LED bars from the left will flash alternately, indicating a very low charge level.
अनुप्रयोगहरू
The Runleader BI001-12/24V Battery Capacity Meter is suitable for monitoring DC 12V/24V lead-acid batteries in various equipment, including but not limited to:
- गोल्फ कार्टहरू
- फोर्कलिफ्टहरू
- मोटरहोमहरू
- घाँस काट्नेहरू
- Leaf Trimmers
- Floor Care Equipment
- ब्याट्रीबाट चल्ने अन्य उपकरण
सामानहरू
The following accessories are typically included with your Runleader BI001-12/24V Battery Capacity Meter:
- प्रयोगकर्ता पुस्तिका
- Plug Spring Sheaths (x3)
- Insert Springs (x3)
मर्मतसम्भार
The Runleader BI001-12/24V Battery Capacity Meter requires minimal maintenance. To ensure optimal performance and longevity:
- डिस्प्ले सफा र धुलो र फोहोरबाट मुक्त राख्नुहोस्। सफा गर्न नरम, सुख्खा कपडा प्रयोग गर्नुहोस्।
- सुनिश्चित गर्नुहोस् कि सबै बिजुली जडानहरू सुरक्षित छन् र क्षरणबाट मुक्त छन्।
- Avoid exposing the meter to extreme temperatures or harsh chemicals.
- Periodically check the water resistance seal if the meter is exposed to wet environments.
समस्या निवारण
If you encounter issues with your Runleader BI001-12/24V Battery Capacity Meter, consider the following:
- कुनै प्रदर्शन छैन: Check all power connections to ensure they are secure and correctly wired. Verify that the battery system has sufficient voltage.
- गलत पठन: Ensure the 'C' pole is correctly connected to the positive terminal. Allow for the specified charge (200s) and discharge (155s) delay times before assessing accuracy. Confirm the meter is compatible with your battery type (12V-24V lead-acid).
- Flashing LEDs (Incorrectly): If LEDs are flashing when the battery is known to be charged, re-check connections. Disconnect and reconnect the meter to reset its internal logic.
- रुकावट प्रदर्शन: Inspect wiring for loose connections or damaged insulation. Ensure the mounting is secure and not causing stress on the internal components.
यी चरणहरू प्रयास गरेपछि पनि समस्याहरू रहिरहेमा, कृपया ग्राहक समर्थनलाई सम्पर्क गर्नुहोस्।
वारेन्टी र समर्थन
Runleader products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Runleader webसाइट। वारेन्टी दावीहरूको लागि खरिदको प्रमाणको रूपमा आफ्नो खरिद रसिद राख्नुहोस्।
