ciciglow Manual Lawn Edger Instruction Manual

နိဒါန်း

The ciciglow Manual Lawn Edger is designed to provide precise and effortless trimming of grass along sidewalks, driveways, and flower beds. Its single-wheel design and sharp serrated blades ensure a clean and tidy finish for your garden landscape. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your tool.

Figure 1: The ciciglow Manual Lawn Edger with its long handle and rotary blade assembly.

ဘေးကင်းရေးအချက်အလက်

• The edger features sharp blades. Keep out of reach of children and pets.
• Avoid direct contact with the cutting edge during assembly, operation, and maintenance.
• Wear appropriate protective gear, such as gloves, during assembly and use.
• Ensure all handle sections are securely tightened before use.

Package Contents

ပက်ကေ့ဂျ်တွင် အစိတ်အပိုင်းအားလုံး ပါဝင်ကြောင်း အတည်ပြုပါ-

• 1 x Edging Head
• 3 or 4 x Grip Handle sections (depending on model variant)
• 2 x ဝက်အူ
• 2 x ကို Nut
• 2 x ကတုတ်တုတ်

Figure 2: The edging head, grip handles, screws, nuts, and wrenches included in the package.

တည်ဆောက်သည်

Follow these steps to assemble your ciciglow Manual Lawn Edger:

1. Install the Edging Head: Align the holes on the edging head with the first handle section. Insert the provided screws and secure them with the nuts using the wrenches.
2. Connect Handle Sections: Rotate and tighten the connecting rods of the handle sections together. Ensure each section is firmly screwed into the next to prevent loosening during use.
3. အရှည်ကို ချိန်ညှိပါ The handle consists of multiple sections, allowing you to adjust the overall length to a comfortable height for operation.

Figure 3: Visual instructions demonstrating how to install the cutting head, insert screws, tighten them, and connect the handle rods.

စည်းဝေးပွဲသရုပ်ပြ ဗီဒီယို

Video 1: This video demonstrates the assembly process and effective use of a 58-inch rotary turf edger for maintaining clean edges along sidewalks and yards.

Video 2: A demonstration of the Walensee Wheel Rotary Edger, highlighting its adjustable handle and ease of use for precise lawn edging.

လည်ပတ်မှုညွှန်ကြားချက်များ

The ciciglow Manual Lawn Edger is designed for straightforward operation:

1. Position the Edger: Place the edger's wheel on the hard surface (sidewalk, driveway, patio) and the blades against the grass edge you wish to trim.
2. အောက်သို့ဖိအားပေးပါ- Gently push the edger forward, applying slight downward pressure. The serrated blades will rotate and cut the overgrown grass.
3. တည်ငြိမ်သော ခြေလှမ်းကို ထိန်းသိမ်းပါ- Move along the edge at a consistent speed to achieve a uniform cut. For very thick or overgrown areas, a second pass may be beneficial.
4. အပျက်အစီးများကို ရှင်းလင်းရန်- After edging, use a broom or leaf blower to clear any cut grass from the hard surface.

Figure 4: The edger's wheel and blades positioned to trim grass precisely along a paved edge.

Figure 5: A visual comparison of a lawn edge before and after using the edger, alongside images of the tool actively trimming grass.

Figure 6: Multiple perspectives of the edger effectively cutting grass along a paved surface.

ထိန်းသိမ်းခြင်း။

Regular maintenance ensures the longevity and effectiveness of your edger:

• သန့်ရှင်းရေး- After each use, remove any grass or debris that may have accumulated between the blades and the wheel. This prevents clogging and maintains cutting efficiency.
• Blade Tension ချိန်ညှိမှု- If the blades feel too tight (causing rotation resistance) or too loose (resulting in poor cutting), adjust the tension using the included wrenches. Hold the bolt head with one wrench and turn the nut clockwise to reduce the gap (tighten) or counter-clockwise to increase the gap (loosen).
• သိုလှောင်မှု- For compact storage, the handle can be disassembled into its sections. Store the edger in a dry place to prevent rust.

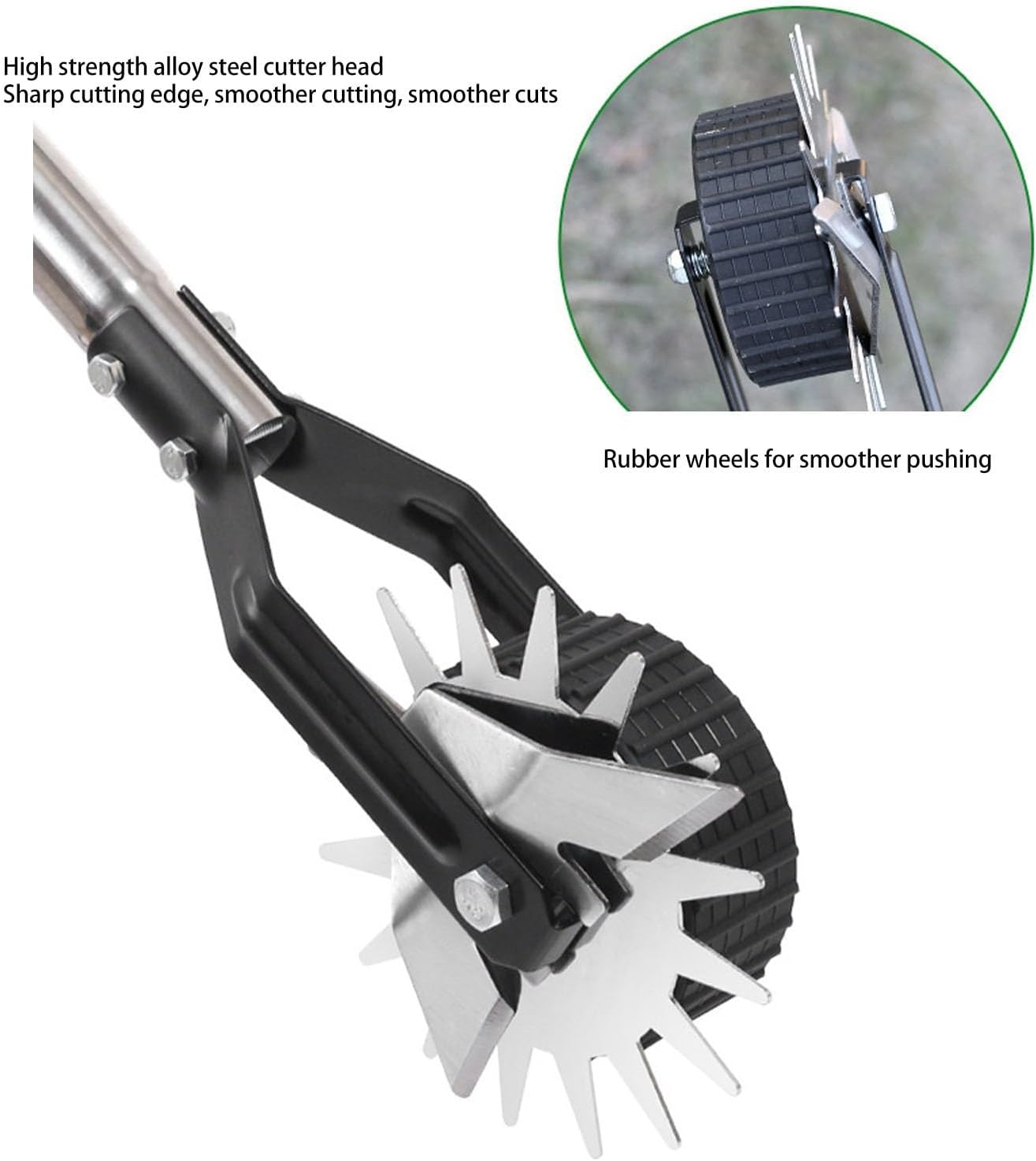

Figure 7: Detail of the edger's sharp alloy steel blades and the rubber wheel designed for smooth operation.

Blade Tension Adjustment Video

Video 3: This video illustrates how to easily adjust the blade tension on the Colwelt Wheel Rotary Edger using the included tool, ensuring optimal cutting performance.

ပြသာနာရှာဖွေရှင်းပေးခြင်း

• ထုတ်ပြန်သည်: Grass gets stuck between the blades and wheel.
  ဖြေရှင်းချက်- Regularly clean the blades and wheel during and after use to prevent buildup.
• ထုတ်ပြန်သည်: Handle sections become loose during operation.
  ဖြေရှင်းချက်- Ensure all handle sections are tightly screwed together before starting. Re-tighten if necessary.
• ထုတ်ပြန်သည်: Edger is difficult to push or cuts poorly.
  ဖြေရှင်းချက်- Check blade tension. If blades are too tight, they may cause resistance; if too loose, they may not cut effectively. Adjust tension as described in the Maintenance section.

သတ်မှတ်ချက်များ

အာမခံနှင့် ပံ့ပိုးမှု

For any questions, concerns, or support regarding your ciciglow Manual Lawn Edger, please refer to the product packaging or contact the manufacturer directly. Specific warranty details may vary and are typically provided with your purchase documentation.
