Manwal tal-Istruzzjonijiet tal-Kamera Diġitali Sony Cyber-shot DSC-HX5V

Introduzzjoni

This manual provides detailed instructions for the safe and effective use of your Sony Cyber-shot DSC-HX5V digital camera. Please read this manual thoroughly before operating the camera and retain it for future reference. The DSC-HX5V is a 10.2 MP CMOS digital camera featuring a 10x wide-angle zoom lens, Optical SteadyShot image stabilization, and a 3.0-inch LCD.

1. Setup

1.1 Żpakkjar u Spezzjoni Inizjali

Carefully unpack all items and ensure the following accessories are present:

• Battery charger (BC-CSGD/BC-CSGE)
• Power cord (mains lead) (may not be supplied in USA and Canada)
• Rechargeable battery pack (NP-BG1) / Battery case
• USB, A/V cable for multi-use terminal
• HDMI adaptor
• Ċinga tal-polz
• CD-ROM (Cyber-shot application software, Cyber-shot Handbook)
• Manwal ta 'Istruzzjoni (dan id-dokument)

1.2 Installazzjoni u Iċċarġjar tal-Batterija

Insert the NP-BG1 rechargeable battery pack into the camera with the correct orientation. To charge the battery, connect the battery charger (BC-CSGD/BC-CSGE) to a power outlet and insert the battery. The charging indicator will illuminate during charging and turn off when complete. A full charge typically takes approximately 2-3 hours.

1.3 Inserzjoni tal-Kard tal-Memorja

The camera supports Memory Stick Duo/Memory Stick PRO Duo/Memory Stick PRO-HG Duo media and SD/SDHC media. Open the memory card slot cover, insert the memory card firmly until it clicks into place, ensuring the correct orientation. Close the cover securely.

1.4 L-Ewwel Tixgħel u l-Issettjar Bażiku

Press the ON/OFF button to power on the camera. Upon first use, you may be prompted to set the date, time, and language. Follow the on-screen instructions to configure these basic settings.

2. It-tħaddim tal-Kamera

2.1 Kontrolli tal-Kamera Fuqview

Familiarize yourself with the camera's buttons and dials for efficient operation.

Figura 1: Wara view of the DSC-HX5V, highlighting the LCD screen and control buttons.

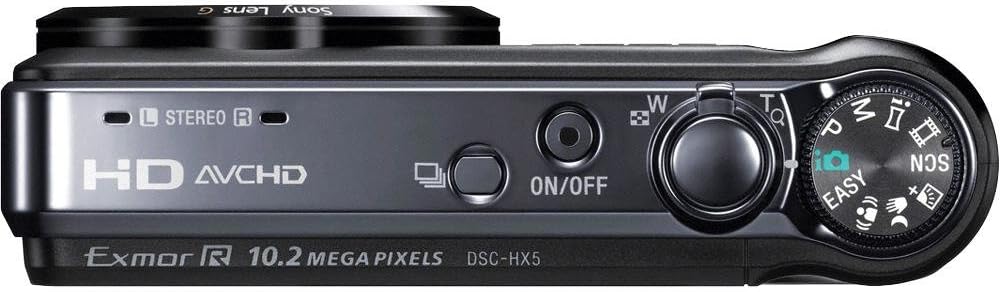

Figura 2: Fuq view of the DSC-HX5V, illustrating the mode dial, power button, and shutter/zoom controls.

Figure 3: Ergonomic grip of the DSC-HX5V, showing how the camera fits in hand.

2.2 Modi Bażiċi tal-Fotografija

Turn the mode dial to select your desired shooting mode.

• Modalità Awtomatika Intelliġenti (iAuto): The camera automatically detects the scene and adjusts settings for optimal results. This mode is recommended for beginners.
• Modalità Awtomatika tal-Programm: Allows for more control over settings like ISO sensitivity while the camera sets exposure.
• Modi tax-Xena: Select from various scene-specific presets such as High Sensitivity, Twilight, Portrait, Landscape, Beach, Snow, Fireworks, Advanced Sports Shooting, Gourmet, and Pet to optimize settings for specific conditions.

2.3 Advanced Photography Features

• "Exmor R" CMOS Sensor: Enhances low-light performance, reducing noise and improving image clarity.
• 10x Optical Zoom G-Lens: Provides a versatile 25mm wide-angle to 250mm telephoto focal range for capturing various subjects from landscapes to distant objects.
• Stabbilizzazzjoni tal-Immaġni SteadyShot ottiku: Minimizes blur caused by camera shake, especially useful at longer zoom settings or in low light.
• Intelligent Sweep Panorama Mode: Capture wide panoramic images by sweeping the camera horizontally or vertically. The camera stitches multiple images automatically.
• Handheld Twilight: Captures multiple images and combines them to create a single, clear, low-noise image in low-light conditions without a tripod.
• Anti-Motion Blur Mode: Reduces blur in low-light shots by combining multiple images taken at high shutter speeds.
• High Speed Shooting (10fps): Capture fast-moving subjects with up to 10 frames per second at full 10.2-megapixel resolution.
• Backlight Correction HDR: Takes two exposures and combines them to preserve detail in both bright highlights and dark shadows in high-contrast scenes.
• Teknoloġija ta 'Sejbien tal-wiċċ: Automatically detects and optimizes focus, exposure, and white balance for up to eight faces.
• Teknoloġija Shutter Smile: Jieħu ritratt awtomatikament meta jinstab tbissima.
• Anti-blink Function: Captures two images and saves the one with less blinking.
• Timer tal-Awto-Ritratt: Uses Face Detection to trigger a 2-second timer when your face enters the frame.
• GPS and Compass: Records location and direction data for your photos, allowing you to view them on a map with compatible software.

2.4 Reġistrazzjoni tal-Vidjo

The DSC-HX5V offers high-definition video recording capabilities.

• 1080i AVCHD Movie Mode: Records high-quality Full HD video at 60i, suitable for playback on Blu-ray Disc players and compatible HDTVs.
• HD MP4 Movie Mode: Records video in a web-friendly MP4 format, ideal for easy transfer to PCs and sharing on social media platforms.
• Optical SteadyShot with Active Mode: Provides enhanced image stabilization during video recording, ensuring smoother footage even while moving.

2.5 Daqq u Viewing

• 3.0-inch Clear Photo LCD: View your photos and videos on the bright, anti-reflective LCD screen.
• ViewModalitajiet: Organize and find your photos using folder or calendar viewmodi ing.
• In-Camera Retouching Tools: Perform basic edits like trimming, red-eye correction, and unsharp masking directly on the camera.
• PHOTOMUSIC: Create slideshows with music and visual effects using pre-loaded tracks or your own.
• PhotoTV HD: Connect to compatible Sony BRAVIA HDTVs for optimized high-definition photo viewing.

2.6 Connecting to Other Devices

• Ħruġ HDMI: Connect the camera to an HDTV using the HDMI adaptor and cable (supplied) for high-definition playback.
• Konnessjoni USB: Use the supplied USB cable to connect the camera to a computer for transferring photos and videos.
• TransferJet Technology: Allows for wireless transfer of files between two TransferJet enabled devices by touching them together (requires compatible devices).
• DVDirect DVD Recorder Compatibility: For easy burning of AVCHD footage to DVD (recorder and media sold separately).
• Picture Motion Browser (PMB) Software: Use the included software for managing, editing, and sharing your media on a compatible PC.

3. Manutenzjoni

3.1 Tindif tal-Kamera

• Lenti: Use a soft, dry cloth or a lens brush to gently remove dust. For stubborn smudges, use a lens cleaning solution specifically designed for camera lenses.
• Korp: Wipe the camera body with a soft, dry cloth. Do not use organic solvents such as alcohol or thinner.
• Skrin LCD: Gently wipe with a soft, lint-free cloth. Avoid pressing hard on the screen.

3.2 Kura tal-Batterija

• Always use the genuine Sony NP-BG1 battery pack.
• Charge the battery fully before first use and after extended periods of non-use.
• Aħżen il-batterija f'post frisk u niexef meta ma tkunx qed tuża.
• Evita li tesponi l-batterija għal temperaturi estremi.

3.3 Ħażna

When storing the camera for an extended period, remove the battery and memory card. Store the camera in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.

4 Issolvi l-problemi

Jekk tiltaqa' ma' problemi bil-kamera tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin.

5. Speċifikazzjonijiet

6. Garanzija u Appoġġ

6.1 Informazzjoni dwar Garanzija

Your Sony Cyber-shot DSC-HX5V camera is covered by a limited warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details. Keep your proof of purchase for warranty claims.

6.2 Appoġġ għall-Klijent

For technical assistance, troubleshooting not covered in this manual, or service inquiries, please contact Sony customer support. Visit the official Sony websit għal informazzjoni ta' kuntatt, FAQs, u riżorsi addizzjonali.

Ir-riżorsi online jistgħu jinkludu:

• Appoġġ Sony Websit
• Sony Official Websit
