msi TPM 2.0 Trusted Platform Module
About Trusted Platform Module (TPM)
Trusted Platform Module (TPM) is a security technology that uses cryptography to store essential and critical information on PCs. TPM can protect your important data from malware or malicious attack by generating and validating the encryption keys.

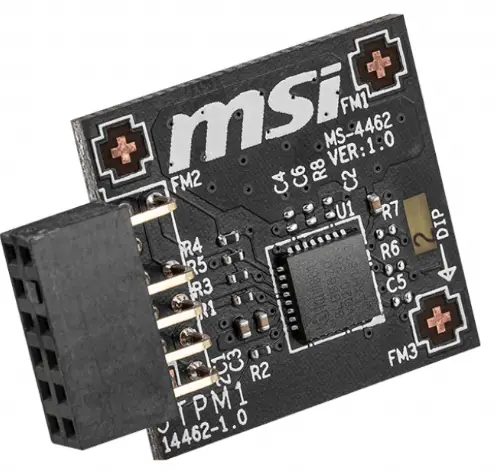

Overview of TPM 2.0 card
Specifications
| Chipset | SLB 9672 VU 2.0 FW 15.22 |
| Interface | SPI |
| Form Factor | 0.5079 in. x 0.8469 in. (12.90 x 21.51 mm) |
| OS | *Supports Windows® 11, Windows® 10 |
Supported motherboards
| Intel® | AMD |
| Intel® 400 series | AMD X570 series (SPI) |
| Intel® 500 series | AMD B550 series |
| Intel® 600 series | AMD A520 series |
| Intel® 700 series | AMD X670 series |
| Intel® W790 series | AMD B650 series |
Installing TPM 2.0 card onto the Motherboard
Insert TPM 2.0 card to the TPM pin header on your motherboard.
| Pin | Signal Name | Pin | Signal Name |
| 1 | SPI Power | 2 | SPI Chip Select |
| 3 | Master In Slave Out (SPI Data) | 4 | Master Out Slave In (SPI Data) |
| 5 | Reserved | 6 | SPI Clock |
| 7 | Ground | 8 | SPI Reset |
| 9 | Reserved | 10 | No Pin |
| 11 | Reserved | 12 | Interrupt Request |
Enabling the TPM via the BIOS For AMD platforms
- Press to enter the BIOS Setup program at the system startup.
- Press to enter the Advanced Mode.
- Go to Settings > Security > Trusted Computing.
- Set Security Device Support to [Enable].
- Set AMD fTPM switch to [AMD CPU fTPM Disabled]
- Set Device Select to [TPM 2.0]
For Intel® platforms
- Press to enter the BIOS Setup program at the system startup.
- Press to enter the Advanced Mode.
- Go to Settings > Security > Trusted Computing.
- Set Security Device Support to [Enable].
- Set TPM Device Selection to [dTPM].
Clearing TPM from the BIOS
- Press to enter the BIOS Setup program at the system startup.
- Press to enter the Advanced Mode.
- Go to Settings > Security > Trusted Computing.
- Set Pending operation to [TPM Clear].
Clearing TPM from OS
- Type tpm.msc in the search box next to the Start icon .
- Click tpm.msc to enter TPM management.
- Click Clear TPM… under Actions
- Click Restart when a window pops up
